Tight tolerance machining and close tolerance machining are often used interchangeably in manufacturing conversations. Both refer to producing parts with controlled dimensional variation, reliable fit, and repeatable performance. However, they do not always mean exactly the same thing in engineering, sourcing, quality control, or production planning.
For global buyers of custom precision parts, the most important question is not whether a supplier describes a requirement as "tight" or "close." The real issue is whether the part drawing clearly defines the acceptable dimensional range, geometric requirements, material condition, surface finish, and inspection method.
In practical manufacturing, close tolerance machining usually means a part requires more control than general production work. Tight tolerance machining often suggests a more demanding level of accuracy, greater production risk, more advanced inspection, and higher manufacturing cost.
Neither term replaces an engineering drawing. A successful project depends on turning functional requirements into measurable specifications before machining, mold making, or sheet metal fabrication begins.
A tolerance is the acceptable amount of variation from a target dimension. It recognizes that no manufacturing process can create every component at exactly the same theoretical size every time.
For example, a shaft dimension of 10.00 mm ±0.01 mm means the finished shaft must measure between 9.99 mm and 10.01 mm. A part that measures 9.98 mm or 10.02 mm would fall outside the required range.
The goal of machining is not to eliminate all variation. The goal is to control variation so that the part performs correctly in its final application.

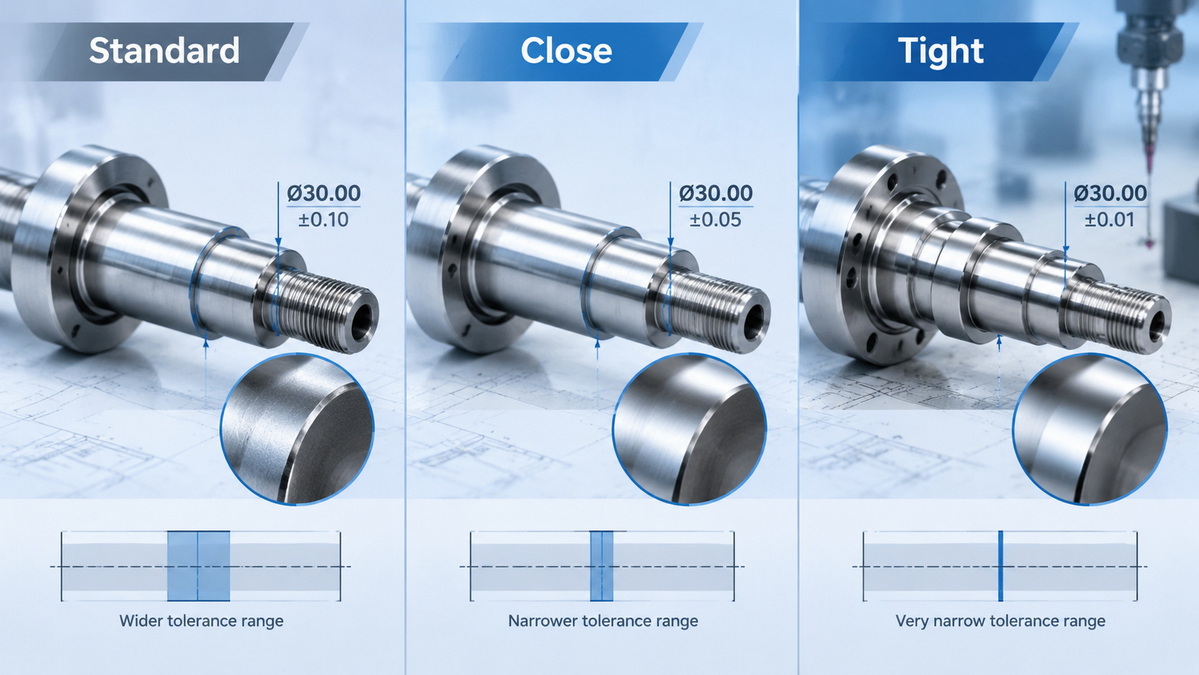

| Term | Typical Practical Meaning | Important Note |
|---|---|---|
| Standard tolerance machining | Normal dimensional control achieved through conventional machining or fabrication processes | The achievable range depends on material, geometry, part size, and manufacturing method |
| Close tolerance machining | More accurate than standard production work; often used for parts requiring dependable fit and assembly | There is no single universal numerical definition |
| Tight tolerance machining | Highly demanding precision work requiring greater process control and inspection | The actual drawing requirement is more important than the phrase itself |
| Ultra-precision machining | Specialized work involving extremely fine tolerances, surface finishes, or geometric accuracy | May require grinding, honing, lapping, precision turning, or controlled production conditions |
In daily sourcing conversations, a buyer may use "close tolerance" to describe a part that needs better-than-normal dimensional control. The phrase "tight tolerance" usually indicates a more critical requirement that can affect product performance, assembly, sealing, movement, alignment, or long-term reliability.
The wording can be useful during an early discussion, but it is not sufficient for final manufacturing approval. The part drawing, CAD model, dimensional callouts, and inspection criteria must define exactly what is acceptable.
The difference between tight tolerance machining and close tolerance machining is usually related to the degree of precision, process difficulty, inspection effort, and quality risk.
A close tolerance is often narrower than a manufacturer's normal general tolerance. A tight tolerance usually pushes further toward the capability limit of the selected process.
For example, a CNC-machined aluminum bracket may have general dimensions that are easy to produce. However, the bearing bore, locating holes, sealing surface, or mating face may need a much more controlled tolerance.
A feature becomes significantly more difficult to manufacture when several precision requirements appear at the same time.
These requirements can include:
- Narrow dimensional limits
- Small-diameter holes
- Deep cavities or long-reach tool paths
- Thin walls
- Strict flatness
- Precise perpendicularity
- High concentricity requirements
- Low surface roughness requirements
- Complex freeform geometry
- Hard-to-machine materials
- High-volume repeatability needs
A tolerance of ±0.01 mm may be manageable for a short, accessible diameter on a stable material. The same tolerance can become difficult when applied to a deep bore, thin-walled part, long shaft, hardened alloy, or complex multi-axis component.
This is why tolerance should never be evaluated as an isolated number. Part geometry, material, machining sequence, and functional purpose all affect manufacturability.
Close tolerance machining is often used where good assembly fit is required. Tight tolerance machining is usually applied where even a small deviation could cause a functional issue.
| Application | Why Precision Matters | Common Controlled Features |
|---|---|---|
| Bearing housing | Prevents excessive play, misalignment, vibration, and premature wear | Bore diameter, roundness, concentricity |
| Hydraulic manifold | Supports reliable fluid routing and sealing | Port location, thread depth, sealing-face flatness |
| Automotive transmission part | Maintains shaft alignment and gear engagement | Bore location, runout, center distance |
| Medical device component | Supports fit, movement, safety, and repeatable operation | Fine dimensions, surface condition, burr control |
| Aerospace fixture | Ensures stable and repeatable assembly | Position, profile, flatness, datum relationships |
| Injection mold insert | Improves parting-line quality and reduces flash risk | Insert fit, cavity dimensions, shutoff surfaces |
For example, a decorative exterior edge on a product housing may not need extremely tight control. In contrast, the bore that holds a bearing, the groove that holds an O-ring, or the mounting holes that connect to another precision component may require much more careful machining.
The correct tolerance should protect the functional requirement without adding unnecessary cost to non-critical features.
Close tolerance machining can often be achieved through stable CNC equipment, accurate machine setup, proven tooling, and routine inspection. Tight tolerance machining usually requires more detailed process planning.
Common methods include:
- Dedicated fixtures to reduce movement and re-clamping variation
- Soft jaws or custom workholding for repeatable positioning
- Datum-based machining sequences to maintain consistent reference surfaces
- In-process probing to inspect key features during machining
- Tool wear monitoring to prevent gradual dimensional drift
- Offset compensation to correct dimensions during production
- Multiple machining passes for roughing, semi-finishing, and finishing
- Temperature control to reduce thermal expansion effects
- Stress-relief planning for materials that may distort after machining
- Secondary finishing operations such as grinding, honing, lapping, or EDM
- First article inspection before full production
- 100% critical-dimension inspection when necessary
The tighter the tolerance, the more important it becomes to control every source of variation.

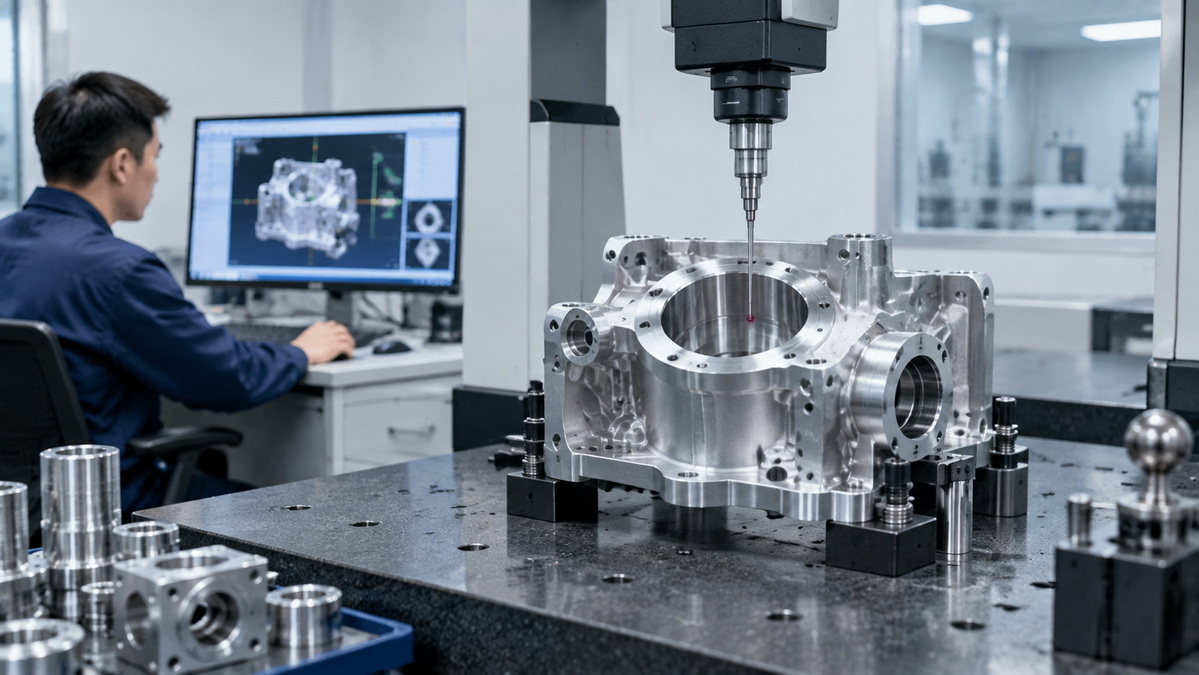

Precision requirements cannot be verified by visual inspection alone. The required measurement method depends on the tolerance level, part geometry, feature type, and customer documentation requirements.
Common tools used in precision manufacturing include:
- Digital calipers for general dimensions
- Outside and inside micrometers
- Height gauges and granite surface plates
- Pin gauges and plug gauges
- Thread gauges
- Bore gauges
- Surface roughness testers
- Optical comparators
- Vision measurement systems
- Coordinate measuring machines
- Air gauges for repeatable bore inspection
A standard machining project may only need a routine dimensional check. A tight-tolerance project may require detailed dimensional reports, first article inspection records, coordinate measuring machine reports, material certificates, surface treatment records, and lot traceability.
A buyer may request "tight tolerance CNC machining," but that phrase alone does not tell a manufacturer what must be controlled, how the part should be inspected, or whether the requirement is economically practical.
A complete drawing should identify the features that are critical to the finished product.
A well-prepared RFQ package should include the following information:
1. A 2D engineering drawing
Include dimensions, tolerance limits, units, threads, radii, notes, revision number, and critical features.
2. A 3D CAD model
STEP, IGES, Parasolid, or another agreed file format helps the manufacturer evaluate tool access, wall thickness, geometry, and workholding needs.
3. Geometric tolerances where needed
Use clear requirements for position, flatness, perpendicularity, parallelism, profile, concentricity, runout, or other functional conditions.
4. Material specification
Identify the exact material grade, temper, hardness, or certification needs. "Aluminum" or "stainless steel" may not provide enough detail for a critical component.
5. Surface-finish requirements
Specify surface roughness values when finish affects sealing, movement, appearance, coating adhesion, wear resistance, or friction.
6. Production quantity
Prototype, low-volume, and mass-production projects may need different process plans, fixtures, inspection methods, and cost structures.
7. Inspection requirements
Clarify whether first article reports, CMM reports, material certificates, hardness reports, coating certificates, or 100% inspection are required.
8. Mating-part information
When practical, explain how the component interacts with bearings, seals, shafts, gears, fasteners, housings, or other parts.
Consider a machined mounting plate with four holes.
A drawing may state that each hole is 8.00 mm ±0.01 mm. This controls the hole diameter. However, it does not fully control where each hole sits relative to the others.
Each hole could be the correct size but still be slightly misplaced. If the mating component uses fixed bolt positions, the assembly may fail.
A more complete drawing may identify:
- A primary mounting face as Datum A
- One side edge as Datum B
- A second edge as Datum C
- A positional tolerance for each hole relative to those datums
This approach controls both hole size and hole location.
A dimension can be accurate while the part is still functionally wrong. That is why feature location, orientation, flatness, and reference surfaces often matter as much as size tolerance.
Tighter tolerances almost always increase manufacturing cost, but the increase is not always gradual.
A part with a general tolerance may be produced efficiently with conventional machining. A tighter requirement may need an additional finishing pass. A highly demanding feature may require custom fixtures, specialized inspection, grinding, EDM, or a different manufacturing sequence altogether.
| Cost Driver | Why It Increases Cost |
|---|---|
| Additional machining passes | Roughing, semi-finishing, and final finishing increase cycle time |
| Slower cutting conditions | Lower feeds and speeds can improve control but reduce production output |
| Precision fixtures | Custom workholding improves repeatability but adds engineering and setup cost |
| Specialized operations | Grinding, honing, lapping, EDM, or precision turning may be required |
| Enhanced inspection | CMM programming, first article inspection, and full reports require time and trained personnel |
| Higher scrap risk | A small production error can make a nearly finished part unusable |
| Difficult materials | Titanium, hardened steel, Inconel, and certain stainless steels can be more difficult to control |
| Low production quantity | Setup and inspection costs are spread across fewer components |
| Secondary processes | Plating, anodizing, heat treatment, welding, and coating can change final dimensions |
The most effective strategy is to use demanding tolerances only on the features that truly affect function.
For example, a bearing seat may require a precise fit. A cosmetic outside edge on the same housing may not. Applying the same strict tolerance to both features can increase cost without improving assembly or performance.
Before releasing a production drawing, consider these questions:
- Does this feature affect fit, movement, sealing, alignment, safety, or reliability?
- Can a geometric tolerance communicate the functional requirement more clearly?
- Is the selected tolerance realistic for the material and part shape?
- Can the design use standard drill sizes, threads, radii, and tooling?
- Are there thin walls, deep pockets, narrow slots, or inaccessible internal corners?
- Will heat treatment, coating, plating, welding, or assembly affect dimensions?
- Which dimensions require documented inspection?
- Can non-critical dimensions use a broader general tolerance?
A design review before production can help prevent avoidable cost, lead-time delays, and quality disputes.
Precision control varies by process. CNC machining, mold manufacturing, and sheet metal fabrication each involve different tolerance risks and production considerations.
CNC milling and turning are widely used for custom metal and plastic parts requiring controlled dimensions and repeatable geometry.
Typical applications include:
- Precision shafts and pins
- Bearing housings
- Valve bodies
- Hydraulic components
- Automation equipment parts
- Automotive components
- Electronics enclosures
- Heat-sink interfaces
- Medical equipment components
- Industrial fixtures and jigs
- Aerospace structural parts
Key challenges include tool deflection, thermal growth, workholding distortion, burr formation, material stress release, vibration, tool wear, and inconsistent setup datums.
For highly demanding features, the process may include rough machining, stress relief, semi-finishing, finishing, inspection, and secondary operations.
Injection molds require precision because a single mold can produce a large number of plastic parts. Any dimensional issue in a cavity, core, insert, or shutoff surface may be repeated across the entire production run.
Critical mold features may include:
- Core and cavity dimensions
- Parting-line surfaces
- Shutoff surfaces
- Slide and lifter alignment
- Ejector pin positions
- Cooling-channel locations
- Mold insert fit
- Gate geometry
- Venting features
- Alignment components
However, mold precision alone does not guarantee final molded-part precision. Plastic shrinkage, resin type, wall thickness, cooling rate, mold temperature, injection pressure, packing pressure, and post-molding deformation can all influence final dimensions.
A successful project requires both accurate mold manufacturing and stable molding-process control.
Sheet metal fabrication may include laser cutting, bending, stamping, punching, welding, deburring, powder coating, and assembly.
Tolerance performance depends on:
- Material thickness
- Bend radius
- Material grade
- Grain direction
- Tool wear
- Springback
- Hole-to-bend distance
- Welding distortion
- Coating thickness
- Assembly sequence
An extremely tight tolerance on a bent flange may not be practical without specialized tooling or secondary machining. The drawing should clearly identify which dimensions matter after bending and which features can accept normal process variation.
A reliable manufacturing partner should not simply promise that a part can be made to "tight tolerance." The supplier should explain how the tolerance will be achieved, verified, documented, and repeated across production batches.
- What standard machining tolerances can the factory achieve for CNC milling and turning?
- Which dimensions on the drawing are considered high-risk?
- Which features require special fixtures, custom jaws, or secondary operations?
- How will the part be located during machining and inspection?
- What inspection equipment will be used for critical dimensions?
- Can the supplier provide first article reports and CMM reports?
- How will tool wear and dimensional drift be controlled during production?
- Does the part require grinding, honing, lapping, EDM, or another finishing process?
- How will material certification and traceability be managed?
- What tolerance changes could reduce cost without affecting product function?
A capable manufacturing partner should provide more than a simple "yes" to a tolerance request.
A useful engineering review should identify:
- Critical dimensions and potential production risks
- Datum strategy for machining and inspection
- Tool access concerns
- Workholding requirements
- Material-related distortion risks
- Surface-finish concerns
- Need for secondary machining or finishing
- Recommended inspection methods
- Potential design-for-manufacturing improvements
- Effects of heat treatment, coating, plating, or welding
This type of review helps buyers make informed decisions before committing to tooling, prototypes, or production orders.
Tight tolerance machining and close tolerance machining both focus on producing parts with controlled variation and dependable performance. The difference is usually a matter of degree.
Close tolerance machining typically describes work that requires greater accuracy than standard production. Tight tolerance machining usually refers to more demanding requirements that need deeper process control, advanced inspection, skilled setup, and higher manufacturing investment.
The most important factor is not the label used in a conversation. It is the complete technical definition of the part.
A clear drawing, accurate CAD model, suitable material specification, well-defined critical dimensions, practical geometric controls, and appropriate inspection requirements help ensure that the final part performs as intended.
For custom precision parts machining, mold manufacturing, and sheet metal fabrication, the best results come from early engineering communication and a manufacturing plan that balances function, quality, lead time, and cost.
U-Need supports global brands, distributors, and manufacturers with custom precision parts machining, injection mold manufacturing, stamping dies, cold-forging dies, laser cutting, bending, stamping, and sheet metal fabrication. A complete technical package enables a more accurate review of manufacturability, tolerance risks, production methods, and inspection needs.
There is no single number that applies to every machining project. A tolerance may be considered tight when it is narrower than the normal capability of a standard machining process and requires additional control, specialized workholding, slower cutting conditions, enhanced inspection, or secondary finishing operations.
The terms are closely related but not identical. Precision machining is a broad description for manufacturing accurate parts. Close tolerance machining specifically emphasizes a narrow allowable variation for one or more dimensions or geometric features.
Tighter tolerances can require more machine time, slower cutting conditions, specialized fixtures, additional setup work, higher-level inspection, more skilled operators, and a higher risk of scrap. These factors increase the overall production cost.
Geometric tolerances should be used when a part feature must control more than size. They are useful for defining location, orientation, flatness, profile, runout, and relationships between features. This is especially important when a part must align accurately with another component during assembly.
Yes, but the final precision of an injection molded part depends on the mold, resin material, shrinkage rate, wall thickness, cooling conditions, injection settings, packing pressure, and post-molding behavior. Tight molded-part requirements require coordinated mold design and process control.
Yes, especially for laser-cut or machined features. However, bent and welded features may be affected by springback, material thickness variation, bend radius, welding distortion, and coating thickness. The drawing should identify the dimensions that are most critical after forming.
A complete RFQ should include a 2D drawing, 3D CAD model, material grade, surface-finish requirements, tolerance requirements, quantity, revision level, critical dimensions, geometric controls, inspection expectations, and any material, coating, heat treatment, or traceability requirements.
Review every tight feature and confirm that it affects function, assembly, safety, sealing, motion, or product reliability. Apply strict controls only to critical features. Use broader general tolerances for non-critical dimensions whenever possible.
1. [ASME Y14.5 — Dimensioning and Tolerancing] — Official overview of geometric dimensioning and tolerancing practices for engineering drawings and product definitions.
2. [ISO 2768-1:1989 — General Tolerances, Part 1] — General tolerances for linear and angular dimensions where individual tolerance indications are not provided.
3. [ISO 2768 — Geometrical Product Specifications] — Information on general tolerance classes used for workpieces produced by metal removal and sheet metal forming.
4. [NIST Machining Research] — Information on machining research, metrology, process monitoring, predictive manufacturing, and quality improvement.
5. [ASME GD&T Professional Certification]-geometric-dimensioning-and-tolerancing-professional-certification) — Background on the practical application of geometric dimensioning and tolerancing principles.
6. [CNC Machining Tolerances: Standards and Charts] — Supplementary guidance on tolerance terminology, dimensional control, geometric tolerancing, and inspection considerations.
