CNC water jet cutting has become one of the most versatile and precise methods for processing metals, plastics, composites, stone, glass, and more in modern manufacturing. It offers cold cutting, tight tolerances, and high efficiency that OEMs and industrial buyers increasingly rely on for complex parts and small batch customization.

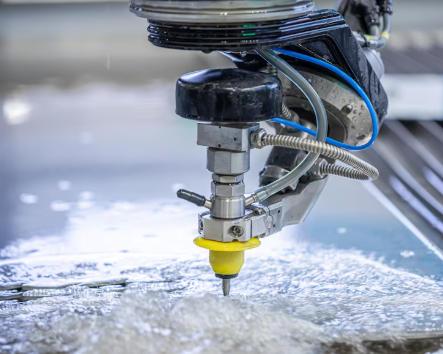

CNC water jet cutting is a subtractive machining process that uses an ultra high pressure jet of water, often mixed with abrasive particles, to cut a wide range of materials under computer numerical control. The cutting path is pre programmed in CAD or CAM software and executed automatically by the CNC system for consistent and repeatable results.
The core components of a typical CNC water jet system include:
- High pressure pump, either intensifier or direct drive
- Cutting head and nozzle assembly
- Abrasive delivery and metering system
- CNC motion system, usually gantry or multi axis
- Worktable and catcher tank
- Control software and human machine interface
Because the cutting process is cold, there is no heat affected zone, which helps preserve material properties and surface integrity across metals, plastics, and composites.
The operation of a CNC water jet cutter follows a clear sequence from digital design to finished part.
1. Digital design and nesting
Part geometry is created in CAD and imported into CAM software, where cutting paths, lead ins, and nesting layouts are generated to optimize material usage.
2. CNC programming
Toolpaths are converted into a CNC program that controls machine axes, cutting speed, pierce points, and standoff height.
3. Pressurization
The high pressure pump raises the water pressure to extremely high levels before sending it to the cutting head through high pressure tubing.
4. Jet formation
Water passes through a small orifice to form a concentrated, high velocity jet. When abrasives are used, they are mixed with the water stream just before the nozzle.
5. Material erosion and cutting
The high velocity jet erodes the material along the programmed path, creating a narrow kerf typically between 0.1 and 0.3 millimeters, depending on nozzle size and abrasive.
6. Process monitoring
The CNC system controls feed rate, acceleration, and path accuracy to maintain dimensional tolerances and consistent cut quality.
Compared with many traditional machining or thermal cutting processes, a modern CNC water jet delivers strong advantages in speed, stability, and accuracy.
- Non contact cutting: No physical tool touches the workpiece, so there is no tool wear that gradually degrades accuracy.
- High cutting speeds: For many materials and thicknesses, abrasive jets can cut faster than conventional mechanical machining while maintaining acceptable edge quality.
- Stable dimensional accuracy: The absence of thermal distortion and the narrow kerf help maintain tight tolerances on complex parts.
- Multi axis capability: Advanced machines support multi axis cutting for bevels, chamfers, and 3D contours while preserving high precision.
For OEM buyers, this translates into shorter lead times, predictable quality, and reduced rework for a wide spectrum of industrial components.
CNC water jet cutting has become a preferred process in many industries because it offers a balanced combination of flexibility, quality, and cost effectiveness.
Water jet cutting is a cold process, generating essentially no heat in the cutting zone. This avoids:
- Heat affected zones in metals
- Warping or distortion of thin sections
- Micro cracking or hardness changes
- Discoloration on stainless steel, aluminum, and other sensitive surfaces
This feature is especially important for heat sensitive plastics, certain alloys, and parts that must retain their original mechanical properties.
Because the jet removes material via high energy erosion rather than direct mechanical force, the workpiece experiences minimal mechanical stress. This helps reduce:
- Bending or deformation of thin sheet materials
- Chipping or cracking in brittle materials, such as glass and ceramics
- Residual stress that could affect long term performance
Typical kerf widths of approximately 0.1 to 0.3 millimeters help maximize usable material on each sheet or plate. When combined with efficient nesting strategies, this can significantly reduce raw material consumption for high value metals and advanced plastics.
CNC water jet cutting supports a wide range of materials and thicknesses in a single process, including:
- Metals such as steel, stainless steel, aluminum, copper, brass, and titanium
- Non metals including plastics, rubber, silicone, foam, and composites
- Hard and brittle materials like glass, ceramics, and stone
This broad compatibility makes water jet cutting attractive for OEMs that need different material families manufactured by the same partner.
The following table summarizes how CNC water jets compare with several other common cutting technologies used in industrial production.
Cutting method Heat affected zone Typical kerf width Material range Edge finish quality Typical applications
CNC water jet None, cold cut Very narrow, about 0.1 to 0.3 mm Metals, plastics, glass, stone, composites Smooth, minimal finishing Multi material, high value precision parts
Laser cutting Localized Very narrow Mainly metals, some plastics Excellent on thin metals High speed sheet metal and thin plate cutting
Plasma cutting Significant Relatively wide Medium and thick metals Rough, often needs finishing Heavy steel fabrication and structural components
Mechanical machining None or very low Tool dependent Metals, plastics, engineered materials Excellent Tight tolerance features, holes, and complex details
For many precision components where cold cutting and multi material capability are important, CNC water jet technology provides a strong balance between quality, flexibility, and operating cost.
CNC water jet cutting is widely used to produce both prototype and production parts across multiple sectors.
Common application areas include:
- Automotive and transportation: brackets, body panels, interior panels, insulation parts, gaskets, and trim components
- Aerospace: composite panels, titanium components, structural brackets, and interior elements
- Industrial machinery: mounting plates, guards, covers, precision plates, and machine frames
- Architecture and decoration: decorative metal panels, stone inlays, custom tiles, and glass panels
- Electronics and appliances: enclosures, insulating materials, plastic housings, and interface panels
Because the process does not generate heat or burrs, many parts require only minimal secondary finishing, which shortens total production time.
To get consistent and efficient results from CNC water jet cutting, engineers and buyers should pay attention to both process parameters and part design.
1. Select appropriate abrasive
Match abrasive type and mesh size to material hardness and thickness. Coarser abrasives usually cut faster but can produce a rougher edge, while finer abrasives enhance finish at lower cutting speeds.
2. Balance cutting speed and quality
Higher cutting speeds improve throughput but can reduce edge quality and dimensional accuracy. Optimal speed needs to reflect material type, thickness, and tolerance requirements for each project.
3. Use suitable pierce strategies
For brittle materials such as glass and stone, use softer pierce modes or pierce in scrap areas to prevent cracks at the starting point. For metals, choose pierce modes that reduce splashback and protect the cutting head.
4. Design parts for efficient nesting
Group similar parts together and allow enough spacing for kerf and lead in or lead out moves. Good nesting reduces scrap, especially on expensive metals and composite sheets.
5. Specify realistic tolerances
Extremely tight tolerances increase cutting time and cost. Define tolerances according to real functional needs so that the process can be optimized for both quality and efficiency.
CNC water jet technology continues to develop, driven by demands for higher productivity, better quality, and more intelligent manufacturing.
Pump design, nozzle geometry, and abrasive delivery systems are being refined to achieve higher cutting speeds without sacrificing accuracy. At the same time, improvements in motion control, servo drives, and CNC algorithms help maintain tight tolerances on complex geometries and small features.
Water jet systems are increasingly integrated with robots and automated handling equipment for loading, unloading, and part sorting. Connectivity, real time monitoring, and predictive maintenance functions make it easier to keep machines running with minimal downtime and stable performance.
Many manufacturers are focusing on reducing water consumption and abrasive waste. Closed loop filtration systems, improved sludge management, and recycling solutions help lower the environmental footprint while maintaining cutting capability. There is also growing interest in more environmentally friendly abrasive materials.
CNC water jets are used more frequently as a post processing step for 3D printed parts. Typical tasks include removing support structures, trimming surfaces, and achieving precise final dimensions, all without thermal impact that could deform or weaken additive parts.
For overseas brand owners, wholesalers, and manufacturers, choosing an OEM oriented supplier is essential for turning design concepts into stable, repeatable parts. A capable partner combines strong technical know how in CNC water jet cutting with experience in plastics, silicone, metal stamping, and precision machining.
When you evaluate a potential supplier, consider factors such as:
- Ability to handle multi material projects, including metals, plastics, rubber, and silicone
- In house engineering for design for manufacturability and cost optimization
- Quality management system, inspection equipment, and traceability
- Experience with export projects, packaging, and international standards
- Flexible minimum order quantities and reliable lead times for OEM orders
A supplier that integrates CNC water jet cutting with CNC machining, plastic molding, silicone molding, and metal stamping can support more complete assemblies, reduce logistics steps, and enhance overall supply chain stability for global OEM customers.
If you are planning a new product launch, engineering change, or cost reduction program that requires high precision, multi material parts, this is the right time to evaluate CNC water jet cutting for your components. Share your drawings, material specifications, annual or batch quantities, and special quality requirements with our OEM oriented team so we can review feasibility, suggest process optimization, and provide a detailed quotation tailored to your project. Contact us now to discuss your CNC water jet cutting needs and explore how our integrated capabilities in precision machining, plastic products, silicone products, and metal stamping can support your brand and production goals.
Contact us to get more information!
CNC water jet cutting is suitable for a wide range of materials, including steel, stainless steel, aluminum, copper, brass, titanium, many engineering plastics, rubber, silicone, composites, glass, ceramics, and stone. This versatility makes it ideal for mixed material OEM projects where different parts must be produced by the same partner.
In most cases, water jet cutting does not change the material properties of metals or plastics, because it is a cold cutting process without a heat affected zone. Mechanical properties such as hardness, strength, and elongation remain close to their original values after cutting.
Modern CNC water jet systems can achieve tight tolerances that satisfy the needs of many precision industrial components, especially for flat parts and profiles. Accuracy depends on factors such as machine condition, material type, thickness, and cutting parameters, so it is important to discuss specific tolerance targets during the quotation and engineering review stage.
CNC water jet cutting is generally very suitable for low volume, prototype, and custom parts because it does not require hard tooling. Programming changes and setup adjustments can be done quickly, which helps control cost when designs change frequently or volumes are not yet stable.
Water jet cutting is often combined with processes such as CNC machining, plastic injection molding, silicone molding, and metal stamping to produce complete components and assemblies. For example, a metal plate cut by water jet can later be machined for threaded holes, or a plastic gasket can be water jet cut to precise shape after molding.
