Injection Mold Tooling Services ___

✅ Exceptional Precision Machining: Achieving tolerances as tight as 0.000039 inches.

✅ Extensive Material Selection and Processing Techniques: Over 100 superior materials and more than 200 processing techniques available.

✅ Rapid Response and Flexible Customization: Quick turnaround times paired with tailored solutions to meet specific client needs.

✅ Minimum Order Quantity: No minimum; we accept orders as small as one piece.

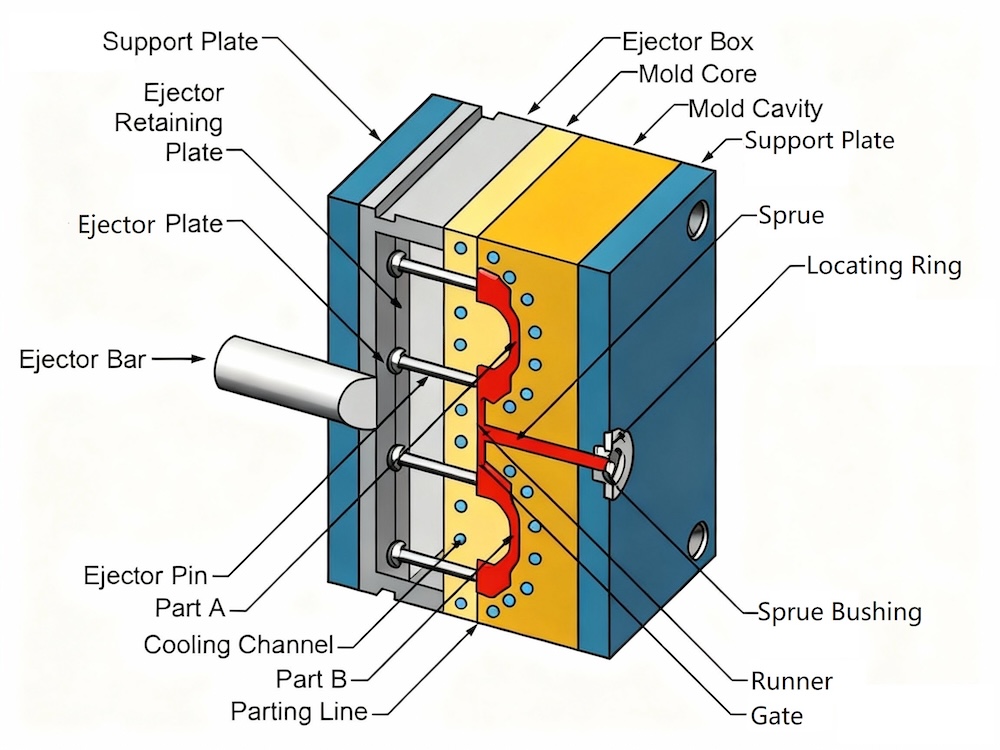

What is

Injection Mold Tooling?

Injection mold tooling refers to a series of components and a complete system of molds that allow molten materials to be precisely shaped and cooled, resulting in a distinct part design.
At U-Need, we specialize in machining custom mold tools to meet a wide range of specifications, ensuring top-notch quality and performance with tolerance as tight as ±0.001mm.

Get Quote

Main Components and

Systems of an Injection Mold _____

The main components of an injection mold include:

Mold Cavity and Core in Molding: The injection mold cavity and core are the primary components that define the shape and form of the plastic injection molded parts. The molten plastic material is injected into the cavity, while the core provides the internal features and shapes. These components are typically made from hardened tool steel to withstand the high pressures and temperatures involved in the injection molding process.

Sprue: The sprue is a channel through which the molten plastic material is introduced into the mold. It is connected to the injection unit of the molding machine and serves as the entry point for the material. The injection mold sprue is usually designed to allow for easy removal of the sprue and minimize waste material.

Runner Injection Mold: Runner is a channel that distribute the molten plastic material from the sprue to multiple cavities in the mold. It ensures a consistent flow of material to each cavity and helps maintain uniform filling. Runner is typically designed to minimize material waste and facilitate efficient molding.

Ejector Pins: Ejector pins are used to push the solidified part out of the mold once it has cooled and hardened. They are typically located on the side opposite the cavity and core and are activated when the mold opens. Ejector pins are designed to apply sufficient force to eject the part without causing damage.

Injection Mold Base: The mold base provides the foundation and support for all the injection mold components. It typically includes injection mold plates or injection mold frames with precision-machined surfaces to ensure proper alignment and assembly of the mold components. The mold base also houses the various systems, such as the cooling system, ejector system, and guide pins.

Injection Molding Gate: Gates are the openings through which the molten plastic enters the mold cavity from the runners. They control the flow of material and prevent premature solidification or excessive pressure buildup. There are different types of gates, including edge gates, sub-gates, and hot runner gates, each suitable for specific molding requirements.

Cooling System: The cooling system consists of channels or passages within the mold that allow for the circulation of cooling fluids, such as water or oil. The cooling system helps dissipate heat from the molten plastic and promotes solidification. Proper cooling is crucial to achieve the desired part quality and dimensional stability.

Venting System: Injection mold venting is essential to allow air and gases to escape from the mold cavity during the molding injection process. Venting helps prevent air traps, incomplete filling, and cosmetic defects on the molded part. Venting can be achieved through dedicated venting channels or venting pins strategically placed in the mold.

Materials for Injection Mold Tooling _____

We offer over 80 different materials to meet our clients' diverse tooling needs. Whether standard or specialized materials, we are equipped to fulfill even the most unique requirements. Our extensive selection ensures that we can provide the right solution for any application.
Main materials used for injection mold tooling:

Sample	Material Category	Example Grade	Key Characteristics	Typical Mold Components

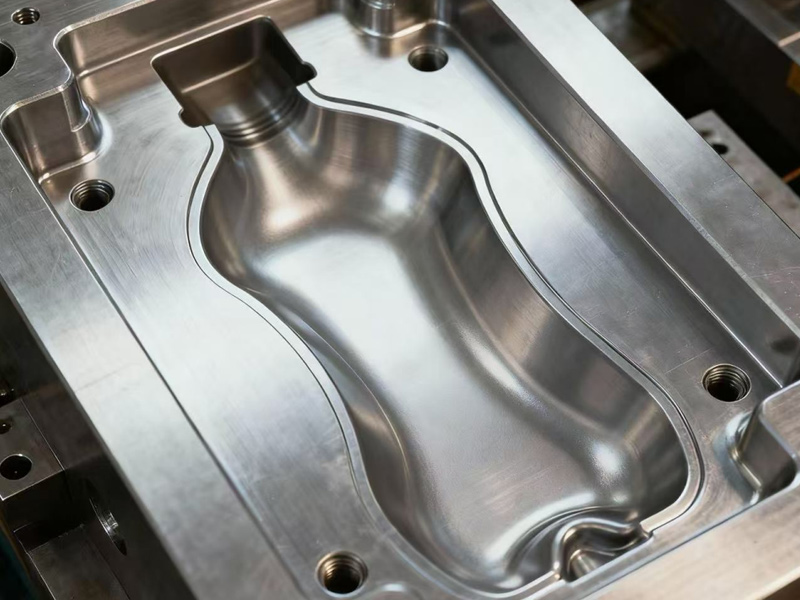

	Pre-Hardened Steel	P20 Tool Steel	Good machinability, cost-effective	Mold Base, Low/Medium Volume Mold Cavity and Core

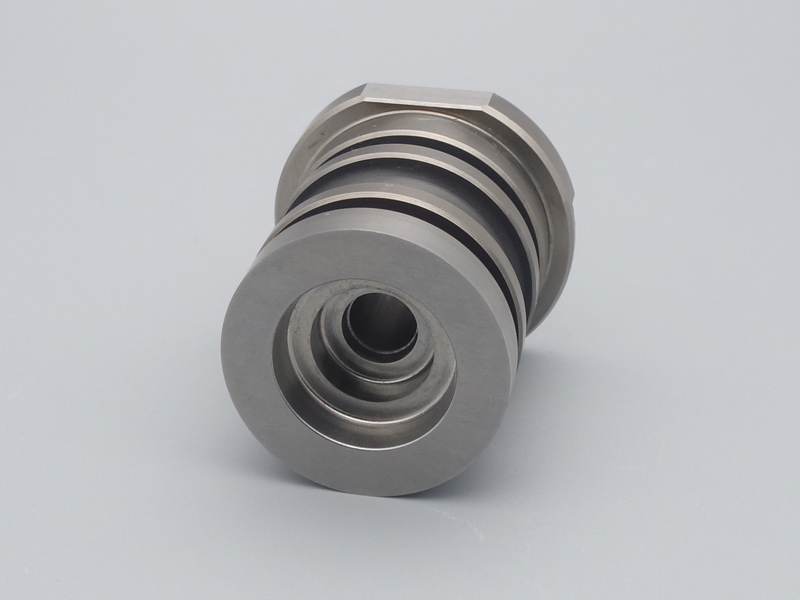

	Hardened Steel	H13 Tool Steel, SKD11	High wear resistance, toughness, long service life	High-Volume Mold Cavity and Core, Ejector Pin, Slider, Insert

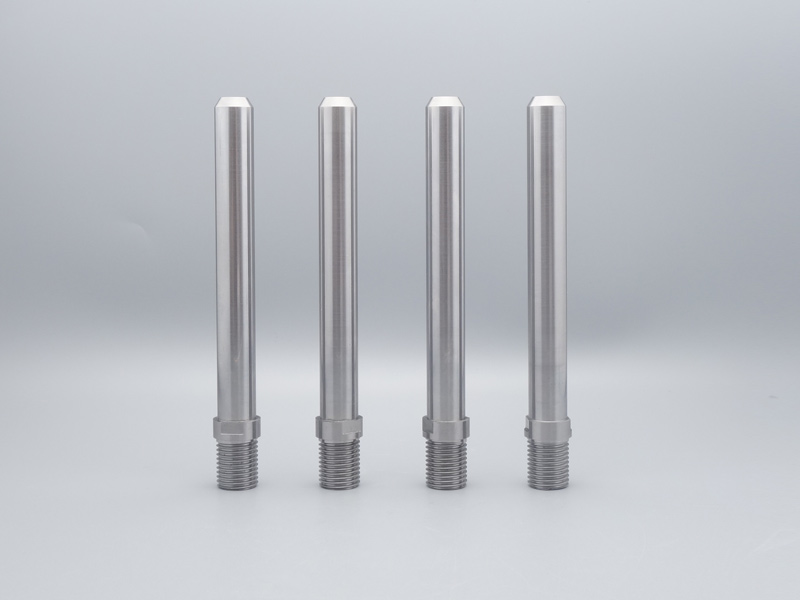

	Stainless Steel	420SS, S136	Corrosion-resistant, high polish	Mold Base, Mold Cavity and Core, Nozzle

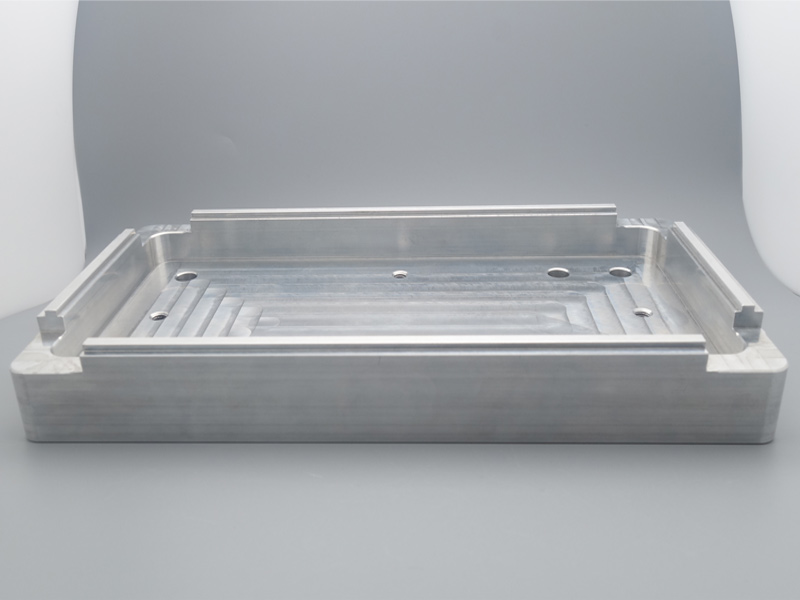

	Aluminum Alloys	AL6061, AL7075	Fast machining, high thermal conductivity	Mold Base, Cooling Insert

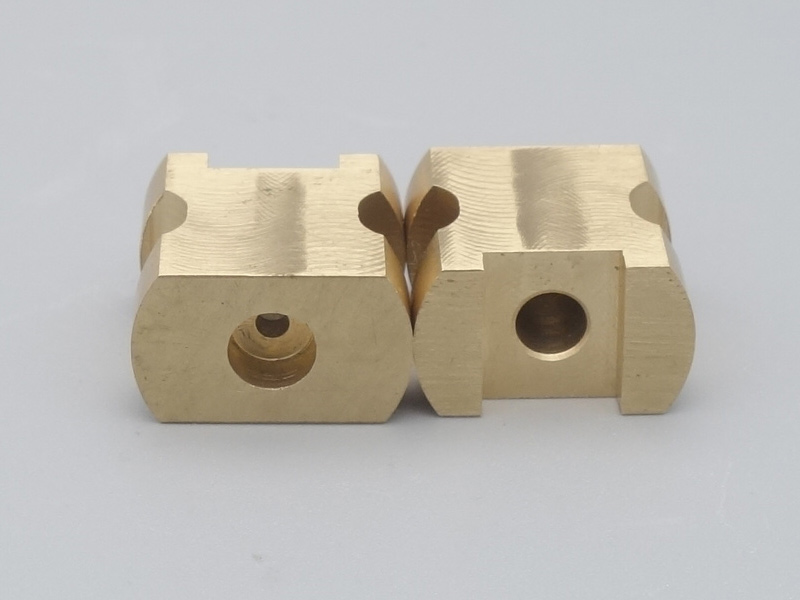

	Copper Alloys	BeCu (Beryllium Copper)	Exceptional thermal conductivity	Sprue, Runner System, Cooling Channel

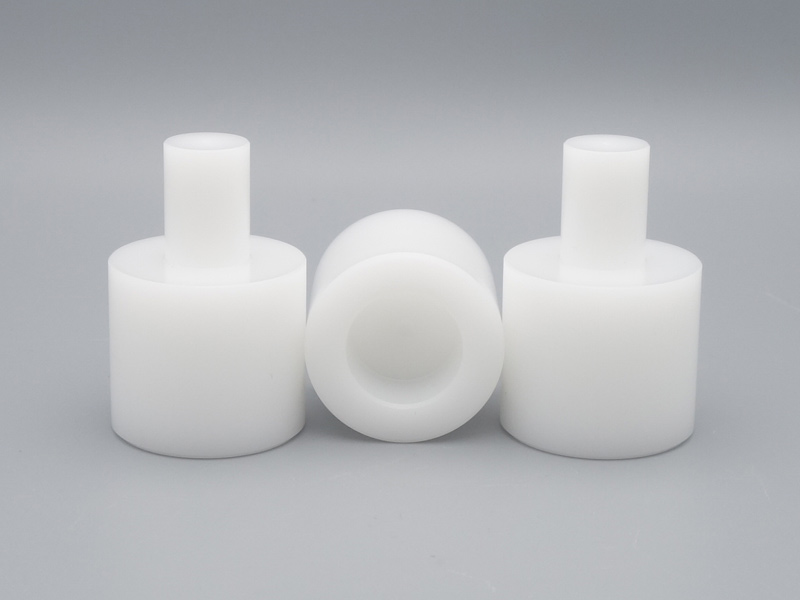

	Plastic	POM, Nylon	ease of machining and flexibility	Mold Base, Cooling Channel

Material selection is based on the specific properties and the requirements of the molded parts, ensuring optimal performance

and durability in the injection molding process.

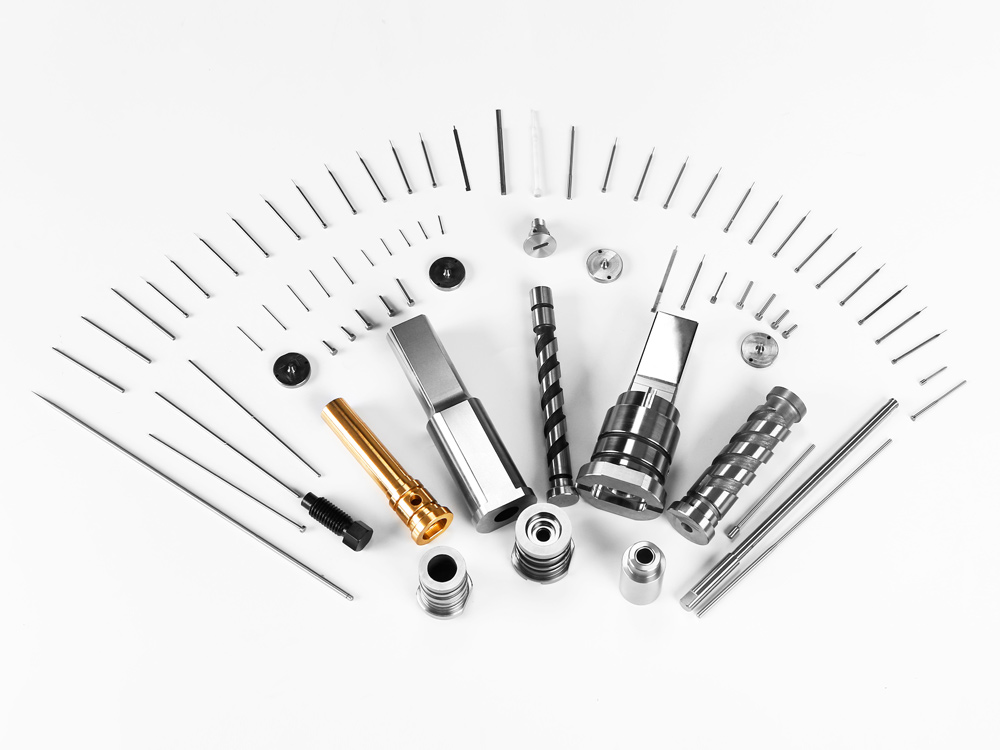

Partner with U-Need for Precision and

Expertise in Injection Mold Tooling _______

As a precision component expert with over 30 years of experience in injection mold tooling, U-Need prides ourselves on our exceptional expertise in this field. Our deep understanding of the intricacies involved in mold design and manufacturing allows us to deliver high-quality, reliable solutions that meet the specific needs of our clients.
We combine cutting-edge technology with skilled craftsmanship to ensure that every component we produce meets the highest standards of precision and performance. Our extensive experience enables us to tackle even the most complex projects with confidence, providing you with the peace of mind that your molds will perform flawlessly.
Partner with us and benefit from our commitment to excellence, innovation, and customer satisfaction. Let us help you bring your vision to life with precision-engineered tooling that drive your success.

Benefits of Partnering with U-Need _______

U-Need’s injection molding tooling provides substantial advantages throughout the production cycle, driven by precision engineering and advanced technology, resulting in a more reliable, efficient, and cost-competitive injection molding process for clients.

✅ Guaranteed Precision: Parts are produced with exceptional accuracy, consistently meeting strict specifications.
✅ Total Cost Efficiency: Achieve lower overall costs through optimized tooling design and streamlined manufacturing.
✅ Compressed Timelines: Accelerate your product’s time to market with rapid tooling development and efficient project execution.
✅ Superior Durability: Experience less downtime and longer tool life from molds constructed with premium materials.
✅ Design & Material Freedom: Explore complex parts using a diverse range of engineering plastics, supported by our versatile tooling.
✅ Effortless Scaling: Gain the flexibility to adjust production volumes seamlessly without compromise.
✅ Bespoke Solutions: Meet your unique requirements with fully customized tooling approaches.
✅ Future-Ready Processes: Enjoy continually enhanced product quality and process efficiency through leading-edge technology.
