Surface Finishes
We Offer__

Enhance the appearance and functionality of your components with top-notch surface finishing services, no matter the production method employed. We offer superior finishing solutions for metal, composite, and plastic materials, helping you realize your ideal prototype or part.

What is Metal Surface Treatment-Surface Finishing Process

Metal surface treatment or machining surface finish, is a process method of artificially forming a surface layer on the surface of the substrate material, which is different from the mechanical, physical, and chemical properties of the substrate. In a broad sense, Metal surface treatment includes pretreatment, electroplating, painting, chemical oxidation, thermal spraying, spraying surface, and many other physical and chemical process methods. Pretreatment includes sandblasting, polishing, mechanical grinding, cleaning, sweeping, deburring, degreasing, descaling, surface heat treatment, etc. The purpose of metal surface treatment is to meet the product’s corrosion resistance, wear resistance, decoration or other special functional requirements.

Start Your Project

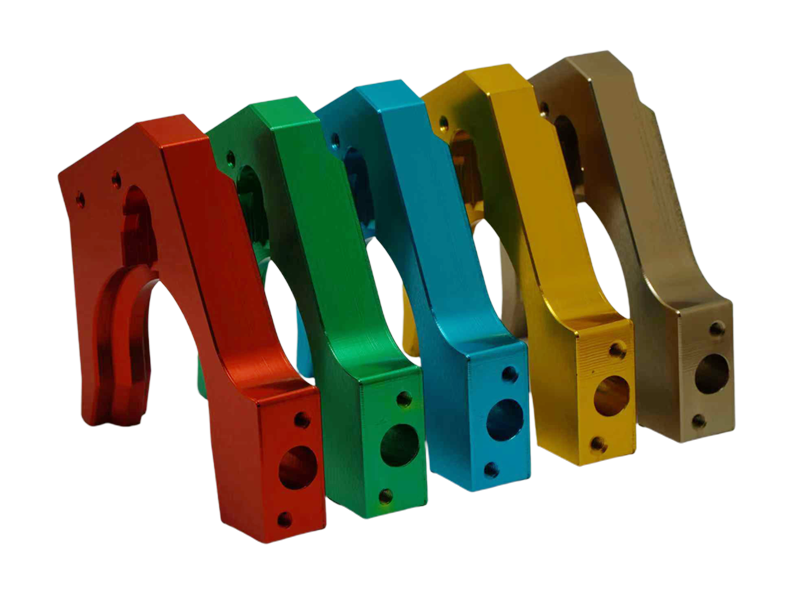

How to Improve Surface Finish In Machining

In the process of processing, transportation, storage, etc., the surface of the workpiece is often covered with oxide scale, rust molding sand, welding slag, dust, oil, and other dirt. If the coating can be firmly attached to the workpiece, the surface of the workpiece must be cleaned before painting. Otherwise, it will affect the bonding force and corrosion resistance between the coating and the metal. Even more, it also makes the matrix metal continue to corrosion even if there is coating protection. So it will cause the coating to peel off and affect the mechanical properties and service life of the workpiece. Therefore, the metal surface treatmentof the workpiece before painting is an important guarantee and measure to obtain a high-quality protective layer and prolong the service life of the product.

Start Your Project

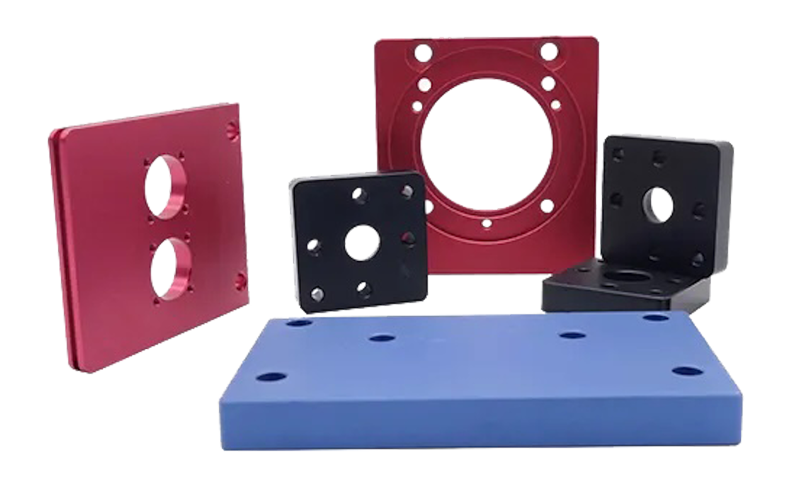

Benefits of Metal Surface Treatment

– Improve surface hardness
– Improve wear resistance
– Corrosion resistance
– Enhanced chemical resistance
– Good adhesion
– resize

Start Your Project

In terms of technology, metal surface treatment

can be classified as follows __________

1.Electrochemical method

This method uses electrode reaction to form a coating on the surface of the workpiece.

2. Chemical method

This method is no current action and uses chemical interaction to form a plating layer on the surface of the workpiece.

3.Hot working methods

The material is melted or thermally diffused under high-temperature conditions to form a coating on the surface of the workpiece.

4. Vacuum method

This method is no current action and uses chemical interaction to form a plating layer on the surface of the workpiece.

5.Other methods

There are Mainly mechanical, chemical,
electrochemical, physical methods.

All the methods of surface treatment can be

subdivided as follows_______

Electrochemical Method

1. Electroplate

In the electrolyte solution, the workpiece is the cathode,and the process of forming a coating on the surface under the action of external current is called electroplating. The coating may be metal, alloy,semiconductor, or containing various solid particles. e.g., Copper plating, Nickel plating.

2. Oxidation

In the electrolyte solution, the workpiece is the anode, and the process of forming an oxide film on the surface under the action of external current is called anodic oxidation. e.g., Anodizing of aluminum alloys.
Chemical Method

1. Chemical conversion coating treatment

In the electrolyte solution, the metal workpiece is in the absence of external current action. The chemical substance in the solution interacts with the workpiece to form a coating on its surface, which is called chemical conversion coating treatment. e.g., Bluing, phosphating treatment, passivation treatment and chromate treatment of metal surface.

2. Electroless plating

ln the electrolyte solution, the surface of the workpiece is catalytically treated without the action of external current. Due to the reduction of chemical substances in the solution, certain substances are deposited on the surface of the workpiece to form a plating process called electroless plating. e.g., Electroless nickel, electroless copper plating.
Hot Working Methods

1. Hot Dip Coating

The process in which a metal workpiece is placed in molten metal to form a coating on its surface is called hot dip cating. e.g., Hot dip galvanizing, hot aluminizing plating.

2. Thermal Spraying

The process of atomizing molten and spraying it on the surface of the workpiece to form a coating is called thermal spraying. e.g., Thermal zinc spray, thermal spray aluminum.

3. Hot Stamping Foil

The process of heating and pressing metal foil to cover the suface of the workpiece to form a coating layer is called hot stamping foil. e.g., Aluminum foil hot stamping.

4. Chemical Heat Treatment

The process of contacting and heating the workpiece with chemical substances and making a certain element enter the surface of the workpiece under high temperature is called chemical heat treatment. e.g., Nitriding process, carburizing process
5. Overlay Welding

By welding, the process of depositing molten metal on the surface of the workpiece to form a welding layer is called sufacing welding. e.g., Wear-resistant alloy weld ovwrlay
Vacuum Method

1. Physical Vapor Deposition(PVD)

Under vacuum conditions, the metal is vaporized into atoms or molecules or ionized into ions and directly deposited on the surface of the workpiece to form a coating. The process is called physical vapor deposition coating, and the deposition particle beam comes from non-chemical factors. e.g., Evaporative plating, Sputtering plating, Ion plating, TIN, TiCN plating, CrN, D-AC/TiNF, TiIN, D-AICrN, D-CR/CrAIN, D-AL/AITiN, D-AS/AISiN, D-AX/AIXiN, D-AO/AIFNM, D-ACX/AICiSi, D-DLC,DH-DLC.

2. Lon Implantation Process

The process of implanting different ions into the surface of a workpiece under high voltage to modify its surface is called ion implantation. e.g., Boron injection.

3. Chemical Vapor Depostition CVD Process

Uner low pressure ( sometimes also normal pressure), the process in which gaseous substances form solid deposition layers due to chemical reactions on the surface of the workpiece is called CVD coating. e.g., CVD Silicon Oxide, Silicon Nitride CVD.
Other Methods

1. Painting

The process of applying paint (organic or inorganic) to the surface of the workpiece to form a coating by spraying or brushing is called coating. e.g., spray paint, paint

2. Strike Plating

The process of forming a coating layer on the surface of the workpiece by the mechanical impact is called strike plating. e.g., Impact galvanizing, Copper strike plating, Strike nickel plating

3. Laser Surface Treatment

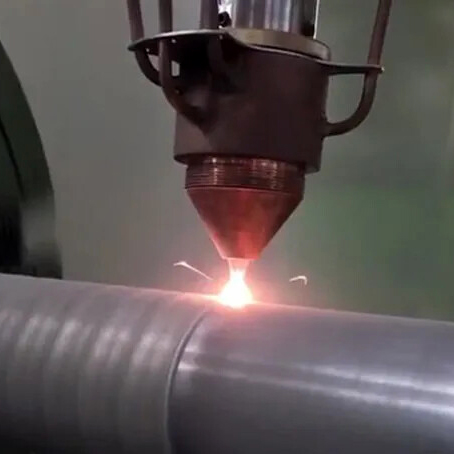

The process of irradiating the workpiece surface with a laser to change its structure is called laser surface treatment. e.g., Laser quenching, Laser remelting

4. Ultra Hard Tilm Technology

The technology of preparing a super hard film on the surface of the workpiece by a physical or chemical method is called super hard film technology. e.g., Diamond films, Cubic boron nitride films

5. Electrophoresis Process

The workpiece is placed into the conductive water-soluble or water-emulsified paint as an electrode to form solution circuit with the other electrode in the paint. Under the action of the electric field, the coating solution has dissociated into charged resin ions, the cations move to the anode. These charged resin ions, along with adsorbed pigment particles, are electrophoresed to the surface of the workpiece to form a coating. This process is called electrophoresis. e.g., Electrophoresis Plating.
6. Electrostatic Spraying

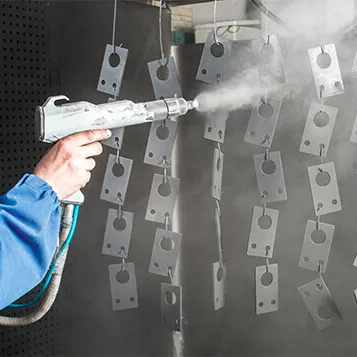

Under the action of DC high voltage electric field, the atomized negatively charged paint particles are directed to fly to the positively charged workpiece to obtain the paint film. The process is called electrostaitc spray painting. e.g., Static Paint Spraying.

Physical example	Surface treatment name	Color	Finishing Method	Description

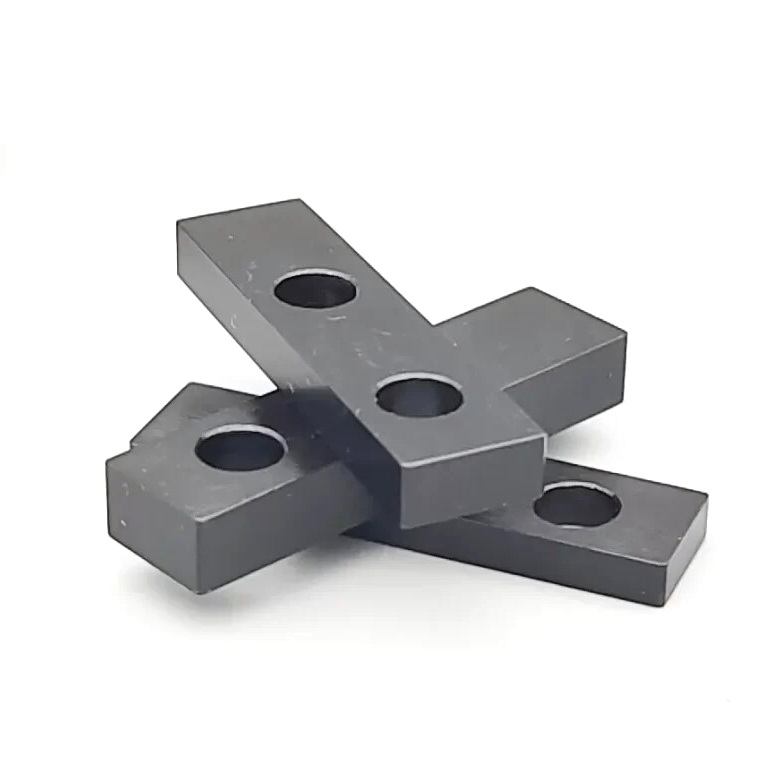

	Bluing, phosphating, passivation an d chromate treatment of metal surface	Blue black, black, natural color, color/multi color	Chemical Finishing	This process involves a chemical reaction that forms a thin layer of black iron oxide on the surface.
	Electroless nickel plating Electroless Copper	Silver whiter to yellow, red bronze, bronze	Coatings	the process that forms a thin metal layer on the surface, e.g., nickel plating, chroming plating, zincing.

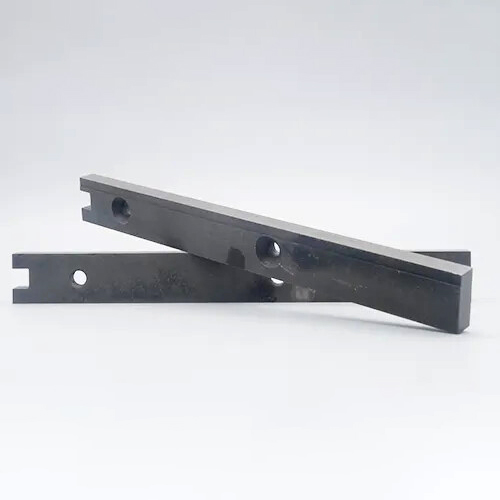

	Nitriding carburization	Dark gray	Heat Treatment	Techniques like carburizing or nitriding to harden the surface while maintaining a tough interior.

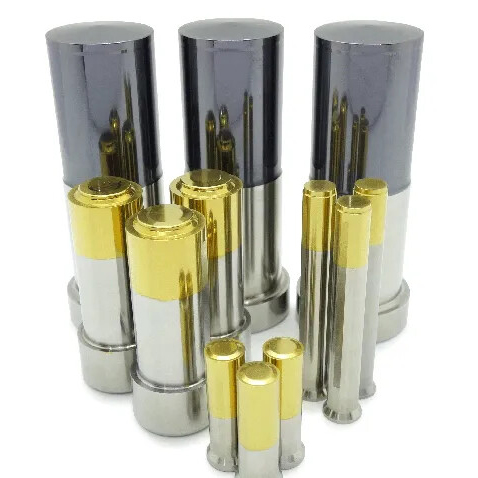

	Evaporative plating Sputtering plating, lon plating.TiN,TiCN,CrN, D-AC/TiNF, TiAIN, D-Ar/AICrN, D-CR/CrAIN, D-AL/AITiN, D-AS/AISiN, D-AX/AIXiN, D-AO/AIFN, D-ACX/AICiSi, D-DLC,DH-DLC	Multi color	Coatings	A vacuum deposition method to produce thin, extremely hard, and wear-resistant coatings, e.g., TiN, TiCN

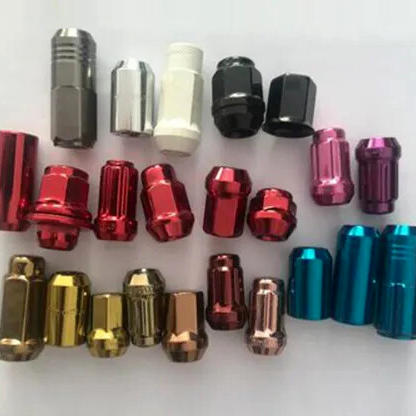

	Electrophoresis	Multi color

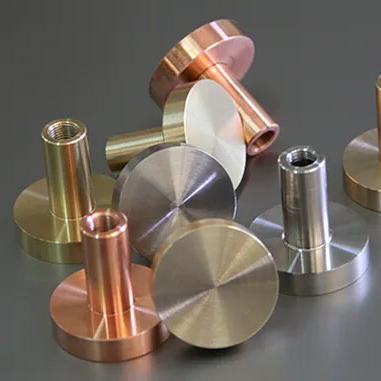

	Copper plating nickle plating	Red bronze, Green bronze

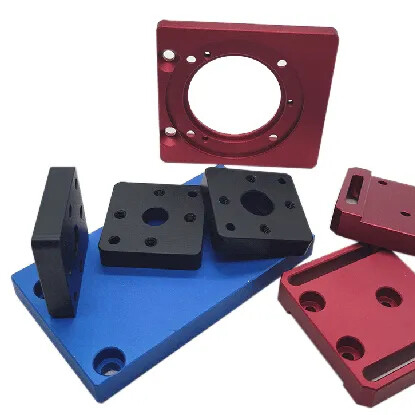

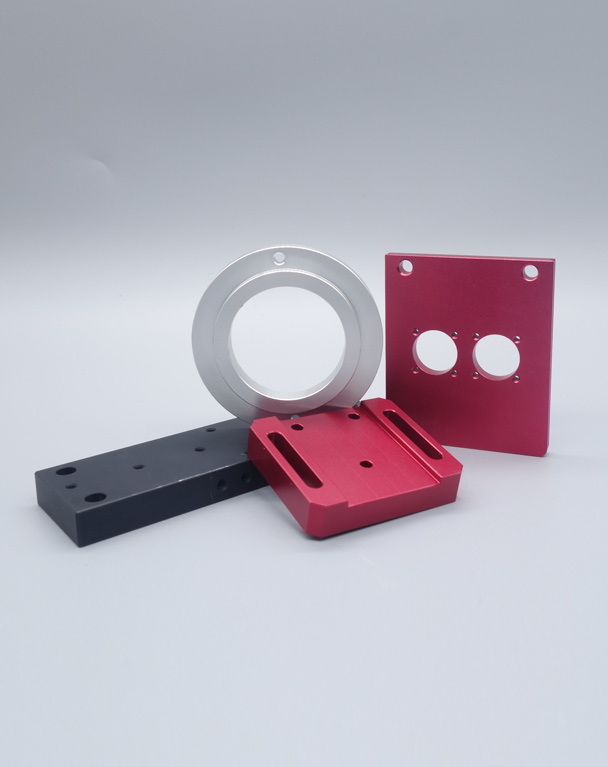

	Anodizing of aluminum alloys	Black, champagen, bronze, imitation steel, gold, purple gold, red, green, white, frosted oxidation. bright oxidation

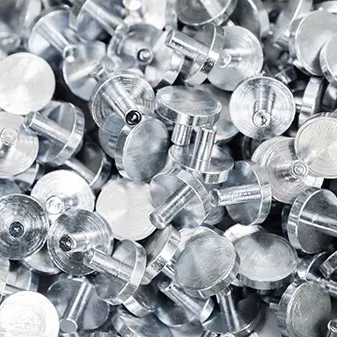

	Hot Galvanizing Hot aluminizing	Silver white
	Thermal spraying zinc Thermal sprayed aluminum	Silver white
	Hot stamping aluminum foil	Customized multi color
	Overlay welding Wear-resistant alloy	Dark gray

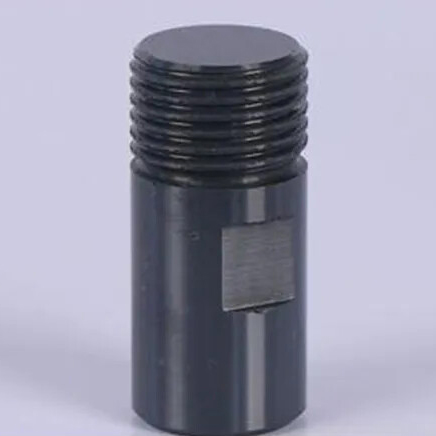

	Vapor Deposition of Silicon Oxide, Silicon Nitride	Black

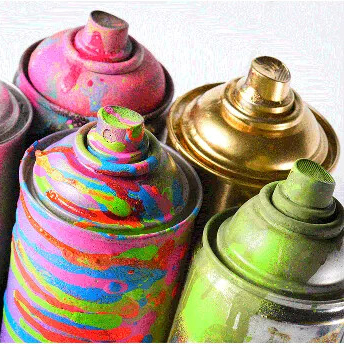

	Spray Paint, Paint	Multi color

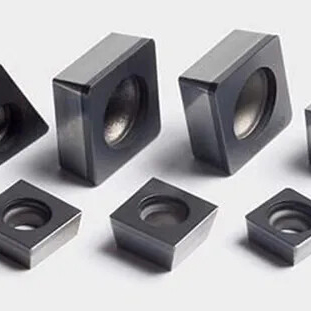

	Diamond film, Cubuc boron nitride film	CNC machining, Sheet metal fabrication
	Static spraying
	Laser quenching Laser remelting
	Boron injection
