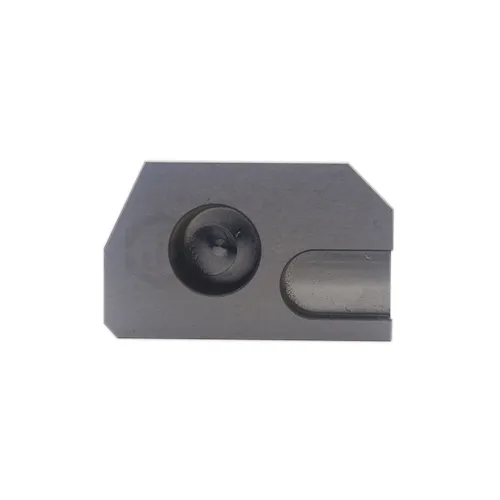

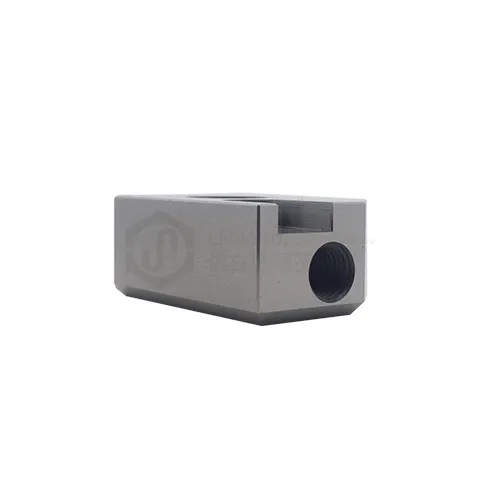

Product Description

The positioning block is used to ensure the depth of the mold or the size of the product.
If it is a cold punch die, the located block is generally used to determine the bending depth of the bending die.
If the mold is installed with positioning block, the bending part can be pressed flat when bending to the depth.

Product Details

Material 1.2379 steel/ SDK11 material / Cr12Mo1v1
Hardness HRC58
Overall dimension 41*25*15mm
Tolerance +0.03/+0.01 or Customized
Roughness Rz4 or Customized
Surface treatment /
Quality Assurance Full Inspection
Inspection Tools Absolute Digimatic Caliper, Micrometer test, Digital Height Gauge, CMM Coordinate Measuring Machince, Profile Projector, Hardness Tests for metals, Screw Gauges

Drawing & Production Procedures



This product is an indispensable component of automation equipment. What are the advantages of automation?


Highly automated program without manual operation.


High working efficiency, improving enterprise production efficiency.


Stable production process for the whole process, improving the consistency of products.


Suitable for mass production, reducing the production cost of enterprises.

Packaging & General Terms

Custom-Pipe- Flange

Sample: Acceptable
Production Type: OEM or ODM
Place of Origin: Dongguan, China
Delivery Term: 7 Days
Transportation Time: 3~7 Days
Trade type: FOB or EXW
Payment: T/T
