Preparing CAD files for CNC machining correctly is what decides whether you receive accurate parts on time or face delays, rework, and unexpected costs. This enhanced guide shows you how to turn your CAD model into CNC‑ready data with a repeatable workflow, clear checklists, and practical OEM tips.
By the end of this article you will know how to choose the right CAD file formats, structure your assemblies, export CNC‑ready models, and avoid the most common file mistakes that slow down production. You will also see how an experienced OEM partner like U‑NEED can help you convert CAD files into high‑precision machined, plastic, silicone, and metal stamping parts for global projects.
CNC machines follow instructions down to fractions of a millimeter, so any error or ambiguity in your CAD data is directly reflected in the final part. Poorly prepared files often lead to:
- Wasted material and unnecessary scrap.
- Longer machining times due to inefficient toolpaths or reprogramming.
- Rework, engineering change orders, and extra quality checks.
- Parts that do not fit, seal, or assemble correctly with mating components.
In short, your CNC is only as accurate as the file you send to the shop.
When files are clean and consistent, CAM programming becomes faster and more predictable, which shortens lead time and reduces engineering cost. For OEM buyers and engineers running multiple programs, this directly improves scalability across machined parts, plastic housings, silicone seals, and stamped metal components.
Before machining can start, your design must be exported to a format that your CNC shop or CAM software can read reliably. The most widely accepted formats for CNC machining are:
- STEP (.stp / .step) – Industry standard for 3D solids, maintains precise geometry and smooth arcs, ideal for multi‑vendor workflows.
- IGES (.igs / .iges) – Good for complex surface models, widely compatible with older systems.
- Parasolid (.x_t / .x_b) – Preferred in some Solid Edge and Siemens NX environments for native kernel accuracy.
- Native CAD files (for example, SolidWorks .sldprt, Inventor .ipt) – Useful only when your CNC vendor explicitly supports that software.
For sheet‑metal blanks, gaskets, or simple 2D profiles, a clean DXF file often complements the main 3D model.
Mesh‑based formats like STL and OBJ are designed for 3D printing and visualization, not for precision machining. These formats approximate curves with many small triangles, which makes accurate toolpath generation and tolerance control more difficult.
| Use Case | Recommended Format | Why It Works Well for CNC |
|---|---|---|
| General 3D machined parts | STEP | Preserves solid geometry and smooth curves. |
| Complex surface models | IGES | Good compatibility with surface‑based workflows. |
| NX / Solid Edge environments | Parasolid | Matches native modeling kernel. |
| 2D laser or profile cutting | DXF | Simple, lightweight, easy to interpret. |
| 3D printing only | STL | Mesh‑based, suitable for printing but not for CNC. |
The typical CAD to CNC workflow is:
CAD design → Export to CNC‑friendly format → Import into CAM → Create toolpaths → Post‑process to G‑code → Load into CNC → Machine the part.

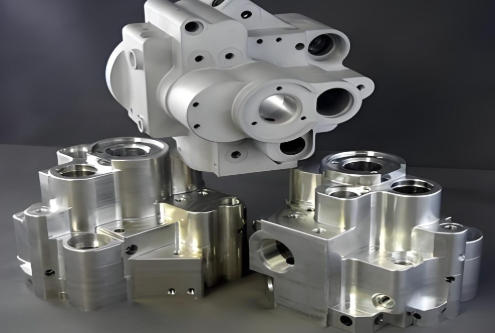

Choose CAD tools that integrate well with CAM and manufacturing workflows. Common options include:
- Fusion 360 – Integrated CAD/CAM, good for startups and agile teams.
- SolidWorks – Powerful modeling, widely used in industrial OEM environments.
- AutoCAD – Strong for 2D drafting and plate layouts, less suited to complex 3D solids.
Design your parts with manufacturability in mind: avoid unnecessary tiny features, extremely deep pockets, or undercuts that require special tooling unless absolutely needed.
When your design is stable enough to quote or produce, export a CNC‑ready file using these checks:
1. Confirm preferred format with your machine shop, in most cases they will request STEP.
2. Check units and ensure the export uses the same system (millimeter or inch) as your drawing and bill of materials.
3. Include 2D DXF files when you have flat patterns, engraving text, or laser‑cut plates.
In Computer‑Aided Manufacturing, the solid model is converted into toolpaths that define how the cutting tool moves. Common CAM packages include Fusion 360 CAM, Mastercam, SolidCAM, and Autodesk HSM.
Your CAD model quality directly influences toolpath efficiency. Broken faces, gaps, or duplicated bodies often lead to extra repair work before programming can start.
Once toolpaths are validated, the CAM system uses a post‑processor to convert them into G‑code that matches the controller on your CNC machine. Haas, Fanuc, Siemens, and Mazak controllers use slightly different G and M codes and syntax conventions.
The final G‑code is loaded into the CNC machine, along with the correct tools, workholding, and offsets, and machining can begin. If your CAD files were prepared cleanly, this stage is much smoother and requires fewer on‑machine edits.
Experienced shops use a consistent checklist before releasing parts to the floor. You can follow the same logic when preparing your own files:
| Tip | Why It Matters for CNC |
|---|---|
| Use STEP whenever possible | Maintains 3D accuracy and avoids geometry translation errors. |
| Keep file names clean and versioned | Prevents confusion between revisions and reduces risk of mistakes. |
| Include notes on critical tolerances | Eliminates guesswork and avoids over‑tight machining where not needed. |
| Remove unnecessary construction data | Reduces file size and speeds up CAM processing. |
| Verify the model after export | Helps catch missing faces, gaps, and broken edges early. |
Some issues appear repeatedly in incoming CAD data and almost always cause delays or extra costs:
- Sending STL or OBJ mesh files when the project requires CNC machining, not 3D printing.
- Forgetting to specify hole sizes, thread types, and depth clearly in the drawing or model notes.
- Mixing units between drawing, bill of materials, and CAD export, which can scale parts incorrectly.
- Overusing very complex freeform splines rather than clean arcs where possible, which can slow down machining and inspection.
For OEM orders with multiple SKUs and variants, structured data management prevents expensive confusion. At a minimum, make sure each part and assembly meets these guidelines:
- Use a consistent part number in the CAD file name, drawing title block, and purchase order.
- Include a clear revision code, for example Rev A or Rev B, in both file name and drawing.
- Avoid vague labels like “final_version_new” and “test2” that cannot be tracked by a quality system.
A typical naming convention could be: `PN-123456_Valve-Body_RevB.step` with a matching drawing reference.
For CNC machining, it is usually best practice to send one finished part per STEP file unless you are intentionally providing a multi‑body part that must be machined as a unit. Assemblies should be provided separately when you need the manufacturer to check fit, clearances, and stack‑up.

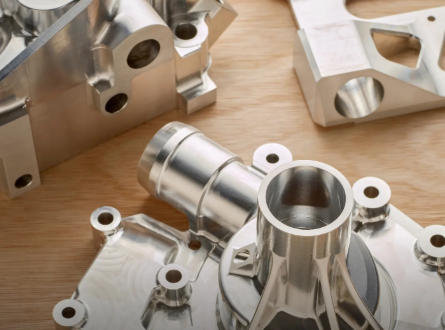

For metal and plastic CNC machined parts, keep these design principles in mind to make your CAD more production‑ready:
- Use corner radii that match standard tool sizes instead of perfectly sharp internal corners.
- Avoid extremely deep, narrow pockets that require special long‑reach tools unless absolutely necessary.
- Standardize hole diameters around common drill sizes to reduce tool changes.
When CAD files are used for plastic parts, you must consider draft, wall thickness, and material shrinkage. Uniform wall thickness and proper radii help prevent warping, sink marks, and stress concentrations during molding or secondary machining.
For silicone components, CAD geometry must capture critical sealing features accurately. Smooth transitions, proper groove dimensions, and realistic compression ranges are necessary to ensure leak‑free performance once parts are assembled.
For metal stamping, start from a flat pattern that accurately represents the blank before forming. Clean DXF files with clearly defined bend lines and tolerances make it easier to set up dies and press tooling.
Use this quick checklist before sending CNC‑ready CAD files to your supplier:
1. Confirm format: export STEP or the format preferred by your manufacturing partner and open it in a fresh session to confirm.
2. Check units: verify millimeter or inch consistency between CAD, drawings, and purchase orders.
3. Inspect geometry: look for missing faces, open edges, overlapping solids, and unintended bodies.
4. Add a drawing: include a PDF drawing for tolerances, threads, surface finish, and material specification.
5. Clean the file: remove reference geometry, hidden test bodies, and unused sketches.
6. Verify naming and revision: make sure part number and revision level match your internal documents.
7. Package everything: put the STEP file, drawings, and any notes into a clearly labeled ZIP folder ready for upload.
Clear communication around your CAD files improves the experience for both engineers and purchasers. A few simple practices make a big difference:
- Use short, descriptive feature notes instead of long paragraphs on the drawing.
- Highlight critical dimensions that affect fit, sealing, or safety and relax non‑critical tolerances where possible.
- Group related information together, for example material, finish, and hardness in one block, and threads and hole callouts in another.
For buyers and project managers, provide a simple summary sheet listing each part, process type, annual volume, and target lead time so decisions can be made quickly.
As a Chinese OEM manufacturer, U‑NEED works with overseas brands, wholesalers, and producers to transform CAD files into finished products across multiple processes. Our team handles:
- High‑precision CNC machining of metals and engineering plastics.
- Plastic product manufacturing, including molded housings and custom components.
- Silicone product manufacturing for seals, gaskets, and soft‑touch parts.
- Metal stamping for brackets, enclosures, terminals, and structural parts.
If your CAD data is not yet fully ready for production, our engineers can review file format, geometry quality, tolerances, and manufacturability before quoting.
If you are not sure whether your CAD files are ready for CNC machining, do not wait until problems appear on the shop floor. Send your STEP, IGES, or Parasolid files to U‑NEED and our engineers will perform a manufacturability review and provide a clear quotation.
Ready to turn your CAD files into reliable parts? Contact U‑NEED today to upload your designs, discuss CNC machining, plastic, silicone, or metal stamping options, and receive a fast, detailed OEM quote tailored to your project.
Contact us to get more information!
For most CNC projects, STEP (.stp or .step) is the best all‑round format because it preserves solid geometry accurately and is supported by almost all CAM systems. When in doubt, send a STEP file plus a PDF drawing to avoid misunderstandings.
You cannot send an AutoCAD file directly to a CNC machine. You must export to a compatible format such as STEP or DXF and then process it through CAM software to generate G‑code.
STL files are mesh‑based and approximate curves with many small triangles, which makes it harder to control tolerances and surface quality in CNC machining. They are excellent for 3D printing but not ideal for precision subtractive manufacturing.
A simple 2D drawing is still valuable even when you provide a 3D CAD model. Drawings convey tolerances, threads, finishes, and inspection requirements that are not obvious from geometry alone.
If your CAD files have missing details, unclear tolerances, or format issues, U‑NEED can review the data, suggest corrections, and help you export CNC‑ready STEP files. This reduces iteration time and gives you a smoother path from design to production across machining, plastics, silicone, and stamping.
