If you are deciding between aluminum vs steel injection molds, the best choice is rarely about material alone. It is about matching tool life, cycle time, budget, part complexity, and production volume to your actual business goals.
Injection molding projects fail when teams overinvest in the wrong mold too early. In our experience working with precision manufacturing projects, the smartest decisions usually come from balancing engineering reality with commercial timing.
The mold is not just a forming tool. It directly affects lead time, part quality, cycle time, maintenance cost, and your ability to scale.
Aluminum and steel behave very differently in production. Aluminum is easier and faster to machine, while steel is stronger and better suited for long production runs. That difference changes almost every downstream decision, from first article testing to full-scale manufacturing.
For brands launching a new product, this choice can determine whether you reach the market in weeks or months. For mature programs, it can affect whether your unit economics stay competitive at high volumes.
Aluminum injection molds are widely used for prototypes, bridge tooling, and low-to-medium volume production. They are attractive because they are faster to manufacture and usually cost less upfront than steel molds.
A major advantage is heat transfer. Aluminum generally dissipates heat faster than steel, which can shorten cycle times and improve throughput in the right applications. Faster cooling can also help teams iterate more quickly during validation runs.
That said, aluminum is not the universal answer. It wears faster than steel, especially in abrasive resins, glass-filled materials, or very high-volume programs. It is best when speed and flexibility matter more than extreme durability.
- Prototype validation before hard tooling.
- Low-volume production.
- Bridge tooling while waiting for steel molds.
- Products with frequent design changes.
- Programs with tight launch timelines.
- Shorter tool life than steel.
- Less suitable for highly abrasive plastics.
- Not ideal for very high-shot-count programs.
- May require more careful handling during production.
Steel injection molds are the standard choice when the project requires durability, dimensional stability, and a long production life. They are more expensive and slower to manufacture, but they often pay back that investment in large-scale production.
Steel is the preferred option for programs with high annual volumes, tight tolerances, or long product lifecycles. It is also better suited for materials that are harsh on tooling, such as filled polymers or compounds with significant wear potential.
The tradeoff is straightforward: you pay more upfront and wait longer for the tool, but you gain longevity and consistency. For stable products with predictable demand, steel is usually the more economical choice over time.
- High-volume mass production.
- Long-running product families.
- Tight-tolerance components.
- Abrasive or demanding resin applications.
- Multi-cavity tools for efficiency at scale.
- Higher initial tooling cost.
- Longer manufacturing lead time.
- More expensive design changes.
- Not always necessary for short product lifecycles.

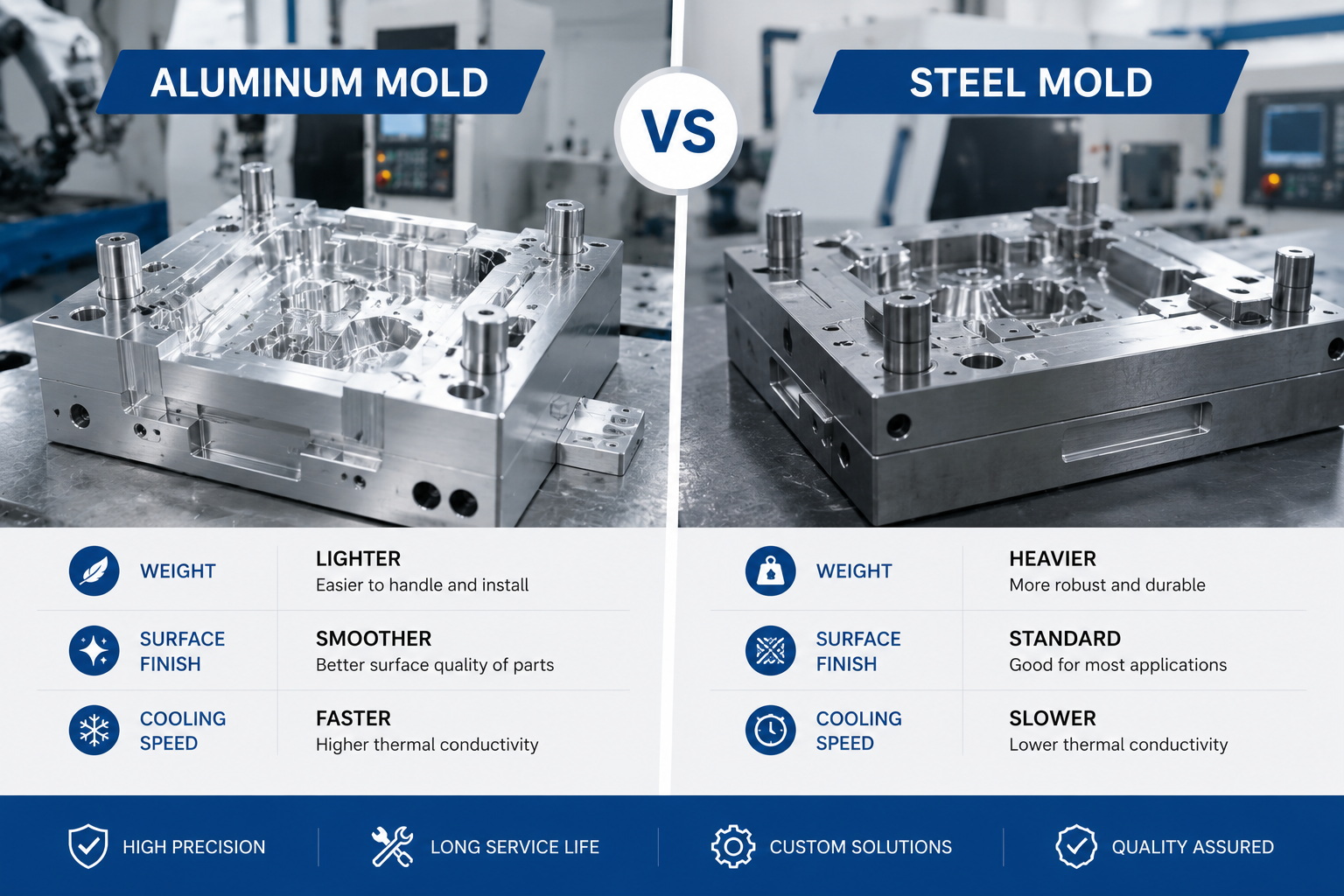

| Factor | Aluminum molds | Steel molds |
|---|---|---|
| Upfront cost | Lower | Higher |
| Lead time | Faster | Slower |
| Cycle time | Often shorter | Often longer |
| Tool life | Lower | Higher |
| Design change flexibility | Better | Less flexible |
| Best volume range | Low to medium | Medium to very high |
| Wear resistance | Moderate to low | High |
| Long-term ROI | Strong for short runs | Strong for large-scale runs |
The right answer depends on whether your project is optimized for launch speed or production durability. If you need market validation now, aluminum often makes sense. If you are building a long-term manufacturing platform, steel usually wins.
The best choice becomes much clearer when you evaluate the project using a simple decision framework. Instead of asking, "Which material is better?" ask, "Which material is better for this business case?"
If your expected volume is low or uncertain, aluminum is often the safer choice. If the product is likely to scale quickly, steel may be the better investment.
A rough rule of thumb:
- Short-run production: aluminum.
- Long-run, high-volume production: steel.
- Uncertain demand: start with aluminum or bridge tooling.
Complex parts with thin walls, tight tolerances, or demanding surface finishes often benefit from the stability of steel. Simpler parts may not need that level of tool strength.
If part quality is highly sensitive to wear, deflection, or repeatability, steel provides more process control. If the geometry is still changing, aluminum gives you more flexibility to adapt.
Some plastics are much harsher on tooling than others. Reinforced materials, filled compounds, and abrasive resins can shorten the life of aluminum molds quickly.
For these applications, steel is usually the safer long-term choice. If aluminum is used, the tooling strategy must be more conservative and maintenance planning should be tighter.
When speed matters, aluminum can compress the tooling schedule significantly. That can be critical for product launches, investor demos, pilot programs, or early customer commitments.
Steel is better when the schedule allows for a longer tooling phase and the project is built around stable, repeatable output.
A cheaper tool is not always the cheaper solution. The real question is total cost per usable part over the full program life.
If you only need a few thousand parts, aluminum may lower total spend. If you need hundreds of thousands of parts, steel often delivers a better lifetime return despite the higher initial cost.
In many real manufacturing programs, the smartest approach is not choosing one material forever. It is using a two-stage tooling strategy.
First, teams use aluminum for rapid validation, pilot runs, and market testing. Then they move to steel once the design is frozen and demand becomes clearer.
This approach reduces risk in three ways:
- It lowers early investment.
- It allows design improvements before hard tooling.
- It avoids locking the company into an expensive steel mold too early.
For startups, crowdfunding launches, and new product introductions, this strategy is often the most practical path.
Today's product teams are under more pressure to shorten development cycles. That is pushing more companies toward rapid tooling, bridge tooling, and iterative mold validation.
At the same time, customers expect tighter tolerances and faster delivery. That means mold selection is no longer just a technical decision; it is a supply chain strategy decision.
We are also seeing greater demand for:
- Faster prototype-to-production transitions.
- Lower-risk product launches.
- More flexible manufacturing setups.
- Better upfront design verification before mass production.
These trends make aluminum especially useful during early-stage development, while steel remains the benchmark for scaled production.

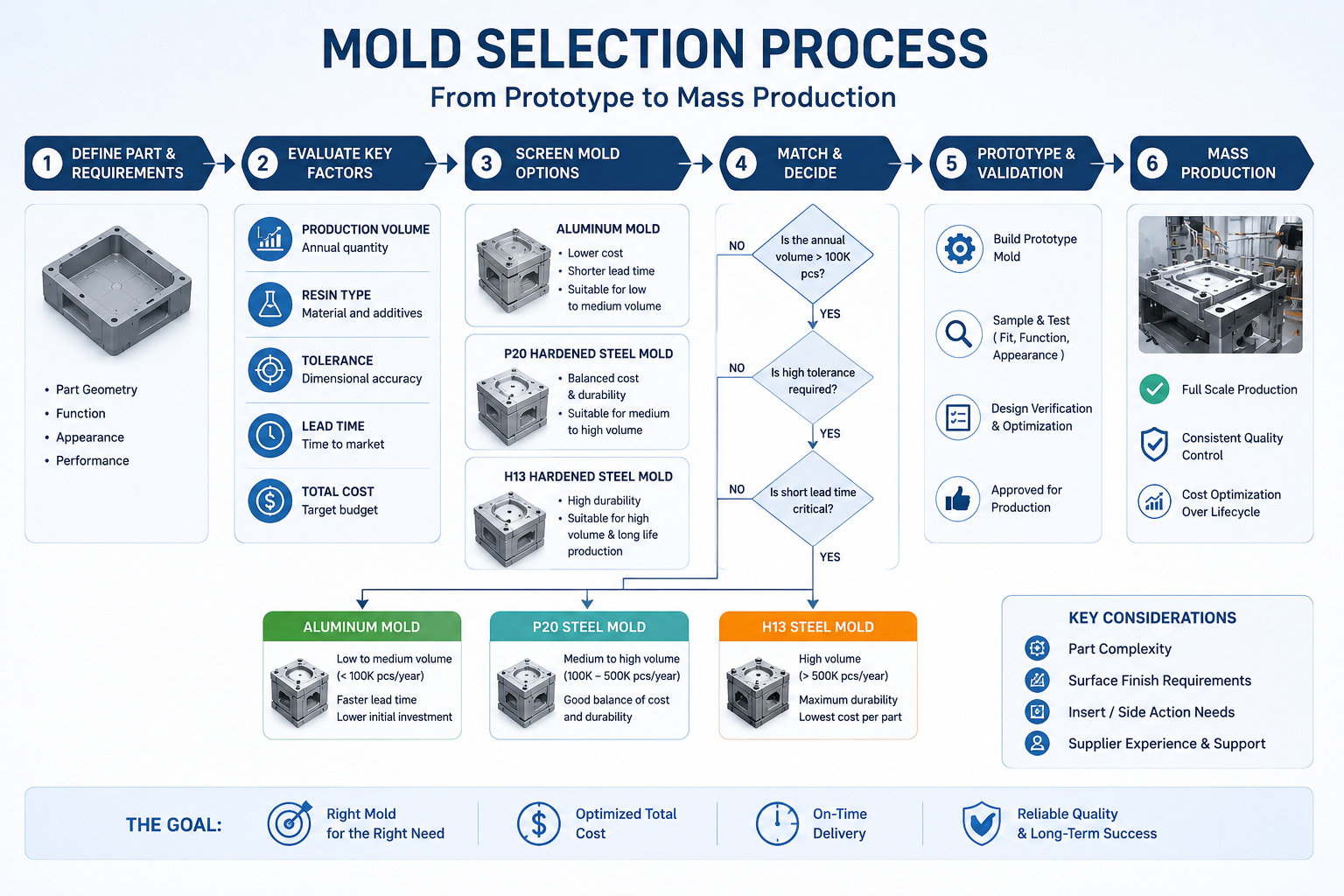

Here is a simple process we recommend when choosing between aluminum and steel injection molds:
1. Define your target production volume.
2. Confirm resin type and wear requirements.
3. Review the part's tolerance and finish requirements.
4. Clarify whether the design is final or still evolving.
5. Compare lead time against launch deadlines.
6. Calculate total cost across the expected program life.
7. Choose the tool that matches the business stage, not just the engineering brief.
This workflow prevents one of the most common mistakes in manufacturing: buying a high-end mold before the product is stable enough to justify it.
Aluminum is often the better option when the project is still evolving. It is also ideal when you need to balance speed, flexibility, and acceptable tooling cost.
Choose aluminum if:
- You are validating a new product.
- Demand is not fully confirmed.
- You need short lead time.
- The part volume is limited.
- Design changes are still likely.
Steel is the better option when your program is mature and volume is predictable. It is built for durability, repeatability, and long-term manufacturing efficiency.
Choose steel if:
- You expect high-volume production.
- The design is final.
- The resin is abrasive or demanding.
- Tool longevity matters more than speed.
- You want stronger long-term ROI.
The aluminum vs steel injection molds decision should be driven by your product stage, not by price alone. Aluminum gives you speed and flexibility, while steel gives you longevity and scale.
For many companies, the best path is to start with aluminum for validation and move to steel once the product and market are proven. That approach protects budget, reduces risk, and supports smarter manufacturing decisions.
CTA: If your team is evaluating mold material for a new product, request a tooling review before committing to production. A good mold strategy can save weeks of delay and reduce total program cost.
Aluminum molds are faster and cheaper to make, while steel molds last longer and handle higher production volumes better.
Yes, aluminum molds are good for low-to-medium volume production, prototype validation, and bridge tooling.
No. Steel is better for high-volume, long-life programs, but aluminum is often better for fast launches and lower upfront cost.
Aluminum often has a shorter cycle time because it transfers heat more efficiently than steel.
Aluminum is usually easier and less expensive to modify when the product is still being refined.
