What is a blind hole in CNC machining? In simple terms, it is any machined hole that has a defined depth but does not break through the opposite side of the workpiece, and that single design choice drives a surprising amount of complexity in manufacturing, quality, and cost. Drawing on years of working with design engineers and production teams, I have seen blind holes become either silent reliability heroes—or the root cause of leaks, assembly failures, and scrap—depending entirely on how they are specified and machined. [linkedin]
In CNC machining, a blind hole is a closed‑end cavity with a controlled depth that intentionally stops short of the opposite surface instead of passing all the way through like a through hole. It can be produced by drilling, milling, or boring, and its bottom may be conical (typical twist drill) or flat (end mill, flat‑bottom drill, counterbore). [sansmachining]
The key difference from a through hole is not only geometry, but also function. Blind holes are used when you must preserve the outer surface for sealing, strength, or aesthetics while still adding threads, alignment features, or internal fastening points. In sealed housings, they prevent fluid or gas leakage; in consumer products, they hide fasteners to keep the visible surface clean. [linkedin]
Engineers often treat "just drill a hole" as a trivial note on a drawing, but manufacturing teams know that blind and through holes behave very differently. [emastercam]

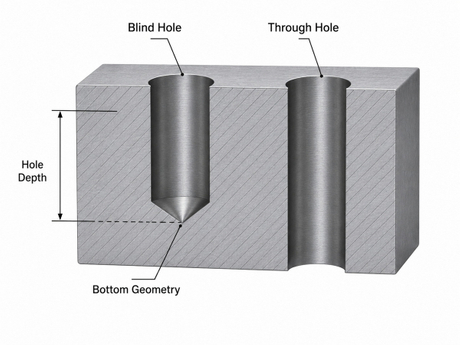

Through holes
- Open on both sides of the workpiece.
- Chips escape naturally along the tool flutes.
- Higher cutting speeds and feed rates are usually possible.
- Depth control is less critical because breakthrough is expected. [sansmachining]
Blind holes
- Closed at the bottom with a defined depth.
- Chips pack inside the cavity, increasing heat and tool wear.
- Require accurate depth control, often down to fractions of a millimeter, to avoid accidental breakthrough.
- Typically demand slower feeds, peck drilling cycles, and carefully optimized coolant and chip‑breaking strategies. [tzrmetal]
From a DFM (Design for Manufacturability) perspective, this is why your choice between blind and through holes directly affects machining time, tooling cost, and inspection requirements. [tzrmetal]
Based on real shop‑floor experience and industry case work, blind holes tend to appear in a few recurring scenarios. [linkedin]
- Sealed and pressure components – Pump bodies, valve blocks, hydraulic manifolds, and pneumatic housings rely on blind holes to avoid creating leak paths through sealing surfaces. [sansmachining]
- Structural parts – Frames and brackets with high load paths maintain stiffness by keeping the far surface intact while adding internal threaded features via blind holes. [tzrmetal]
- Consumer and medical products – Enclosures for electronics, handheld devices, and instruments use blind holes for hidden screws and inserts so that external surfaces stay clean and ergonomic. [linkedin]
- Precision assemblies – Locating features, dowel seats, and stepped cavities often use blind geometries so that mating faces remain flat, aligned, and free from visible holes. [ampcnc]
From an expert view, the rule of thumb is simple: choose blind holes only when the closed bottom serves a clear, functional purpose, such as sealing or controlled insertion depth. [tzrmetal]
Although "blind vs through" sounds binary, practical CNC designs mix several hole types on one part. Understanding them helps you specify blind features more intelligently. [sansmachining]
- Through holes – Go completely through the part; easiest to machine and inspect. [linkedin]
- Blind holes – Stop at a defined internal depth; can be drilled or milled, with conical or flat bottoms. [ampcnc]
- Countersunk holes – Angled entry so screw heads sit flush; often combined with through holes for visible fasteners. [sansmachining]
- Counterbored holes – Cylindrical flat‑bottom recess above a smaller hole; commonly used with socket‑head screws and can be blind or through. [ampcnc]
When you design a blind hole, you are usually deciding among drilled blind, flat‑bottom blind, and blind with threads or inserts, each with different tooling and process requirements. [ampcnc]
In practice, blind hole machining is essentially chip‑management under constraints. Because the cavity has no exit, chips accumulate, friction rises, and heat concentrates at the cutting edge, especially in tough alloys. [emastercam]
- Standard twist drills are used for most materials, producing a natural conical bottom that may or may not suit the design. [ampcnc]
- When you need flat‑bottom blind holes—for improved seating or thread engagement—shops typically use flat‑bottom drills, end mills, or a counterbore operation after pre‑drilling. [linkedin]

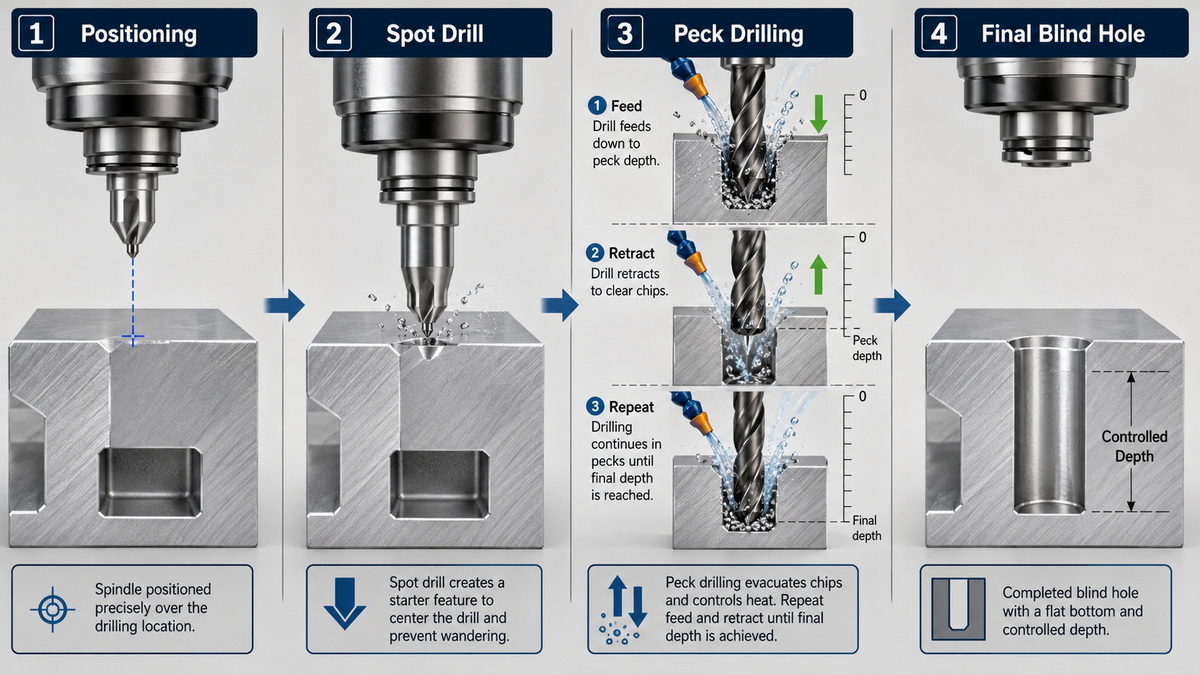

- Deeper blind holes often require peck drilling cycles, where the tool drills a short distance, retracts to evacuate chips, then re‑enters. [emastercam]
- On high‑value parts, depth is validated using probing, tool setters, or in‑process measurement to avoid unintentional breakthrough, which would scrap the part. [emastercam]
Experienced machinists think about blind hole depth as a stack of tolerances: tool length offset, drill point angle, bottom clearance, and drawing tolerance. [emastercam]
- Carbide drills provide higher rigidity and better positional accuracy for deeper holes than HSS tools. [prototypeprojects]
- Heat‑resistant coatings like TiAlN or AlTiN stabilize cutting edges when chips cannot evacuate efficiently. [epictool]
- For extremely tight depth tolerances, shops use multi‑axis CNC and probing to approach from optimized angles and reduce setup error. [prototypeprojects]
One of the most underestimated aspects is how different materials behave once chips are trapped in a cavity. [epictool]
- Aluminum – Cuts easily but forms long, continuous chips that can pack tightly inside blind holes unless tools with chip‑breaking geometry or high‑pressure coolant are used. [sansmachining]
- Stainless steel – Work‑hardens quickly when overheated; inadequate coolant or poor chip evacuation can rapidly dull the drill and distort hole dimensions. [epictool]
- Titanium and high‑temp alloys – Conduct heat poorly, pushing it into the cutting edge; manufacturers often rely on through‑tool coolant and conservative feeds to protect drills. [epictool]
- Engineering plastics – May smear or melt if spindle speeds are too high, requiring sharper tools, lower cutting temperatures, and careful chip evacuation. [linkedin]
From an expert's standpoint, tool, material, and hole geometry must be treated as a single system when programming blind hole operations in CNC. [epictool]

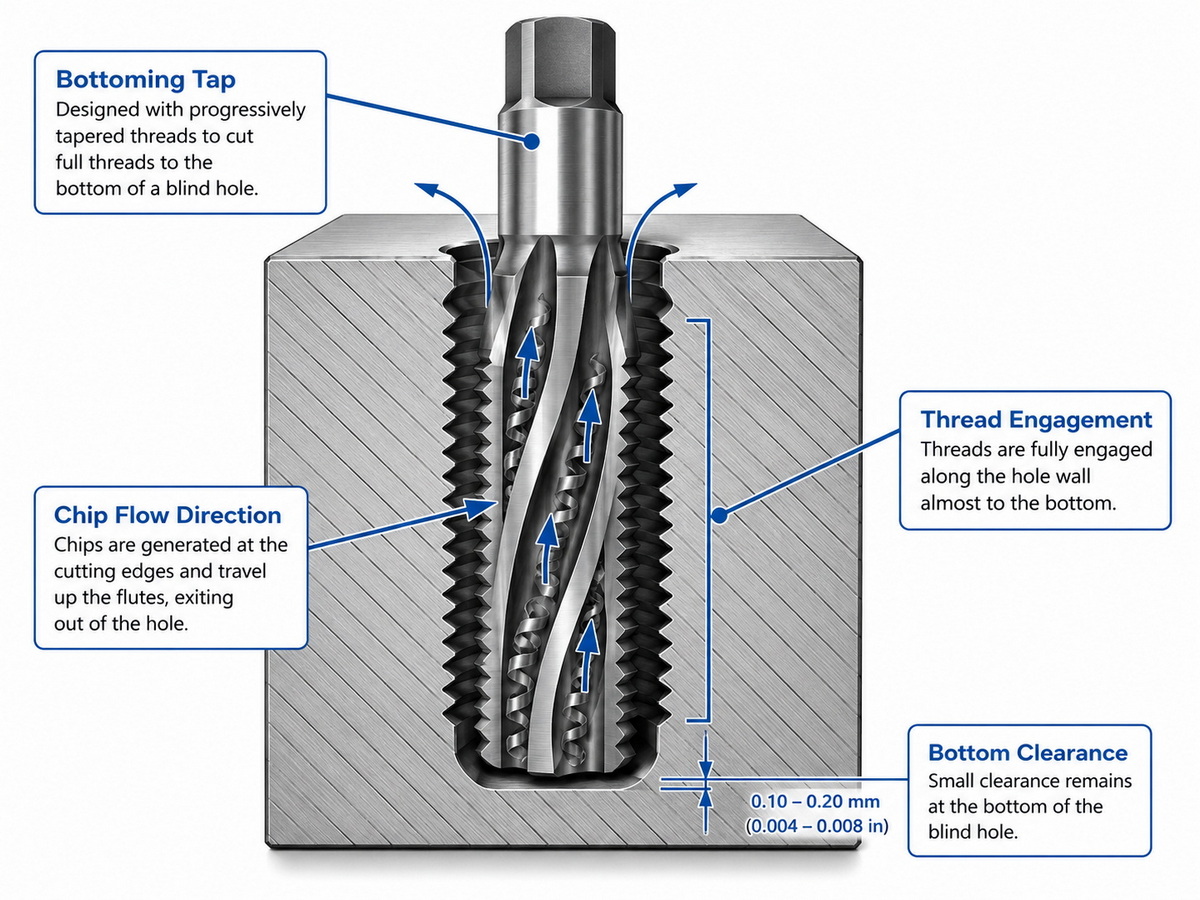

Adding threads to blind holes significantly increases process sensitivity. Because chips cannot escape through the bottom, they either have to move up the flutes or be broken into controllable fragments. [ampcnc]
A blind hole tap is typically a bottoming tap with a minimal chamfer, allowing usable threads almost to the bottom of the hole. This is critical in high‑load applications where the designer expects near‑full thread engagement over the specified depth, such as in automotive or aerospace components. [sansmachining]
Taper and plug taps, with longer chamfers, are better for through holes; in blind holes, they waste depth because the first few turns of the hole remain unthreaded. [linkedin]
Experienced CNC programmers and machinists typically follow a set of rules: [ampcnc]
1. Use rigid tapping cycles to synchronize spindle and feed precisely.
2. Select proper pilot hole diameter to avoid excessive torque or undersized threads.
3. For difficult metals, use spiral‑flute taps that pull chips upward and out of the blind cavity.
4. Consider thread milling for high‑value parts or tough materials, since it reduces torque spikes and allows fine adjustment of thread fit.
5. Maintain adequate lubrication and coolant flow to control friction and heat at the cutting edges.
Ignoring chip evacuation at this stage is one of the most common causes of broken taps in blind holes, an expensive problem on finished or semi‑finished parts. [emastercam]
From a DFM review perspective, small drawing decisions about blind holes significantly affect cost and yield. [tzrmetal]
- As the depth‑to‑diameter ratio grows, tool deflection, vibration, and chip‑packing risk increase, which degrades dimensional accuracy and surface finish. [tzrmetal]
- Overly tight depth tolerances may force slower feeds, more probing, and extra inspection; in many real projects, a slightly more forgiving tolerance has no functional downside but reduces cost. [tzrmetal]
- Smooth internal walls lower thread friction and improve long‑term fastener performance, especially in repeatedly assembled components. [sansmachining]
- Avoid thin walls around deep blind holes; they are prone to distortion or cracking during machining and service. [tzrmetal]
- Maintain adequate distance between blind holes, ribs, and edges to prevent stress concentration and improve tool stability. [linkedin]
When specifying blind holes, one of the most practical decisions is whether a drilled (conical bottom) or flat‑bottom geometry is required. [ampcnc]
| Hole type | Bottom shape | Typical tooling | When to use | Notes |
|---|---|---|---|---|
| Drilled blind hole | Conical bottom from drill point | Twist drill or center‑cutting end mill | General fastening where exact bottom flatness is not critical | Faster, fewer operations. linkedin |
| Flat‑bottom blind hole | Flat bottom perpendicular to axis | End mill, counterbore, flat‑bottom drill | Precision seating, full‑length thread engagement, dowel locations | Often needs pre‑drill plus finishing step. ampcnc |
Flat‑bottom blind holes add complexity but are justified when you need controlled seating surfaces or want to avoid losing useful thread depth to the conical zone. [ampcnc]
Discussions among machinists highlight recurring pain points with blind holes. [emastercam]
- Uneven or stepped bottoms – Can arise from multiple tools or misaligned operations, leading to customer rejections where drawings expect a clean profile. [emastercam]
- Chip packing and tool breakage – Particularly in deep or small‑diameter holes, chips compact at the bottom and snap drills or taps if pecking and coolant are insufficient. [emastercam]
- Accidental breakthrough – Slight over‑travel or mis‑set offsets can turn a blind feature into a through hole, often scrapping the part entirely. [linkedin]
- Leaking assemblies – In fluid components, micro‑breakthroughs and mispositioned blind holes can create leak paths, discovered only during pressure testing. [tzrmetal]
Well‑designed prints and clear tolerancing help align engineering intent with what is realistically manufacturable. [tzrmetal]
From an industry‑expert standpoint, here is a concise checklist you can apply when reviewing drawings that include blind holes. [sansmachining]
1. Justify every blind hole
- Use a blind configuration only when sealing, aesthetics, or structural integrity truly require it.
2. Define bottom style clearly
- State if a flat bottom is functionally required, or if a drill‑point bottom is acceptable.
3. Control depth realistically
- Allow a reasonable tolerance and consider including a "minimum remaining wall" spec rather than an overly rigid absolute depth.
4. Respect depth‑to‑diameter ratios
- For very deep features, plan for specialized drills, pilot holes, or step drilling.
5. Specify thread run‑out and relief
- Leave adequate clearance at the bottom so taps or thread mills do not collide with the end surface.
6. Coordinate material and process
- Match material selection with available tools, coolant delivery, and machine capabilities, especially for titanium, hardened steels, or sticky alloys.
This kind of proactive design work typically reduces change requests, non‑conformances, and cycle time once the job reaches production. [linkedin]
When projects involve critical blind hole features—especially in multi‑operation components that also need precision machining, molds, and sheet metal fabrication—working with a single integrated supplier reduces risk and lead time. A partner with experience in blind hole drilling, tapping, and cavity machining can optimize tool paths, choose appropriate tool coatings, and configure workholding to protect sealing faces and functional surfaces. [uneedpm]
End‑to‑end service that combines custom CNC machining, mold manufacturing, and sheet‑metal capabilities also streamlines DFM reviews: engineers can adjust blind hole locations, depths, and tolerances with direct feedback from the production floor before locking designs. [uneedpm]
A blind hole provides internal mounting, threading, or functional cavities without penetrating the opposite surface, which helps preserve structural integrity, sealing performance, or the external appearance of the part. [sansmachining]
Because chips and heat are trapped in a closed cavity, blind hole machining must manage restricted chip flow, higher thermal loads, and tight depth accuracy, all of which increase tooling stress and process sensitivity. [emastercam]
Use bottoming or spiral‑flute taps, ensure correct pilot hole size, apply rigid tapping cycles, and consider thread milling in tough materials to control torque and chip evacuation more effectively. [ampcnc]
Select a flat bottom when your design depends on full thread engagement close to the bottom or when a component needs to seat on a planar surface at a precise depth; otherwise, a conical drilled bottom usually saves time and cost. [linkedin]
Common mistakes include unnecessarily deep or narrow blind holes, unrealistic depth tolerances, thin surrounding walls, lack of bottom clearance for taps, and using blind holes where a simpler through hole would work just as well. [emastercam]
