If you run CNC machines for a living, CNC coolant is not "just fluid in the sump" – it is a critical process variable that controls heat, tool life, surface finish, and even operator health. From my experience working with production shops and precision job shops, getting coolant right is often the difference between stable, profitable machining and constant firefighting. [ijeijournal]
Most new machinists think coolant is only about temperature, but in real production, it has four core functions. [ijeijournal]
- Cooling: Pulls heat away from the cutting zone to protect tools and workpieces. [ijeijournal]
- Lubrication: Reduces friction at the tool–chip interface, which lowers cutting forces and improves surface finish. [ijeijournal]
- Chip evacuation: Flushes chips out of deep pockets, drilled holes, and tight geometries so they don't get recut.
- Corrosion protection: Creates a protective film that slows rust on both the machine and the part. [ijeijournal]
On complex materials or tight-tolerance parts, I treat coolant as a process parameter just like toolpath, spindle speed, or workholding – not an afterthought. [ijeijournal]
From an engineering and cost standpoint, the first decision is choosing the right coolant family for your workpiece material and duty cycle. [cncmachines]
| Coolant type | Key strengths | Key weaknesses | Typical applications |
|---|---|---|---|
| Water‑based emulsions | Excellent cooling, good chip flushing, relatively low cost (cncmachines.com) | Lower lubrication, sensitive to concentration and bacteria | Aluminum, plastics, general milling and drilling |
| Oil‑based (neat oil) | Very strong lubrication, great for tool life and surface finish (cncmachines.com) | Poorer bulk cooling, higher mist and smoke risk at high speed | Tapping, reaming, hard steels, titanium, heavy cuts |
| Semi‑synthetic | Balanced cooling and lubrication, wide operating window (cncmachines.com) | Still requires careful mixing and maintenance | Mixed‑material job shops |
| Synthetic | Superb heat control and visibility, low foam (ijeijournal.com) | Lower lubricity on difficult alloys | High‑speed machining, tight‑tolerance finishing |
In my own projects, I see most high‑mix job shops default to semi‑synthetic water‑based coolants for flexibility, then switch to straight oil only when threading, deep‑hole drilling, or machining superalloys justifies the extra mess and cost. [cncmachines]
For manufacturers under pressure to cut coolant waste and disposal costs, MQL has become an attractive option. [ijeijournal]
- Applies a fine oil mist directly at the cutting edge instead of flooding the whole machine. [ijeijournal]
- Dramatically reduces fluid consumption and wastewater volume while still providing localized lubrication and cooling. [ijeijournal]
- Works well on high‑speed milling of aluminum and some steels when tooling and workholding are optimized.
MQL is not a drop‑in replacement for every process, but in my experience it's a powerful lever for sustainability‑focused plants that want to reduce the environmental burden of traditional coolants. [ijeijournal]
Newer approaches like CO₂‑based CNC cooling use supercritical CO₂ as the cooling medium instead of conventional fluid. [fusioncoolant]
- Eliminates liquid coolant waste and many of the associated chemical exposures. [fusioncoolant]
- Improves workplace cleanliness because it leaves virtually no residue on machines and parts. [fusioncoolant]
- Can enhance air quality by reducing oil mist and aerosols around the machine. [fusioncoolant]
These systems are still niche and capital‑intensive, but I've seen aerospace and medical OEMs adopt them where cleanliness and environmental performance are strategic priorities. [fusioncoolant]
There is no universal calendar interval, but there is a pattern once you look across shops.
- High‑volume production: 6–12 weeks between full coolant cycles due to continuous loading and contamination.
- Medium job shops: 3–6 months with consistent testing and filtration.
- Low‑volume / prototyping: Up to 6–12 months if maintenance is disciplined and machines do not sit idle in a humid environment.
From a user's perspective, the sump normally "tells" you when it's overdue. [cncmachines]
- Rancid, sour odor – usually bacteria and anaerobic growth.
- Sludge or oily layers floating on the surface.
- Foam or cloudiness ("bloom") that doesn't settle.
- Noticeably faster tool wear or unexplained surface‑finish problems on parts.
If I see two or more of these at once, I stop trying to "rescue" the mix and schedule a controlled change‑out rather than wait for an emergency stoppage. [cncmachines]

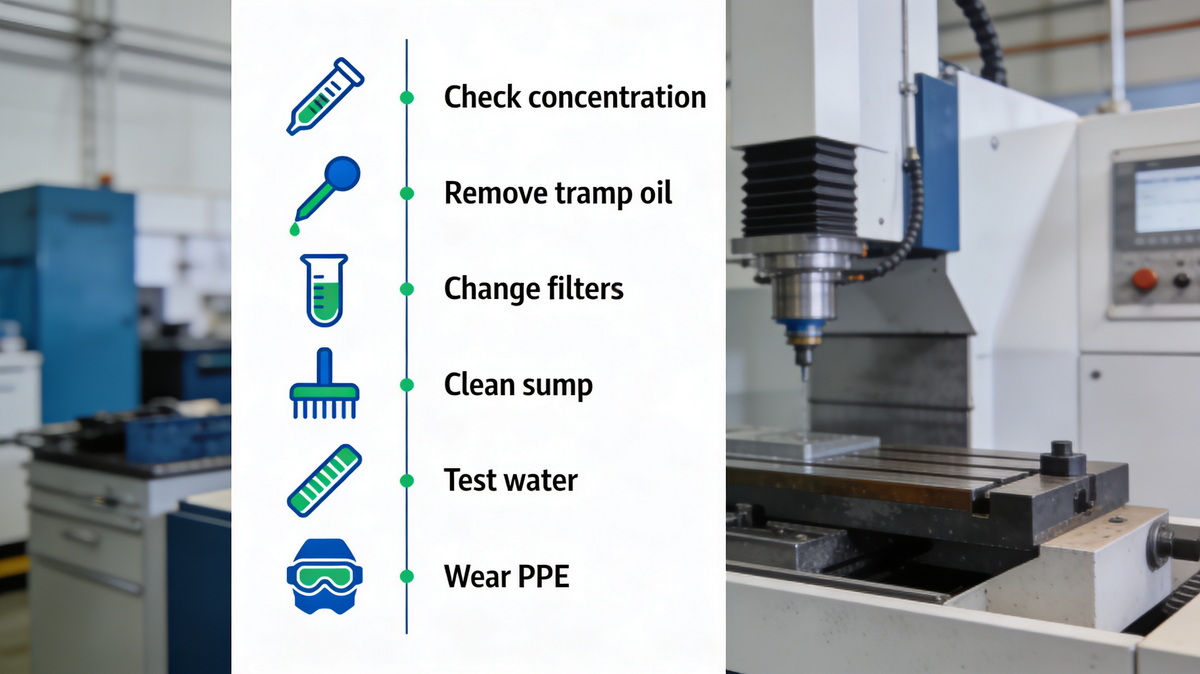

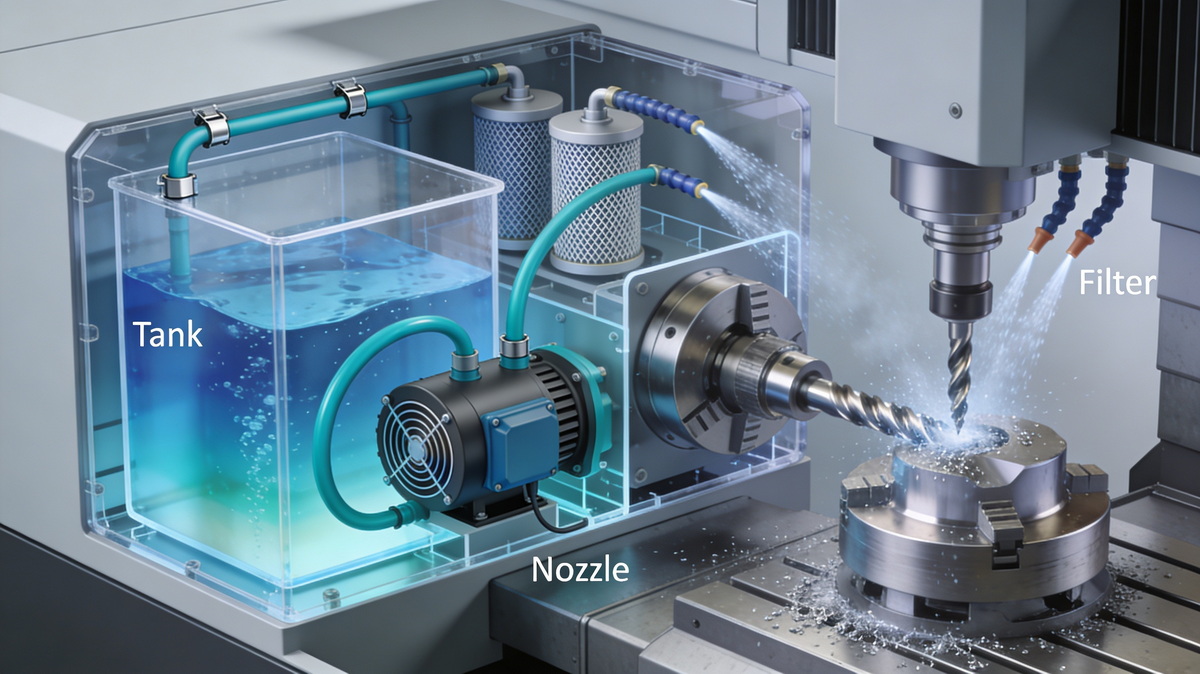

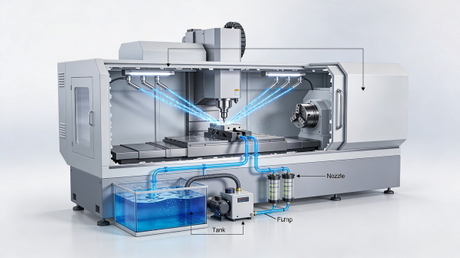

In practice, coolant performance is determined as much by system maintenance as by the chemistry itself. [insights.atssystems]
A well‑designed filter train protects your pump, nozzles, and part quality. [insights.atssystems]
- Bag filters: Simple, affordable, ideal for light‑to‑medium chip loads.
- Cyclone or centrifugal separators: Handle high volumes of fines in production cells. [insights.atssystems]
- Magnetic filters: Very effective when machining ferrous materials, catching fine steel swarf before it recirculates. [insights.atssystems]
For critical lines, I recommend a multi‑stage arrangement: coarse chip screens at the tank, then bag or cartridge filters, and magnetic separation where steel is involved. [insights.atssystems]
Coolant that doesn't hit the cutting edge is wasted.
Common, effective setups include:
- Flexible modular hoses (e.g., Loc‑Line): Quick to reposition between tools.
- High‑pressure nozzles: Essential for deep drilling, tapping, or long‑reach tools in tough alloys.
- Mist nozzles: A good compromise when full flood is unnecessary but lubrication still matters.
In my own audits, simply re‑aiming nozzles to the exact tool–chip interface often improves chip evacuation and surface finish without any change in coolant chemistry.
Pump failures usually trace back to neglect, not bad luck.
- Perform regular sump cleaning to remove chip sludge and fines around the intake.
- Inspect impellers for damage that reduces flow and pressure.
- Use baffles or chip guards to keep larger debris out of the pump zone.
A steady, predictable flow of coolant is one of the easiest ways to stabilize tool life and cycle time in real‑world production. [insights.atssystems]
From an expert standpoint, two things ruin coolants faster than anything else: wrong concentration and poor water quality. [cncmachines]
Most water‑soluble CNC coolants perform best at 8–12% concentration by volume, adjusted for material and operation. [cncmachines]
- Aluminum finishing often runs leaner for a cleaner surface.
- Hard steels and heavy cuts benefit from richer mixes for lubrication.
Always use a refractometer instead of guessing; topping off endlessly with water is a reliable way to dilute the mix and destroy its lubrication and corrosion‑inhibitor balance. [cncmachines]
Hard tap water introduces minerals that destabilize emulsions, create deposits, and accelerate breakdown. [cncmachines]
- Using deionized (DI) or reverse‑osmosis (RO) water from the start dramatically improves coolant life. [cncmachines]
- Cleaner water also reduces staining and helps prevent emulsion separation on sensitive alloys. [cncmachines]
For shops without in‑house water treatment, I generally recommend small RO units at the mixing station – they pay for themselves in extended coolant life and fewer quality incidents.

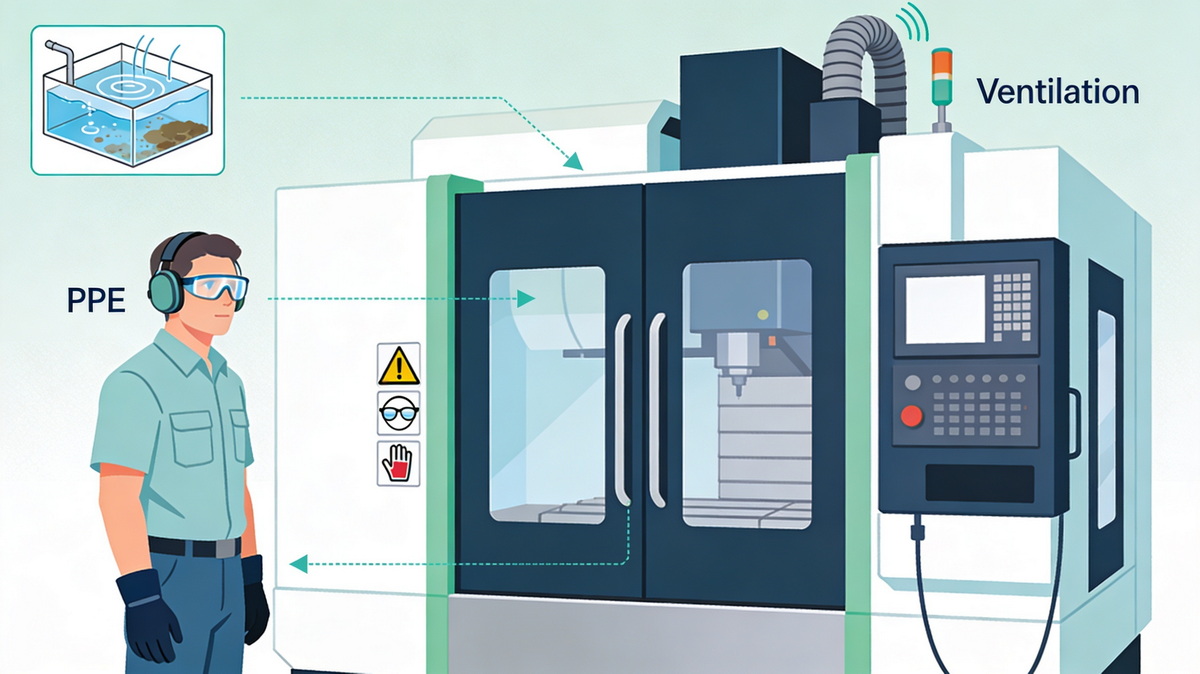

From an EHS and operator‑wellbeing perspective, coolant management is non‑negotiable. [zebraskimmers]
Even modern coolants can irritate lungs and skin when exposure is uncontrolled. [zebraskimmers]
Key risks seen in the field:
- Mist inhalation: High‑pressure or poorly contained systems can cause coughing, throat irritation, or longer‑term respiratory issues. [zebraskimmers]
- Skin contact: Prolonged exposure contributes to dermatitis, especially with neat oils or older formulations.
- Biocides and additives: Necessary for stability but can cause sensitivity reactions over time. [zebraskimmers]
Practical controls include mist collectors, good general ventilation, gloves, barrier creams, and training operators to avoid cleaning parts bare‑handed in the sump. [zebraskimmers]
Most modern coolants are formulated to be less toxic and more environmentally acceptable, but disposal is still regulated in many jurisdictions. [hcfeng]
- Used coolant may be classified as hazardous waste depending on local rules and contamination level. [cncmachines]
- Oil‑water separators, tramp‑oil skimmers, and sludge removal systems help reduce disposal volume and support fluid recycling. [hcfeng]
- Emerging technologies, including MQL and CO₂‑based systems, are driven in part by sustainability and compliance requirements. [fusioncoolant]
For global brands and OEMs, building a coolant strategy that aligns with environmental targets is increasingly part of supplier audits and RFQ criteria. [hcfeng]
Shops rarely call for help when the sump is healthy; they call when something smells bad or parts start failing. Here is a simple troubleshooting view.
| Symptom | Likely causes | High‑level fixes |
|---|---|---|
| Strong sour or "rotten" smell | Bacterial growth, stagnant sump, lack of aeration insights.atssystems | Increase aeration, skim tramp oil, schedule full cleanout, add approved biocide |
| Persistent foam or cloudiness | Over‑concentration, mechanical agitation, contamination | Check concentration, adjust mix, review pump/nozzle setup |
| Rust on machine or parts | Mix too lean, poor water quality, neglected inhibitors cncmachines | Raise concentration, switch to DI/RO water, confirm coolant spec |
| Premature tool wear | Wrong coolant type, wrong concentration, blocked nozzles cncmachines | Verify chemistry, flush and aim nozzles, correct ratio |
| Emulsion separation and staining | Hard water, mixing brands, dirty sump during top‑off cncmachines | Use DI water, standardize on one brand, clean sump before refill |
In my consulting work, documenting these issues and responses as a one‑page SOP near the machine dramatically reduces downtime and panic decisions on the shop floor.
Coolant management often lands on the "do it later" list for busy teams, but ignoring it is expensive. [insights.atssystems]
In‑house handling works well when:
- You have trained staff and stable headcount.
- There are documented procedures for mixing, testing, and cleaning.
- Machines run predictable jobs that don't change chemistry every week.
The advantage is lower direct cost and full control, but it requires discipline and monitoring to prevent the sump from turning into a maintenance crisis.
Outsourcing often makes sense when:
- Your team is perpetually short on maintenance time.
- You operate many machines across shifts and locations.
- Regulatory and disposal requirements are complex or strict. [hcfeng]
Specialized providers can handle fluid testing, filtration upgrades, scheduled changes, and compliant waste disposal, turning coolant into a managed service rather than a recurring headache. [hcfeng]
From a process‑engineering view, designing coolant correctly at the CAM and fixturing stage is cheaper than fixing problems on the floor.
- Place nozzles so they consistently target the tool–chip interface, not just the general work area.
- Consider multiple adjustable nozzles if your work requires frequent tool changes or multi‑axis operations.
- Use through‑spindle coolant on deep drilling or high‑aspect‑ratio tools; this can dramatically improve chip evacuation and tool life on demanding jobs.
- Flood coolant is robust and cost‑effective for general milling and turning.
- High‑pressure systems shine in aerospace alloys, deep holes, and tight‑tolerance work, but require better filtration and pump care. [insights.atssystems]
Even with a solid coolant program, some machining projects demand more than an in‑house team can comfortably support.
As a precision manufacturing partner in China, U‑Need works with global brands, distributors, and manufacturers that require:
- Tight‑tolerance custom CNC machining down to micron‑level accuracy for metal and plastic parts. [uneedpm]
- Stable, documented processes for coolant selection, mixing, and monitoring tailored to each material family.
- End‑to‑end support from DFM review through production, finishing, and logistics.
If you'd rather focus on design, assembly, or market growth instead of managing sumps, outsourcing critical parts to a partner that already runs optimized coolant systems can be a strategic move.
The top factor is matching coolant type and concentration to your material, tooling, and spindle speeds so you get enough cooling and lubrication without excessive mist, staining, or corrosion. [cncmachines]
Use DI/RO water, skim tramp oil regularly, aerate the sump to discourage anaerobic bacteria, and maintain filters and concentration; these basic steps can often double coolant life. [hcfeng]
Not always; classification depends on local regulations and contamination level, but many used fluids must be handled as controlled waste, so you should consult local guidelines or a professional waste‑management provider. [hcfeng]
Sometimes, but in many cases the real fix is improving water quality, filtration, and sump cleaning rather than simply changing brands. [cncmachines]
If coolant maintenance is causing repeated downtime, your team lacks EHS resources, or your parts demand extremely tight tolerances and cleanliness, outsourcing to a specialist machining partner like U‑Need can be more cost‑effective overall. [uneedpm]
