As a CNC manufacturing engineer who has overseen thousands of threaded holes for global OEMs, I've learned that choosing between thread milling vs tapping is rarely a theoretical question—it's a decision that determines scrap rate, cycle time, and whether your customer trusts your parts on their production line. In this guide, I'll walk you through how I evaluate the two methods in real projects, and how a precision partner like U-Need can help you get consistent, high‑tolerance threads at scale. [kennametal]
Tapping is the classic way to cut internal threads using a dedicated tap driven into a pre‑drilled hole. In many job shops, it's still the default because it's fast, simple, and easy to program. [kennametal]
Common tap types: [kennametal]
- Hand taps – for manual work, repair, and one‑off jobs.
- Spiral point taps – push chips forward, ideal for through holes.
- Spiral flute taps – pull chips back, better for blind holes.
Key practical traits of tapping: [frigate]
- One tap usually fits one specific size and pitch.
- Cycle times per hole are short, especially on standard threads.
- Chip packing and tap breakage are the main failure modes, particularly in hard materials or deep blind holes.
As a process engineer, I still choose tapping when I need high‑volume, standard threads in soft metals and when the cost‑per‑hole has to be as low as possible. [frigate]

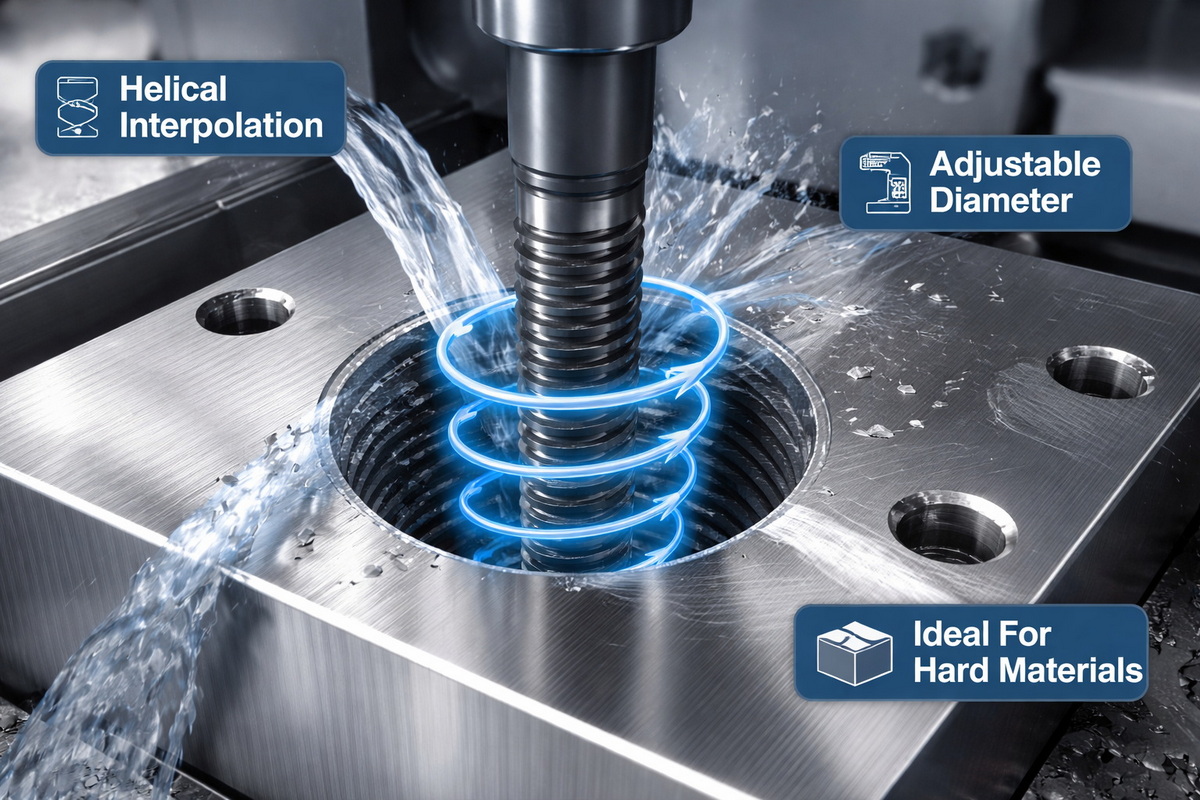

Thread milling uses a rotating thread mill cutter that follows a helical interpolation path to generate the thread profile. Rather than forcing a tap through the full thread at once, you "walk" a smaller tool along the programmed helix. [frigate]
Main thread mill types: [kennametal]
- Single‑point thread mills – one tooth, extremely flexible, perfect for custom or prototype threads.
- Multi‑form thread mills – multiple teeth, cut the full profile in one pass, ideal for production once size is fixed.
- Indexable thread mills – modular inserts for large diameters or heavy production.
From an engineer's perspective, the real power of thread milling is programmability: you control diameter, pitch, and depth with code, not with a fixed‑geometry tap. This is critical for non‑standard threads, micro threads, and high‑precision fits. [intelmarketresearch]

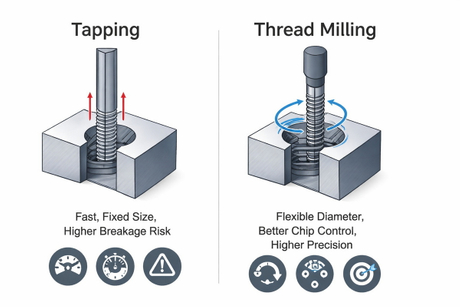

Below is an engineer-focused comparison that expands on the typical marketing charts and reflects what we actually see on the shop floor. [fastpreci]
| Metric / Feature | Tapping | Thread Milling |
|---|---|---|
| Core method | Dedicated tap driven axially (kennametal) | Small cutter on a helical toolpath (kennametal) |
| Speed per hole | Faster for standard, high‑volume runs (kennametal) | Slower per hole, especially with single‑point tools (fastpreci) |
| Tool flexibility | One tool per size/pitch (kennametal) | One tool can cut multiple diameters and pitches (frigate) |
| Material range | Best in soft to medium materials (kennametal) | Excellent in hard alloys, superalloys, hardened steel (kennametal) |
| Thread quality | Good, but geometry fixed by tap (kennametal) | Finer surface finish and tunable diameter / class (frigate) |
| Chip control | Weak in blind holes, risk of packing (kennametal) | Strong chip evacuation, ideal for deep and blind holes (frigate) |
| Tool break risk | High in hard materials and deep blind holes (kennametal) | Lower; breakage less likely to scrap the part (kennametal) |
| Programming | Simple canned cycles (e.g., G84) (kennametal) | Requires helical interpolation and CAM, more complex (kennametal) |
| Cost model | Lower tool price; higher scrap risk (kennametal) | Higher tool price; lower scrap, more flexibility (frigate) |
In real‑world CNC production, that last row is decisive: you're not just buying a cycle time, you're buying risk control. One broken tap in a 200 USD aerospace part can destroy the savings of many minutes of "fast tapping". [intelmarketresearch]
I typically choose tapping when: [fastpreci]
1. High‑volume, standard threads
- Large batch sizes with repeated metric/imperial sizes.
2. Soft materials
- Aluminum, mild steel, and other free‑machining grades where taps rarely break.
3. Through holes with good chip escape
- Minimal risk of chip packing; standard taps run smoothly.
4. Simpler CNC setups
- Older machines without reliable 3‑axis helical interpolation, or when the programming team is limited.
In this scenario, a dedicated tapping solution squeezes maximum parts per hour, and you accept the occasional tool failure as part of the economics. [frigate]
I recommend thread milling when any of these apply: [fastpreci]
1. Hard or exotic materials
- Titanium, Inconel, hardened tool steels; taps fail frequently here.
2. Blind holes and limited relief at the bottom
- You need precise control and safe chip evacuation.
3. Non‑standard or mixed thread systems
- Special pitches, odd diameters, metric threads in imperial patterns, etc.
4. Small lot sizes or frequent design changes
- One thread mill can cover many sizes, minimizing tool inventory and changeovers.
5. Tight tolerances on pitch diameter and surface finish
- Thread milling allows you to "dial in" diameters via toolpath offsets and achieve smoother flanks. [frigate]
From a precision manufacturing partner's view, thread milling is often the "insurance policy" for high‑value parts where scrap and rework are unacceptable. [intelmarketresearch]

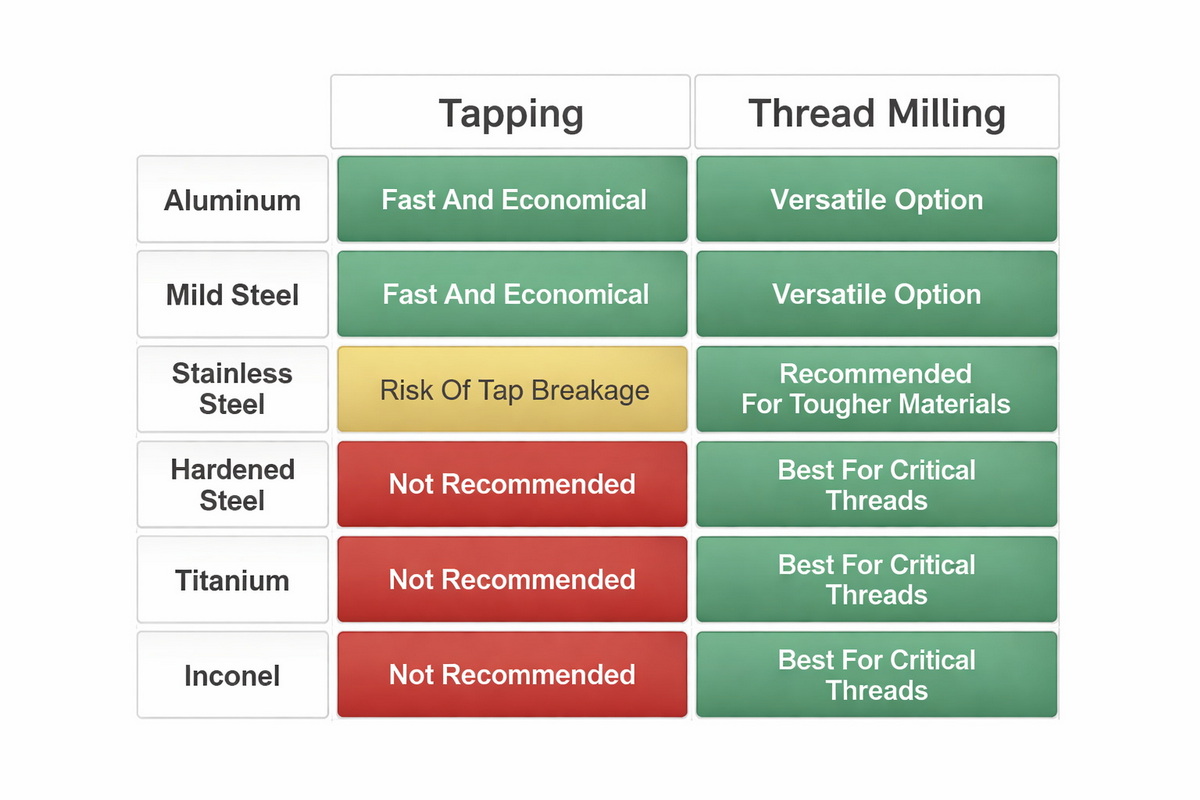

- Tapping is usually fast and reliable; tools last long and rarely break. [kennametal]
- Thread milling is used when you need fine control over size, or when one tool must cover many sizes in low‑volume jobs. [frigate]
- Austenitic stainless (304/316) produces gummy chips, which load tap flutes and increase breakage risk. [frigate]
- Thread milling with sharp, coated carbide and flood coolant improves tool life and consistency in these alloys. [frigate]
- For hardened steels above about 45 HRC, thread milling with solid carbide is often the only practical solution. [frigate]
- Materials like titanium and Inconel work harden and generate heat quickly; taps fail easily here. [frigate]
- Thread milling spreads cutting forces and heat over multiple passes, greatly reducing failure risk. [intelmarketresearch]
- In aerospace, where 3A / 3B fits and traceability are required, thread milling delivers more repeatable tolerances. [frigate]
In U‑Need–type projects serving aerospace, medical, and high‑precision automation, these material behaviors drive us toward thread milling for critical holes, even when tapping looks cheaper on paper. [uneedpm]
When I help customers transition from tapping to thread milling, the biggest shift is in CNC programming and process control.
- Uses canned cycles like G84 (right‑hand) or G74 (left‑hand). [kennametal]
- Few parameters: depth, feed tied to pitch, spindle speed.
- Toolpath is essentially straight in, straight out.
Core requirements: [kennametal]
- Helical interpolation combining circular XY motion with linear Z motion.
- One full revolution per thread pitch as the tool advances axially.
- Correct direction for internal vs external threads and left‑ vs right‑hand.
- Smooth lead‑in and lead‑out moves to avoid witness marks.
To stabilize results, advanced shops integrate:
- High‑precision CAM to optimize tool engagement and entry/exit. [frigate]
- Multi‑axis synchronization to counteract machine deflection and backlash in long threads. [frigate]
- Adaptive control that adjusts feed and speed based on real‑time cutting forces for consistent quality. [ctis]
For a partner like U‑Need, combining these methods with GD&T‑driven inspection (true position, runout, perpendicularity) helps ensure threaded features align perfectly with mating parts in complex assemblies. [uneedpm]
High‑level customers don't just want threads; they want threads that gauge correctly every time across batches and machines.
Key practices I recommend for consistent thread tolerances: [frigate]
- Tight control of pitch diameter, lead, helix angle, and surface finish via in‑process measurement.
- Use of hydraulic or pneumatic fixturing for stable clamping and minimal micro‑movement during cutting. [frigate]
- Damped tooling systems and dynamically balanced holders to reduce chatter and thread form distortion. [frigate]
- Clear tool life strategies: change thread mills based on measured wear, not just visual checks. [frigate]
From a UX angle, it's this invisible process discipline that makes a "trusted precision partner" feel different: the customer sees repeatable assemblies, low field failure rates, and fewer line‑down events.

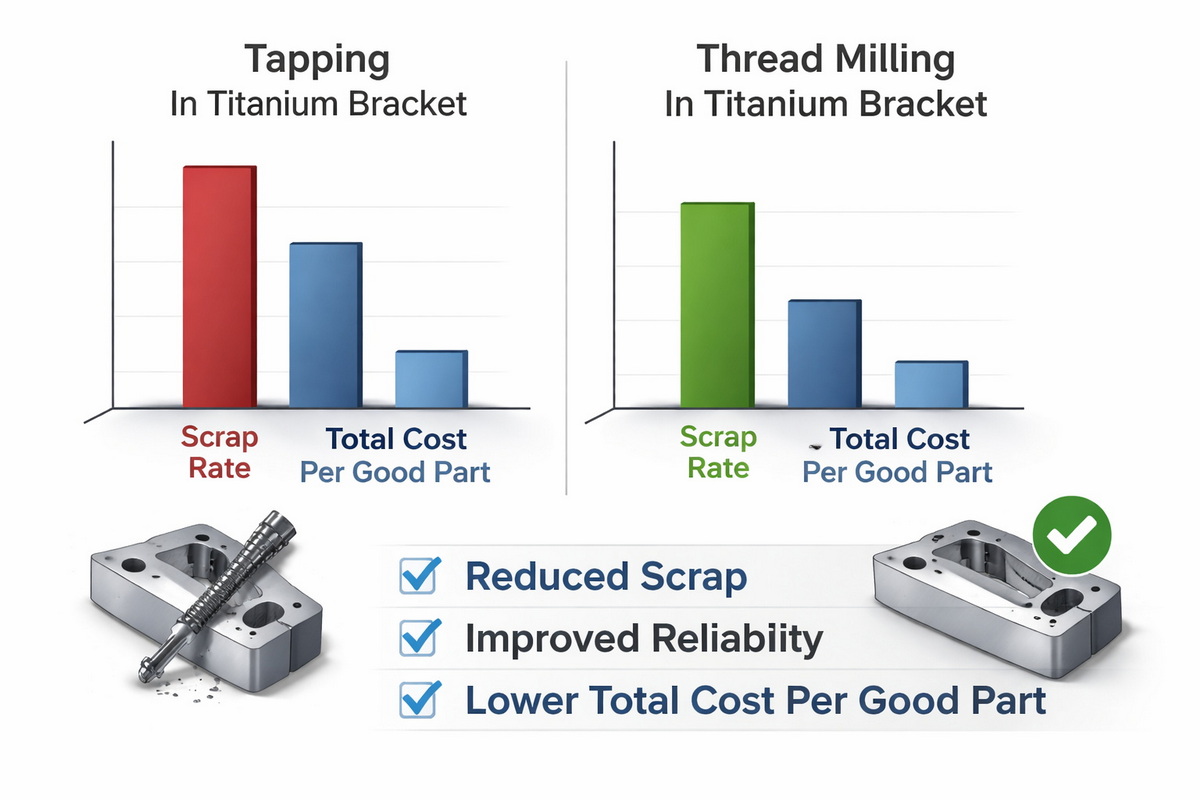

A typical scenario I encounter:
- Material: Ti‑6Al‑4V bracket for aerospace.
- Feature: Deep blind M8×1.25 threads close to a critical sealing surface.
- Initial approach: Tapping with spiral flute taps.
Issues:
- Taps breaking near the bottom of the blind hole.
- Extracting broken taps damaging the sealing surface.
- Scrap cost per part over 200 USD.
Solution:
- Switch to carbide thread milling with helical flutes and through‑spindle coolant. [frigate]
- Optimize SFM and chip load to avoid work hardening and chatter.
- Introduce in‑process gauging of pitch diameter every few parts.
Results:
- Zero tap breakage (because taps were eliminated).
- Scrap rate dropped dramatically.
- Cycle time per hole increased, but total cost per good part decreased once scrap, rework, and downtime were included. [intelmarketresearch]
This kind of case is where a precision manufacturer like U‑Need can demonstrate E‑E‑A‑T in practice—combining hands‑on experience, advanced tooling, and process engineering to solve real customer pain points. [uneedpm]
From both a designer and manufacturing engineer perspective, a few DFM rules dramatically improve throughput and quality:
- Avoid excessive internal thread depth; keep depth under about three times the diameter when possible to reduce breakage and cycle time. [meviy-usa]
- Leave relief space at the bottom of blind holes (≈ two thread pitches) so chips can collect without damaging the full thread form. [frigate]
- Specify thread classes and tolerances that match function; overspecifying 3B fits everywhere raises cost and scrap without always improving performance. [frigate]
- Clarify whether threads are critical sealing or structural features; this guides whether tapping is acceptable or thread milling is strongly preferred.
A capable CNC partner will proactively flag DFM risks in your drawings and propose adjustments before cutting chips, which is a key part of modern B2B UX.
A trusted precision manufacturer in China, such as U‑Need, can support global brands, distributors, and OEMs with end‑to‑end thread solutions, not just isolated machining. [longwinprecision]
What that typically includes:
- Process selection: choosing tapping vs thread milling per feature, material, and volume.
- Tooling strategy: single‑point vs multi‑form thread mills, coatings, and holders suited to your materials. [intelmarketresearch]
- Full inspection: thread gauges, CMM checks of axis alignment, and surface finish validation tied to GD&T. [uneedpm]
- Lifecycle support: fast prototyping, pilot runs, and ramp‑up to volume with stable control plans. [uneedpm]
For many overseas customers, the real value is knowing that one partner can handle both standard tapped threads for cost‑sensitive parts and high‑precision thread‑milled features for critical assemblies.
If you're managing a product or sourcing team, here is how I'd suggest you frame options for your internal or external stakeholders:
1. Highlight risk vs cost
- Position tapping as a cost‑optimized choice and thread milling as a risk‑optimized choice for critical features.
2. Show clear application rules
- Provide simple internal guidelines like: "Titanium + blind hole + sealing surface = thread milling default."
3. Use visuals
- Include:
- A cross‑section graphic of a tap vs thread mill toolpath.
- A microphoto of thread surfaces showing finish differences.
- A simple chart of scrap rate vs method for a real case.
4. Provide quick decision flows
- One‑page flowcharts for engineers and buyers to choose tapping or thread milling without re‑reading full documentation.
On your website or technical blog, inserting diagrams near sections on material selection, tool path explanation, and case studies makes the content more digestible for both engineers and non‑technical stakeholders.
Suggested visual insertion points:
- Right after "What Is Tapping?" – a simple line drawing of a tap in a hole.
- In "What Is Thread Milling?" – a helix‑style animation or diagram of the toolpath.
- In the "Case Example" – a before/after chart showing reduced scrap and cost.
If you're still unsure whether thread milling or tapping is right for a specific design, the safest move is to share your CAD and requirements with an experienced CNC manufacturer. [uneedpm]
A strong CTA for a precision‑machining website could be:
Upload your drawing or 3D model, tell us your material and annual volume, and our engineering team will recommend the optimal threading process—tapping where it saves cost, and thread milling where it protects your part and your brand. [uneedpm]
This shifts the burden of the decision from the buyer to the expert, which is exactly what most B2B users expect from a "trusted precision manufacturing partner".
Not always, but thread milling usually offers tighter control of pitch diameter and better surface finish because you can tune the toolpath instead of relying on a fixed tap geometry. In well‑controlled processes, both can meet standard tolerances, but thread milling is preferred for very tight tolerance bands. [frigate]
You don't need exotic equipment, but your CNC must support 3‑axis simultaneous movement and helical interpolation, which most modern machining centers already do. Older or limited controllers may need workarounds or tapping instead. [frigate]
For shallow blind holes in soft materials, tapping can work well with spiral flute taps and good chip control. For deep or critical blind holes, especially in hard materials, thread milling offers safer chip evacuation and lower scrap risk. [fastpreci]
Taps are cheaper per tool, but they can break and scrap high‑value parts. Thread mills cost more upfront, yet one tool can replace several taps and significantly reduce scrap and rework, which often makes them cheaper per good part in demanding applications. [intelmarketresearch]
Yes. A single‑point thread mill can cut multiple diameters and pitches as long as the profile matches. This flexibility is one of the biggest reasons advanced shops use thread milling for custom parts, small batches, and prototyping. [fastpreci]
