When you are responsible for real production deadlines and tight tolerances, the decision between vertical and horizontal CNC milling machines is not theoretical—it determines your scrap rate, your lead times, and ultimately your profit. Drawing on U-Need's experience as a precision machining partner in China, this guide explains how we actually choose and combine vertical and horizontal mills for global customers, and how you can do the same with confidence. [jlccnc]
- Whether a vertical CNC mill (VMC) or horizontal CNC mill (HMC) is the smarter first investment for your shop or project. [mastercam]
- How spindle orientation, chip evacuation, rigidity, and automation capability translate into real-world cost, quality, and throughput. [encycam]
- When it makes sense to partner with a precision machining supplier like U-Need instead of adding another machine to your own floor. [uneedpm]
Even experienced engineers sometimes need a clear way to explain CNC milling to purchasing, management, or customers. CNC milling uses a computer-controlled rotating cutting tool to remove material from a fixed or semi-fixed workpiece, following a toolpath generated from CAD/CAM software. [quadrantprecision]
Key points:
- The process starts from a CAD model, which is translated into G-code by CAM software. [quadrantprecision]
- The machine controls axes movement, spindle speed, and tool changes automatically to hit target geometry and surface finish. [quadrantprecision]
- Modern CNC milling regularly achieves tolerances down to ±0.005 mm, and in high-end cases even tighter, which is why it is used in industries such as aerospace, medical, robotics, and automotive. [worthyhardware]

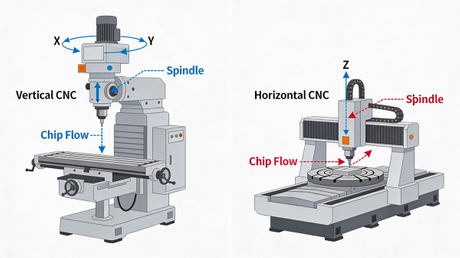

In a vertical CNC milling machine, the spindle is oriented vertically, moving up and down over a worktable where the part is clamped. This is the configuration most engineers encounter first when they walk into a job shop. [jlccnc]
From a practical standpoint, vertical mills offer:
- Direct visibility of the cutting zone, so operators can see chips, coolant, and tool engagement during setup and prove-out. [encycam]
- Faster initial setups, especially for flat parts, plates, and 2.5D geometries. [worthyhardware]
- Lower acquisition and maintenance cost: For similar travels, VMCs are significantly more budget-friendly than HMCs, making them attractive for first-time buyers and smaller shops. [ycmalliance]
- Beginner-friendly operation: Training operators on vertical machines is easier because the interface, setup, and part access are straightforward. [jlccnc]
- Shorter setup time for simple parts: For prototypes or low-volume runs, you can clamp a part quickly and be cutting within minutes. [iscmfg]
- Smaller footprint: Vertical machines are more compact, which matters when floor space is constrained. [ycmalliance]
- Chip evacuation challenges: Chips tend to fall back onto the workpiece or into pockets, which can affect surface finish, tool life, and unattended reliability. [encycam]
- Limited efficiency for multi-side machining: Machining 4 or more faces usually requires multiple setups, which introduces stack-up errors and adds labor. [iscmfg]
- Throughput ceiling: For high-volume production of complex parts, verticals often hit a productivity limit due to manual intervention and longer cycle times per part. [ycmalliance]
Vertical CNC mills make strong sense when:
- You are running prototypes, small batches, or custom parts with frequent changeovers. [worthyhardware]
- Part geometry is mostly 2D/2.5D with features on one or two faces. [jlccnc]
- You need cost-effective entry into CNC milling or an additional flexible machine for job-shop work. [mastercam]
A horizontal CNC milling machine mounts the spindle horizontally, usually paired with a rotary table or pallet system that allows the part to be indexed and machined from multiple sides in one setup. [ycmalliance]
This orientation significantly improves chip flow and enables more aggressive cutting strategies. [encycam]
- Superior chip evacuation: Gravity helps chips fall away from the cutting area, reducing recutting and heat build-up, which improves tool life and surface finish. [worthyhardware]
- Higher productivity for complex parts: With multiple sides accessible in a single setup, horizontals sharply reduce non-cutting time and operator handling. [ycmalliance]
- Heavy-duty cutting capability: HMCs generally offer greater rigidity and spindle power, which supports higher material-removal rates in steels, nickel alloys, and other tough materials. [mastercam]
- Ideal for automation: Pallet changers and robot loading integrate naturally, making horizontals the core of lights-out machining cells. [blog.3ds]
- Higher capital cost: The upfront investment is significantly higher than a comparable vertical mill, especially with pallets and automation. [mastercam]
- Larger footprint: HMCs typically require more installation space and more robust infrastructure. [mastercam]
- Higher skill requirements: Programming, fixturing, and setup can be more complex, demanding experienced CNC engineers and operators. [jlccnc]
Consider a horizontal CNC mill when:
- You are running medium to high volumes of the same or similar parts. [worthyhardware]
- Parts require multi-side machining or deep pockets where chip evacuation matters. [encycam]
- You want to build or leverage automated cells to achieve 24/7, lights-out production. [kentusa]

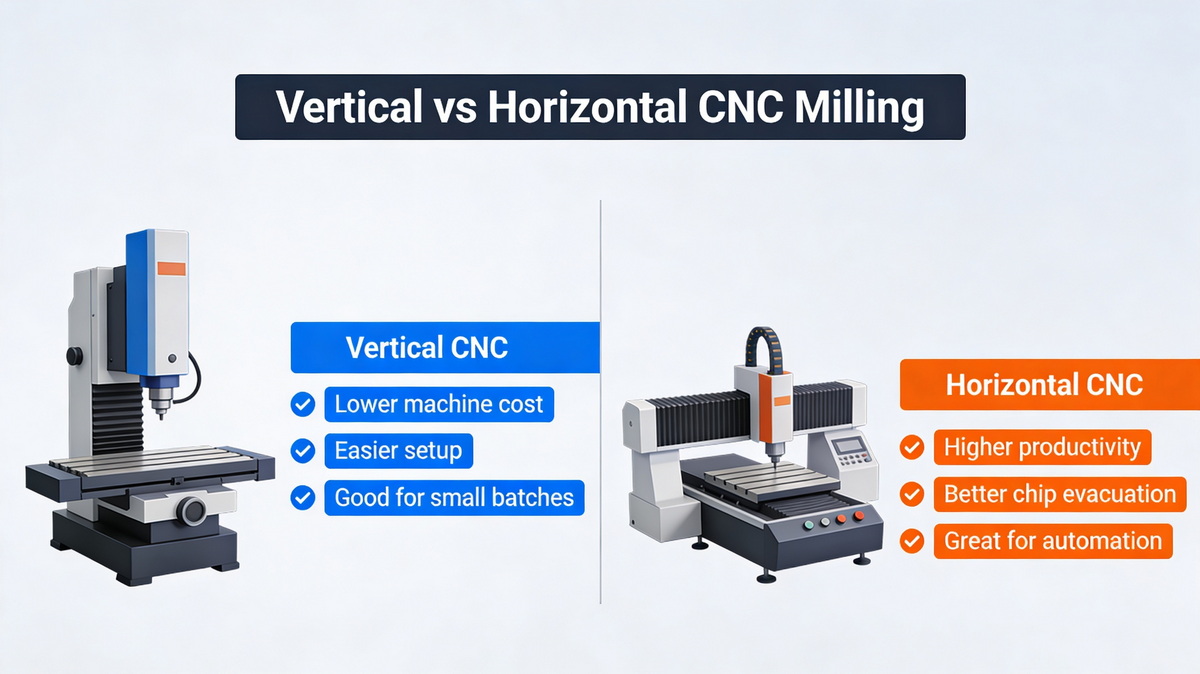

| Factor | Vertical CNC Milling Machine | Horizontal CNC Milling Machine |
|---|---|---|
| Spindle orientation | Vertical (up–down) jlccnc | Horizontal (sideways) ycmalliance |
| Ease of use | Beginner-friendly, simple setups jlccnc | Requires more skilled operators jlccnc |
| Setup time | Faster for simple, single-side parts jlccnc | Longer initial setup; very efficient for repeat work jlccnc |
| Chip evacuation | Chips fall onto part and fixtures, more cleanup encycam | Chips fall away from cut, cleaner and cooler machining encycam |
| Best for volume | Prototypes, low to medium volumes jlccnc | Medium to high volumes, family-of-parts production ycmalliance |
| Part complexity | Flat parts, plates, 2.5D features jlccnc | Multi-side, complex prismatic parts ycmalliance |
| Footprint | More compact, easier to fit in small shops ycmalliance | Larger footprint, needs more space ycmalliance |
| Machine cost | Lower acquisition cost ycmalliance | Higher upfront investment ycmalliance |
| Automation fit | Manual or simple probing and tool changers mastercam | Strong fit for pallet pools, robots, lights-out machining blog.3ds |
As a precision machining supplier in China, U-Need does not treat this as a "VMC vs. HMC" battle; we treat it as a portfolio decision aligned with your parts, materials, and business goals. [longwinprecision]
We typically assign parts to vertical mills when:
- Early-stage prototyping is required and design changes are frequent. [jlccnc]
- Parts are mostly flat plates, brackets, covers, and housings with features on one or two faces. [worthyhardware]
- Customers prioritize short lead times and lower unit cost at low volumes over absolute cycle-time optimization. [jlccnc]
We prefer horizontals when:
- The part requires multi-side machining with tight positional tolerances between faces. [ycmalliance]
- Annual demand justifies repeat production where setup amortization over many parts makes horizontals more economical. [ycmalliance]
- Chip control and thermal stability are critical, such as in hard steel components for automation, robotics, or automotive systems. [encycam]

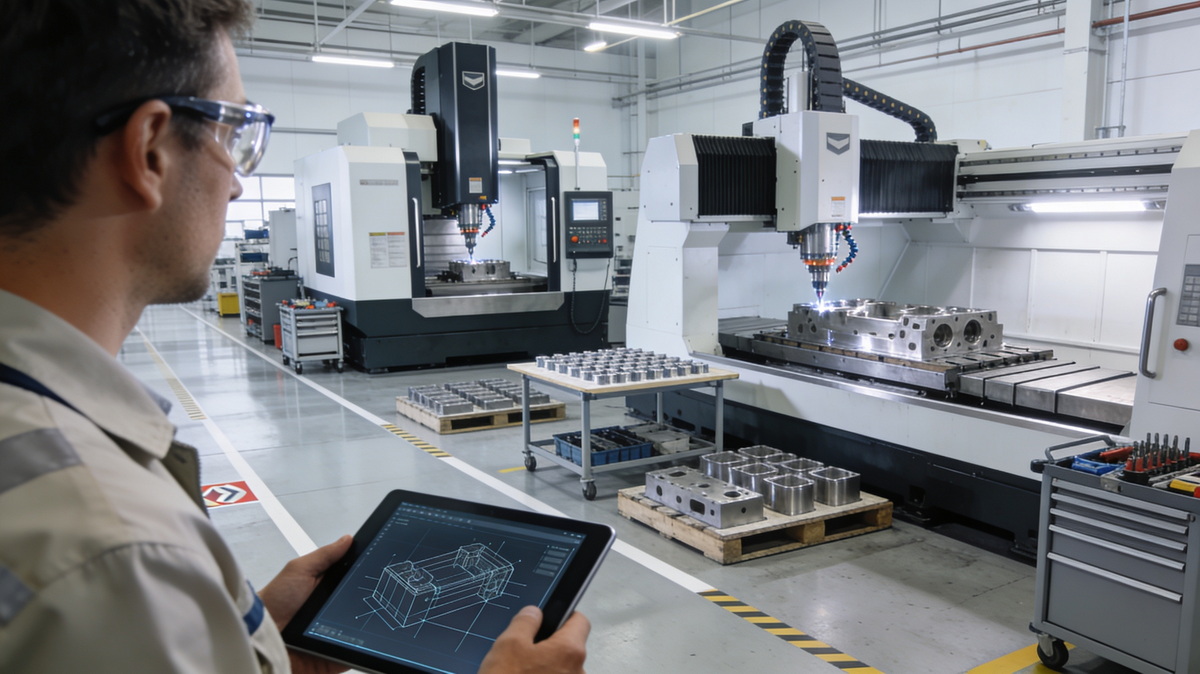

By having both machine types in-house, we can balance cost, throughput, and risk rather than forcing every job into a single equipment category. [uneedpm]
The traditional comparison of vertical vs. horizontal CNC milling machines is no longer enough. In 2026, several industry trends are reshaping how smart manufacturers think about this choice. [dashnode]
AI-driven CAM, toolpath optimization, and live feed-rate control are helping both vertical and horizontal machines cut faster and safer by adapting to tool wear and material variability in real time. [dashnode]
For buyers, this means:
- A well-optimized vertical can perform beyond what its base hardware suggests for complex prototypes. [blog.3ds]
- An HMC with AI-enhanced process control can deliver extremely stable cycle times suitable for lights-out production. [kentusa]
Digital twins—virtual models of machines, toolpaths, and fixtures—allow engineers to validate programs and detect collisions before a single chip is cut. [blog.3ds]
This reduces:
- Risk and time during first-article runs, especially on expensive HMCs. [dashnode]
- Scrap because setups are validated in a simulation environment that mirrors the real machine. [blog.3ds]

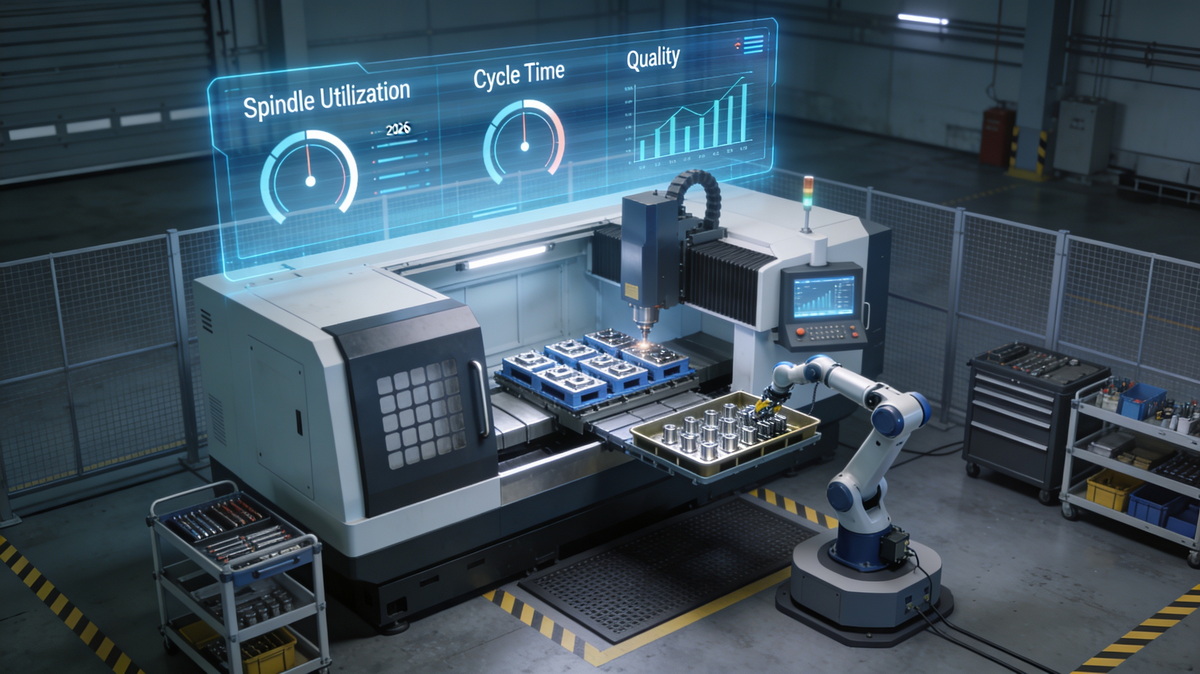

Robot-tended CNC cells, automatic pallet changers, and integrated inspection are becoming more common, especially around horizontal mills. [kentusa]
For high-mix manufacturers, combining:
- Verticals for flexible, human-supervised jobs, and
- Horizontals running 24/7 cells for stable product families
creates a hybrid production model that many global brands now expect from their suppliers. [uneedpm]
From an engineer's perspective, the most practical way to decide is to walk through a structured checklist.
- How many faces require machining? [worthyhardware]
- Are there deep pockets or features where chip evacuation is tricky? [encycam]
- What tolerances and positional relationships must be held between faces? [quadrantprecision]
If the part requires more than three machined faces with tight relationships, a horizontal or multi-axis solution is usually preferable. [ycmalliance]
- Prototype and very low volume: Vertical is often more cost-effective. [jlccnc]
- Medium to high volume with stable drawing: Horizontal becomes attractive due to amortized setup and higher throughput. [worthyhardware]
- Soft metals and plastics: Both machine types work well; focus on budget and lead time. [iscmfg]
- Hard steels, nickel alloys, or parts with heavy material removal: HMCs generally deliver better rigidity and thermal stability. [encycam]
- Limited budget and floor space: Vertical CNC mills provide a faster entry point and shorter payback. [mastercam]
- Larger budget and automation roadmap: Horizontal CNC + pallets or robot can transform your cost per part over time. [kentusa]
If you are not ready to invest in new equipment, partnering with a precision machining specialist can often deliver better quality and lower total cost than forcing production into the wrong in-house machine. [longwinprecision]
As a trusted precision manufacturing partner in China, U-Need combines vertical and horizontal CNC milling with 30+ years of engineering experience to support demanding industries worldwide. [uneedpm]
What this means in practice:
- Application-specific machine selection: We assign your parts to the optimal mix of vertical, horizontal, and multi-axis equipment rather than treating all jobs the same. [uneedpm]

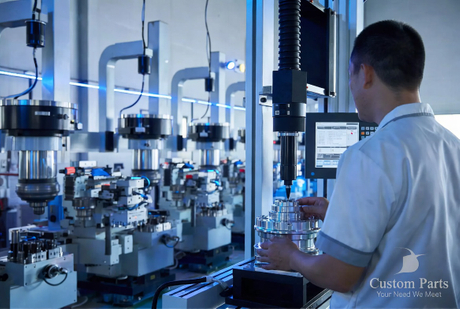

- Tight tolerance capability: Our CNC machining services routinely hold micron-level accuracy for critical features, supporting complex assemblies and high-reliability parts. [quadrantprecision]
- End-to-end support: From DFM feedback and material selection to finishing, inspection, and packaging, we handle the entire lifecycle so your team can focus on design and market. [longwinprecision]
If you are comparing vertical vs. horizontal CNC milling machines for an upcoming project, U-Need can simulate both options, quote realistic lead times, and recommend a cost–quality–risk balanced route based on your drawings and volume forecast. [longwinprecision]
Vertical CNC milling machines are generally better for beginners because they are easier to set up, offer direct visibility of the cutting area, and have lower purchase and training costs. [mastercam]
Horizontal mills usually offer higher productivity for multi-side, high-volume parts, but a well-optimized vertical can be more efficient for prototypes, small batches, and simpler geometries. [ycmalliance]
Poor chip evacuation can shorten tool life and damage surface finish; horizontals have a natural advantage because chips fall away from the cut, while verticals require more attention to coolant and chip removal. [encycam]
You only need 5-axis capability when the geometry, tolerance, or surface finish requirement cannot be met via multiple setups on 3-axis verticals or horizontals; for many parts, a smart combination of VMCs and HMCs is sufficient. [quadrantprecision]
If you share your CAD files, drawings, and volume estimates, U-Need's engineering team will analyze geometry, material, and tolerance requirements and propose an optimal process route using the right mix of vertical and horizontal CNC equipment. [longwinprecision]
