Views: 222 Author: U-Need Publish Time: 2026-04-27 Origin: Site
As a precision machining engineer working with international brands at U-Need in China, I get one question more than almost any other: "Should we use 6061 or 7075 aluminum for this part?"[jlccnc]
Choosing wrong can quietly increase cost, shorten part lifespan, or create production delays – but choosing right can unlock lighter designs, longer service life, and more competitive pricing. [thyssenkrupp-materials.co]
By the end of this article, you will clearly know:
- When 6061 aluminum is the smarter, cost-effective, "default" choice. [rapidaxis]
- When 7075 aluminum is absolutely worth its higher price and processing difficulty. [kloecknermetals]
- How strength, corrosion resistance, machinability, and welding really compare in practice. [kormax]
- How we at U-Need typically guide customers for CNC machining, sheet metal fabrication, and structural parts. [firstmold]
Primary keyword: Aluminum 6061 vs 7075
Secondary keywords (naturally used throughout):
- 6061 vs 7075 aluminum properties
- 6061 vs 7075 for CNC machining
- best aluminum alloy for strength
- 6061 vs 7075 corrosion resistance
- 6061 vs 7075 price and applications [jlccnc]

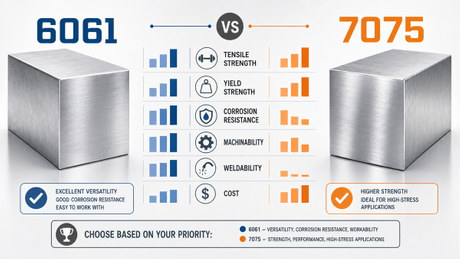

Below is the sort of benchmark table we use internally when reviewing new projects with customers. [kloecknermetals]
| Factor | Aluminum 6061 | Aluminum 7075 |
|---|---|---|
| Alloy series | 6xxx (Mg–Si) kormax | 7xxx (Zn–Mg–Cu) kormax |
| Typical temper for machined parts | 6061-T6 thyssenkrupp-materials.co | 7075-T6 thyssenkrupp-materials.co |
| Tensile strength | Around 290 MPa in rod spec used by JLCCNC article jlccnc, ~310–350 MPa typical for 6061-T6 kloecknermetals | Around 560 MPa in JLCCNC rod spec jlccnc, often ~570–600 MPa for 7075-T6 thyssenkrupp-materials.co |
| Yield strength | ≥240 MPa in JLCCNC data jlccnc, commonly quoted ~276 MPa in T6 thyssenkrupp-materials.co | ≥450 MPa in JLCCNC data jlccnc, commonly ~503 MPa in T6 thyssenkrupp-materials.co |
| Relative strength | Medium, good strength-to-weight rapidaxis | Very high, almost 2× the yield strength of 6061-T6 thyssenkrupp-materials.co |
| Machinability | Excellent; smooth cutting, low tool wear rapidaxis | Good but more demanding; hard material, higher tool wear thyssenkrupp-materials.co |
| Weldability | Very good, easy to weld thyssenkrupp-materials.co | Poor; requires special techniques to avoid cracking jlccnc |
| Formability | Good, especially after annealing jlccnc | Limited in hardened state; better in annealed condition jlccnc |
| Corrosion resistance | Good general corrosion resistance rapidaxis | Lower; often needs cladding or surface protection jlccnc |
| Typical applications | General structural parts, frames, fixtures, enclosures, automotive components jlccnc | Aerospace parts, high‑stress components, performance sports equipment, defense jlccnc |
| Relative cost | Lower, cost-effective jlccnc | Higher material and processing cost jlccnc |
From an engineering and production standpoint, 6061 is the workhorse aluminum alloy we rely on for a large share of CNC machined and fabricated parts. [partmfg]
6061 is a heat‑treatable aluminum alloy based on magnesium and silicon, forming the Mg₂Si phase that gives a balanced blend of strength, weldability, and corrosion resistance. [kormax]
Key points our customers care about:
- Good formability: Easy to bend, form, and extrude into complex shapes, especially after annealing. [jlccnc]
- High machinability: 6061 machines cleanly, with relatively low tool wear and excellent surface finishes. [rapidaxis]
- Reliable mechanical properties:
- Tensile strength in the JLCCNC reference spec: ≥ 290 MPa [jlccnc]
- Yield strength: typically around 240–276 MPa depending on condition [thyssenkrupp-materials.co]
- Elongation ≥ 10%, giving useful ductility and impact resistance [jlccnc]
For many design engineers, 6061 is the default choice unless there is a clear need for higher strength or very specific performance. [partmfg]
If your parts require tight mechanical property control, it is important to understand the heat treatment options for 6061. [thyssenkrupp-materials.co]
The original article lists several key processes for 6061: [jlccnc]
- Rapid annealing: 350–410°C for 30–120 minutes, followed by air or water cooling – used to relieve stress and improve formability before heavy forming. [jlccnc]
- High‑temperature annealing: 350–500°C for 10–30 minutes (for thickness ≥ 6 mm) – used for thicker sections to reset material structure. [jlccnc]
- Low‑temperature annealing: 150–250°C for 2–3 hours – used as a stress‑relief treatment after machining or forming. [jlccnc]
- Homogenization: About 570°C for 7 hours, air‑cooled – typically used at the ingot or billet stage to improve uniformity prior to downstream processing. [jlccnc]
At U-Need, we often combine proper heat treatment with CNC machining strategies (optimized cutting parameters, suitable tool selection, and correct fixturing) to keep dimensional stability and surface quality under control. [firstmold]
Based on real projects, we recommend 6061 aluminum when: [rapidaxis]
- Your design requires good strength but not aerospace-level performance.
- You need cost‑effective production for medium to large volumes.
- The parts require welding, such as structural frames or machine bases.
- The environment is mildly corrosive (e.g., outdoor enclosures, general industrial use) but not extreme marine conditions.
Common examples:
- Machine frames and structural brackets. [partmfg]
- Custom jigs and fixtures for production lines. [rapidaxis]
- Electronic enclosures and mounting plates. [firstmold]
- Automotive parts like brackets, housings, and non-critical suspension components. [partmfg]
While 6061 is the everyday workhorse, 7075 aluminum is the specialist we use when customers demand maximum strength in a lightweight structure. [onlinemetals]
7075 is a cold‑treated forging alloy dominated by zinc, with magnesium and copper as major secondary elements. [kormax]
This composition yields a tight, high‑strength microstructure that can outperform many mild steels in tensile strength. [kormax]
From the JLCCNC source and major materials databases: [kloecknermetals]
- Tensile strength: around ≥ 560 MPa in the rod specification quoted, commonly ~570–600 MPa in 7075‑T6. [kloecknermetals]
- Yield strength: ≥ 450 MPa in the same spec, often around 503 MPa in T6. [thyssenkrupp-materials.co]
- Elongation: typically ≥ 10%, but with a much higher yield and ultimate strength than 6061. [kormax]
In practical engineering terms, 7075‑T6 can deliver nearly double the yield strength of 6061‑T6, which is why it dominates in highly loaded aerospace and defense parts. [onlinemetals]
The original article correctly highlights that 7075 has stricter heat treatment requirements and more demanding processing behavior. [thyssenkrupp-materials.co]
Key points: [kormax]
- Formability is much better in the annealed state, but once hardened to T6 or similar tempers, forming is limited.
- 7075 has relatively poor corrosion resistance compared with 6061 and often needs pure aluminum cladding or surface coatings to protect against environmental attack.
- Welding is difficult and sensitive, requiring special procedures to avoid hot cracking and strength loss in the heat-affected zone.
From a manufacturing perspective, this means:
- Tight control of heat treatment parameters is essential to hitting the specified mechanical properties. [thyssenkrupp-materials.co]
- CNC machining of hardened 7075 requires optimized cutting tools, coatings, and parameters to manage tool wear and heat. [firstmold]
- For mission‑critical parts, NDT (non‑destructive testing) and careful dimensional inspection are recommended. [firstmold]
We advise customers to move to 7075 aluminum when: [onlinemetals]
- The design is highly weight‑sensitive but must carry very high loads.
- Failure would cause serious safety, performance, or financial risk.
- The parts are not heavily welded or can be designed to avoid welds in critical regions.

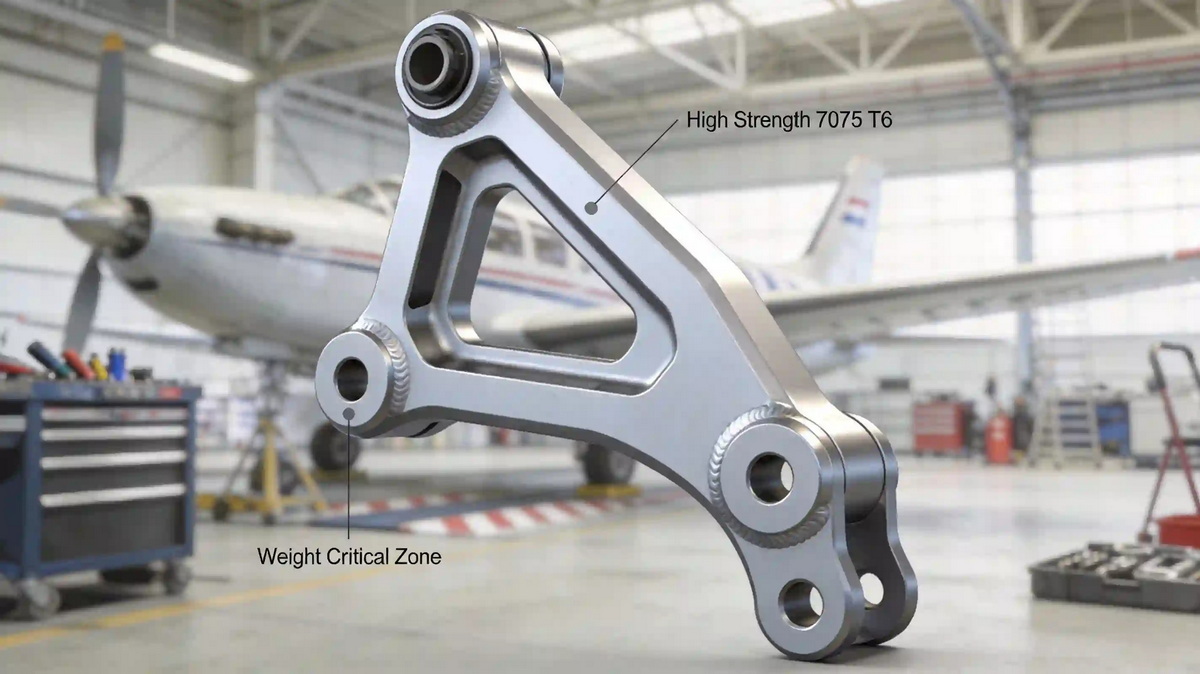

Typical applications include:
- Aircraft structural components, wing fittings, and landing gear parts. [onlinemetals]
- High‑end performance bicycle frames and critical suspension elements. [onlinemetals]
- Motorsport and racing components like control arms or hubs. [onlinemetals]
- Precision defense components and weapon system parts. [onlinemetals]

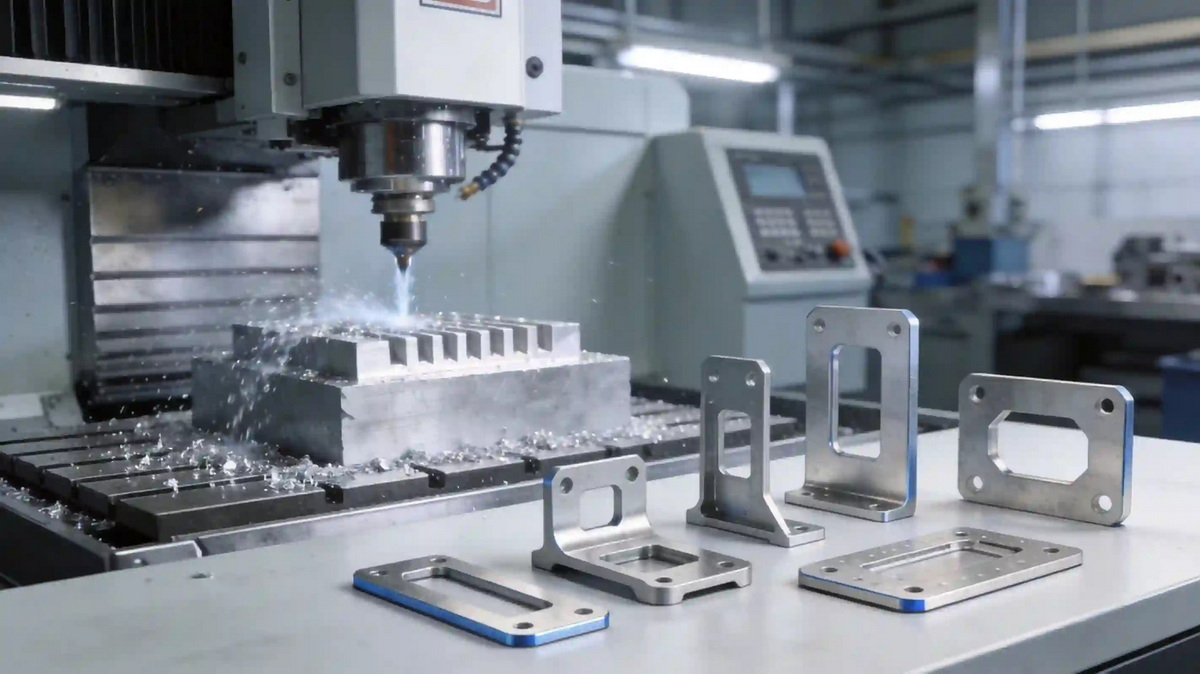

Most online comparisons stop at tensile strength tables. In our daily work with CNC machining and sheet metal fabrication, we also care deeply about machinability, cycle time, tool life, and consistency. [rapidaxis]
- 6061:
- Cuts smoothly, with a machinability rating often cited near 90–100%. [partmfg]
- Produces stable chips and allows aggressive feeds and speeds with good surface finishes. [rapidaxis]
- Ideal for complex 3D milling, deep pockets, and high‑volume production where cost per part matters. [partmfg]
- 7075:
- Machines well compared with many steels, but the higher hardness means more tool wear. [firstmold]
- Requires more attention to coolant, tool coating, and chip evacuation. [firstmold]
- Often used with high‑performance carbide tools and slightly more conservative parameters to protect tool life. [firstmold]
From a UX standpoint for engineers: if your design does not absolutely need the strength of 7075, 6061 will usually give you a smoother machining experience and lower piece price. [rapidaxis]
- 6061 is widely regarded as a "welder‑friendly" alloy and can be TIG or MIG welded with relatively predictable results. [kormax]
- 7075 is not recommended for conventional welding in most structural applications because of susceptibility to cracking and property loss in the weld zone. [thyssenkrupp-materials.co]
In multi‑process projects where parts must be machined, bent, and welded, we almost always steer customers towards 6061 for a better balance of fabrication and performance. [rapidaxis]
- 6061 offers good corrosion resistance in many environments and responds well to anodizing, powder coating, and painting. [kormax]
- 7075 has poorer corrosion resistance, particularly in stress‑corrosion and marine environments, and is often protected with cladding, anodizing, or conversion coatings. [kloecknermetals]
From a product‑experience angle, if your parts are used outdoors, in marine settings, or in humid industrial environments, 6061 is often the lower‑risk baseline, unless 7075's strength is non‑negotiable and you accept the extra protective steps. [kloecknermetals]
Cost is not just the material price per kilogram. For many of our global customers, the true cost includes machining time, tool life, yield rate, and long‑term reliability. [partmfg]
- 6061 aluminum is significantly more cost‑effective and widely available in plate, bar, and extrusion forms. [partmfg]
- 7075 aluminum commands a higher base price and may require specialized processing and inspection that further increase total cost. [onlinemetals]
In real projects, we commonly see:
- 6061 chosen for production parts with moderate strength requirements to maintain competitive pricing. [rapidaxis]
- 7075 justified when performance gains clearly outweigh the cost increase, such as weight reduction in aerospace platforms. [thyssenkrupp-materials.co]

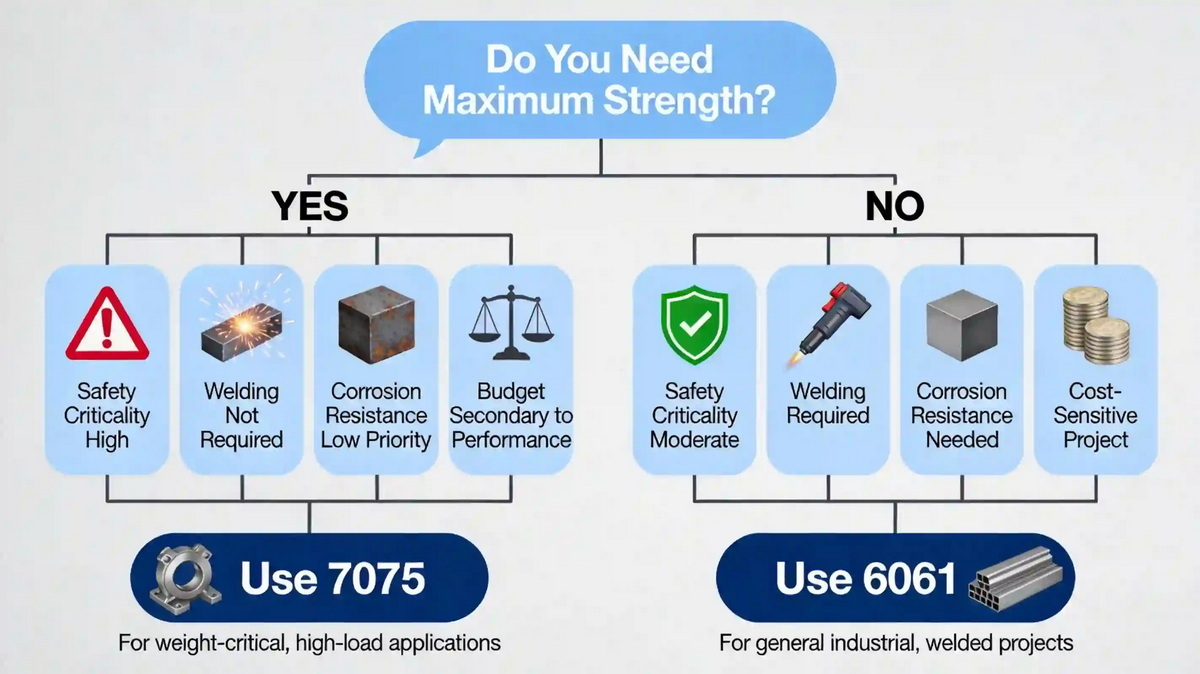

To make this more actionable, here is the three‑step decision process we often use during project reviews.
Ask:
1. Is failure of this part life‑critical or mission‑critical (e.g., aircraft structure, racing suspension, defense system)?
2. Does the design already run close to the material limits in simulation or historical data?
- If yes to either, you should seriously consider 7075, then manage its processing complexity. [kloecknermetals]
- If no, 6061 is usually sufficient and far easier to manage across the supply chain. [partmfg]
Check your process flow:
- Machining only, no welding, limited forming → both alloys are practical, compare strength and cost. [firstmold]
- Machining + welding + forming → 6061 is usually the practical choice. [kormax]
- Need tight tolerance and complex geometry with high volumes → 6061 generally gives lower cycle time and tool wear. [rapidaxis]
Key questions:
- Will the part see marine, salt spray, or aggressive industrial environments?
- Is long‑term corrosion resistance a core requirement?
If yes, 6061's corrosion resistance plus surface treatments will often meet requirements at lower cost. [kormax]
For 7075, you must plan early for anodizing, cladding, or coatings to maintain long‑term performance. [kloecknermetals]
To illustrate how this plays out, here is a common scenario we see with international customers.
A customer approached us with a CNC machined structural bracket for an industrial machine, originally specified in 6061‑T6. [partmfg]
- The bracket carried moderate loads with occasional shock.
- Operating environment was an indoor factory with normal humidity.
- The existing design had passed durability testing in the field.
Later, the customer wanted to increase load capacity and reduce mass for a next‑generation machine. This pushed the design much closer to the material limits in simulation.
We evaluated two options:
- Keep 6061 and increase cross‑section (heavier part, same material).
- Switch to 7075 and maintain or slightly reduce section size.
Because the bracket was not welded, and the environment was controlled, we recommended 7075‑T6 with appropriate surface protection. [kloecknermetals]
Result:
- The new bracket achieved higher load capacity with modest weight reduction.
- Machining cost increased due to tool wear and extra QA, but the overall system performance gain justified the change. [thyssenkrupp-materials.co]
Drawing from both industry data and our in‑house experience, here are actionable tips to improve your design and sourcing process. [jlccnc]
1. Specify the exact temper (e.g., 6061‑T6, 7075‑T6) rather than just the alloy number to ensure consistent mechanical properties. [kloecknermetals]
2. For parts requiring welded joints, strongly favor 6061 and design welds away from high‑stress zones. [kormax]
3. If using 7075 in a harsh environment, define surface treatments (anodizing, cladding, or coating) in the drawing or specification. [kloecknermetals]
4. For high‑volume CNC parts, discuss machinability, tool life, and cycle time early with your manufacturer; they can often suggest design tweaks that suit 6061 particularly well. [partmfg]
5. When in doubt, start with 6061, then upgrade to 7075 only if simulation, testing, or field feedback clearly shows a need for higher strength. [rapidaxis]
Selecting between aluminum 6061 and 7075 is not just a material choice – it is a design, cost, and reliability decision. [thyssenkrupp-materials.co]
At U-Need, our engineering team works daily with:
- CNC machining (3‑axis, 4‑axis, 5‑axis),
- Sheet metal fabrication (laser cutting, bending, stamping),
- Surface finishing and heat treatment management for 6xxx and 7xxx alloys. [zintilon]
No. While 7075 offers significantly higher tensile and yield strength, 6061 often wins in cost, weldability, corrosion resistance, and overall manufacturability, making it better for many general industrial applications. [thyssenkrupp-materials.co]
For most CNC jobs, 6061 is easier and more economical to machine, with excellent surface finish and long tool life, while 7075 requires more careful process control and higher tooling cost but is suitable when high strength is mandatory. [partmfg]
7075 can technically be welded with specialized techniques, but its weldability is poor, and the weld areas may lose strength or crack, so it is rarely recommended for welded structural components. 6061 is much more suitable for welding. [jlccnc]
6061 generally provides better natural corrosion resistance, especially in general and mildly aggressive environments, while 7075 is more prone to corrosion and often requires cladding or coatings for long‑term protection. [kloecknermetals]
Start by defining your strength requirements, environment, joining methods, and budget. Use 6061 as the baseline for most industrial and structural parts, and move to 7075 only when high strength‑to‑weight ratio is critical and the design can accommodate its processing constraints. Consulting an experienced manufacturer like U-Need can help you make an evidence‑based decision. [kormax]
1. JLCCNC. "What Are the Main Differences Between Aluminum 6061 and 7075." (Original article and mechanical data for 6061 and 7075, including heat treatment notes.) [Link] [jlccnc]
2. thyssenkrupp Materials UK. "7075 Aluminium vs 6061 Aluminium." (Strength, shear strength, hardness, and application notes.) [Link] [thyssenkrupp-materials.co]
3. Kloeckner Metals. "Comparing 7075 Aluminum vs 6061." (Mechanical properties table and discussion of density and conductivity.) [Link] [kloecknermetals]
4. Kormax. "Aluminium 6061 vs. 7075: A Comprehensive Comparison." (Chemical composition and strength comparison.) [Link] [kormax]
5. Rapid Axis. "What Aluminum Grades Is CNC Ideal For?" (Machinability and typical applications of 6061 and other alloys.) [Link] [rapidaxis]
6. PartMFg. "Best Aluminum Alloy for Machining: Expert Guide." (Machinability ratings and use cases for 6061 in CNC machining.) [Link] [partmfg]
7. OnlineMetals. "Aluminum 6061 vs 7075." (Summary of strength-to-weight and application trends.) [Link] [onlinemetals]
8. FirstMold. "Aluminum CNC Machining: Alloy Selection Guide." (General CNC machining guidance and alloy selection best practices.) [Link] [firstmold]
