Aluminum injection molding has quietly become one of the most powerful tools I use as a manufacturing strategist to shrink time-to-market, de‑risk tooling investment, and keep real-world feedback looped directly into design. As a China-based precision manufacturer, U‑Need has seen more and more global brands using aluminum molds not as a "cheap shortcut," but as a deliberate *bridge tooling* strategy between rapid prototyping and full-scale steel production. [finance.yahoo]

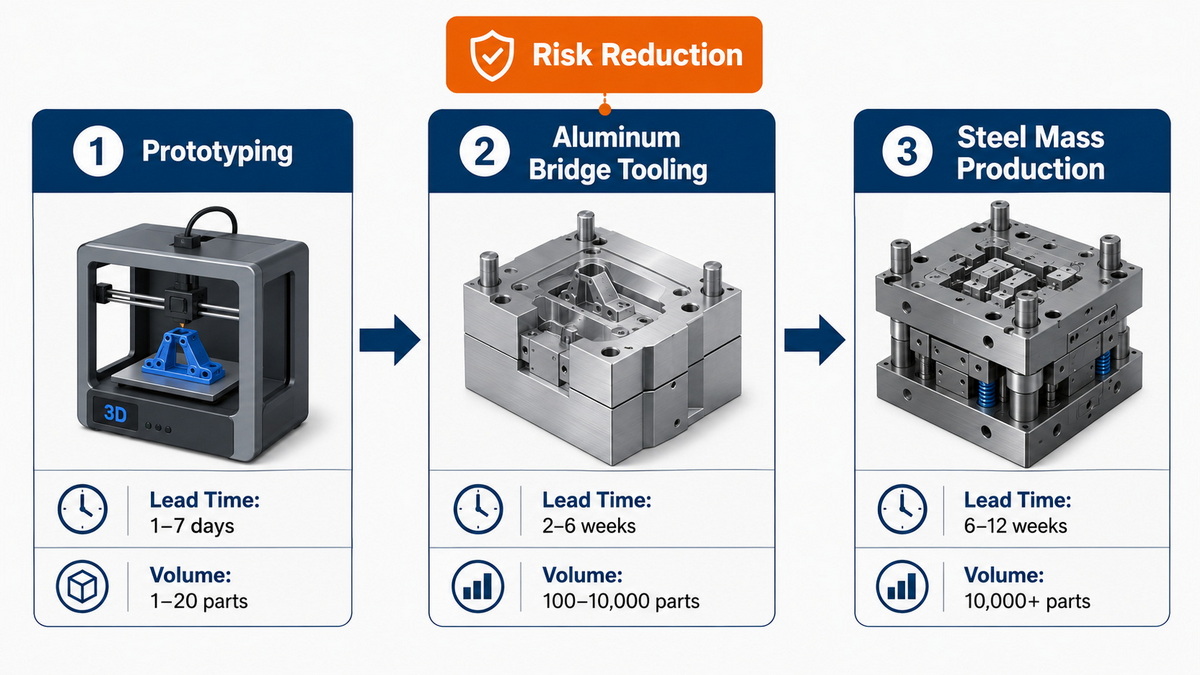

From a practical engineering standpoint, aluminum injection molding is best viewed as a strategic bridge between one-off prototypes (3D printing, CNC) and long-life steel production tools. Instead of waiting 8–12 weeks and tying up tens of thousands of dollars in hardened steel tooling, teams use aluminum tools to get thousands of functional parts into the field fast. [finance.yahoo]
In my own project reviews with OEMs and hardware startups, aluminum tooling consistently shows its value when:
- You need 2,000–10,000 high-quality parts to validate design and market. [finance.yahoo]
- You expect design changes after testing, but cannot risk reworking a steel tool. [finance.yahoo]
- You want to start generating revenue while final P20 or H13 steel tools are still being built. [revpart]
For this specific "bridge" role, aluminum is not a compromise; it is the correct engineering tool for the job. [protolabs]
Engineers don't switch from steel to aluminum just because it sounds modern; they do it because aluminum removes a real bottleneck in NPI (new product introduction). [finance.yahoo]
Key strategic advantages I see repeatedly in industrial projects:
- Shorter lead times – A typical aluminum cavity can be cut in about 10–15 days, versus many weeks for hardened steel. [protolabs]
- Lower upfront cost – Aluminum molds can start from around USD 1,500 and are generally significantly cheaper than steel, which often climbs past USD 50,000 for high-volume tools. [youtube]
- Faster iterations – Aluminum is softer and easier to machine, so modifying gates, adding radii, or tuning shut-offs is faster and less expensive than in steel. [finance.yahoo]
- Reduced financial risk – If the design fails in the field, you haven't sunk your full capital budget into a lifetime steel mold. [revpart]
From a business perspective, aluminum tooling aligns perfectly with the current injection molding market, which is expanding on the back of EV, medical, and consumer electronics demand. You can participate in that growth without over-committing capital at the earliest phase. [mordorintelligence]

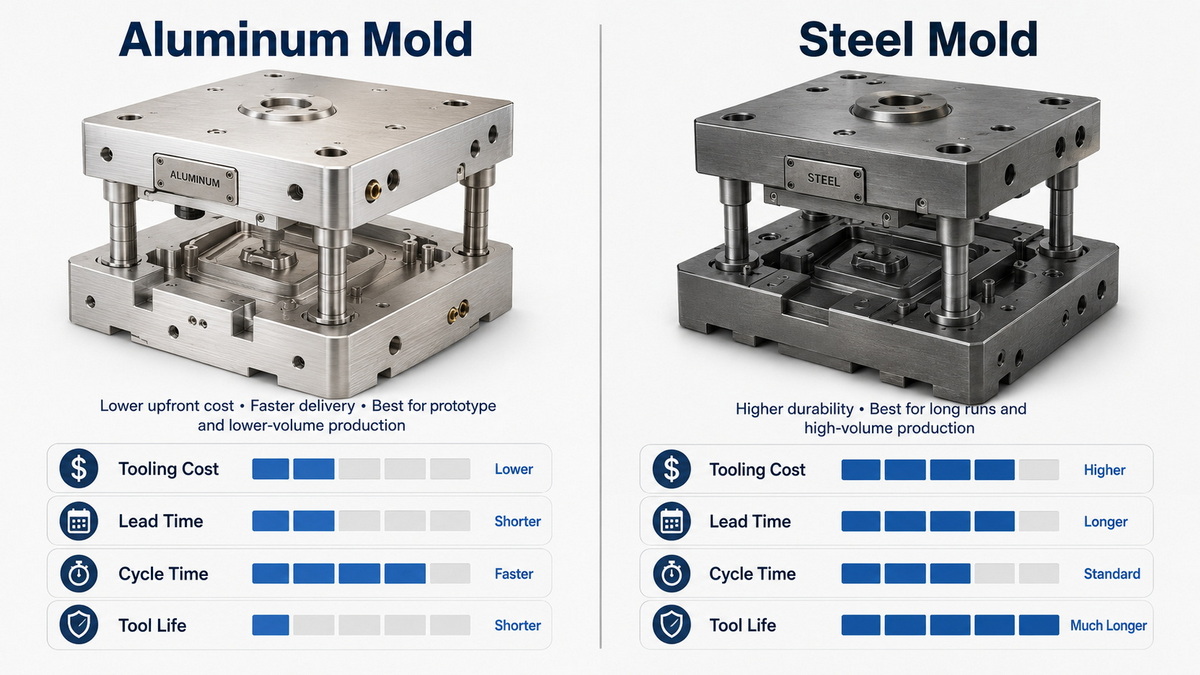

Below is how I now explain the aluminum–steel choice to clients, combining real-world shop-floor feedback with industry data and technical reports. [revpart]
| Aspect | Aluminum Molds | Steel Molds |
|---|---|---|
| Upfront tooling cost | Lower; molds can start around USD 1,500 and are significantly cheaper overall. (finance.yahoo) | Higher; complex tools can easily exceed USD 50,000 for high-volume programs. (finance.yahoo) |
| Typical lead time | About 7–15 days for many tools, enabled by higher machinability. (finance.yahoo) | Often 8–12 weeks, especially for hardened P20/H13 systems. |
| Practical production volume | Commonly 2,000–10,000+ parts; higher with good design and material. (finance.yahoo) | Hundreds of thousands to millions of parts, ideal for long-term production. (revpart) |
| Thermal performance | Much higher thermal conductivity, enabling cycle times up to ~7× faster in some comparisons and reducing cooling complexity. (revpart) | Lower thermal conductivity; requires more complex cooling line design and longer cycles. (revpart) |
| Defect risk | Better, more uniform heating/cooling can reduce sink, warpage, and burn marks when DFM is solid. (finance.yahoo) | Very stable once dialed in, but slower to optimize; design errors are costly to fix. (revpart) |
| Design iteration | Highly favorable; easy to cut, rework, and adapt during early design changes. (finance.yahoo) | Less flexible; changes can be expensive and time-consuming, especially on hardened tools. (revpart) |
| Tool life | Typically thousands to tens of thousands of shots depending on resin and geometry. (finance.yahoo) | Designed for hundreds of thousands to millions of shots in automotive and consumer programs. (revpart) |
In practice, I recommend aluminum for agile validation and short–medium runs, and steel once the product and volume forecast are stable. [revpart]
A common misconception I hear from non-specialists is that "aluminum is too soft for real injection molding." That may be true for generic grades, but modern mold shops do not use generic aluminum. [finance.yahoo]
Two alloys show up again and again in successful projects:
- QC‑10 aluminum – Favored when cycle time is the primary constraint. Its high thermal conductivity allows cavities to heat and cool significantly faster than steel, compressing cycle time because cooling often dominates the molding cycle. [protolabs]
- 7075‑T6 aluminum – An aircraft-grade alloy with exceptional yield strength, providing the rigidity needed to withstand repetitive clamp force and pressure. This makes it suitable for batches up to several thousand parts when DFM is respected. [finance.yahoo]

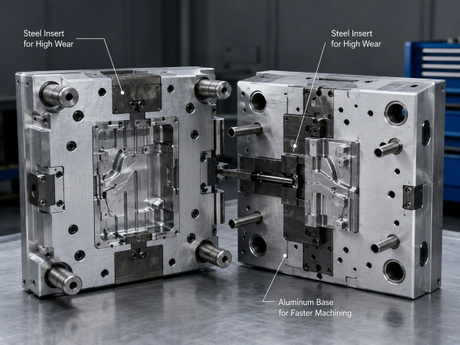

In many real-world programs, I see hybrid strategies: aluminum bases with steel inserts in high-wear regions such as shut-offs, ribs, or lifter tips. This approach balances cost, durability, and cycle time. [revpart]
From reviewing tooling failures, I can say that most aluminum mold problems start at the design stage, not at the material itself. The following DFM rules are ones I insist on for aluminum bridge tooling. [finance.yahoo]
Because aluminum is softer, ejection forces can damage cavity walls if parts grip too tightly. To prevent scratching or galling: [finance.yahoo]
- Add 1–2 degrees more draft than you would typically use on steel molds. [finance.yahoo]
- Pay extra attention to deep cores, textured surfaces, and undercuts, where friction is highest. [finance.yahoo]
Consistent wall thickness and radii are non‑negotiable in aluminum tooling. [finance.yahoo]
- Keep walls in the 1–3.5 mm range for most thermoplastics, as recommended by established injection molding guidelines. [finance.yahoo]
- Avoid sharp internal corners that concentrate stress and are difficult to machine; use generous fillets instead. [finance.yahoo]
When I review mold designs for demanding parts, I often advise: "Use aluminum where you can, steel where you must."
- Use steel inserts in high-wear areas: gates, shut-offs, sliding cores, and complex lifters. [revpart]
- Combine brass or stainless threaded inserts for frequently fastened areas. [finance.yahoo]
This hybrid mindset greatly extends tool life without sacrificing the benefits of aluminum.
Industry data shows that injection molding is still the backbone of global plastics manufacturing, with total plastics molding volumes expected to grow steadily through 2031, driven by EVs, packaging, and medical devices. Within that landscape, aluminum tooling has carved out a clear niche. [mordorintelligence]
Typical scenarios where I see aluminum molds deliver outsized value:
- Consumer and IoT electronics – Enclosures, buttons, battery covers, and structural frames for runs in the thousands to low tens of thousands. [deluxeplastics]
- Medical device pilots – Handheld housings, pump components, and instrument casings where regulatory approvals require multiple design/test iterations. [researchnester]
- Automotive EV modules – Interior switches, small brackets, and sensor housings in pre‑production and early launches before design freezes. [mordorintelligence]
- Industrial and B2B equipment – Control panel covers, connector housings, and low-volume specialty parts where a full steel stack cannot be justified. [mordorintelligence]
In all of these, time-to-market plus controlled risk matters more than absolute minimum cost per part at million‑piece volumes.
A question I am asked almost every week is: "How do I know it's time to abandon aluminum and move to steel?"
Drawing from both shop-floor experience and published guidance, I use this decision framework: [protolabs]
1. Projected lifetime volume
- If your realistic forecast is under roughly 10,000 parts, aluminum almost always wins on cost and speed. [protolabs]
- Above that, consider your material (abrasive glass-filled resins wear aluminum faster) and your change risk.
2. Design stability
- If you still expect geometry changes after field feedback, stay with aluminum. [finance.yahoo]
- Once failure modes are well understood and the design has survived several design-validation builds, steel is usually justified.
3. Part criticality and regulatory load
- For safety-critical or tightly regulated parts (certain medical implants, high-voltage EV modules), steel may be preferred earlier because of its long-term dimensional stability. [researchnester]
In short: use aluminum to *learn fast and cheaply*; commit to steel once you know you are right.
An overlooked risk in aluminum tooling projects is who actually builds your mold. In the past few years, many digital "marketplace" brokers have appeared: slick front-ends, opaque back-ends.
From a UX and risk standpoint, the downsides are serious:
- Your CAD is shopped to a lowest-bidder network, often with inconsistent alloy control and process standards.
- If flashing or premature wear occurs, no one truly "owns" the problem; you get trapped between an account manager and an unknown shop.
- Material substitutions (e.g., generic aluminum instead of QC‑10/7075‑T6) are hard to detect until failure occurs.
In contrast, factory-direct manufacturers control CNC machines, inspection, and alloy sourcing in-house, which is critical for high-precision aluminum tooling. U‑Need, based in Dongguan's "world factory" cluster, is structured around this factory-direct model, combining CNC machining, custom precision molds, and sheet metal fabrication under one roof. [uneedprecisionmachine]
As a precision manufacturing partner in China, U‑Need focuses on end-to-end support rather than just cutting a tool. For aluminum injection molding and bridge tooling, this typically includes: [uneedprecisionmachine]
- Design for Manufacturing (DFM) review – Feedback on draft, wall thickness, gate placement, and alloy selection before any metal is cut. [finance.yahoo]
- Rapid toolmaking – CNC-machined aluminum tools for custom precision parts, including integration with stamping, cold forging, or sheet metal where needed. [uneedprecisionmachine]
- Pilot and low-volume runs – Support for batches in the thousands of parts, ideal for design validation, regulatory testing, or market seeding. [protolabs]
- Transition planning to steel – When your program scales, the same engineering team can design and manufacture steel injection molds, stamping dies, and cold‑forging dies based on learnings from the aluminum phase. [uneedprecisionmachine]
By combining aluminum tooling, CNC machining, and sheet metal fabrication, U‑Need can mirror real-world assembly conditions early, which reduces surprises when you move to mass production.
When I audit a new NPI program, I typically run through this simplified checklist with the client:
1. Expected volume for the next 12–24 months
- If under 10,000–20,000 parts with uncertain long-term volume, start with aluminum. [protolabs]
2. Design maturity
- If you still have open design questions or aggressive timelines to field feedback, aluminum is a better risk hedge. [finance.yahoo]
3. Material and part type
- Standard engineering plastics (ABS, PC, PP, POM) are ideal candidates; very abrasive, glass-filled grades require more cautious alloy and insert choices. [protolabs]
4. Budget and schedule constraints
- If the business cannot tolerate a 12-week delay or a single large tooling write-off, aluminum tooling is the safer path. [revpart]
This simple exercise prevents many teams from over-investing too early in their product lifecycle.
If you are planning a new hardware or industrial product launch and want to validate your design fast without over-committing to steel, aluminum injection molding is likely your best next step. Share your CAD files, volume expectations, and timeline with U‑Need's engineering team, and we can help you structure a bridge tooling and ramp-up plan from aluminum prototypes to full steel production molds, plus any sheet metal or precision-machined components you need in parallel. [uneedprecisionmachine]
In most industrial scenarios, aluminum molds reliably produce several thousand to around 10,000+ parts, depending on resin abrasiveness, part geometry, and surface finish requirements. Proper DFM, coatings, and selective steel inserts can extend that life. [protolabs]
At the tooling level, aluminum is almost always cheaper due to lower material cost and easier machining. At extreme volumes (hundreds of thousands to millions of parts), however, steel's longevity can reduce cost per part over the mold's life. [revpart]
Yes. Aluminum molds are compatible with a full range of production thermoplastics, including ABS, PC, PP, and specialty engineering resins. Material selection should still consider wear on aluminum surfaces and may require strategic inserts. [protolabs]
Aluminum is less suitable for ultra-high-volume, highly abrasive, or very high-pressure applications where mold wear would be rapid. It is also less ideal when the design is fully frozen and the business case clearly supports lifetime steel tooling. [revpart]
U‑Need operates as a factory-direct precision manufacturer in Dongguan, with in-house CNC, mold making, and sheet metal capabilities. This allows tighter control over alloy selection, machining quality, and DFM, eliminating the ambiguity and rework risk associated with brokered networks. [uneedprecisionmachine]
