If you want CNC machined parts made accurately, the CAD file you submit matters as much as the design itself. In manufacturing, a clean and complete file can save time, reduce back-and-forth, and improve the chance of first-time success.
For global buyers sourcing custom precision parts, mold components, or sheet metal parts, the goal is not just to send a model. The goal is to provide a manufacturable file package that clearly communicates geometry, tolerances, units, finish requirements, and revision intent.

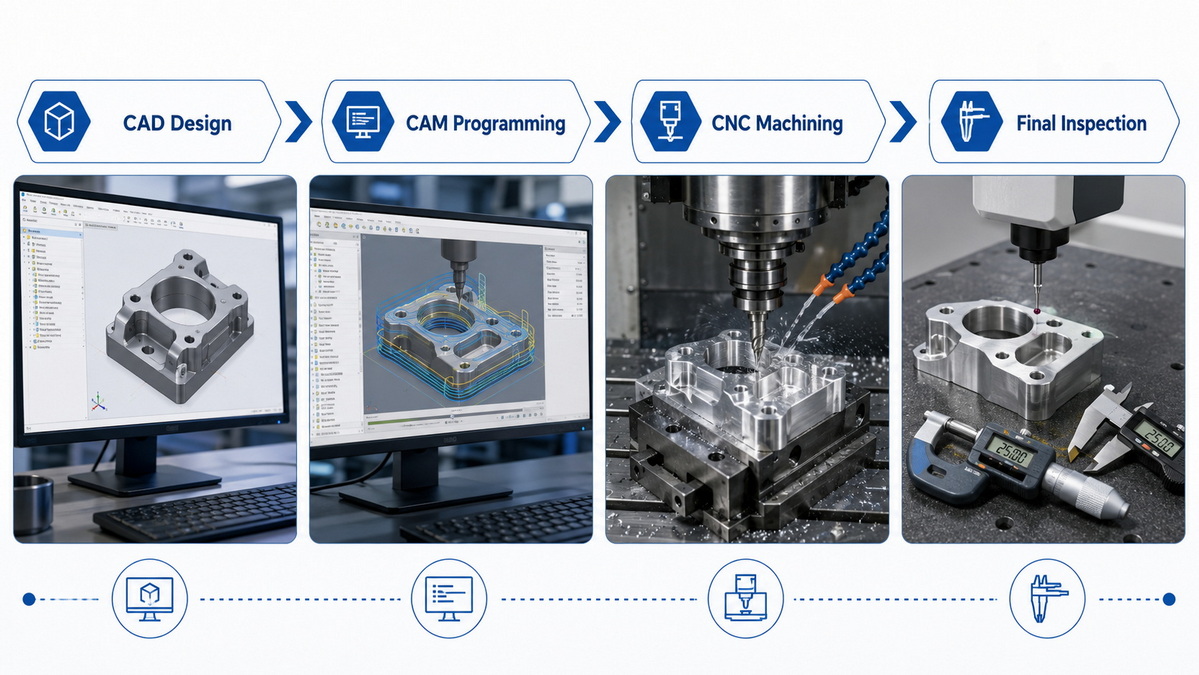

CAD files are the digital blueprint of a part. They define the part geometry and help CAM software generate the toolpaths used by CNC machines.
In practice, CAD files can be:
- 2D, such as DXF or DWG, for laser cutting, engraving, profiling, and sheet metal layouts.
- 3D, such as STEP, IGES, Parasolid, or native CAD files, for milling, turning, and more complex machined parts.
A good CAD file is not only a design record. It is also a production document that supports quoting, programming, machining, and inspection.

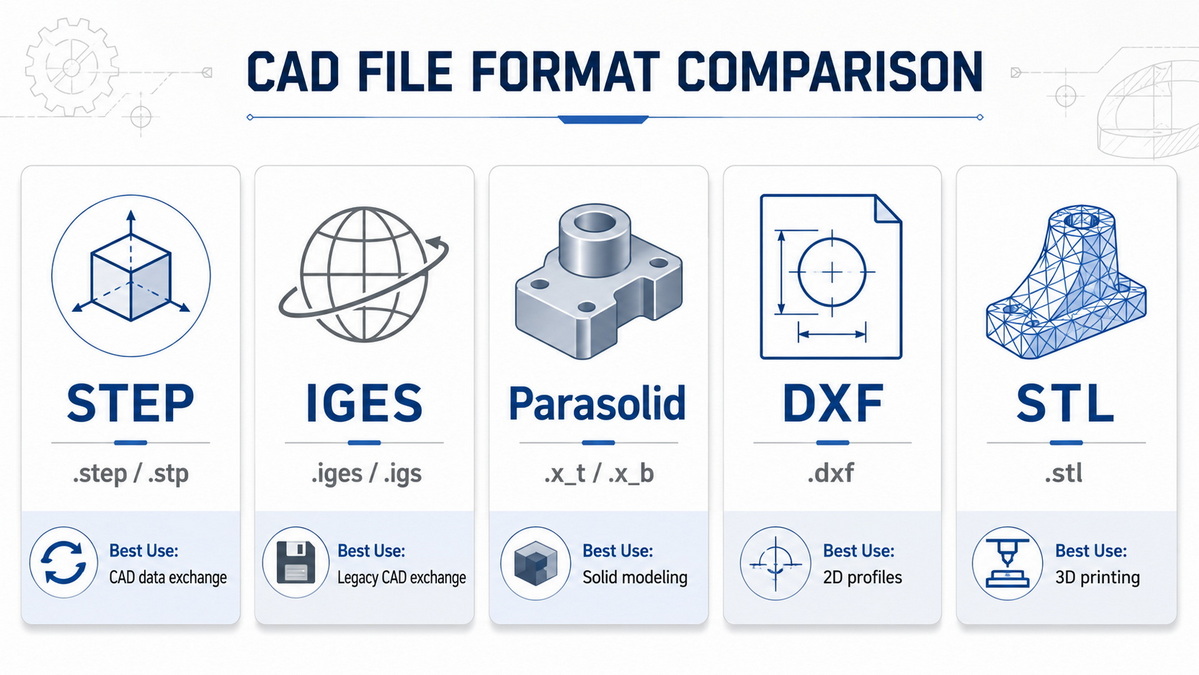

The best format depends on the part geometry, software compatibility, and how much design data needs to be preserved. For most CNC machining projects, STEP is the safest default, while Parasolid and native CAD files are useful when the supplier works in the same CAD environment.
| File format | Best use | Strengths | Limitations |
|---|---|---|---|
| STEP (.stp/.step) | General CNC machining, 3D parts | Excellent interoperability, strong geometry transfer | Does not preserve full design history |
| IGES (.igs/.iges) | Surface models, legacy workflows | Widely supported, useful for older systems | Can create surface gaps or translation issues |
| Parasolid (.x_t/.x_b) | Precise solid models | High geometric fidelity, efficient file size | Works best in Parasolid-based environments |
| SolidWorks (.sldprt/.sldasm) | Teams using SolidWorks | Retains parametric data and design intent | Often needs export to a neutral format |
| CATIA / Inventor / NX native files | Internal engineering collaboration | Preserves design history and assembly data | Not always ideal for direct CAM import |
| DXF / DWG | Sheet metal, 2D profiles, laser cutting | Clear flat geometry and nesting use | Not suitable for full 3D machining |
| STL | 3D printing only | Easy to share | Mesh format lacks true machining precision |
STEP remains the most broadly accepted choice because it transfers solid geometry cleanly across CAD and CAM systems.
STEP files are usually the best format for CNC machining because they balance compatibility, accuracy, and ease of use. They are widely accepted by machine shops, toolpath software, and manufacturing teams, so they reduce the risk of import errors.
Use STEP when:
- You want to share a 3D solid part with a supplier.
- You need a format that works across different CAD platforms.
- You want to avoid software-specific limitations.
- You are outsourcing machining to a vendor in another country or region.
For international manufacturing, STEP is often the most practical universal format.
Even a well-designed part can fail in production if the file is exported poorly. The most common issues are wrong units, missing geometry, broken surfaces, and unsupported features.
A file created in millimeters but imported as inches can change the part size completely. This is one of the simplest and most expensive mistakes to avoid.
Some formats, especially IGES, can import with small gaps or stitching problems. CAM software may then struggle to recognize the part as a valid solid.
Native CAD files preserve sketches, constraints, and feature history, but neutral formats often do not. That is acceptable for machining, but not ideal if future editing is required.
Threads, cosmetic fillets, and tiny details may not translate well. Machinists often prefer simplified geometry plus a clean 2D drawing.
Unnecessary internal features can increase programming time and machining cost. Clean geometry is easier to machine, inspect, and repeat.
A good CAD file does more than open correctly. It should help the manufacturer produce the part with minimal clarification.
For most 3D CNC parts, export to STEP. If your supplier uses the same CAD kernel, Parasolid may also work very well. Use DXF only for 2D profile work or sheet metal cutting.
Even with a 3D model, a 2D drawing is still valuable. Include:
- Critical dimensions.
- General tolerances.
- Surface finish requirements.
- Thread callouts.
- Datum references.
- Inspection notes.
Always specify whether the model is in mm or inches. Never assume the shop will guess correctly.
Remove cosmetic features, duplicate bodies, and unnecessary geometry. This makes CAM processing faster and reduces confusion.
Look for thin walls, impossible internal corners, deep cavities, and tiny holes that may be difficult to machine economically.
A clear naming system prevents revision mistakes. For example:
`part-name_revB_mm.step`

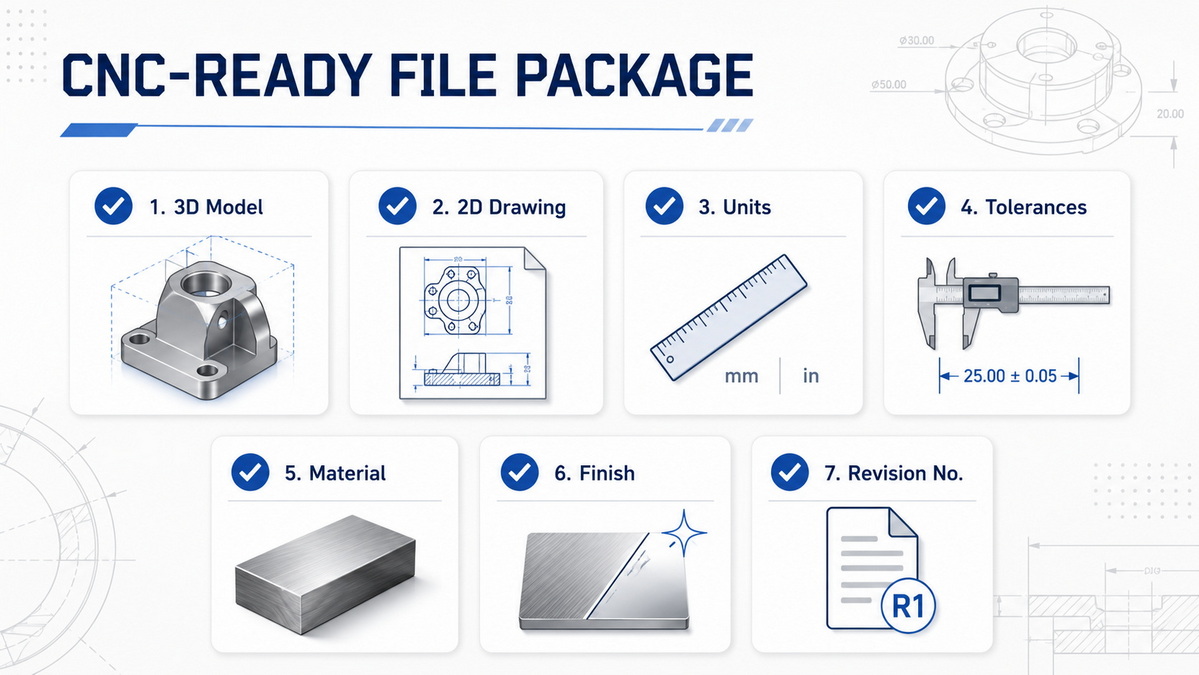

To reduce delays, send a complete manufacturing package, not just a model. A strong submission usually includes:
- 3D CAD file in STEP or a compatible neutral format.
- 2D PDF drawing with dimensions and tolerances.
- Material specification.
- Surface finish requirements.
- Quantity and target delivery time.
- Revision number.
- Special notes such as thread standards or critical fit areas.
If you work with a precision manufacturing partner in China, this package helps the engineering team evaluate manufacturability faster and quote more accurately.
Imagine a buyer needs a machined aluminum enclosure for industrial equipment. The first version is sent as an STL file with no drawing. The geometry imports as triangles, the tolerances are unclear, and the machinist must ask several questions before quoting.
Now compare that with a STEP file plus a 2D drawing showing wall thickness, hole tolerances, thread callouts, and anodizing requirements. The second version is easier to review, faster to quote, and more likely to be manufactured correctly the first time.
This is why file preparation is not just a technical step. It is also a business advantage.
Better files reduce rework, but the biggest gains come when design and manufacturing teams communicate early. Before release, ask:
- Can this feature be machined with standard tooling?
- Are the tolerances tighter than the function requires?
- Are there internal corners that need relief?
- Are there surfaces that must be inspected or protected?
- Is there a better way to split the part or simplify setup?
This matters especially for custom precision parts machining, mold manufacturing, and sheet metal fabrication, where geometry choices directly affect tooling, cost, and lead time.
If you want the safest default for CNC machining, choose STEP. If you need 2D cutting or nesting, use DXF. If you are working inside a specific CAD ecosystem, native formats can help during design, but you should still export a neutral file for manufacturing.
For the best results, send a complete, clean, and well-annotated file package. That is the fastest path to accurate pricing, smoother production, and fewer revisions.
The best CAD file format for CNC machining is usually STEP, because it is widely compatible and transfers solid geometry reliably. A complete package with a 3D model, 2D drawing, units, tolerances, and material information will always produce better manufacturing results than a file alone.
STEP (.stp/.step) is usually the best choice because it is widely compatible and preserves solid geometry well.
STL is not ideal for CNC machining because it uses mesh triangles instead of true solid geometry. It is better suited to 3D printing.
Yes. A 2D drawing helps communicate tolerances, surface finish, threads, and critical dimensions that may not be obvious in the 3D model.
IGES can create surface gaps or stitching errors, especially with complex models, because it is better at surface data than robust solid modeling.
You should also send material, quantity, tolerances, finish requirements, revision number, and any special machining notes.
Native CAD files are useful for editing because they preserve parametric data, but STEP is usually better for cross-platform manufacturing collaboration.
