Understanding the difference between jigs and fixtures is one of those topics that separates a beginner manufacturing engineer from someone who can truly design for repeatability, cost, and scale. Drawing on my experience working with global OEMs and Chinese precision shops like U-Need, I've seen firsthand how well‑designed jigs and fixtures can make or break a production line. [reidsupply]
In today's mixed world of CNC machining, stamping, and 3D printing, jigs and fixtures are the silent workhorses that keep quality stable and cycle times predictable. When you're scaling from prototype to mass production, choosing and designing the right workholding is often more critical than the cutting tool itself. [sybridge]
- Jigs guide the cutting tool while holding or supporting the workpiece.
- Fixtures securely hold and locate the workpiece while the tool moves.
From a process engineer's perspective, I treat jigs and fixtures as a strategic investment: they compress operator skill requirements, standardize quality, and unlock faster changeovers across global plants. [carrlane]
A jig is a custom device that guides the cutting tool to the exact location on a workpiece, often while also supporting and locating that workpiece. Think of drill bushings, guide plates, and locator pins that ensure every hole is in exactly the same place, regardless of who is running the machine. [firstmold]
Key characteristics of jigs: [reidsupply]
- Primary function: Guide the tool and locate the workpiece.
- Typical operations: Drilling, reaming, tapping, light milling.
- Construction: Generally lighter, easier to handle; may be hand‑held or clamped.
- Clamping: Sometimes minimal or integrated into the jig body.
A practical example: a drill jig for an aluminum bracket that uses hardened bushings and a simple toggle clamp so operators can drill four holes in one step with no layout work. [carrlane]
A fixture is a robust device designed to secure and position the workpiece while the tool performs machining, welding, assembly, or inspection. Unlike jigs, fixtures do not guide the tool; they make sure the part is held rigidly and repeatably. [sybridge]
Key characteristics of fixtures: [firstmold]
- Primary function: Hold, support, and locate the workpiece.
- Typical operations: CNC milling, turning, welding, assembly, CMM inspection.
- Construction: Heavier, more rigid; designed to withstand cutting forces and vibration.
- Clamping: Almost always requires clamps, bolts, or hydraulic/pneumatic systems.
For instance, a multi‑cavity fixture that holds eight steel parts on a CNC bed so the machine can complete all faces in a single cycle without repositioning. [carrlane]

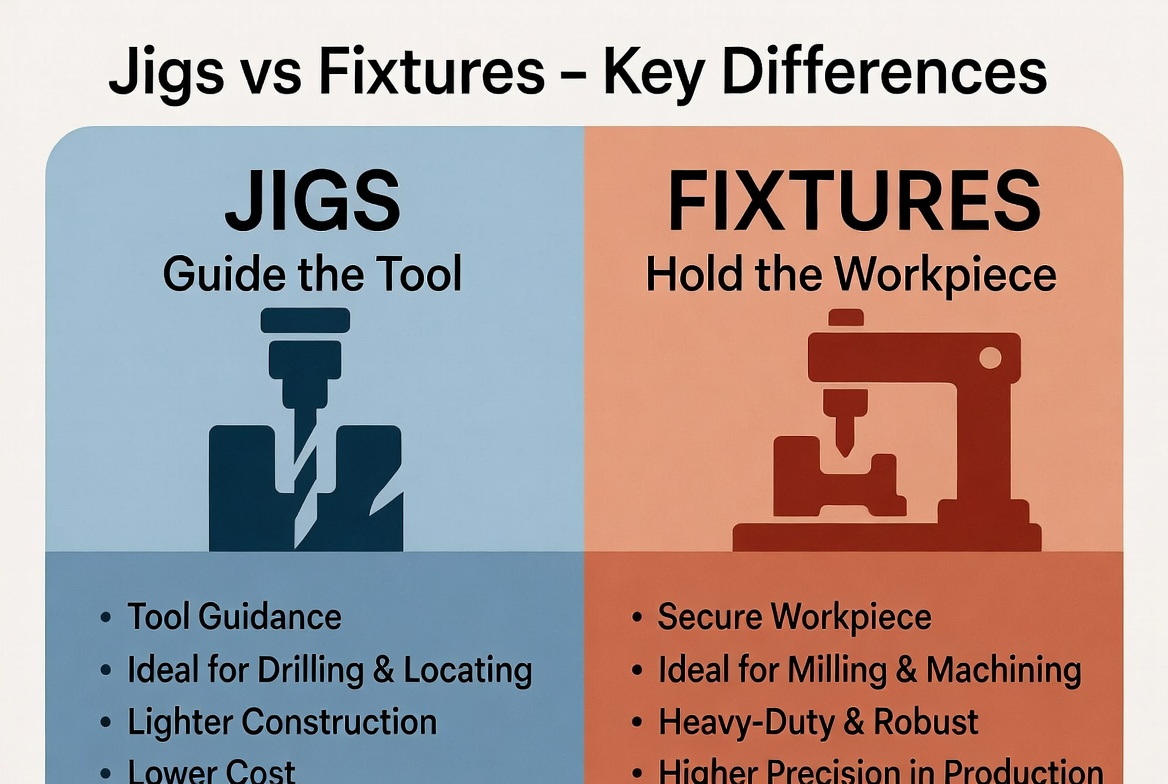

From a design review standpoint, I summarize the jig vs fixture differences across function, design, and usage rather than just textbook definitions. [reidsupply]
| Aspect | Jigs | Fixtures |
|---|---|---|
| Primary role | Guides the tool on the workpiece (reidsupply) | Locates and holds the workpiece (reidsupply) |
| Typical usage | Drilling, reaming, light machining (reidsupply) | Milling, turning, welding, assembly, inspection (reidsupply) |
| Complexity | Often simpler, lighter, sometimes hand‑held (reidsupply) | Heavier, more complex, permanently mounted (reidsupply) |
| Clamping | May include simple or no separate clamps (reidsupply) | Requires systematic clamping and supports (sybridge) |
| Cost focus | Ideal for repetitive hole patterns and small parts (reidsupply) | Ideal for multi‑face machining and larger parts (carrlane) |
| Design driver | Tool path guidance and operator repeatability (reidsupply) | Rigid support, vibration control, and datum consistency (sybridge) |
In real projects, I usually recommend jigs when the critical feature is the tool path (e.g., hole locations), and fixtures when the main risk is part movement or mis‑location under heavy forces. [sybridge]

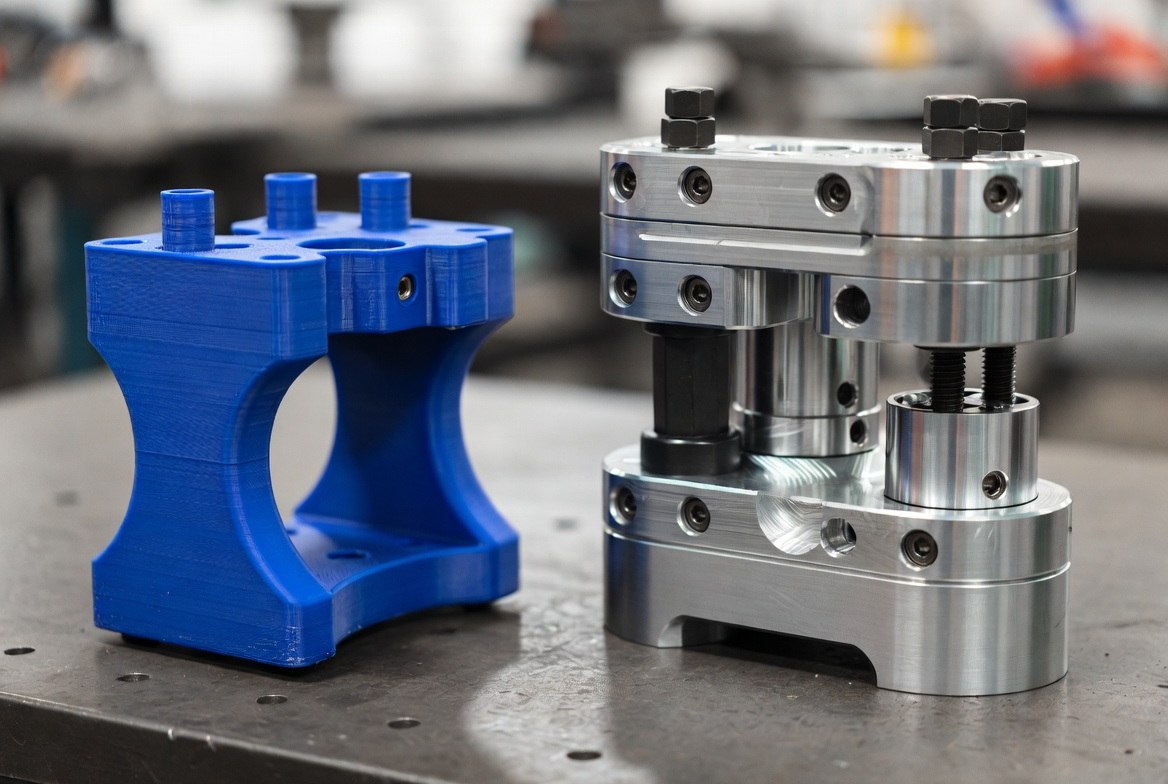

Uptive's original article correctly notes that additive manufacturing has changed how we design and produce these tools, especially in low to medium volumes. As someone who has worked with both CNC and industrial 3D printing suppliers in China, I now evaluate jigs and fixtures across two dimensions: manufacturing method and lifecycle stage. [uneedpm]
- Traditional machining: Excellent for robust, precise steel or aluminum jigs and fixtures, but complex internal channels, organic shapes, or weight‑reduction features quickly increase cost. [uneedpm]
- Additive manufacturing: Allows complex geometries, integrated clamps, ergonomic grips, and internal cable or coolant paths without extra machining cost. [uneedpm]
For example, a 3D printed composite fixture with lattice structures can achieve adequate stiffness with significantly lower weight, making it easier for operators to handle. [firstmold]
- Traditional: Steels and aluminum dominate for longevity and stiffness; tool steels are preferred for high‑wear locations. [uneedpm]
- Additive: Engineering polymers, fiber‑reinforced composites, and some metal alloys provide lighter, corrosion‑resistant jigs and fixtures. [sybridge]
Hybrid strategies are now common: 3D printed bodies with metal threaded inserts where repeated clamping occurs. [sybridge]
- Low volume / prototyping: Additive manufacturing often wins on lead time and upfront cost because it avoids dedicated tooling and complex setups. [firstmold]
- High volume / stable design: Machined or cast fixtures are still more economical over the lifecycle, as their cost can be spread across thousands of cycles. [pre-scient]
An often overlooked benefit of 3D printed fixtures is that you avoid taking CNC capacity offline to make internal tooling, keeping revenue‑generating machines focused on customer parts. [uneedpm]
When I work with a precision shop like U-Need, the typical machined fixture workflow looks like this: [uneedpm]
1. Requirements and process study
- Review part drawings, tolerances, and operations.
- Define datums, clamping points, and inspection needs.
2. Concept and detailed design
- Select base material (e.g., steel, aluminum).
- Apply design rules: adjustable locators, rounded corners, chip escape holes, robust clamps. [pre-scient]
3. CNC machining and finishing
- Rough and finish machine base plates, nests, supports, and locators.
- Add hardened bushings, inserts, and precision pins where necessary.
4. Assembly and trials
- Assemble all components, run pilot parts, and validate repeatability and ergonomics. [fusiondesigninc]
5. Iteration and documentation
- Refine weak points, adjust clamps, then lock design and issue standardized work instructions.
For additive jigs and fixtures, the workflow shifts but the engineering rigor should stay the same: [fusiondesigninc]
1. 3D modeling for AM
- Design for 3D printing: lightweight lattice, ergonomic shapes, built‑in channels.
2. Material and print strategy selection
- Choose polymer/composite or metal based on loads, temperature, and chemical exposure.
3. 3D printing and post‑processing
- Print, cure or sinter, then machine critical datums and fit metal inserts where needed. [firstmold]
4. Metrology and validation
- Verify dimensions and functional clearances; run real‑world cycle tests and refine design. [sybridge]
In both approaches, the choice of method should be driven by lifecycle cost, risk, and operator safety, not just piece price. [fusiondesigninc]
High‑level theory is useful, but the biggest gains often come from small design details. Here are design principles I insist on when reviewing jigs and fixtures for global clients: [pre-scient]
- Make misalignment obvious with clear datums, pins, and reference edges so operators cannot load a part incorrectly.
- Keep workflows short and intuitive by minimizing steps and avoiding awkward rotations or re‑clamping.
- Design for chip and debris management with escape holes, relief gaps, and surfaces that do not trap chips or burrs. [pre-scient]
- Optimize clamps to resist cutting forces while avoiding part distortion; locate clamps opposite bearing points. [pre-scient]
- Prioritize ergonomics with handles, low lift weights, and natural hand positions to reduce fatigue and injuries. [fusiondesigninc]
- Plan for inspection by integrating datum features and probe access for CMM or in‑process inspection. [fusiondesigninc]
One powerful rule of thumb: every extra adjustment knob or clamp is a potential quality problem. I push teams to eliminate unnecessary adjustments and lock critical features by design. [fusiondesigninc]
From the perspective of a global buyer, the most successful jig and fixture programs I've seen share one common factor: a capable manufacturing partner who can handle both design refinement and repeatable production.

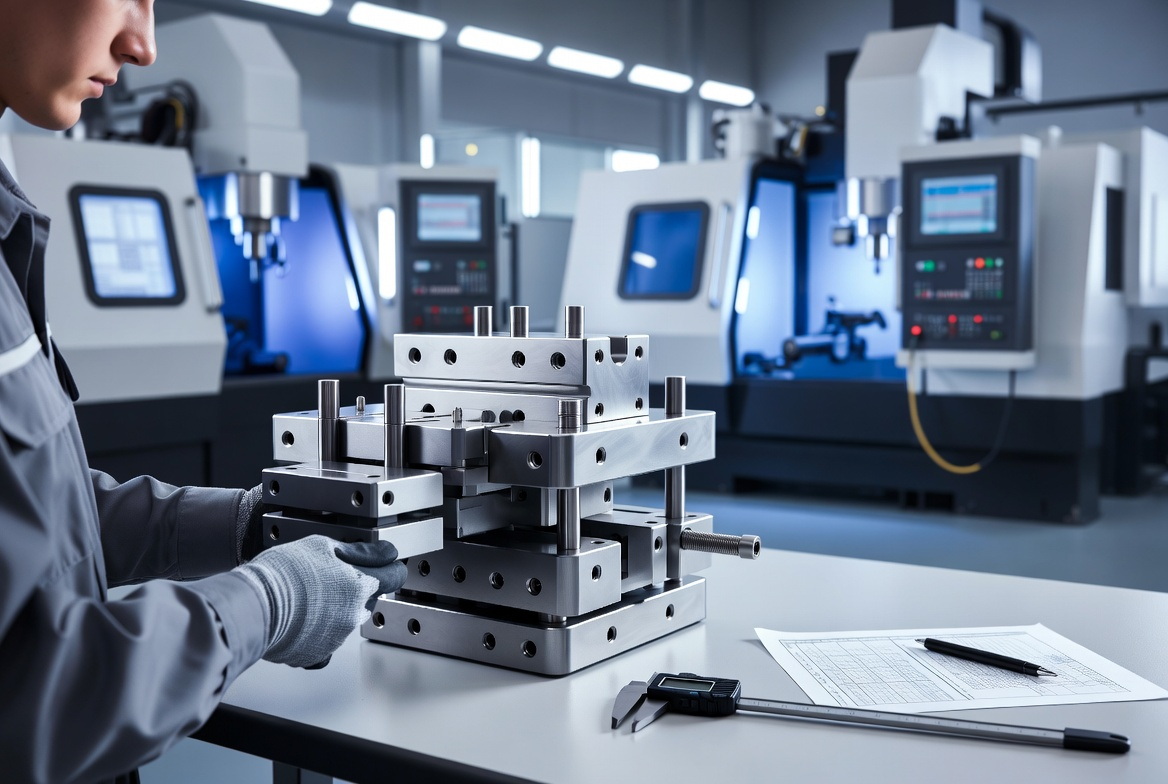

U-Need, for example, supports jigs and fixtures by combining CNC turning, milling, grinding, EDM, and metal stamping under one roof, backed by an average of over 15 years' experience per engineer. Their ISO9001‑based quality system and 99.3% product approval rate give process engineers confidence when transferring tooling across borders. [uneedpm]
What this means in practice: [uneedpm]
- Fast quoting within 5–7 hours allows you to iterate fixture concepts quickly.
- No MOQ and short delivery windows (often within 3–15 days) reduce risk in early stages.
- Tight tolerances down to ±0.001 mm enable precision nests and datums even for demanding aerospace or medical components.
When we deploy jigs and fixtures through a partner like this, we can standardize tooling across Europe, Japan, and Southeast Asia without starting from scratch in every region. [uneedpm]
From an engineering and cost standpoint, I recommend choosing your workholding concept based on the dominant constraint in your process.
- Choose a jig when:
- Tool path accuracy (hole position, angle) is the main risk.
- Operators vary in skill and you need to "idiot‑proof" drilling or reaming.
- Parts are relatively small and light.
- Choose a fixture when:
- Cutting forces are high and part movement is your primary concern.
- You need multi‑face machining or welding in one clamping.
- You are preparing for higher volume or automation.
- Consider a hybrid solution when:
- You start with a 3D printed jig or fixture for rapid learning, then migrate proven designs to machined steel or aluminum for long‑term durability. [uneedpm]
This phased approach is increasingly common in China's precision manufacturing sector, where ultra‑precision equipment and flexible production resources support quick transitions from prototype to scaled tooling. [linkedin]
If you are planning a new product launch, ramping up volume, or struggling with inconsistent quality, the right jig or fixture strategy can transform your line performance.
Work with a precision partner in China like U-Need to:
- Review your parts and processes for the most suitable jig or fixture concepts.
- Prototype with additive manufacturing where speed matters, then migrate to machined steel or aluminum when the design is stable.
- Standardize tooling across your global sites to reduce training time and quality escapes.
You can share your part drawings, expected quantities, and process challenges to receive a tailored jig and fixture proposal, complete with lead time and cost estimates, before committing to tooling.
A jig guides the cutting tool to the correct position on the workpiece, while a fixture securely holds and locates the workpiece as the tool moves. [reidsupply]
Fixtures are usually better for CNC because they provide the rigidity and repeatable location needed for heavy multi‑axis cutting, while jigs are more common in drilling and lighter operations. [carrlane]
Use 3D printing when you need fast iterations, complex ergonomics, lightweight designs, or small production batches; later you can convert validated designs to metal for long‑term durability. [firstmold]
Steel and aluminum remain the standard for high‑volume fixtures due to their stiffness, wear resistance, and dimensional stability under heavy loads and long duty cycles. [carrlane]
A capable Chinese partner like U-Need can provide end‑to‑end support—from design refinement and material selection to CNC machining, 3D printing, testing, and rapid delivery with strict quality control. [bulletinofcas.researchcommons]
