When you first move from metal machining to composite 3D printing, Markforged's material options can feel overwhelming. As an engineer who has spent years comparing machined aluminum, molded plastics, and fiber‑reinforced composites on real production lines, I can tell you the material choice is where most projects win or lose. [addinor]
Markforged combines advanced base polymers like Onyx, Onyx FR, and Onyx ESD with continuous fibers such as carbon fiber, Kevlar, and fiberglass to deliver parts that can rival aluminum in strength while dramatically reducing weight and lead time. This article walks you through how these materials work, where they shine, where they fail, and how to choose the right stack for your next industrial part. [mark3d]
Base materials define surface finish, baseline strength, and environmental resistance. Continuous fibers then turn that foundation into a structural component. [uptivemfg]
Onyx is a micro carbon fiber–filled nylon that has become the default Markforged base for many engineering teams. It offers a strong balance of stiffness, dimensional stability, and a smooth matte black finish that looks production‑ready right off the bed. [uptivemfg]
Key characteristics: [uptivemfg]
- Stronger and stiffer than standard nylon
- Heat deflection temperature around 145°C
- Excellent dimensional stability over time
- Clean, matte black aesthetic suitable for visible components
Best use cases: [uptivemfg]
- End‑use brackets and enclosures
- Functional prototypes that must be tested on the line
- Jigs, fixtures, and assembly tooling
From a practical perspective, many teams underestimate how far you can go with Onyx alone for low‑to‑medium load applications. In our experience, it often replaces machined Delrin or simple aluminum brackets when the design is optimized and load paths are understood. [addinor]
Onyx FR is a flame‑retardant variant of Onyx designed to meet stricter safety standards such as UL 94 V‑0. It keeps the familiar Onyx look and mechanical behavior while adding self‑extinguishing performance. [uptivemfg]
Key characteristics: [uptivemfg]
- Flame‑retardant and self‑extinguishing
- High strength and stiffness similar to Onyx
- Good chemical resistance in demanding environments
Best use cases: [uptivemfg]
- Aerospace and transportation interiors
- Electronics housings subject to safety regulations
- Parts for defense and regulated industries
From an engineering standpoint, Onyx FR plus carbon fiber is a compelling alternative when you would traditionally specify flame‑rated aluminum or steel but want to reduce weight and iteration time. [addinor]
Onyx ESD is engineered for electrostatic discharge–safe applications where a single spark can damage high‑value electronics. It delivers the mechanical benefits of Onyx with controlled ESD behavior for manufacturing environments. [uptivemfg]
Key characteristics: [uptivemfg]
- ESD‑safe for controlled static discharge
- Strong and dimensionally stable
- Smooth surface suitable for contact with boards and components
Best use cases: [uptivemfg]
- PCB handling tools and nests
- Test fixtures for electronics and semiconductor parts
- Protective covers and enclosures in ESD‑controlled areas
For electronics manufacturing engineers, this material closes a long‑standing gap: you no longer have to choose between a static‑safe fixture and a quickly iterated, design‑friendly one. Onyx ESD gives you both when paired with the right continuous fiber reinforcement. [addinor]
Continuous fibers are what allow Markforged parts to reach near‑aluminum strength while remaining printed polymers at their core. Unlike chopped fibers in typical filled plastics, these long strands run uninterrupted through the part, carrying loads efficiently along the geometry. [mark3d]
In composite engineering, continuous fibers act as the primary load‑bearing structure, while the polymer matrix holds them in place and transfers loads between layers. Continuous fibers used by Markforged—carbon fiber, fiberglass, and Kevlar—have elastic moduli many times higher than standard plastics, with carbon fiber approaching aluminum's stiffness. [addcomposites]
Key structural advantages: [addcomposites]
- Very high tensile stiffness and strength along fiber direction
- Efficient load transfer when fibers follow principal stress paths
- Excellent performance in tension and bending when oriented correctly
This is the core reason that fiber orientation and fiber volume matter far more than simply "turning on reinforcement" in your slicer. [gsc-3d]
Carbon fiber is the strongest continuous fiber in the Markforged ecosystem and the default choice when you want to replace machined aluminum. [addinor]
Key characteristics: [addinor]
- Roughly 10× stronger than Onyx alone
- Extremely high stiffness‑to‑weight ratio
- Near‑aluminum strength when properly reinforced
Best use cases: [addinor]
- Structural components that carry significant loads
- Lightweight tooling and robot end‑effectors
- Automotive and industrial brackets and mounts
In the field, we've seen carbon fiber reinforced Onyx used effectively for: [mark3d]
- Replacing certain 6061 aluminum brackets when load paths are aligned with fibers
- Swapping heavy machined fixtures with lighter, ergonomic tools
- Producing low‑volume functional parts that would be cost‑prohibitive to machine
The key is designing with fiber directions in mind—align fibers with tension and bending axes rather than simply mirroring a metal part's geometry. [gsc-3d]
Kevlar is the material you reach for when parts must absorb energy, flex, and resist repeated impacts without cracking. [addinor]
Key characteristics: [addinor]
- High impact resistance and toughness
- More flexible than carbon fiber
- Excellent for shock absorption and repeated handling
Best use cases: [uptivemfg]
- Protective covers and bumpers
- Jigs and fixtures that experience frequent loading and unloading
- Wear‑prone tooling in rugged industrial environments
In real factories, Kevlar‑reinforced Onyx parts often outlast rigid metal equivalents in applications where drop, impact, or misalignment are common. Instead of snapping like a brittle component, the part flexes and recovers, protecting both itself and the product it interfaces with. [addcomposites]
Standard fiberglass provides a cost‑effective way to significantly increase part strength without the premium of carbon fiber. [addinor]
Key characteristics: [addinor]
- Roughly 2.5× stronger than Onyx alone
- More affordable than carbon fiber
- Suitable for many high‑load fixtures and supports
Best use cases: [uptivemfg]
- Assembly fixtures and nests
- Mechanical brackets with moderate structural demands
- General manufacturing tooling where cost per part matters
For many manufacturers, fiberglass is the practical middle ground: strong enough for most industrial fixtures, yet economical for larger footprints or frequent design changes. [mark3d]
HSHT (High Strength High Temperature) fiberglass is designed for parts that must perform under both mechanical load and elevated temperatures. [uptivemfg]
Key characteristics: [addinor]
- Excellent heat resistance up to around 145°C and beyond in suitable designs
- Strong performance under thermal stress
- Good long‑term mechanical durability
Best use cases: [uptivemfg]
- Molds and tooling exposed to heat
- Thermal fixtures near ovens or curing lines
- Under‑the‑hood or engine‑bay automotive components
When teams experiment with composite tooling in injection molding, forming, or under‑hood environments, HSHT fiberglass often becomes the enabling material that keeps parts functional where standard polymers would soften or creep. [gsc-3d]
Choosing the right Markforged stack is less about memorizing data sheets and more about asking the right questions. [addinor]
Start with three core decisions:
1. What does the part do?
- Structural load‑bearing vs. locating vs. cosmetic only
- Static loads vs. dynamic, impact, or cyclic loads
2. Where will it live?
- Ambient, elevated temperature, or near heat sources
- Clean lab, factory floor, or outdoor environment
3. What can you tolerate?
- Failure mode: gradual deformation vs. brittle fracture
- Risk profile: electronics damage, safety exposure, downtime cost
Then map to a starting configuration: [mark3d]
| Scenario | Recommended base + fiber |
|---|---|
| Strongest possible structural part | Onyx + Carbon fiber |
| Heat or flame‑critical environment | Onyx FR + Carbon fiber or HSHT fiberglass |
| ESD‑sensitive electronics tooling | Onyx ESD + Carbon fiber or Fiberglass |
| High impact, frequent handling | Onyx + Kevlar |
| Cost‑sensitive fixtures and supports | Onyx + Fiberglass |
| Thermal fixtures or near engines | Onyx or Onyx FR + HSHT fiberglass |
Use this as a first pass, then refine based on test data and field feedback. [addinor]
Beyond the material choice, how you place fibers often determines whether a part succeeds or fails in production. [gsc-3d]

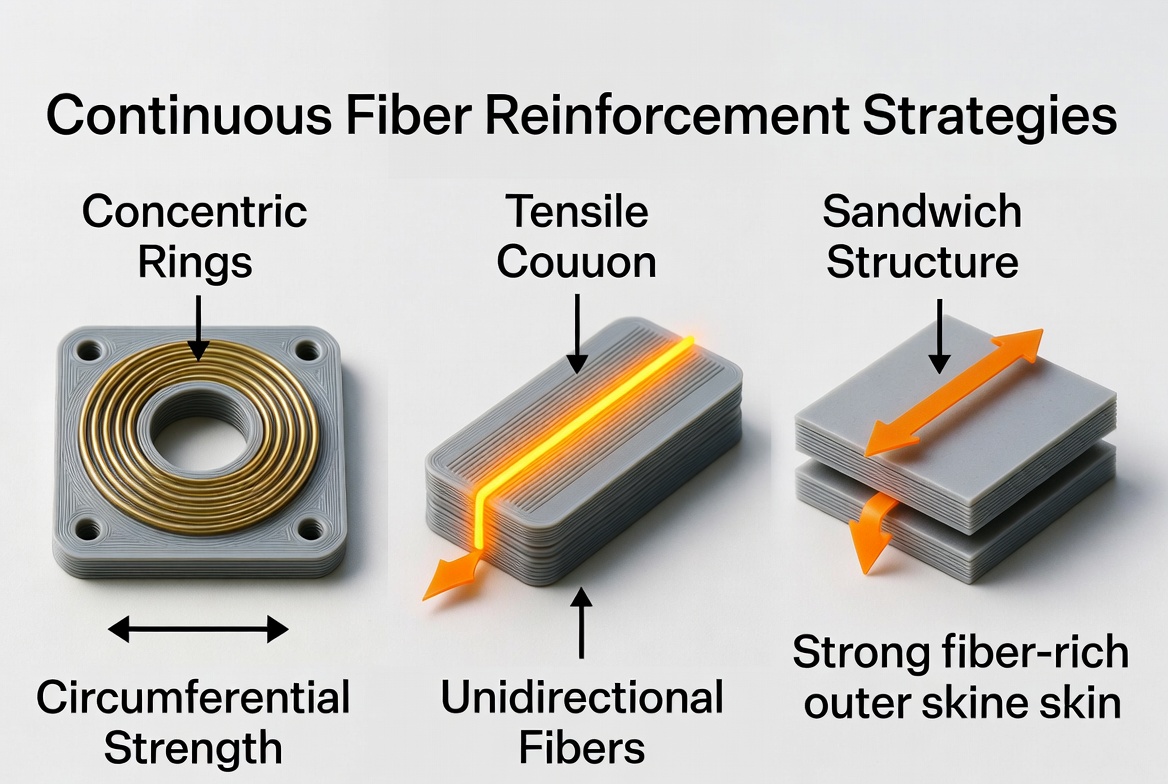

Common strategies in Markforged software include: [gsc-3d]
- Concentric rings to reinforce perimeters and walls
- Unidirectional fibers aligned with principal stress directions
- Sandwich paneling with fiber‑rich outer layers
Best practices engineers rely on: [addcomposites]
- Align fibers with tension and bending axes whenever possible
- Use more concentric rings where bending about the Z‑axis is critical
- Concentrate fibers in high‑stress regions rather than uniformly throughout
- Avoid over‑reinforcement that adds cost without measurable benefit
For example, a brake lever‑like geometry that experiences bending about the Z‑axis can be significantly stiffened by adding concentric fiber rings on every layer, with diminishing returns after a certain ring count. [gsc-3d]

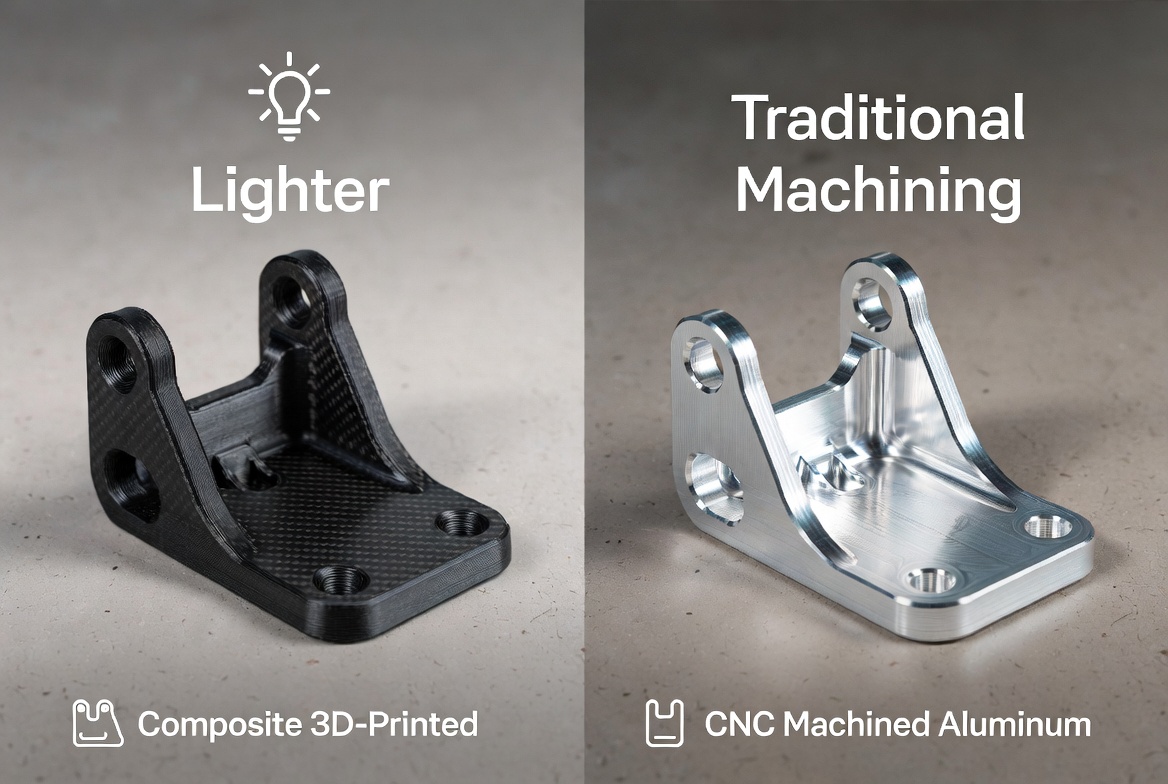

Consider a small automation bracket originally machined in 6061: [addinor]
- Environment: ambient factory floor
- Loads: moderate static loads with occasional dynamic shocks
- Failure risk: machine downtime if the bracket fails
A practical composite design could be: [gsc-3d]
- Base material: Onyx for dimensional stability and finish
- Fiber: Carbon fiber for metal‑like stiffness along the primary load path
- Strategy: unidirectional carbon in the main load direction, plus concentric reinforcement around mounting holes
In many real‑world tests, such a part delivers comparable performance with: [uptivemfg]
- Lower weight
- Faster design iterations
- No need for CNC machine time or fixtures
The important caveat: you must design the part geometry with fiber orientation explicitly in mind instead of simply copying the machined design. [gsc-3d]
While Markforged is outstanding for fast, strong composite parts, complex projects often require integration with traditional manufacturing. [uneedpm]
U-Need, based in China, specializes in supporting global brands, distributors, and manufacturers with precision CNC machining, mold manufacturing, and sheet metal fabrication. This makes it an ideal downstream partner when your composite prototype must eventually transition into higher‑volume metal, molded, or stamped production. [uneedpm]
Key capabilities U-Need provides: [uneedpm]
- Custom precision CNC parts (milling, turning, 5‑axis machining, ±0.005 mm tolerances)
- Injection mold and stamping die manufacturing
- Sheet metal fabrication including laser cutting, bending, and stamping
- One‑stop support from prototypes to small‑ and mass‑production runs

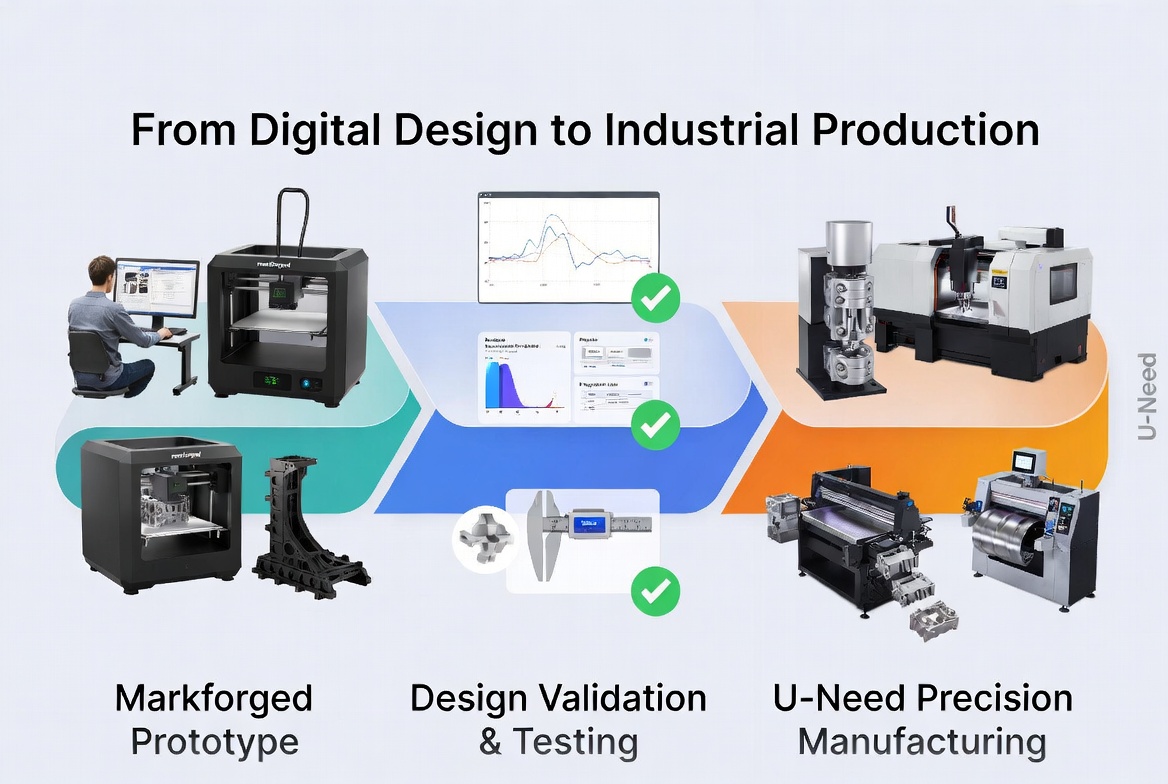

In a typical workflow, engineers use Markforged parts to validate design, assembly, and ergonomics quickly, then collaborate with U-Need to translate those validated geometries into: [uneedprecisionmachine]
- CNC‑machined metallic components
- Production tooling and injection molds
- Sheet metal brackets and enclosures
This hybrid approach combines the agility of composite 3D printing with the repeatability and cost efficiency of precision manufacturing. [uneedpm]
From a production and cost perspective, there is a natural point where it makes sense to move beyond 3D printed composites. [regomould]
Signals that you may be at that point: [regomould]
- Unit volumes are rising and print time becomes a bottleneck
- Per‑part cost of 3D printing surpasses machined or molded alternatives
- You need materials or finishes beyond the Markforged portfolio
At that stage, a partner like U-Need can: [uneedpm]
- Reverse‑engineer or directly use your validated Markforged CAD
- Optimize for CNC machining, molding, or sheet metal design rules
- Provide DFM feedback, rapid sampling, and scalable production
The result is a smoother transition from digital composite prototyping to industrial‑grade production without losing the design intent you proved on the Markforged platform. [uneedpm]
If you are already using Markforged or planning to add composite 3D printing to your workflow, the real competitive advantage comes from how well you bridge design validation and industrial production. [uneedpm]
Use Markforged materials to quickly iterate, test, and validate designs, then partner with U-Need to scale those successful designs into precision‑machined parts, robust molds, or optimized sheet metal assemblies. [uneedprecisionmachine]
If you'd like to review a Markforged‑validated design for CNC machining, molding, or sheet metal fabrication, send your 3D files and basic requirements to U-Need for a free manufacturability review and quotation. [uneedpm]
In many applications, carbon fiber reinforced Onyx can achieve near‑aluminum strength, especially when fibers are oriented along the main load paths and the part is correctly designed. [mark3d]
Use Onyx FR when your part must meet fire‑safety or flammability standards—such as aerospace interiors, transportation, or electronics housings where UL‑rated performance is required. [uptivemfg]
For many general manufacturing fixtures and supports, fiberglass provides more than enough strength at a lower material cost than carbon fiber, especially when fiber placement is optimized. [addinor]
Yes, U-Need routinely converts validated composite geometries into CNC‑machined parts, molds, and sheet metal components for global OEMs and industrial customers. [uneedpm]
Choose carbon fiber when stiffness and load‑carrying capacity are your priority, and Kevlar when your part must withstand repeated impacts, shocks, or rough handling without cracking. [uptivemfg]
