When you specify a "high‑temperature alloy" on paper but ignore how it behaves in the spindle and in service, you don't just risk scrap – you risk field failures, warranty costs, and in aerospace or medical, real safety incidents. Over the past decade working with heat‑loaded CNC parts, I've learned that choosing the best heat‑resistant metal for CNC machining is never just about melting point; it's about how the material holds tolerance, resists oxidation, and survives thermal cycling under real operating conditions. [prlog]

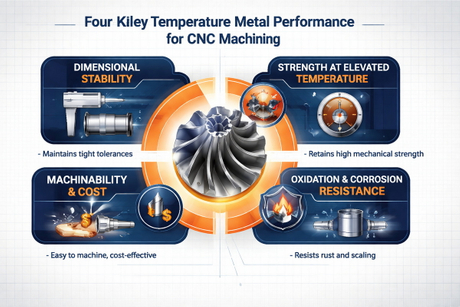

In practice, we treat a metal as "high‑temperature capable" only if it keeps doing its job once the part is installed, not just in a datasheet. From a manufacturing engineer's perspective, four critical factors matter most: [carpentertechnology]
- Dimensional stability: The alloy must keep its shape when the part repeatedly heats up and cools down, so bores, sealing surfaces, and fits do not drift out of tolerance. [prlog]
- Oxidation and corrosion resistance: At elevated temperatures, scaling and chemical attack will quickly destroy surface finish and reduce cross‑sectional strength if the alloy isn't designed for it. [hubs]
- Strength at temperature: Many steels look strong at room temperature but lose yield strength quickly above 500–600°C, while nickel‑based alloys like Inconel maintain strength close to 1,000°C. [carpentertechnology]
- Machinability and cost: Superalloys may survive anything, but slow feeds, high tool wear, and raw material cost can easily kill your business case. [3ds]
From my own projects, the worst failures happened when a design team chased maximum temperature instead of balancing these four factors with actual operating conditions and production economics.
Below are the top 5 heat‑resistant metals for CNC machining, combining high‑temperature capability with real‑world machinability and availability. [sansmachining]
Inconel is the alloy we specify when "failure is not an option" and operating temperatures sit in the high triple digits. [sansmachining]
- Typical max service temperature: about 980–1,090°C (1,796–2,000°F), depending on grade and loading. [prlog]
- Why engineers choose it: Inconel retains excellent mechanical strength, even when red‑hot, and offers outstanding oxidation and corrosion resistance in high‑temperature gas streams. [carpentertechnology]
Pros [sansmachining]
- Very high strength at elevated temperatures.
- Exceptional oxidation and corrosion resistance in aggressive media.
- Handles thermal cycling better than most conventional steels.
Cons [prlog]
- Hard to machine: requires rigid setups, low feeds and speeds, and premium coated carbide or ceramic tools.
- Expensive raw material and long cycle times increase part cost.
Typical CNC applications [sansmachining]
- Turbine blades and vanes.
- Jet engine exhaust and hot‑section components.
- High‑temperature chemical processing hardware (combustion, reactors).
From a shop‑floor point of view, you use Inconel only when you must, and then you pair it with stable fixturing, optimized CAM strategies, and careful toolpath planning.
Titanium alloys are the go‑to solution when you need high strength‑to‑weight and good heat resistance, not the absolute highest service temperature. [3ds]
- Typical max service temperature: about 600°C (1,112°F) in many aerospace and engine applications. [prlog]
- Why engineers choose it: Titanium combines low density with high strength, solid heat resistance, and excellent corrosion resistance, especially useful where weight reduction and fatigue life matter. [3ds]
Pros [3ds]
- Very high strength‑to‑weight ratio.
- Good fatigue performance and thermal stability in the mid‑temperature range.
- Biocompatible, so suitable for implants and medical hardware.
Cons [3ds]
- More expensive than most steels.
- Lower thermal conductivity concentrates heat at the cutting edge, demanding rigid setups, sharp tools, and aggressive coolant.
Typical CNC applications [prlog]
- Aerospace structural components and engine parts.
- Motorsport and high‑end automotive parts.
- Medical implants and surgical tools.
In my experience, titanium is ideal when your primary constraint is weight and fatigue, not driving at 1,000°C all day.
When teams need a cost‑effective high‑temperature alloy for furnace or general industrial use, heat‑resistant stainless grades like 310 often make more sense than exotic superalloys. [hubs]
- Typical max service temperature: roughly 870–1,150°C (1,598–2,102°F), depending on grade and environment. [prlog]
- Why engineers choose it: These alloys offer a practical balance of heat resistance, oxidation resistance, and machinability, at a lower price point than Inconel or titanium. [hubs]
Pros [hubs]
- Relatively affordable and widely available.
- Good high‑temperature oxidation resistance for furnaces, boilers, and ovens.
- Easier to machine than superalloys like Inconel or Hastelloy.
Cons [hubs]
- Heavier than titanium; not suitable when mass reduction is critical.
- Corrosion resistance at high temperature is moderate compared with premium nickel‑based alloys.
Typical CNC applications [hubs]
- Furnace and boiler components.
- Heat exchangers and high‑temperature ducting.
- Oven interiors and industrial heaters.
From a sourcing and machining standpoint, stainless 310 is often the sweet spot for "hot but not extreme" environments.
Hastelloy steps in when temperature is high and the environment is also chemically aggressive, such as in chemical processing plants. [sansmachining]
- Typical max service temperature: around 1,100°C (2,012°F) in suitable grades and conditions. [prlog]
- Why engineers choose it: It provides exceptional corrosion resistance under high heat, especially in chloride‑rich or acidic environments, while maintaining strength. [carpentertechnology]
Pros [carpentertechnology]
- Top‑tier corrosion resistance in harsh chemicals at elevated temperature.
- Very good strength retention at high temperatures.
- Suitable for both high heat and aggressive media.
Cons [sansmachining]
- Significantly more expensive than standard stainless steels.
- Machining behavior similar to Inconel, with demanding cutting conditions and high tool wear.
Typical CNC applications [sansmachining]
- Heat exchangers and reactors in chemical processing.
- Marine and offshore components exposed to hot, corrosive fluids.
- Critical components in pollution control and energy systems.
You rarely see Hastelloy specified by accident; it's chosen because failure from corrosion at temperature is simply unacceptable.
Tool steels don't reach the extreme service temperatures of nickel superalloys, but they shine in thermal cycling and hot‑work tooling. [sansmachining]
- Typical max service temperature: about 600–650°C (1,112–1,202°F) for many hot‑work grades like H13. [prlog]
- Why engineers choose it: These steels maintain hardness and strength under repeated heating and cooling, making them ideal for molds, dies, and tooling exposed to hot parts or molten material. [carpentertechnology]
Pros [sansmachining]
- Maintains hardness and wear resistance at elevated temperatures.
- More affordable than most nickel superalloys.
- Generally more machinable than Inconel or Hastelloy, especially in annealed condition prior to heat treatment.
Cons [prlog]
- Not suitable for very high continuous temperatures above ~650°C.
- Limited corrosion resistance; often needs coatings or surface treatments.
Typical CNC applications [sansmachining]
- Hot forging dies and extrusion tools.
- Injection molds and cores.
- High‑temperature jigs, fixtures, and support tooling.
A common workflow is to machine H13 in a softened state, then heat‑treat to final hardness and finish‑grind critical surfaces.
The following table summarizes performance across key criteria that matter in CNC machining and high‑temperature design. [prlog]
| Metal / Alloy | Approx. max temp (°C) | Strength at temp | Corrosion / oxidation | Machinability (CNC) | Typical use cases (examples) |
|---|---|---|---|---|---|
| Inconel | ~1,090 | ★★★★★ prlog | ★★★★★ prlog | ★★☆☆☆ prlog | Turbines, jet engines, hot exhausts prlog |
| Titanium alloys | ~600 | ★★★★☆ prlog | ★★★★☆ prlog | ★★★☆☆ prlog | Aerospace frames, medical implants prlog |
| Stainless 310 | ~1,150 | ★★★★☆ prlog | ★★★☆☆ prlog | ★★★★☆ prlog | Boilers, furnaces, ovens prlog |
| Hastelloy | ~1,100 | ★★★★★ prlog | ★★★★★ prlog | ★★☆☆☆ prlog | Chemical reactors, exchangers prlog |
| Tool steel (H13) | ~650 | ★★★★☆ prlog | ★★☆☆☆ prlog | ★★★★☆ prlog | Dies, molds, hot‑work tooling prlog |
When we evaluate a new project at a precision shop, we usually follow a structured 4‑step selection framework instead of guessing based on "what we used last time". [3ds]
Don't just ask "How hot does it get?" – ask where, for how long, and how often. [carpentertechnology]
- For continuous exposure near or above 1,000°C, Inconel or Hastelloy are typically better candidates. [prlog]
- For peaks below about 700°C with lots of cycling, tool steels or heat‑resistant stainless often suffice at lower cost. [prlog]
A simple example: we once downgraded a design from Inconel to stainless 310 after measuring real furnace duty cycles; the process never exceeded 950°C, and the environment was not chemically aggressive.
Temperature alone doesn't tell the whole story; you also need to consider what the part is exposed to. [hubs]
- In hot, oxidizing gas streams or combustion environments, Inconel and Hastelloy maintain surface integrity far better than plain steels. [carpentertechnology]
- In chemically aggressive liquids or acids at temperature, Hastelloy or titanium are often preferred for their combined corrosion and heat resistance. [carpentertechnology]
If your environment is relatively clean and dry, it may be safe – and far cheaper – to use heat‑resistant stainless or tool steel instead.
Materials selection often becomes a trade‑off between weight and stiffness. [3ds]
- For aerospace, motorsport, or high‑speed rotating parts, titanium is attractive because it dramatically cuts mass while retaining strength at moderate temperatures. [prlog]
- For static high‑temperature components (furnace hardware, support brackets), the extra mass of stainless may not matter, and its lower cost and better machinability become decisive. [prlog]
Evaluating deflection and vibration in FEA early in the design cycle helps avoid over‑specifying exotic alloys where simpler materials would suffice.
From a CNC shop's perspective, "material cost" includes far more than the price per kilogram. [3ds]
- Inconel and Hastelloy require slower cutting parameters, special tooling, and more frequent tool changes, driving up cycle time and unit price. [sansmachining]
- Stainless and tool steels are generally more forgiving, allowing higher removal rates and simpler tooling setups. [prlog]
A practical process we use is:
1. Shortlist 2–3 candidate alloys meeting the thermal and environmental requirements.
2. Request DFM feedback and quotations from the machining partner, including recommended tolerances and finishing.
3. Compare total manufacturing cost and lead time, not just raw material pricing.

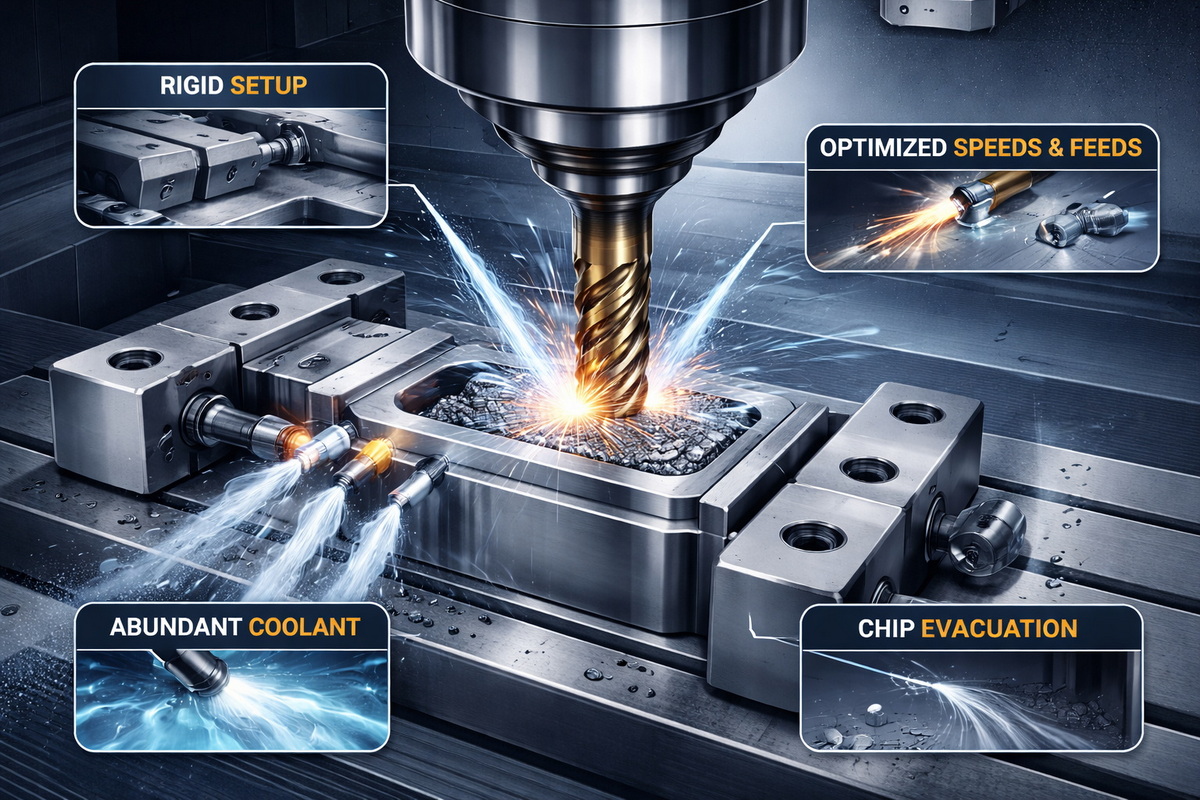

Even the best heat‑resistant metal will fail if the CNC process is not set up to respect its behavior in the spindle. Over the years, our process engineers have converged on several practical guidelines: [hubs]
- Use rigid fixturing and minimal overhang to avoid chatter with tough alloys like Inconel and Hastelloy. [prlog]
- Prefer carbide or ceramic tooling with high‑performance coatings for nickel alloys and titanium, and always follow tool supplier recommendations for speeds and feeds. [hubs]
- Apply abundant coolant and optimized chip evacuation to keep tool temperature under control, especially in titanium, which tends to trap heat at the cutting edge. [3ds]
- Whenever possible, machine tool steels like H13 in the annealed condition, then heat‑treat and finish‑grind critical dimensions afterward to maintain accuracy. [carpentertechnology]
In practice, the best results come when design engineers and CNC experts collaborate early to align material choice, geometry, and process strategy.
For complex heat‑resistant alloys, you don't just need a supplier; you need a precision manufacturing partner that understands both the material and the application. A shop with deep experience in Inconel, titanium, stainless 310, Hastelloy, and tool steels can help you: [uneedpm]
- Optimize geometry and tolerances for stability under heat, without over‑engineering. [uneedpm]
- Select the most suitable alloy for your operating conditions and cost targets, rather than defaulting to the most expensive option. [uneedpm]
- Implement appropriate heat treatment, surface finishing, and inspection to ensure the part performs throughout its life cycle. [carpentertechnology]
If your parts operate in high‑temperature environments—whether in aerospace, energy, automotive, or industrial processing—partnering with an experienced CNC manufacturer in China gives you access to cost‑effective, high‑precision parts produced to international quality expectations. [uneedpm]
If you're developing parts for high‑temperature service and are unsure whether Inconel, titanium, stainless, Hastelloy, or tool steel is the best fit, don't leave it to trial‑and‑error. Share your 3D models, temperature profile, and application details with a specialized CNC machining partner in China and request a material and manufacturability review. An experienced engineering team can help you select the right alloy, optimize design for CNC machining, and deliver production‑ready parts with the balance of heat resistance, reliability, and cost your project requires. [uneedpm]
A: Tungsten has one of the highest melting points of any metal, but it is extremely difficult and costly to machine, so in practice Inconel is often the most widely used CNC‑machinable high‑temperature metal for critical components. [sansmachining]
A: Austenitic stainless grades specifically formulated for heat resistance, such as 309 and 310, can operate above 1,000°C in many furnace and boiler applications, whereas standard grades like 304 are not designed for prolonged high‑temperature service. [hubs]
A: Titanium is preferred when weight reduction, fatigue life, and corrosion resistance are more important than absolute maximum temperature, which is why it dominates aerospace and medical components that run below about 600°C. [3ds]
A: Not necessarily; while nickel alloys like Inconel and Hastelloy provide exceptional performance at high temperature and in aggressive environments, they are expensive and difficult to machine, so for moderate temperatures and clean atmospheres, heat‑resistant stainless or tool steel is often more economical. [carpentertechnology]
A: Ideally, involve your machining partner during the material selection and early design stages so they can provide feedback on machinability, tolerances, and finishing options before you lock in a material that may drive up cost or risk. [uneedpm]
