When you're under pressure to hit tolerance, protect material properties, and still keep cost per part under control, picking the wrong cutting process can quietly destroy your margin. [rapidaxis]
From my experience supporting OEMs, startups, and global brands, the most reliable way to decide between waterjet and laser cutting is to look at five core dimensions: material, thickness, precision, edge quality, and total cost of ownership—not just machine hour rates. [msivt]

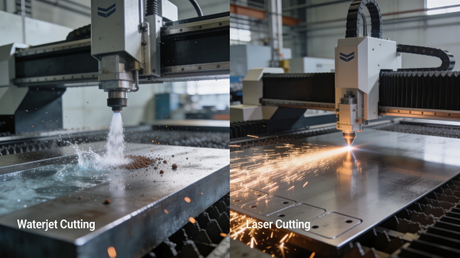

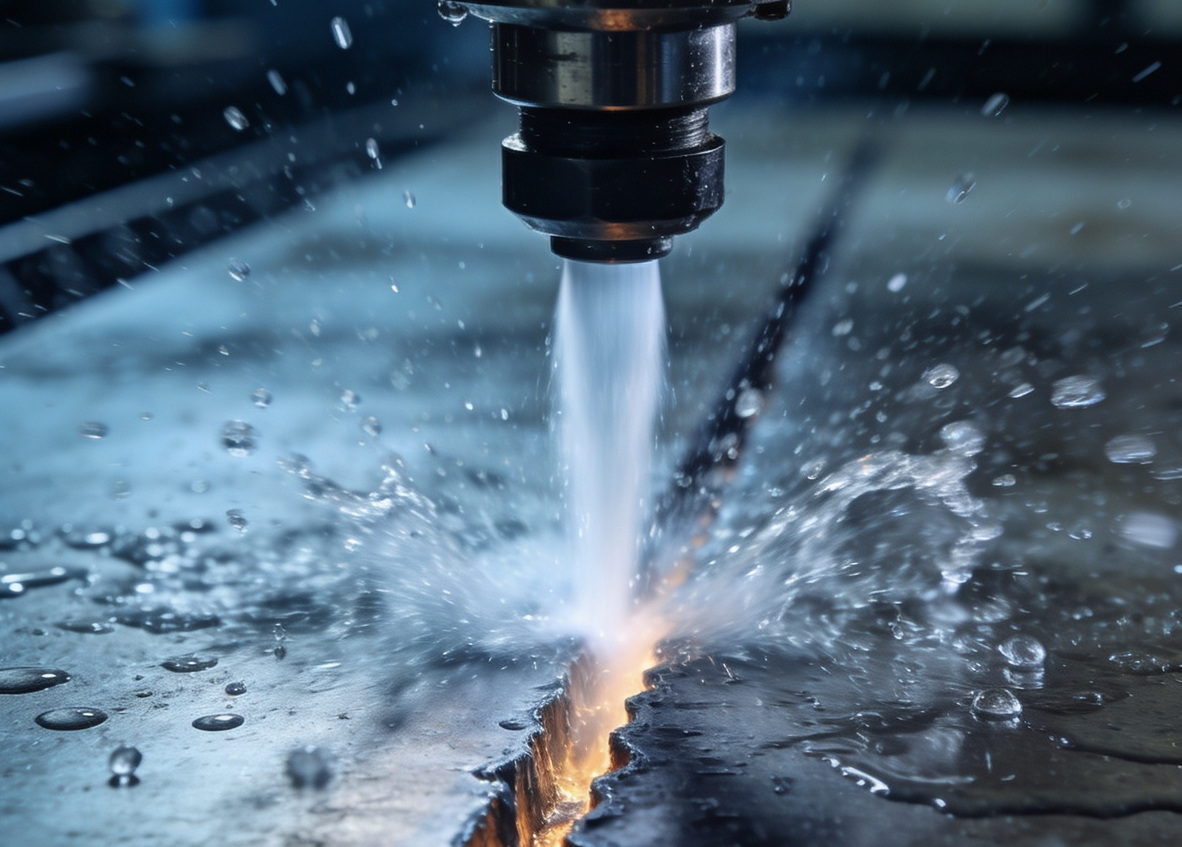

Waterjet cutting uses a high‑pressure stream of water (often mixed with garnet abrasive) to erode material along a programmed toolpath. Because it's a cold process, there is no heat-affected zone (HAZ), which makes it very attractive for heat‑treated steels, aerospace alloys, and precision components where mechanical properties must stay intact. [lindsaymachineworks]
From a production standpoint, I've seen waterjet used successfully for:
- Thick plate (up to 6 inches and beyond, depending on setup) [flowwaterjet]
- Mixed-material jobs (metal + rubber, composites, stone, glass, ceramics) [wurthmachinery]
- Prototypes where material integrity matters more than cycle time [rapidaxis]
The tradeoff is speed and running cost: abrasive consumption, pump maintenance, and sludge management all add up. [msivt]

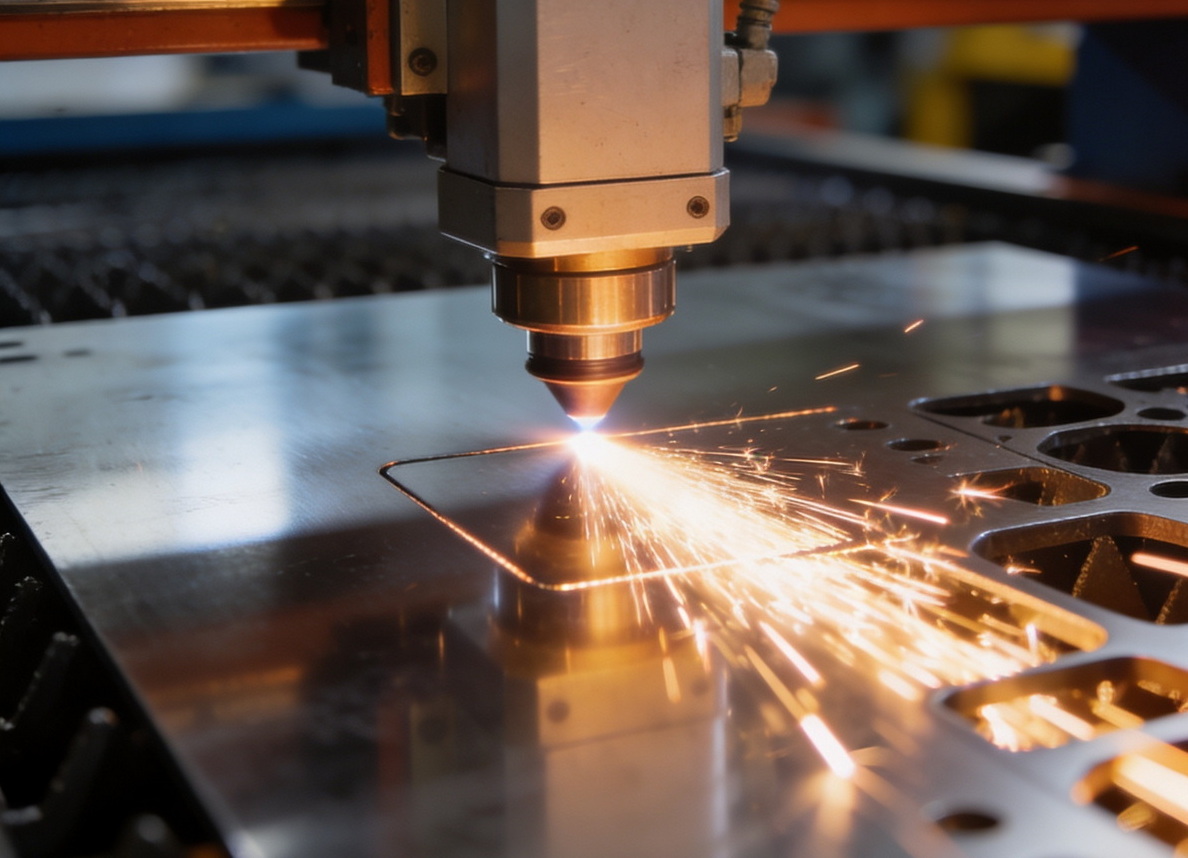

Laser cutting uses a focused, high‑energy beam (fiber or CO₂, usually fiber in modern shops) to melt or vaporize material along the programmed contour. With CNC control and high‑speed motion systems, laser cutting is the go‑to choice for fast, repeatable sheet metal production, especially in thin to medium gauges. [approvedsheetmetal]
In my work with fabrication suppliers, laser cutting consistently wins when you need:
- High throughput on thin sheet metal (e.g., 1–6 mm mild or stainless steel) [xometry]
- Tight tolerances and crisp detail for complex 2D profiles [metalcraftspinning]
- Clean edges that can move directly to bending, welding, or powder coating [approvedsheetmetal]
There is a small HAZ, but with tuned parameters and correct assist gas, the impact on most structural or cosmetic parts is minimal. [metalcraftspinning]
| Factor | Waterjet Cutting | Laser Cutting |
|---|---|---|
| Cutting method | High-pressure water + abrasive jet (wurthmachinery) | Focused laser beam (fiber/CO₂) (wurthmachinery) |
| Heat-affected zone | None – cold cutting (wurthmachinery) | Present but small with correct settings (wurthmachinery) |
| Typical tolerance | Around ±0.003″–±0.005″ with good setup (wurthmachinery) | Around ±0.001″–±0.003″ on thin sheet (wurthmachinery) |
| Kerf width | Wider (~0.020″–0.040″) (wurthmachinery) | Narrow (~0.006″–0.012″) (wurthmachinery) |
| Max thickness (metals) | Often 6″+ depending on machine and material (wurthmachinery) | Typically up to ~1″ for steels (varies by power) (wurthmachinery) |
| Material range | Metals, composites, stone, glass, rubber, plastics (wurthmachinery) | Metals + some plastics and organics; reflective alloys trickier (wurthmachinery) |
| Cutting speed | Slower, especially on thick materials (wurthmachinery) | Very fast on thin–medium sheet (wurthmachinery) |
| Edge quality | Matte, sandblasted, excellent on most materials (wurthmachinery) | Smooth, clean, ideal for visible sheet metal parts (wurthmachinery) |
| Operating cost | Higher due to abrasive + maintenance (wurthmachinery) | Moderate; no abrasive, less mechanical wear (wurthmachinery) |
If you imagine a production line running 1/8″ stainless steel brackets, a well‑set‑up laser will consistently cut them in minutes, while a waterjet would need significantly longer cycle times for the same batch. [xometry]
In real RFQs I've reviewed, the price difference between waterjet and laser cutting often comes down to volume, thickness, and post‑processing—not the cutting hourly rate alone. [wurthmachinery]
Key cost drivers:
- Equipment and speed: Laser systems cost more upfront, but their higher cutting speed on thin sheet usually means a lower cost per part at scale. [approvedsheetmetal]
- Consumables: Waterjets consume abrasive and large volumes of water; lasers mainly consume assist gases and electricity. [lindsaymachineworks]
- Maintenance: Waterjets have intensifier pumps, orifices, and mixing tubes that wear; lasers have fewer abrasive wear components but demand clean optics and stable power. [msivt]
- Secondary operations: Cleaner laser edges can reduce deburring and grinding, while waterjet edges may need more touch‑up on some jobs. [rapidaxis]
Based on current industry data and typical shop quotes:
- For thin-gauge steel or aluminum (< 6 mm), laser cutting is usually the most cost‑effective option, thanks to high speed and minimal finishing. [xometry]
- For thick plate or exotic alloys, waterjet can become cheaper overall because it avoids scrap from heat distortion or out‑of‑spec parts. [flowwaterjet]
- For small prototype batches across mixed materials, waterjet offers flexibility without investing in multiple cutting technologies. [wurthmachinery]
A common pattern with global customers is to start early development with waterjet (for flexibility) and then move proven designs to high‑volume laser cutting to reduce piece‑part cost. [sintelinc]
On thin-to-medium sheet metals, laser cutting is often several times faster than waterjet, especially when parts are nested closely across large sheets. A fiber laser can cut at tens of inches per minute on standard materials, which is why it's the default choice in many high‑volume sheet metal shops. [approvedsheetmetal]
However, as thickness climbs toward and beyond the laser's sweet spot, cut quality and speed both drop, and that's where waterjet becomes the more stable, predictable option. [flowwaterjet]
Both processes are capable of tight tolerances, but their strengths are different:
- Laser cutting: Excellent for intricate profiles and tight fitment on thin parts, often achieving tolerances around ±0.001″–±0.003″. [metalcraftspinning]
- Waterjet cutting: Capable of similar tolerances on many jobs, but can show taper on thicker sections if not optimized, typically around ±0.003″–±0.005″. [msivt]
For critical mechanical interfaces in thin sheet metal assemblies, I nearly always recommend laser cutting plus a controlled bending and finishing process. [rapidaxis]
Laser edges are usually clean, smooth, and ready for downstream operations such as bending, welding, or coating. With optimized parameters and proper assist gas, oxide‑free edges are achievable and highly repeatable. [metalcraftspinning]
Waterjet edges tend to be matte, with a fine sandblasted texture that is mechanically clean but may require additional finishing if the part is cosmetic or will be highly visible. For many industrial components, this is more than acceptable and may even be preferred, especially where paint adhesion is required. [sintelinc]
Laser cutting is typically the best choice if your project involves:
- Sheet metals like mild steel, stainless steel, and aluminum within the machine's optimal thickness range. [xometry]
- High volumes of repeated parts where throughput and consistency matter most. [wurthmachinery]
- Parts with fine features, slots, and intricate internal cutouts that must remain dimensionally stable. [approvedsheetmetal]
Reflective materials such as copper and brass can be more challenging but are increasingly manageable with modern fiber lasers and correct parameter tuning. [lindsaymachineworks]
Waterjet cutting really shines when:
- You're working with very thick metals, stone, glass, ceramics, or composites that would be difficult or unsafe to laser cut. [flowwaterjet]
- The material is heat-sensitive or heat‑treated, and preserving base properties is critical. [lindsaymachineworks]
- You need to cut stacked materials or bonded layers without burning adhesives or fillers. [flowwaterjet]
In aerospace and energy projects I've observed, waterjet is often specified to protect microstructure and fatigue performance in high‑value alloys. [sintelinc]
Over many conversations with engineering teams and purchasing managers, I've found that a simple decision framework helps avoid expensive trial‑and‑error. [msivt]
1. Define material and thickness
- If material is standard sheet metal (mild steel, stainless, aluminum) and thickness is within typical laser limits, lean toward laser. [xometry]
- If material is exotic, non‑metal, or very thick, start by evaluating waterjet capability. [wurthmachinery]
2. Set tolerance and cosmetic requirements
- For tight tolerance mating parts and sharp internal features, favor laser cutting. [metalcraftspinning]
- For components where property retention is more critical than cosmetic perfection, waterjet is often safer. [lindsaymachineworks]
3. Estimate volume and lifecycle
- Low volumes and mixed materials: waterjet offers flexibility. [rapidaxis]
- High volumes of similar parts: laser tends to deliver better cost per part. [approvedsheetmetal]
4. Consider downstream processes
- If you want parts to move straight into forming or assembly with minimal deburring, that points toward laser. [rapidaxis]
- If parts will be machined further or surface‑treated heavily, waterjet's edge texture may be acceptable and cost‑effective. [wurthmachinery]
5. Run a real quote comparison
- The most reliable approach is to send the same drawing set to both cutting processes and compare pricing plus lead time and technical notes. [uneedpm]
As a precision manufacturing partner in China, U‑Need supports global brands, distributors, and manufacturers with end‑to‑end sheet metal fabrication, CNC machining, and value‑added services. With over 30 years of machining experience and tight tolerances down to ±0.001 mm on precision parts, we understand how cutting choices impact the entire production chain. [uneedprecisionmachine]
For many customers, the optimal solution is not "waterjet or laser" in isolation, but an integrated process plan: laser cutting for efficient blanks and high‑volume sheet parts, combined with CNC machining, bending, and surface treatment to reach final spec. Our engineering team can help you evaluate drawings, recommend the right cutting route, and optimize DFM so you're not over‑engineering tolerances or driving unnecessary cost. [uneedpm]
If you already have a drawing package or 3D model ready, the fastest next step is to send your RFQ so our engineers can recommend the most efficient cutting process for your specific material, thickness, and volume. [uneedprecisionmachine]
Both are highly accurate, but lasers typically achieve tighter tolerances on thin sheet metal, while waterjets maintain good accuracy across a wider range of materials and thicknesses without introducing heat. [approvedsheetmetal]
For standard sheet metal parts in thin to medium gauges, laser cutting usually delivers a lower cost per piece because of higher cutting speeds and reduced consumables. For thick or heat‑sensitive materials, waterjet can be more economical overall by avoiding scrap and rework. [msivt]
Laser cutting does create a small heat‑affected zone, but with correct parameters and assist gas selection, the impact on mechanical properties is minimal for most engineering applications. Critical aerospace or heat‑treated components may still prefer waterjet to completely avoid thermal effects. [lindsaymachineworks]
Modern waterjets can cut almost any material, including stone, glass, ceramics, rubber, composites, and metals. Lasers are ideal for metals and some non‑metals (like certain plastics and woods), but they struggle with many clear, reflective, or highly flammable materials. [flowwaterjet]
Start with material and thickness, then consider tolerance, volume, and downstream operations. In many cases, sending your drawings to a qualified fabrication partner for both waterjet and laser quotes will quickly reveal the best option for your specific project and budget. [uneedpm]
