Close tolerance machining depends on more than machine specifications. Workholding determines whether a component stays correctly located, resists cutting forces, and retains its intended geometry after release. Multiple setups introduce additional opportunities for positioning error, but they do not automatically prevent accurate manufacturing.
For buyers sourcing custom precision parts, mold components, or production tooling, the practical question is not simply, "How many setups will this require?" It is, "How will each setup preserve the relationships that matter?"
My starting point is datum integrity: maintaining reliable reference surfaces throughout machining and inspection. This article compares single-clamping and multiple-setup strategies, explains their accuracy risks, and provides a practical framework for evaluating a manufacturing proposal.
Close tolerance machining describes a manufacturing objective: producing dimensions and geometric relationships within narrowly specified limits.
Multiple setups describe a production method: releasing, repositioning, or transferring a component between machining operations.
They are not competing processes. Close tolerance machining can involve one setup or several.
The meaningful comparison is between:
- Single-clamping machining, which produces accessible features without releasing the workpiece.
- Multiple-setup machining, which transfers the workpiece between different clamping arrangements.
Neither approach guarantees quality. A rigid, well-referenced second setup can outperform a single setup that leaves the component poorly supported.
There is no universal tolerance that makes every component "close tolerance."
A dimensional requirement of ±0.01 mm may be demanding for a large, flexible component but less challenging for a small, rigid feature under stable conditions.
Feature type also matters. Hole diameter, flatness, perpendicularity, and positional tolerance describe different requirements. A part can meet every individual size tolerance yet fail because two features are incorrectly aligned.
Manufacturing planning must therefore begin with the drawing's functional relationships—not a generic tolerance claim.

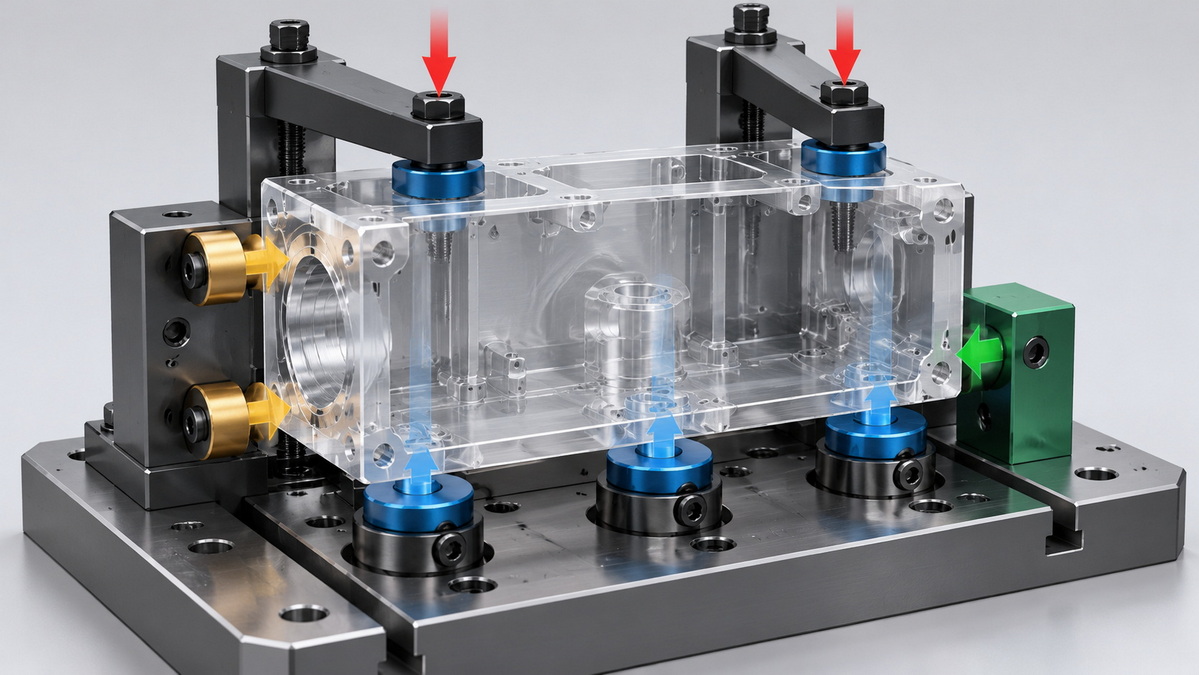

A fixture has two connected responsibilities: locating the component and holding it securely.
Locators establish position. Clamps keep the component seated against those locators. Confusing these functions can lead to unstable positioning or excessive clamping force.
For suitable prismatic parts, a conventional 3-2-1 locating arrangement uses three primary support points, two secondary locating points, and one tertiary stop.
The purpose is to establish a repeatable position without unnecessary constraint.
Problems arise when:
- Chips remain beneath support surfaces.
- Burrs prevent complete seating.
- Rough stock becomes an unreliable reference.
- Redundant locators compete with one another.
- Worn contact surfaces change the component's position.
A highly accurate machine cannot correct an incorrectly seated workpiece unless the condition is detected and resolved.

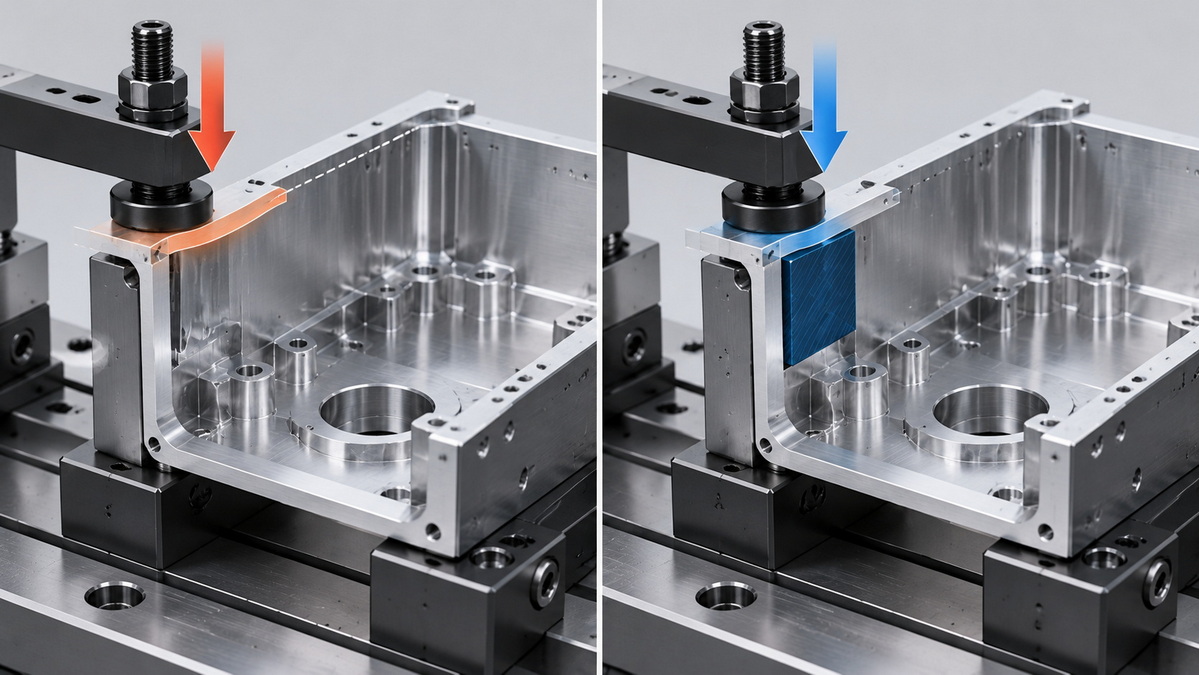

More clamping force does not necessarily create more accuracy.
An unsupported wall can bend under a clamp. Machining may then produce the correct shape while the component is restrained, only for that shape to change after release.
A stronger approach is to:
- Position clamps over supported, rigid regions.
- Direct clamping force toward locators.
- Use sufficient force to prevent movement without unnecessary deformation.
- Keep pressure or tightening procedures consistent.
- Protect critical surfaces from clamp damage.
The fixture should resist machining loads through its locating and supporting structure rather than depending entirely on friction from aggressive clamping.
Workholding also affects tool access.
A fixture may expose several faces but require excessive tool overhang. Another may provide excellent support while obstructing a critical bore.
These compromises influence cutting stability and deflection. The best arrangement balances accessibility, short practical tool lengths, secure gripping, and adequate support.

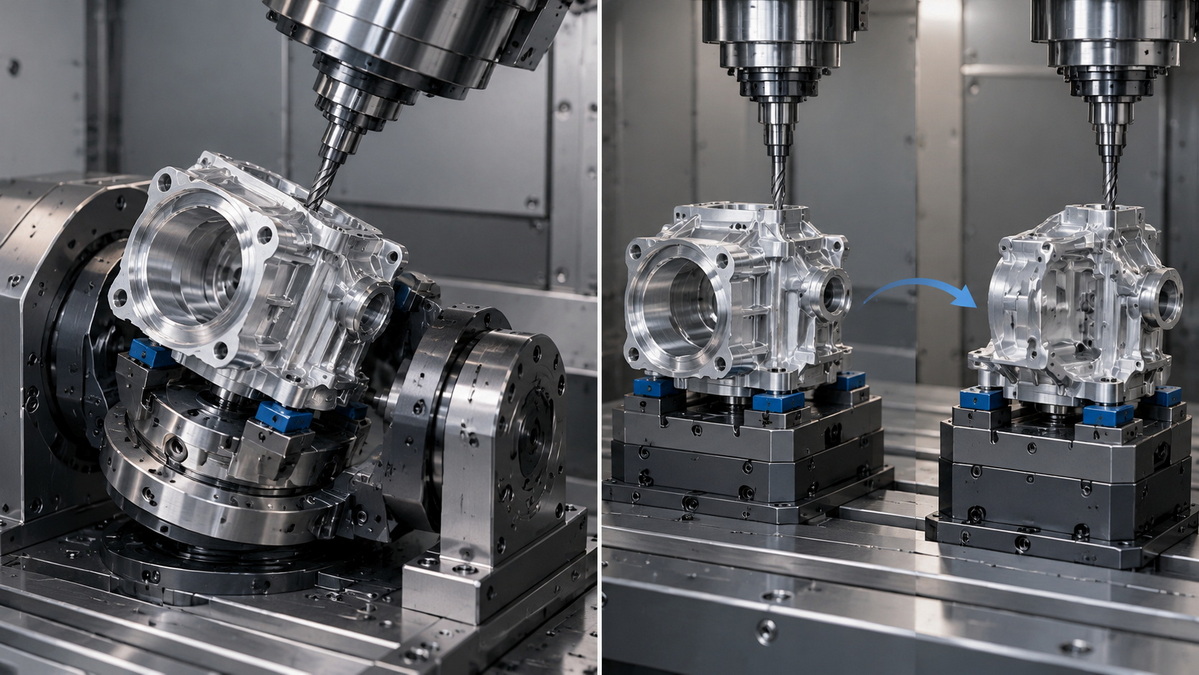

| Evaluation factor | Single-clamping approach | Multiple-setup approach |
|---|---|---|
| Reference continuity | Preserves the original clamped relationship | Requires controlled datum transfer |
| Cross-face features | Often advantageous when features remain accessible | Depends strongly on relocation accuracy |
| Workpiece support | May be compromised to expose more faces | Can be optimized for each operation |
| Tool access | Limited by the initial fixture | Can improve after repositioning |
| Distortion risk | Present throughout the clamping cycle | May change with each clamping arrangement |
| Process planning | Can require complex access and collision planning | Requires clear operation-to-operation references |
| Inspection | Still needs release-condition verification | Benefits from checks at transfer stages |
| Typical advantage | Protecting relationships between accessible features | Supporting inaccessible or distortion-sensitive features |
The table highlights an important distinction: fewer setups reduce opportunities for relocation error, but better support can sometimes justify an additional setup.
Every transfer requires the manufacturing process to re-establish where the component is.
That transfer may introduce translation, rotation, or deformation.
Suppose a housing receives a precision bore in its first setup and a mounting pattern after being flipped.
If the second operation references an unrelated exterior surface, the mounting pattern may shift relative to the bore.
Where practical, the second fixture should reference features that preserve the drawing's functional datum structure. An accurately machined reference surface is generally more useful than an inconsistent raw edge.
Small angular errors become more significant as distance increases.
A slight seating tilt may have little effect near a locator but create a larger deviation at a distant feature.
This is why a fixture can appear repeatable at one inspection point while producing unacceptable relationships elsewhere on the component.
The same component may deform differently in a vise, soft jaws, and a dedicated fixture.
Transferring between these arrangements changes the loading condition. A stable datum strategy must therefore consider both location and deformation.
Re-establishing the coordinate origin does not necessarily restore the original workpiece shape.
Single-clamping machining is particularly attractive when several tightly related features are accessible from one holding position.
Examples include:
- Bores that require controlled alignment.
- Holes located relative to a precision pocket.
- Intersecting features on adjacent faces.
- Mold insert features with sensitive positional relationships.
Indexed or simultaneous five-axis machining can improve access while keeping the workpiece clamped.
However, five-axis capability is not an accuracy guarantee. Rotary-axis alignment, machine condition, tool reach, fixture rigidity, and the component's geometry still matter.
My preferred decision rule is straightforward: preserve one clamping condition when it protects critical relationships without creating a weaker cutting arrangement.
Additional setups can be the technically stronger choice when they solve a specific manufacturing problem.
A thin component may need broad support during finishing. Repositioning it into a purpose-built nest can provide better support than leaving it exposed in the original fixture.
Underside pockets, deep cavities, and internal details may be inaccessible without releasing the part.
Trying to avoid another setup through excessive tool reach can introduce greater risk than a controlled transfer.
Material removal can change a component's shape as internal stresses redistribute.
For distortion-sensitive parts, separating roughing from finishing allows the manufacturer to assess the changed condition before completing critical features.
The sequence depends on material, stock condition, geometry, and any required treatment. It should not be presented as a universal recipe.

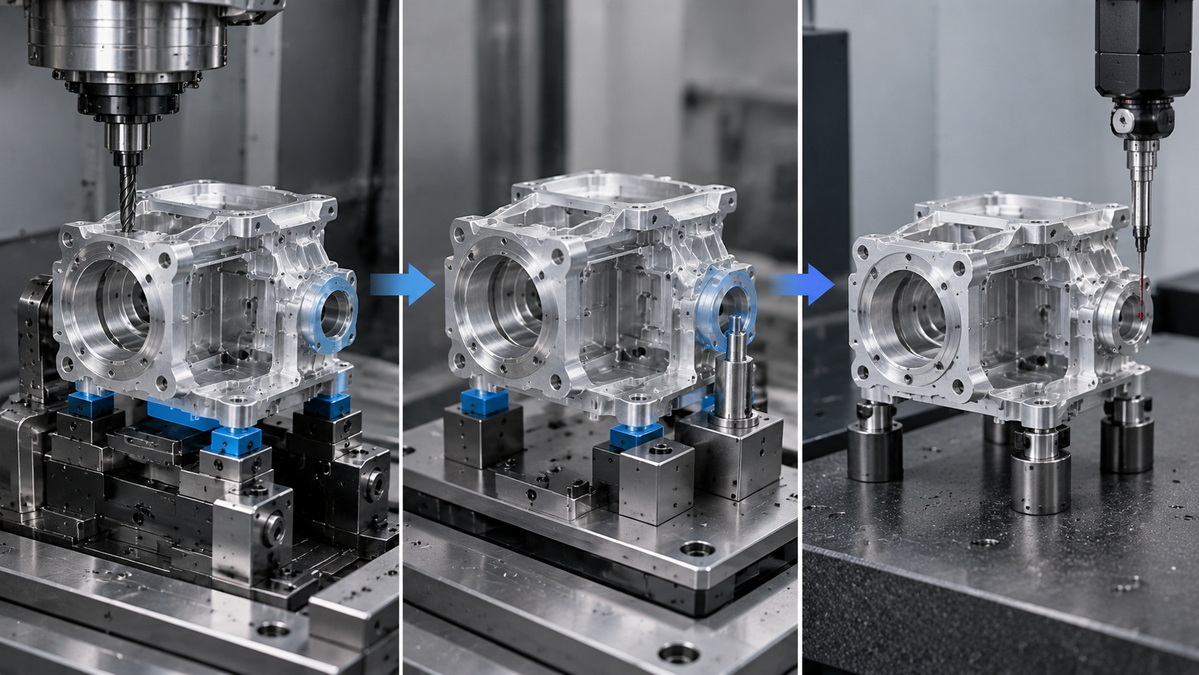

Consider a hypothetical aluminum housing with:
- A central bore.
- A mounting face.
- Four mounting holes.
- An underside pocket.
- Thin walls around the pocket.
This is an illustrative planning example, not a reported U-Need production result.
The manufacturer machines the bore, mounting face, and holes while maintaining one clamping condition.
This protects their mutual relationships. However, exposing the underside may require limited gripping or leave the walls insufficiently supported.
The manufacturer completes suitable reference features first, then transfers the housing into a supporting fixture for underside machining.
This introduces relocation risk but improves support and access.
The better choice depends on the drawing. If bore-to-hole position dominates, preserving their common setup is valuable. If released flatness and wall stability dominate, support and finishing sequence may become more important.
The lesson is to optimize the process around functional requirements—not setup count alone.
Instead of asking a supplier whether it can "hold tight tolerances," ask how it allocates the available error margin.
Relevant contributors include:
- Machine positioning and geometry.
- Workpiece relocation.
- Tool deflection and wear.
- Clamping deformation.
- Temperature variation.
- Measurement uncertainty.
These contributors should not automatically receive equal allowances, and they cannot always be combined as independent random errors.
As a simple illustrative screening exercise, consider a linear feature relationship with an allowable deviation of ±0.020 mm. If relocation alone can vary by ±0.015 mm in the relevant direction, little margin remains for other contributors.
That does not establish actual process capability. It identifies a planning risk that should trigger testing or a revised fixture strategy.
Also distinguish total tolerance width from allowable deviation: ±0.020 mm represents a 0.040 mm-wide interval.
Mark the surfaces and features that control assembly, sealing, alignment, or movement.
Use these relationships to guide the operation sequence.
Check where machining forces enter the component and how the fixture resists them.
Pay particular attention to thin walls, long projections, and unsupported spans.
Define cleaning, deburring, loading direction, tightening sequence, and clamping pressure or torque where appropriate.
Repeatability requires a repeatable procedure.
Load, measure, release, and reload representative components.
Measure both position and orientation. The test should reflect actual operators, loading practices, and fixture conditions.
Inspect critical features in the condition required by the drawing.
If a part is only acceptable while clamped, its apparent machining accuracy may not represent its delivered condition.
A successful first article demonstrates one result, not sustained capability.
Evaluate representative production data, tool-life effects, and measurement suitability before making broader capability claims.
Machine probing can establish workpiece location, update offsets, and support in-process checks.
It can also help identify variation associated with tool wear or changing process conditions.
However, probing cannot make an unstable fixture rigid or eliminate clamping distortion.
Probe repeatability is also not the same as finished-part accuracy. Calibration, machine geometry, stylus configuration, surface condition, and temperature affect the complete measurement process.
For demanding features, combine in-process control with appropriate verification rather than treating an on-machine reading as automatic proof of conformity.
A useful supplier discussion should connect workholding decisions to the drawing.
Ask:
1. Which critical features will be machined together?
2. What will locate the component in subsequent setups?
3. How will clamping distortion be evaluated?
4. Which dimensions will be checked after release?
5. How will setup repeatability be demonstrated?
6. What evidence supports the proposed production capability?
Compare total accepted-part cost, not machining time alone. Fixtures, inspection, rework, and scrap can change the economics of an apparently faster route.
For U-Need, these discussions connect naturally with its stated services: custom precision parts machining, injection mold and die manufacturing, and sheet metal fabrication. Each project still requires its own technical review; service scope alone does not establish a particular tolerance capability.
Send U-Need your drawing, model, material, and production quantity. Identify the dimensions and geometric relationships that matter most to your application.
Request a quotation that addresses machining sequence, datum transfer, workholding risks, and inspection requirements—not simply the number of setups.
No. Each setup creates another opportunity for variation, but reliable locating, suitable support, and validated transfer procedures can control that risk.
No. It can preserve clamping continuity and improve access, but the result still depends on machine condition, fixture design, tool reach, and geometry.
Yes, when correctly designed and used. They can provide tailored support and contact, but cleanliness, seating, jaw condition, and clamping consistency remain important.
Clamping may temporarily deform it. Releasing the load allows its shape to change, revealing deviations that were hidden in the restrained condition.
No. Probing helps establish location and monitor features. The fixture must still provide stable support and resist movement during cutting.
Provide the drawing, model, material specification, critical datum relationships, quantity, surface requirements, and inspection expectations. Identify the features that control assembly or performance.
