An injection mold is more than a shaped piece of steel. It is a coordinated production system that controls how molten plastic enters, fills, vents, cools, forms, and releases a finished component.

For global brands, distributors, and manufacturers, understanding the components of an injection mold helps prevent costly design changes, improve part consistency, and balance tooling investment with long-term production cost. From the mold base and cavity to the cooling system and ejector mechanism, every component influences quality, cycle time, maintenance requirements, and output reliability.

At U-Need, we support customers with precision mold manufacturing, custom precision machining, sheet metal fabrication, and integrated manufacturing solutions. A well-designed mold is not necessarily the most complicated tool. It is the tool that matches the material, part geometry, production volume, tolerance requirements, and intended service life of the product.

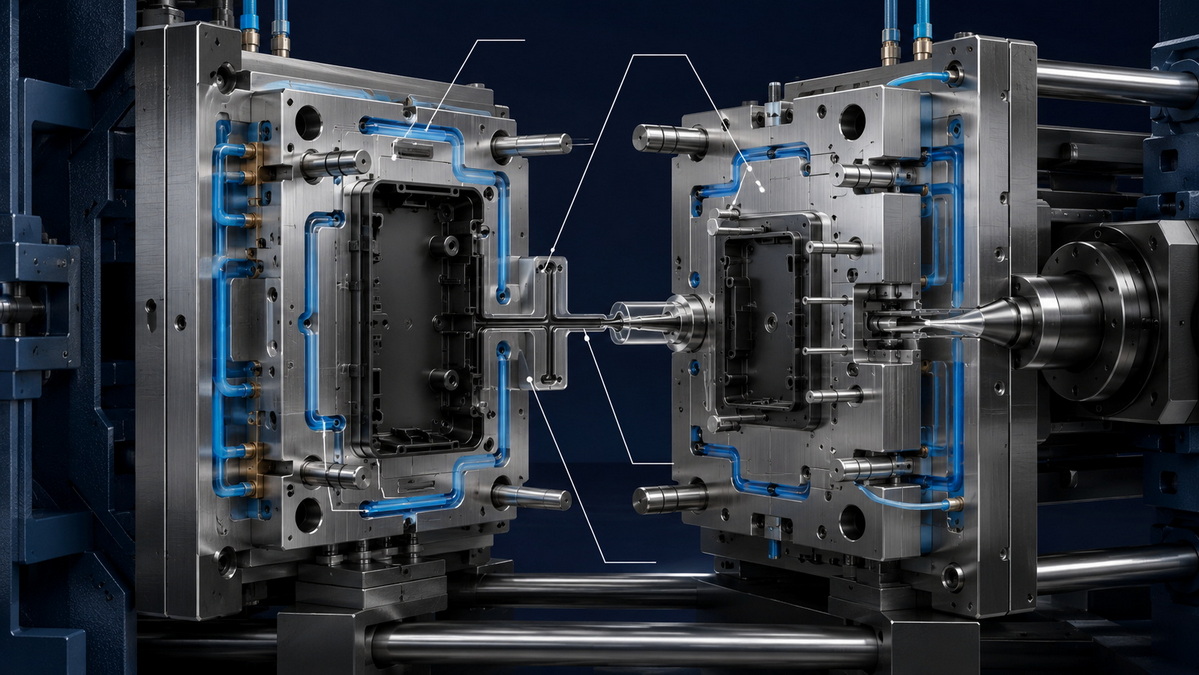

Injection Mold Components Overview

What Are the Main Components of an Injection Mold?

A standard injection mold consists of two primary halves:

- The A-side, also called the cavity side or fixed side

- The B-side, also called the core side or moving side

The A-side is mounted on the stationary platen of the injection molding machine. It commonly includes the cavity surface that creates the outside appearance of the molded product. It may also contain the sprue bushing, runner features, and gate structure.

The B-side attaches to the moving platen. It often contains the core, ejector system, support components, and moving features such as slides or lifters. When the mold opens, the molded part usually stays on the B-side so it can be released by the ejection mechanism.

A reliable mold must control several variables at once:

- Plastic flow

- Injection pressure

- Mold temperature

- Cooling uniformity

- Alignment accuracy

- Part release

- Tool wear

A weakness in any one of these areas can lead to dimensional variation, cosmetic defects, short shots, flash, warpage, or premature tooling maintenance.

Mold Base and Structural Components

The mold base is the structural framework of an injection mold. It holds the cavity, core, inserts, cooling circuits, guide components, and ejection system in their correct positions.

A typical mold base includes:

- Top clamping plate

- Cavity plate

- Core plate

- Support plate

- Spacer blocks

- Ejector retainer plate

- Ejector plate

- Rear clamping plate

- Support pillars

- Locating ring

These components must withstand repeated injection pressure and clamping force. If the mold structure lacks rigidity, it may deflect during operation. This can cause flash along the parting line, uneven wear, inconsistent dimensions, and damage to precision shutoff surfaces.

For high-volume production tooling, mold-base selection should account for machine tonnage, mold weight, projected part area, resin pressure, anticipated cycle count, and future maintenance needs.

Cavity and Core

The cavity and core are the most recognizable components of an injection mold because they form the final shape of the plastic part.

The cavity generally creates the outside surface of the part. The core forms internal features such as ribs, bosses, holes, clips, channels, and interior walls.

For example, when molding a plastic electronics enclosure:

Mold Component	Function
Cavity	Forms the outside walls and cosmetic exterior surface
Core	Creates the internal volume and internal structural features
Core pins	Form screw holes, slots, and narrow openings
Inserts	Form complex, replaceable, or high-wear details
Shutoff surfaces	Create openings and define precise feature boundaries

The steel surface finish of the cavity can directly affect the appearance of the molded product. Polishing, texturing, coating, gate location, resin selection, and processing conditions all influence whether a part achieves a gloss, matte, textured, or optical-grade finish.

Mold Inserts

Mold inserts are removable sections installed within the cavity or core. They are often used to create complex geometry, fine details, threaded features, deep ribs, or high-wear surfaces.

Using inserts provides several advantages:

- Easier machining of difficult areas

- Simplified repair after damage or wear

- Faster replacement of localized high-wear features

- Greater flexibility for product revisions

- Improved cooling in selected locations

- The ability to use different steel grades in one mold

For example, a small core pin that forms a narrow hole may experience repeated stress and wear. Designing that pin as a replaceable insert makes maintenance faster and more economical than modifying the entire core block.

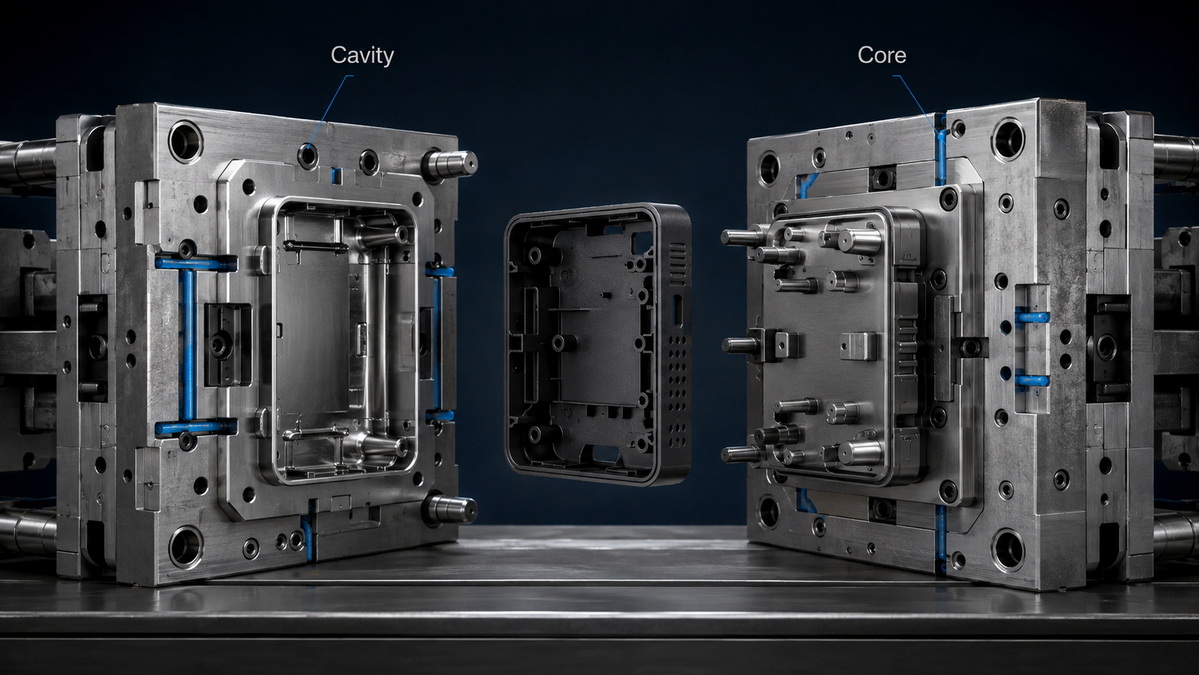

Cavity Core And Molded Part

Runner System: Sprue, Runner, and Gate

The runner system delivers molten plastic from the injection molding machine nozzle to the mold cavity.

Its three main components are:

- Sprue bushing: Receives molten plastic from the machine nozzle

- Runner: Transfers plastic from the sprue to one or more cavities

- Gate: Controls the final entry of plastic into the cavity

The gate is one of the most important parts of the mold because it affects how the cavity fills and packs. Gate position, dimensions, and type can influence weld lines, flow marks, shrinkage, warpage, gate vestige, filling pressure, and cosmetic appearance.

Common Gate Types

Gate Type	Typical Use	Main Benefit
Edge gate	General-purpose parts	Simple design and easy processing
Pin gate	Multi-cavity molds	Automatic separation from the runner
Fan gate	Wide or flat components	More uniform material flow
Tab gate	Parts sensitive to gate stress	Helps reduce stress near the gate
Submarine gate	Automated molding	Automatic degating during mold opening
Valve gate	High-volume or cosmetic parts	Controlled flow and reduced gate marks

A poorly positioned gate may cause visible weld lines, uneven packing, sink marks, or warpage. A properly designed gate supports balanced filling and more stable part dimensions.

Cold Runner vs. Hot Runner Systems

A cold-runner mold allows the runner material to solidify with each molding cycle. The runner is ejected together with the molded part and may need to be recycled, reground, or discarded.

A hot-runner mold keeps the plastic molten inside heated manifolds and nozzles. This reduces or eliminates runner waste.

System	Benefits	Considerations
Cold runner	Lower initial tooling cost, simpler maintenance, easier color changes	Produces runner waste and may require more post-processing
Hot runner	Less material waste, shorter production cycles, improved automation potential	Higher tooling cost and more complex maintenance

The correct choice depends on annual production volume, material cost, part geometry, color-change frequency, quality requirements, and overall manufacturing strategy.

Cooling System

The cooling system removes heat from molten plastic after the cavity has been filled and packed. It is one of the most influential systems in an injection mold because it affects cycle time, dimensional stability, surface finish, shrinkage, and part warpage.

Cooling channels are usually drilled into the cavity and core plates. The system may also include baffles, bubblers, cooling fittings, hoses, plugs, and temperature-control equipment.

A strong cooling design should:

- Maintain consistent mold temperatures

- Reach thick sections and heat-prone areas

- Reduce temperature variation between cavity regions

- Support consistent dimensions across multiple cavities

- Reduce cycle time without causing distortion

- Minimize the risk of water leakage or corrosion

Cooling often takes up the largest part of an injection molding cycle. Even a small reduction in cooling time can create meaningful production savings when multiplied across thousands or millions of parts.

Advanced Cooling Solutions

Straight-drilled cooling channels are suitable for many standard molds. However, complex geometry may require additional solutions.

These may include:

- Baffles for narrow or deep areas

- Bubblers for localized cooling

- High-conductivity inserts

- Copper alloy inserts

- Conformal cooling channels

- Dedicated cooling circuits for cavity and core areas

Conformal cooling follows the shape of the part more closely than traditional drilled channels. It can improve heat transfer in difficult areas, especially around curved surfaces, deep ribs, and thick wall sections.

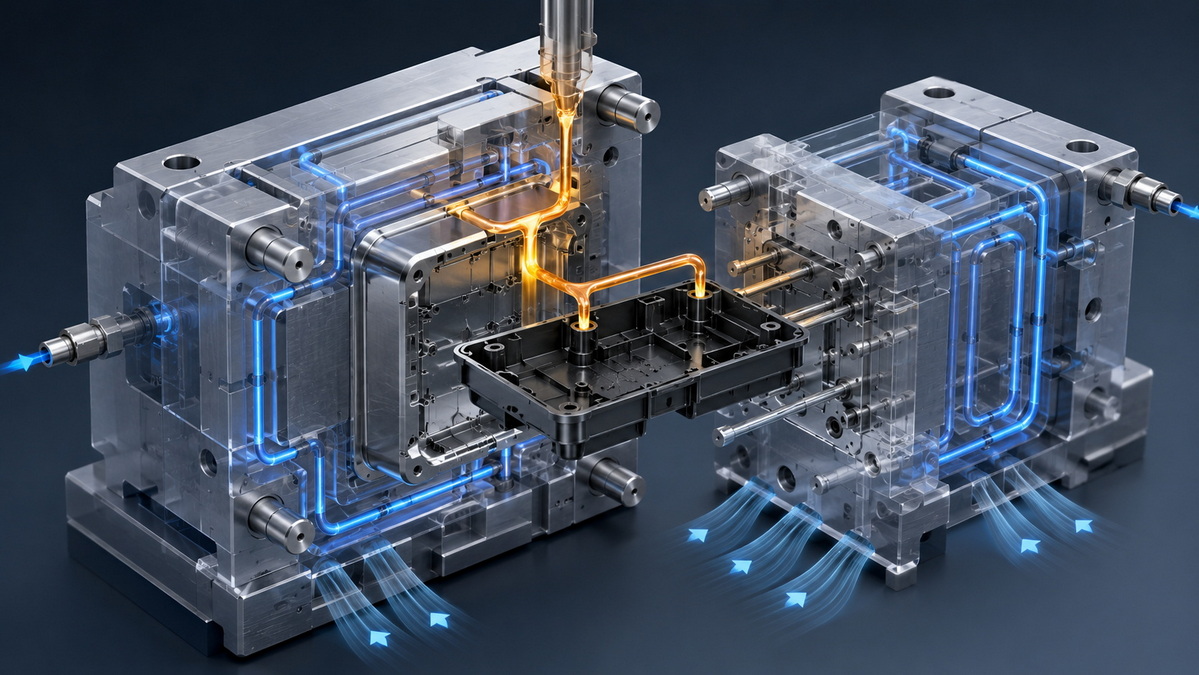

Injection Mold Cooling And Venting

Venting System

As molten plastic enters the mold cavity, the air already inside the cavity must escape. The venting system allows that air and any gases generated during molding to leave safely.

Without sufficient venting, trapped air may compress and overheat. This can create burn marks, incomplete filling, weak weld lines, poor surface quality, or inconsistent dimensions.

Common venting methods include:

- Parting-line vents

- Ejector-pin vents

- Vent grooves

- Porous metal inserts

- Vacuum venting systems

- Vent valves

- Clearance vents around slides and lifters

Vents are commonly placed at the end of the material flow path, around deep pockets, near thin ribs, and at locations where separate flow fronts meet.

A vent must be deep enough to release air but shallow enough to prevent plastic from flowing into it. The ideal vent dimensions depend on the resin, melt viscosity, filler content, processing pressure, and part geometry.

Signs of Poor Venting

Poor venting may cause:

- Short shots

- Burn marks

- Gas traps

- Weak weld lines

- High injection pressure

- Surface discoloration

- Filling inconsistency

- Excessive machine energy use

When these issues occur, manufacturers should evaluate both molding parameters and the mold's venting design. Increasing pressure alone may not solve the underlying problem.

Guiding and Alignment Components

Injection molds rely on precise alignment during every closing cycle. The guiding system keeps the cavity and core in their intended positions and protects sensitive mold features.

Key guiding and alignment components include:

- Guide pins

- Guide bushings

- Taper locks

- Side locks

- Interlocks

- Wear plates

- Locating rings

- Support pillars

Guide pins and bushings provide general alignment, while taper locks and interlocks provide more precise positioning for complex tooling, side actions, or molds with tight shutoff tolerances.

Poor alignment can lead to flash, damaged parting lines, uneven wear, broken slides, and dimensional inconsistency. For multi-cavity molds and precision parts, alignment features should be designed with long-term repeatability in mind.

Ejection System

After the plastic part has cooled sufficiently, the mold opens and the ejection system pushes the part away from the core.

The most common ejection method uses ejector pins. However, different part shapes may require sleeves, stripper plates, blades, air ejection, or custom mechanisms.

Typical ejection components include:

- Ejector pins

- Ejector sleeves

- Ejector plates

- Ejector retainer plates

- Return pins

- Ejector guide pillars

- Stripper plates

- Ejector blades

- Air valves

Ejector placement matters because each contact point can leave a visible mark. For cosmetic parts, ejector pins should be located in hidden or non-critical areas whenever possible.

An effective ejection system distributes force evenly. This helps prevent part deformation, cracking, whitening, sticking, or damage during removal.

Ejector Pin Marks and Sticking Parts

Ejector marks often indicate that the part is gripping the core too tightly or that the ejection force is concentrated in too few areas.

Common causes include:

- Insufficient draft angle

- Rough core surfaces

- Deep ribs or bosses

- Uneven cooling

- Vacuum between the part and core

- Thin or fragile part sections

- Undersized ejector pins

- Poor ejector-pin placement

A mold-design review should identify these risks before the tooling is manufactured.

Slides, Lifters, and Side Actions

Some molded parts contain undercuts that cannot be released through a simple opening and ejection sequence.

An undercut is a feature that mechanically locks the part into the mold. Examples include side holes, snap hooks, recessed clips, threaded details, and internal side features.

Slides, lifters, angled pins, hydraulic cylinders, and unscrewing mechanisms are used to release these features.

Slides

Slides move horizontally or laterally as the mold opens and closes. They are commonly used to form side holes, external clips, windows, or side-facing details.

Lifters

Lifters move at an angle during ejection. They are typically used for internal undercuts, such as internal clips, snap features, or recessed side geometry.

Hydraulic and Pneumatic Actions

Hydraulic or pneumatic cylinders may power larger or more complex side actions. These systems are useful when mechanical cam-driven slides cannot provide sufficient movement or force.

Unscrewing Mechanisms

Unscrewing molds use mechanical or motor-driven systems to release threaded parts. They are often used for caps, fittings, closures, and specialized threaded components.

Side actions add complexity and cost to a mold. However, they can eliminate secondary machining, manual assembly, or the need for multiple molded components.

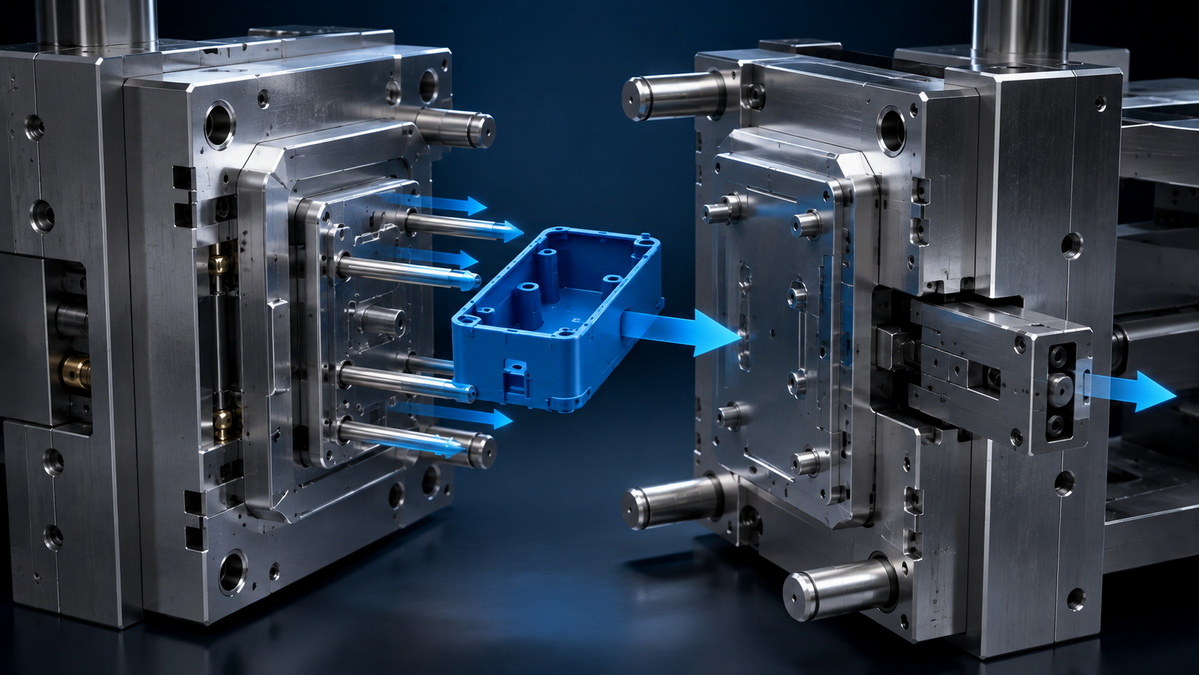

Injection Mold Ejection And Side Actions

Common Injection Mold Defects and Their Causes

Many part-quality problems can be traced to mold design, mold construction, or mold maintenance.

Defect	Likely Cause	Recommended Review Area
Flash	Worn parting line, poor alignment, insufficient clamp force	Shutoff surfaces, guide components, machine clamping
Short shot	Restricted gate, poor venting, difficult flow path	Gate size, vent location, wall thickness
Warpage	Uneven cooling, inconsistent walls, packing imbalance	Cooling layout, part geometry, gate placement
Sink marks	Thick sections, insufficient packing, poor cooling	Wall thickness, coring, gate size
Burn marks	Trapped air or gas compression	Venting at end-of-fill locations
Weld lines	Separate flow fronts meeting	Gate placement, flow path, venting
Ejector marks	Excessive localized ejection force	Pin placement, draft, core finish
Sticking part	Insufficient draft or vacuum effect	Core texture, draft angle, air ejection

A mold should be evaluated as a complete system. A process adjustment may temporarily reduce a defect, but a tooling correction often provides the more stable long-term solution.

How to Choose the Right Mold Configuration

The right mold configuration depends on the product, not only the shape of the CAD model.

Define Production Volume

Production volume determines how much durability, automation, and maintenance capability the mold requires.

A prototype mold may focus on rapid validation and lower upfront cost. A bridge-production tool may support early-market demand. A production mold is built for consistent, long-term manufacturing.

Key questions include:

- How many parts will be produced each year?

- How long will the product remain in production?

- Will the tool run continuously or intermittently?

- Is a single-cavity or multi-cavity mold more suitable?

- Is automation required?

- What level of maintenance support is available?

Confirm Resin and Performance Requirements

The selected resin affects nearly every part of the mold design.

For example:

- Glass-filled materials can accelerate wear.

- Flame-retardant materials may increase corrosion risk.

- Engineering plastics may require higher molding temperatures.

- Transparent materials may require highly polished cavity surfaces.

- Soft elastomers may need specialized gating and ejection approaches.

The resin should be confirmed before finalizing steel selection, cooling channels, gate dimensions, vent depths, coatings, and expected maintenance intervals.

Design for Manufacturability

A manufacturable injection-molded part usually includes consistent wall thickness, sufficient draft, smooth transitions, practical tolerances, and limited unnecessary undercuts.

Before releasing a design for tooling, review the following points:

1. Add draft to vertical walls, ribs, bosses, and textured surfaces.

2. Keep wall thickness as uniform as possible.

3. Core out thick sections to reduce sinks and shorten cooling time.

4. Avoid sharp internal corners that may concentrate stress.

5. Define cosmetic surfaces before selecting gate and ejector locations.

6. Identify undercuts that require slides, lifters, or side actions.

7. Confirm important tolerances and inspection requirements.

8. Consider how the part will be packed, assembled, and used after molding.

Why Precision Mold Manufacturing Matters

An injection mold is a production asset. Every detail of its manufacturing process affects the parts it produces.

Precision CNC machining, EDM, grinding, polishing, heat treatment, assembly, mold trials, and inspection all contribute to tool reliability and part consistency.

At U-Need, we approach mold manufacturing as part of a complete production strategy. Customers can combine injection mold production with custom precision-machined components, sheet metal parts, post-processing, assembly, and quality inspection through one manufacturing partner in China.

This integrated approach helps reduce coordination complexity between suppliers. It can also improve fit between molded parts and mating metal components, shorten technical feedback cycles, and create a clearer path from prototype development to stable production.

Final Considerations

The components of an injection mold work together to determine the consistency, appearance, performance, and cost of a molded product. The cavity and core define shape. The runner and gate system control material flow. Cooling channels manage heat. Vents release trapped air. Alignment components maintain precision. Ejectors remove the finished part. Slides and lifters make complex geometry possible.

A successful mold begins with clear production requirements and a detailed evaluation of the part design. Addressing moldability before steel is cut can prevent unnecessary revisions, reduce production risk, and support more stable long-term manufacturing.

U-Need provides engineering support for customers seeking custom injection molds, precision-machined components, sheet metal fabrication, and integrated manufacturing solutions. Share your drawings, 3D models, material requirements, production volume, and quality expectations to begin a practical manufacturing review.

FAQs

What are the main components of an injection mold?

The main components include the mold base, cavity, core, inserts, sprue bushing, runners, gates, cooling channels, venting features, guide pins, guide bushings, ejector system, and side-action mechanisms such as slides or lifters.

What is the difference between the cavity and core in an injection mold?

The cavity usually forms the external surface of the molded part, while the core creates internal geometry. Internal walls, holes, ribs, bosses, clips, and cavities are commonly formed by the core side of the mold.

Why are cooling channels important in injection molds?

Cooling channels remove heat from the plastic after filling. Their design affects cycle time, shrinkage, warpage, dimensional stability, surface quality, and production efficiency. Uneven cooling is a common cause of part distortion.

What causes flash in injection molding?

Flash occurs when molten plastic escapes through a gap between mold surfaces. Common causes include poor mold alignment, worn parting-line surfaces, insufficient clamping force, excessive injection pressure, and inadequate mold support.

What is a gate in an injection mold?

A gate is the opening that allows molten plastic to enter the cavity from the runner system. Gate size, location, and type influence how the cavity fills, how the material packs, and where visible gate marks or weld lines may appear.

When are slides and lifters needed?

Slides and lifters are needed when a part includes undercuts that would prevent normal ejection. Slides are generally used for side-facing features, while lifters are often used for internal undercuts such as snap hooks or recessed clips.

What is the difference between a cold-runner and hot-runner mold?

A cold-runner mold produces a solid runner with each cycle, while a hot-runner mold keeps the material molten within heated channels. Cold-runner tools are generally simpler and more affordable initially. Hot-runner tools can reduce material waste and improve efficiency for higher-volume programs.

What information is needed for an injection mold quotation?

Useful information includes a 3D CAD model, 2D drawings, resin specification, annual production volume, expected mold life, surface-finish requirements, color, tolerance requirements, part weight, target market, and any assembly or inspection standards.
