Plastic prototyping has been the backbone of my work with global OEMs and startups for more than a decade, and it remains one of the fastest, most cost-effective ways to de‑risk new product development before committing to tooling and full-scale manufacturing. From first CAD concept to production‑ready components, choosing the right plastic prototyping partner and process can be the difference between a smooth launch and an expensive redesign cycle. [athenaswc]
Plastic prototyping is the process of turning a digital design into a physical plastic part using methods such as 3D printing, CNC machining, injection molding, or vacuum casting. In practice, it is not just "making a sample," but a structured way to validate fit, function, manufacturability, and cost before you lock in tooling and production decisions. [gushwork]
From an engineering and manufacturing perspective, plastic prototypes help you:
- Reveal design flaws early, when changes are still affordable.
- Test ergonomics, assembly and tolerance stack‑ups in the real world.
- Validate material choices under realistic stress, heat and chemical exposure.
- Build confidence with internal stakeholders, investors, and end customers.
In industries like automotive, electronics, aerospace and medical devices, I routinely see teams cut months off their schedule by combining virtual simulation with physical plastic prototypes in rapid, iterative loops. [athenaswc]
If you only remember a few things, make them these:
- Match the process to the stage. Use 3D printing early for speed and flexibility, then move to CNC or injection molding when you're dialing in performance and scale. [athenaswc]
- Let material requirements drive the process. Lightweight plastics like PLA work well in 3D printing, while higher‑density resins such as HDPE or PET typically require CNC machining or injection molding. [athenaswc]
- Think in terms of volume and lifecycle. 3D printing shines for low volumes and frequent design changes, while injection molding dominates when you need tens of thousands of identical parts. [athenaswc]
- Plan for lead time from day one. Faster is not always better—sometimes a slightly longer lead time delivers the precision and consistency your application really needs. [athenaswc]

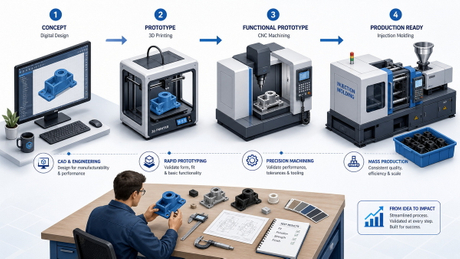

In our manufacturing projects, the most reliable plastic prototyping workflows follow a clear sequence. [linkedin]
Everything begins with a well‑structured CAD model that reflects how the part will be manufactured. At this stage, you should: [athenaswc]
- Apply basic Design for Manufacturability (DFM) rules (draft angles, consistent wall thickness, fillet radii).
- Build in realistic tolerances based on the intended process (tighter for CNC, more forgiving for some 3D printing methods).
- Consider assembly and serviceability, not just the part in isolation.
Design reviews that involve both design engineers and manufacturing specialists consistently reduce redesign cycles later in the program. [innovationvisual]
Your material choice affects strength, stiffness, impact resistance, temperature behavior, chemical resistance, weight, and cost. A few common paths: [athenaswc]
- Use ABS when you need a solid balance of toughness, machinability, and ease of 3D printing.
- Choose nylon when flexibility, wear resistance and fatigue life are critical (gears, hinges, clips).
- Turn to polycarbonate when you need high impact resistance and clarity.
- Opt for HDPE or PET when durability and chemical resistance matter, accepting that you may need CNC or molding rather than 3D printing. [athenaswc]
In my experience, material discussions are where expert guidance pays for itself, especially when you're balancing regulatory constraints, supply chain realities, and long‑term durability.

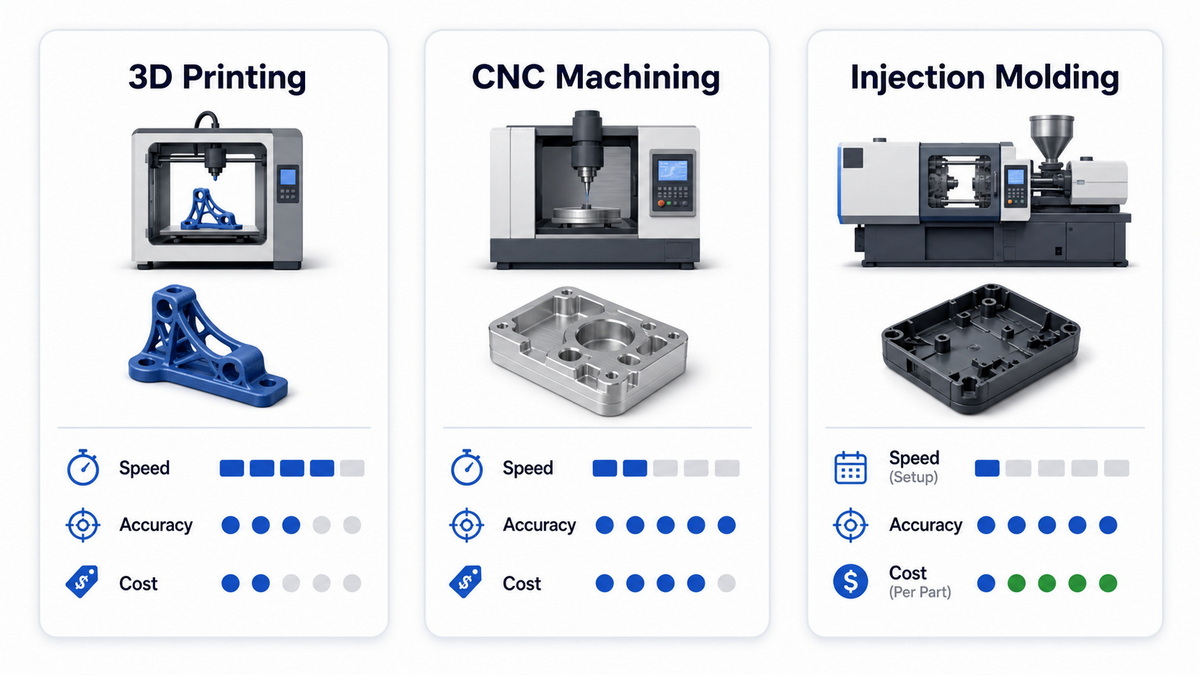

Once CAD and materials are defined, your choice of prototyping method should reflect your priorities: speed, fidelity, or scalability. [athenaswc]
- If you need a visual or ergonomic model this week, 3D printing is usually the first choice.
- If you are validating tight tolerances and critical interfaces, CNC machining is often superior.
- If you are testing production‑like parts and long‑term performance, injection molding becomes necessary despite its higher upfront cost. [athenaswc]
This is also the ideal moment to define success metrics: tolerances, cosmetic expectations, testing conditions, and acceptable deviations from the final production intent.
3D printing builds plastic prototypes layer by layer from a CAD model, enabling complex geometries that would be difficult or impossible with traditional subtractive methods. Techniques commonly used for engineering prototypes include FDM, HP Multi Jet Fusion (MJF) and Selective Laser Sintering (SLS). [athenaswc]
Typical use cases
- Early design concepts and functional mockups.
- Complex internal channels, lattice structures or organic shapes.
- Quick jigs, fixtures and assembly aids on the shop floor.
Benefits [gushwork]
- Fast iteration: parts in hours instead of days or weeks.
- Excellent design freedom for undercuts, internal passages and consolidated assemblies.
- Minimal inventory burden because you can print on demand.
- Less material waste, since only required material is used.
- Lower upfront cost than machining or tooling for low volumes.
Limitations [athenaswc]
- Weaker mechanical properties and lower heat resistance than many machined or molded parts.
- Visible layer lines and rougher surfaces that typically require sanding, smoothing or coating.
- Anisotropic properties (different strength in different directions) that must be considered in critical applications.
From a UX standpoint, 3D printed prototypes are ideal when you want to quickly show stakeholders something they can hold, even if it's not yet production‑grade.
CNC machining is a subtractive process where cutting tools remove material from a solid block of plastic to reveal the final geometry. It excels when you need tight tolerances, superb surface finishes, and material properties close to those in production. [athenaswc]
Typical use cases
- High‑precision components in aerospace, medical, and defense.
- Components that must mate with metal parts or existing assemblies.
- Prototypes where surface finish and dimensional accuracy are non‑negotiable.
Benefits [athenaswc]
- Tight tolerances and repeatability that are difficult to match with many additive processes.
- Excellent surface finish without visible layer marks.
- Ability to machine a wide variety of engineering plastics, including those unsuitable for 3D printing.
- Efficient for small to mid‑volume runs once setup is complete.
Limitations [athenaswc]
- More material waste due to the subtractive nature of the process.
- Generally higher cost than 3D printing for very low volumes.
In my own projects, moving from 3D printed to CNC‑machined plastic prototypes often marks the point where we stop asking, "Does this idea work?" and start asking, "Can this exact design go to production?"
Injection molding injects molten plastic into a mold cavity, then cools it to form a solid part. Although traditionally associated with mass production, it is increasingly used for pilot runs and production‑intent prototypes. [athenaswc]
Typical use cases
- Late‑stage prototypes that need to mirror final production parts.
- Validation of long‑term durability, cycle performance, and field testing.
- Bridge production while final tooling is still being refined.
Benefits [athenaswc]
- High efficiency and excellent repeatability in large production runs.
- Extremely tight tolerances when the mold is properly designed and maintained.
- Supports a wide range of materials, including thermoplastics, thermosets, elastomers and some metal-filled compounds.
- Lower cost per unit as volume increases, making it cost‑effective for high volumes.
Limitations [athenaswc]
- Longer lead times to design, machine and qualify tooling.
- Higher upfront investment, even for prototype or soft tooling.
- Part size limitations tied to the molding machine and mold footprint.
For teams coordinating global launches, molded plastic prototypes are often the final gate before committing to full tooling, packaging, and regulatory approvals.
Complexity, wall thickness, undercuts, and tolerances all affect process choice. For example, aerospace components that demand very tight tolerances and stable dimensions over temperature cycles typically favor CNC machining or precision molding over entry‑level 3D printing. [athenaswc]
Not every plastic works with every process. [athenaswc]
- HDPE and PET are often poor candidates for most 3D printing workflows and instead require CNC machining or injection molding.
- PLA and ABS are commonly used in 3D printing because they process reliably and offer predictable mechanical properties for early testing. [athenaswc]
Aligning material, process and application up front reduces the risk of meaningful differences between prototype performance and final production behavior.
Volume and timing are two of the biggest drivers of total cost. [athenaswc]
- For a handful of design studies, 3D printing usually wins on speed and budget.
- For tens to hundreds of parts, CNC machining or high‑end additive may achieve a better balance of quality and cost.
- For thousands of units and beyond, injection molding almost always becomes the most economical option despite higher startup costs. [athenaswc]
Drawing on manufacturing programs across automotive, industrial, aerospace and consumer sectors, there are a few proven strategies that consistently improve outcomes and reduce total cost.

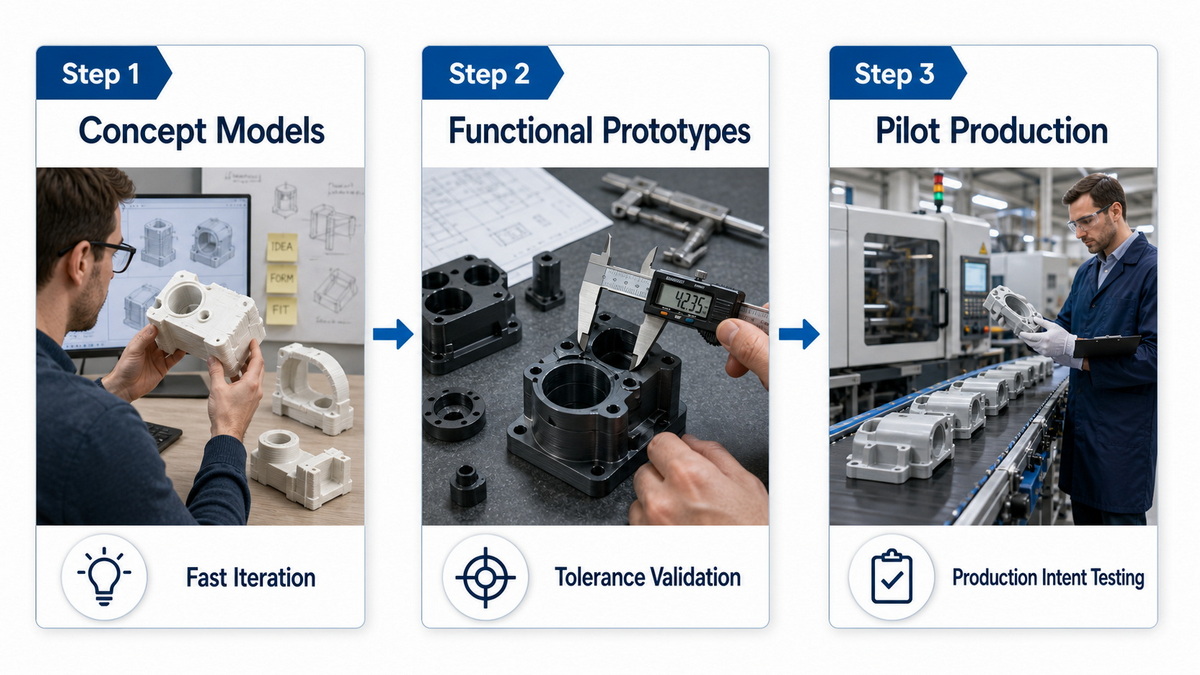

Rather than jumping directly from CAD to tooling, high‑performing companies use staged prototyping:
1. Concept models via fast 3D printing to explore form and ergonomics.
2. Functional CNC or advanced additive prototypes to validate fit, function and performance.
3. Pilot injection‑molded runs to finalize material behavior, aesthetics and manufacturability.
Early DFM avoids expensive late‑stage tooling changes. Collaborate with your manufacturing partner to: [innovationvisual]
- Adjust wall thicknesses to minimize sink, warpage and cycle time.
- Optimize draft angles and parting lines for mold release.
- Consolidate parts where possible to reduce total assemblies and potential failure points.
Finite Element Analysis (FEA), mold‑flow simulation, and tolerance analysis are powerful, but they are at their best when validated against real parts. Teams that loop data from plastic prototypes back into their models achieve higher confidence and fewer field issues.
Even the best design can fail if your manufacturing partner lacks the range of processes, materials and experience to support it. A strong partner should:
- Offer multiple processes (3D printing, CNC machining, injection tooling and molding, post‑processing) under one roof or within a tightly managed network. [athenaswc]
- Provide material matching guidance based on your environment, regulatory constraints, and lifecycle requirements. [athenaswc]
- Support rapid RFQ and transparent lead time estimates so you can plan launches with confidence. [webdesignakron]
- Engage in proactive engineering feedback rather than simply "taking orders."
When we've collaborated with advanced manufacturing teams that work this way, our projects have consistently moved from concept to validated pilot runs faster, with fewer surprises and lower total risk.
To illustrate, here's a typical path for a consumer electronics enclosure:
1. Initial ID concept
- Rough 3D printed shells to explore size, hand feel, and button placement.
2. Engineering prototypes
- Higher‑resolution printed parts or CNC‑machined housings to validate PCB fit, snap fits, and assembly torque.
3. Pilot molded parts
- Short injection‑molded runs in the target resin to validate drop performance, UV stability, color and texture.
By the time we cut final production tooling, both the design and the material choice have been proven in the field, dramatically reducing launch risk.
If you are evaluating a new plastic part or planning a full redesign, the most effective next step is to get your CAD and requirements in front of an experienced prototyping team early. That allows them to:
- Flag potential manufacturability issues before you cut metal.
- Recommend the best combination of 3D printing, CNC and molding for your timeline and budget.
- Propose materials and finishing options tailored to your real‑world environment.
Whether you are working on a single critical component or an entire product line, partnering with a precision manufacturing team that understands plastic prototyping end‑to‑end will help you move faster, reduce risk, and launch with confidence. [innovationvisual]
Most teams start with 3D printing for early design exploration, then shift to CNC machining or injection molding as they approach final validation and production. [athenaswc]
For complex assemblies, planning at least two to three prototype cycles—concept, functional, and production‑intent—strikes a good balance between speed and risk reduction. [innovationvisual]
Yes, especially when produced by CNC machining or injection molding in the same or equivalent materials planned for production, but testing conditions should reflect realistic loads and environments. [athenaswc]
Define clear requirements, choose processes that match your current development stage, and leverage the same partner for multiple methods to avoid re‑onboarding costs and miscommunication. [365digitalstudio]
Share CAD files, 2D drawings (if available), target materials, functional requirements, volumes by development stage, and any regulatory or testing constraints upfront to receive accurate quotes and better engineering feedback. [athenaswc]
