● CNC Machining Time vs. Cycle Time: What Are You Estimating?
● CNC Milling vs. CNC Turning: How Time Calculations Differ
● Essential Formulas for Estimating CNC Machining Time
● Worked Example: Estimating a Milled Part's Production Time
>> Step 1: Calculate Milling Feed
>> Step 2: Calculate Drilling Feed Time
>> Step 3: Add Noncutting Activities
>> Step 4: Allocate Batch Preparation
● Manual Calculations vs. CAM Estimates vs. Measured Cycles
>> Why CAM Time Can Differ From Machine Time
>> Calibrate Against Comparable Jobs
● A Practical Workflow for More Reliable Time Estimates
>> 1. Review the Complete Manufacturing Definition
>> 2. Select the Manufacturing Route
>> 3. Separate Roughing From Finishing
>> 4. Add Supporting Activities
>> 5. Record Assumptions and Uncertainty
● Three Expert Checks That Improve an Estimate
>> Check 1: Identify What Actually Controls the Cycle
>> Check 2: Test the Estimate's Sensitivity
>> Check 3: Separate Machine Time From Delivery Risk
● How to Reduce CNC Machining Time Without Compromising Requirements
● Conclusion: Build the Estimate Around the Complete Process
>> 1. What Is the Simplest CNC Machining Time Formula?
>> 2. Is CNC Turning Faster Than CNC Milling?
>> 3. Does Machining Time Include Setup?
>> 4. Can a CAD Model Provide an Exact Cycle Time?
>> 5. Why Does a Small Order Cost More Per Part?
>> 6. How Can Buyers Compare Supplier Time Estimates Fairly?
To estimate CNC machining time, divide the programmed cutting distance by the relevant feed rate, then add tool changes, positioning, handling, and other necessary activities. When comparing CNC milling vs. CNC turning, the principle stays the same, but the feed calculations and machining strategies differ.
For buyers sourcing custom precision parts, this distinction matters. A short cutting-time calculation does not automatically mean a low quotation or fast delivery.
My approach is to separate cutting from the complete production cycle before comparing suppliers. This guide explains the formulas, provides a worked example, and shows how to turn a theoretical estimate into a useful manufacturing plan.

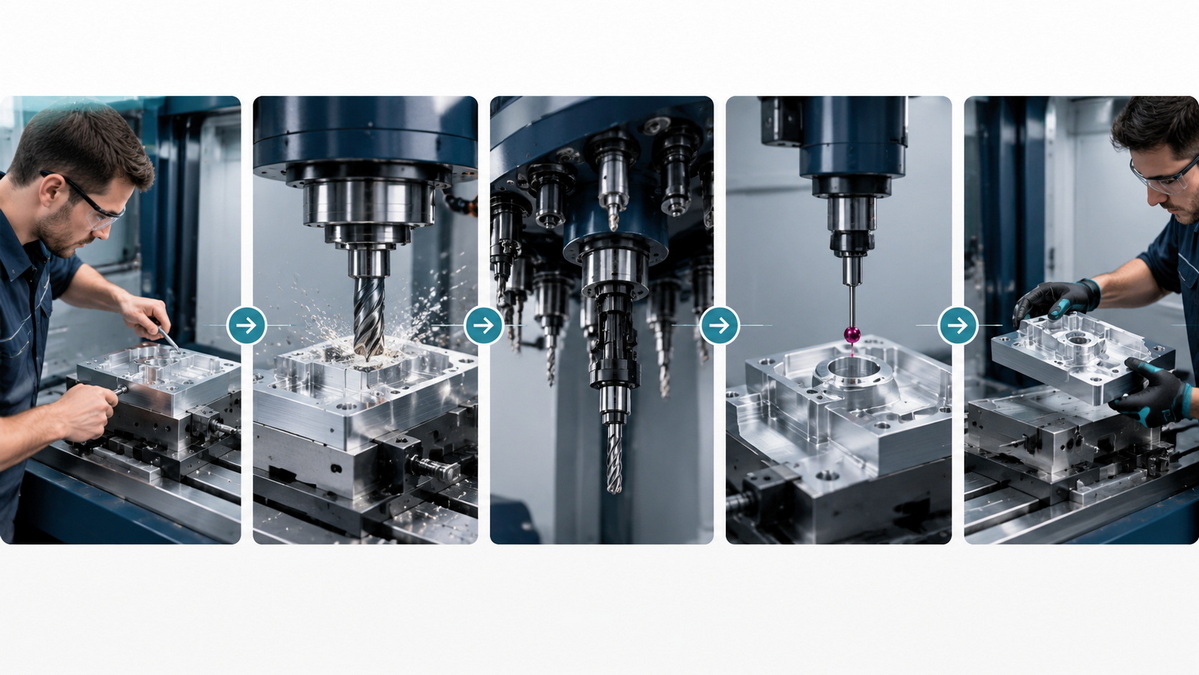

The first step is defining the estimate's boundaries. Suppliers may use "machining time" to describe different activities.
| Time category | What it includes | Why it matters |
|---|---|---|
| Cutting time | Tool engagement that removes material | Supports basic process calculations |
| Machine cycle time | Cutting, positioning, tool changes, and programmed auxiliary operations | Helps estimate machine occupancy |
| Repeating production time | Machine cycle plus nonoverlapping loading, unloading, and routine checks | Supports practical output planning |
| Batch preparation time | Programming, fixturing, setup, and first-piece approval | Strongly affects small-order economics |
| Delivery lead time | Production plus queues, outside processes, inspection, and logistics | Determines the shipment schedule |
These categories should not be added blindly. Loading may overlap machining on suitable equipment. Inspection may occur separately rather than occupy the machine.
A useful estimate states which activities are included and whether they overlap.

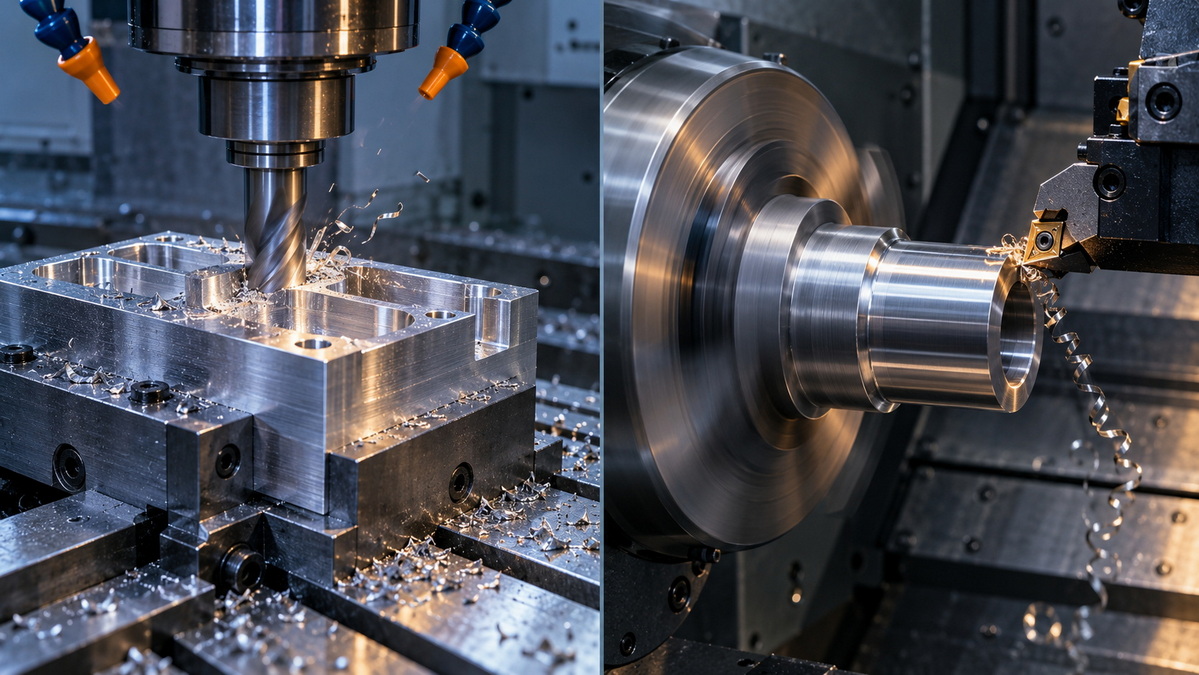

Milling normally rotates a cutting tool against a workpiece. Turning normally rotates the workpiece against a cutting tool.
Neither process is universally faster. The geometry, machining sequence, and available equipment determine the better route.
| Comparison point | CNC milling | CNC turning |
|---|---|---|
| Typical geometry | Pockets, slots, flat faces, complex profiles | Shafts, sleeves, stepped diameters, cylindrical features |
| Common feed input | Feed per tooth | Feed per revolution |
| Time-driving distance | Total programmed toolpath | Feed travel across each operation |
| Common complications | Linking moves, small corners, multiple orientations | Diameter changes, spindle limits, grooving, threading |
| Typical planning challenge | Predicting realistic toolpath execution | Accounting for passes and changing spindle speed |
A cylindrical housing with side holes may require both processes. Mill-turn equipment can combine operations, but fewer setups do not automatically guarantee the shortest cycle.
Compare complete manufacturing routes, not isolated cutting speeds.
The following equations use metric units. Keep distances, feeds, and time units consistent throughout the estimate.
Where:
- \(n\) = spindle speed, rpm.
- \(v_c\) = cutting speed, m/min.
- \(D\) = relevant cutting diameter, mm.
For milling, \(D\) normally represents cutter diameter. For turning, it represents the workpiece diameter at the cut.
Calculated speed must remain within machine, tooling, and workholding limits.
Where:
- \(v_f\) = table feed, mm/min.
- \(f_z\) = feed per tooth, mm/tooth.
- \(z\) = tooth count used in the feed calculation.
- \(L\) = programmed feed distance, mm.
- \(T_m\) = milling time, minutes.
Use the tooling supplier's applicable tooth-count convention. The number of teeth simultaneously engaged is not necessarily the number used to calculate table feed.
Do not substitute pocket length for total toolpath length. Roughing passes, stepovers, ramps, and finishing passes all contribute distance.
Under constant surface speed, spindle speed changes with diameter until the programmed limit is reached. For facing or substantial diameter changes, segment the operation or use an appropriately configured simulation rather than assuming one RPM throughout.
This simplified equation excludes peck retracts, dwell, positioning between holes, and other auxiliary movements. Add those separately.

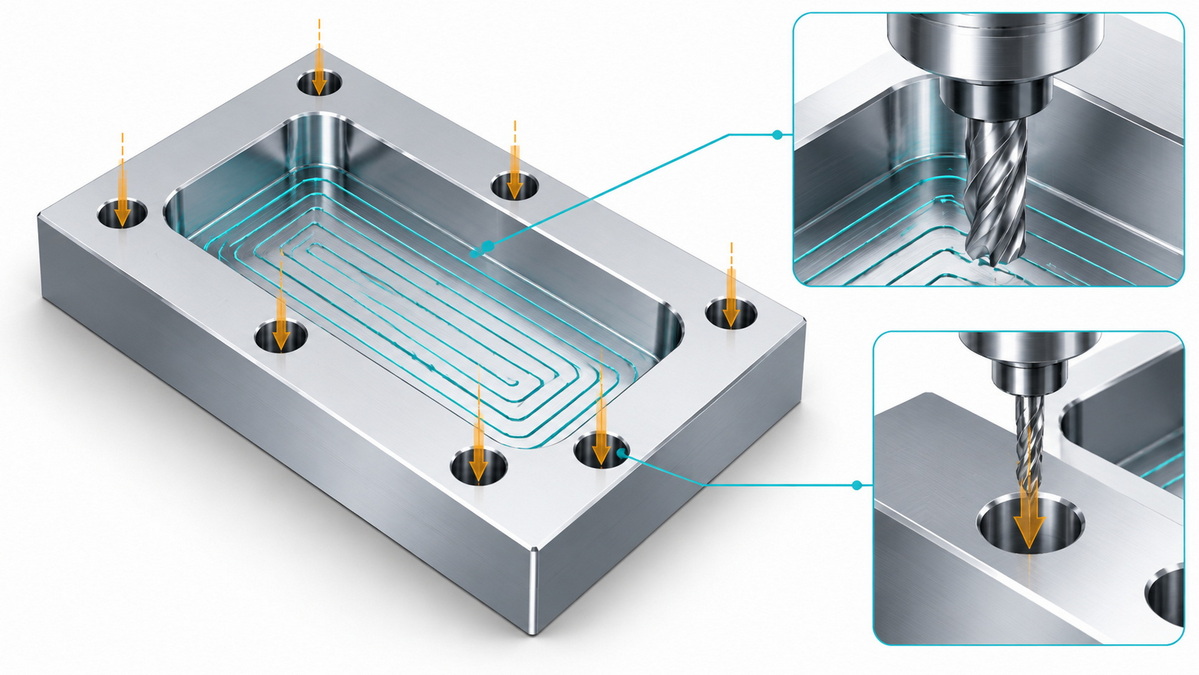

Consider a hypothetical aluminum component requiring milling and drilling. The following inputs demonstrate the method; they are not recommended cutting parameters or measured U-Need production results.
Assume:
- Spindle speed: 6,000 rpm.
- Four-tooth end mill.
- Feed per tooth: 0.04 mm.
- Total cutting path: 3,600 mm.
Assume six holes, each with 20 mm of feed travel, drilled at 3,000 rpm and 0.10 mm/rev.
Combined theoretical cutting time is 4.15 minutes.
| Activity | Illustrative time per part |
|---|---|
| Milling feed moves | 3.75 minutes |
| Drilling feed moves | 0.40 minutes |
| Positioning and retracts | 0.60 minutes |
| Tool changes | 0.30 minutes |
| Programmed probing | 0.25 minutes |
| Nonoverlapping loading and unloading | 0.70 minutes |
| Total repeating production time | 6.00 minutes |
The difference between 4.15 and 6.00 minutes is commercially meaningful. Quoting only material-removal time would omit necessary production activities.
Suppose programming, setup, and first-piece approval require 120 minutes.
This is an allocation model, not a claim that each part spends that time cutting. It explains why quantity can materially change unit pricing.
Different estimating methods answer different questions.
| Method | Best use | Main limitation |
|---|---|---|
| Manual formulas | Early feasibility and simple operations | Easily omit complex motion and auxiliary time |
| CAM estimate | Comparing detailed toolpath strategies | Accuracy depends on software assumptions and configuration |
| Measured production cycle | Validating a released process | Applies to the observed machine and operating conditions |
A toolpath estimate may calculate movement from distance and commanded feed without fully reproducing machine acceleration, deceleration, or controller behavior.
Short segments and frequent direction changes can prevent the machine from maintaining the programmed feed. Tool-change assumptions and rapid-traverse settings also affect the result.
Use CAM time as a planning input, not an unconditional production guarantee.
If CAM predicts eight minutes and the measured cycle is ten minutes, the observed correction factor is 1.25.
Apply such factors cautiously. Separate records by machine, material, and operation type. A factor derived from complex three-dimensional finishing may be inappropriate for straightforward drilling.
Also compare identical boundaries: machine-cycle measurements should not be calibrated against estimates that include manual handling.
Start with the model, drawing, material specification, quantity, tolerances, surface finish, and inspection requirements.
A model alone may not reveal every requirement that affects processing.
Identify milling, turning, drilling, grinding, or secondary operations. Establish the number of setups and how datum references will be maintained.
Roughing removes stock. Finishing establishes final dimensions and surface condition.
Estimate them separately because their tools, feeds, engagement, and toolpaths can differ substantially.
Include tool changes, probing, chip-management interruptions, handling, and scheduled checks where applicable.
Allocate periodic activities over their actual frequency rather than charging every part for an occasional event.
Document stock size, tooling, machine configuration, inspection frequency, and excluded activities.
Where important inputs remain unresolved, present a conditional range rather than an unjustifiably precise number.
Do not assume spindle speed is the main constraint.
Deep pockets may be limited by tool rigidity. Thin walls may require conservative engagement. Small internal corners can force smaller tools and longer paths.
I would prioritize the operation consuming the most time before changing cutting parameters elsewhere.
Using the worked example, reducing milling time by 20% saves 0.75 minutes.
That reduces the six-minute repeating production time to 5.25 minutes: a 12.5% overall reduction, not 20%.
This distinction helps buyers evaluate improvement claims and prioritize changes with meaningful total-cycle impact.
A six-minute cycle does not mean an order can ship immediately.
Material availability, capacity queues, first-piece approval, outside finishing, and final inspection can extend delivery.
Ask for both the production-time basis and the proposed order schedule. They describe different commitments.

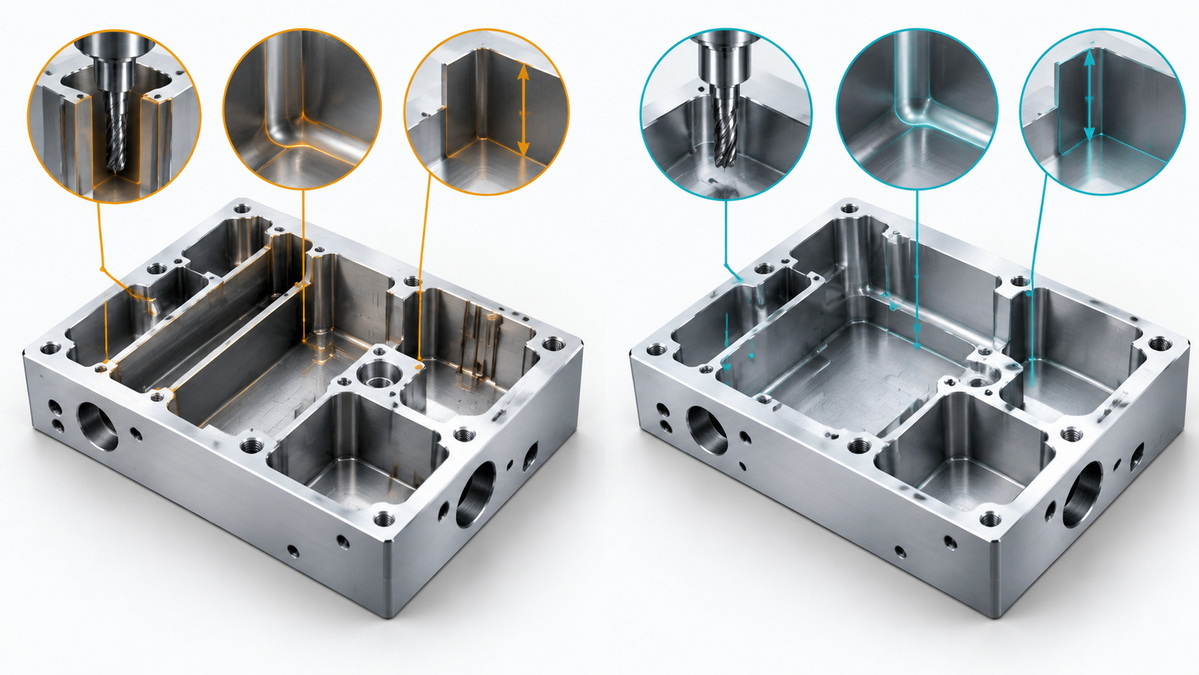

Start with design and process planning before increasing feeds.
Potential improvements include:
- Increasing internal corner radii where function permits.
- Avoiding unnecessarily deep, narrow pockets.
- Applying tight tolerances only to critical features.
- Standardizing hole sizes and tool access.
- Reducing redundant setups and tool changes.
- Removing unnecessary retracts after collision review.
- Selecting stock that reduces avoidable material removal.
Each change requires engineering review. Faster machining is not beneficial if it increases distortion, scrap, tool failure, or inspection problems.
For suitable thin-sheet components, laser cutting and bending may be worth comparing with machining. Repeated high-volume geometry may justify evaluating stamping or other tooling-based routes. These alternatives require their own material, tolerance, and economic assessment.
Reliable CNC machining time estimates combine correct feed calculations with realistic toolpaths, auxiliary activities, and clearly stated production boundaries.
U-Need supports custom precision parts machining, mold manufacturing, and sheet metal fabrication in China. This range provides a useful starting point for discussing alternative manufacturing routes rather than treating every component as a machining-only project.
Send U-Need your 3D model, dimensioned drawing, material, order quantity, critical tolerances, and required delivery date. Request a process-based quotation that identifies setup assumptions, secondary operations, inspection requirements, and opportunities to simplify manufacturing.
For a constant-feed operation, time equals programmed travel divided by feed rate. Calculate operations separately when feeds differ, then add necessary noncutting activities.
Turning is often suitable for rotational geometry, while milling suits pockets, flat surfaces, and complex profiles. Compare the complete routes for the actual part rather than assuming one process is always faster.
Not necessarily. Some estimates report only the machine cycle. Ask suppliers to distinguish programming, setup, first-piece approval, repeating production time, and secondary operations.
Not by itself. A useful estimate also needs stock, tooling, machine capability, workholding, toolpaths, cutting conditions, and inspection requirements. Measured production data provides subsequent validation.
Programming, fixtures, setup, and first-piece approval may be required regardless of quantity. A smaller batch spreads those preparation costs across fewer parts.
Provide identical technical requirements and ask each supplier to state included activities, setup count, manufacturing route, and inspection scope. Compare matching boundaries rather than isolated time figures.
