Micro CNC machining is the process of producing components with features measured in microns, often smaller than the width of a human hair. While traditional CNC machining is comfortable at ±10–20 μm tolerances, micro machining routinely pushes down to ±1–2 μm and surface finishes as fine as Ra 0.01–0.05 μm. [tirapid]
In practice, micro precision machining enables parts you almost never see—but absolutely rely on: fuel nozzles, medical stents, microfluidic channels, and miniature gears. If a single feature is off by a few microns, sealing, flow, or motion can fail, compromising the entire system. [linkedin]
Several macro trends explain why micro CNC machining is no longer "nice to have" but a strategic differentiator. [blog.3ds]
- The global precision machining market is projected to reach more than 220 billion USD by 2034, driven by miniaturization in medical, electronics, and aerospace. [fortunebusinessinsights]
- Micromachining tolerances of ≤ ±2 μm are now standard for semiconductor and implant applications, turning sub‑micron accuracy from R&D into production reality. [tirapid]
- Industry 4.0, AI-native machining, and digital twins are reshaping how precision shops plan, monitor, and optimize highly complex toolpaths. [china-briefing]
For engineering teams, this means micro CNC machining is no longer just about "making it smaller"—it is about making critical functions possible in high‑risk environments. [linkedin]
From an engineer's perspective, micro machining feels familiar in principle but radically different in execution. You still cut, shape, and remove material—but now every tool, clamp, and parameter decision has micron‑level consequences. [tirapid]
Micro tools can be smaller than 0.1 mm in diameter, with geometries optimized to prevent rubbing, chatter, and deflection. At this scale, edge sharpness and coating choice (TiN, DLC, diamond) directly impact dimensional stability and surface integrity. [linkedin]
Typical micro tooling in use: [tirapid]
| Tool type | Primary use | Micro-scale importance |
|---|---|---|
| Micro end mills | Pockets, slots, fine profiles | Rigidity and runout control prevent micron-level chatter. |
| Micro drills | Nozzles, vias, micro channels | Breakage control and chip evacuation are critical. |
| Diamond tools | Optical and ultra-fine finishing | Enable Ra down to 0.01–0.05 μm on metals and ceramics. |
| Carbide tools | General micro milling/turning | Balance toughness and hardness in high-speed cutting. |
| Coated tools | High-speed and abrasive materials | Reduce wear, stabilize cutting edges over long cycles. |
Clamping a 20 kg block is trivial compared with securing a 2 mm component without distortion. Micro CNC machining uses custom mini‑vices, vacuum chucks, and form-fitting fixtures that control deformation and vibration simultaneously. Even micro‑vibrations from the spindle can cause micron‑scale dimensional errors, so damping and fixture stiffness matter as much as machine rigidity. [linkedin]
Micro machining centers often run spindles at 50,000 RPM or higher to maintain effective cutting speeds with tiny tool diameters. Closed‑loop servo systems and nanometer‑level encoders ensure movements are smooth enough that each step in the toolpath can be trusted at the micron level. [blog.3ds]
Flood coolant can literally blow a micro part off the fixture, so shops rely on mist cooling, through‑tool coolant, or controlled air/oil sprays. These methods stabilize tool temperature, clear chips from micro grooves, and prevent thermal drift in both tool and workpiece. [tirapid]
Holding ±2–5 μm tolerances only matters if you can prove it. Modern micro machining shops use 2.5D vision systems, CMMs, profile projectors, and high‑precision micrometers to verify critical dimensions. At U‑Need, micron dial indicators, CMMs, and 2.5D vision measuring machines are integrated into the inspection workflow to support up to ±0.001 mm accuracy. [linkedin]
Engineers often benchmark micro scale against human perception. [tirapid]
- A human hair is roughly 70 μm in diameter. [linkedin]
- Micro‑machined features in medical stents and microfluidic channels can drop to 5–10 μm. [tirapid]
- Micromachining in semiconductor tooling routinely targets positional accuracy in the ±1–2 μm range. [tirapid]
These dimensions enable radically compact designs—think lab‑on‑a‑chip devices, ultra‑small watch components, and high‑density interconnects in advanced electronics. [linkedin]

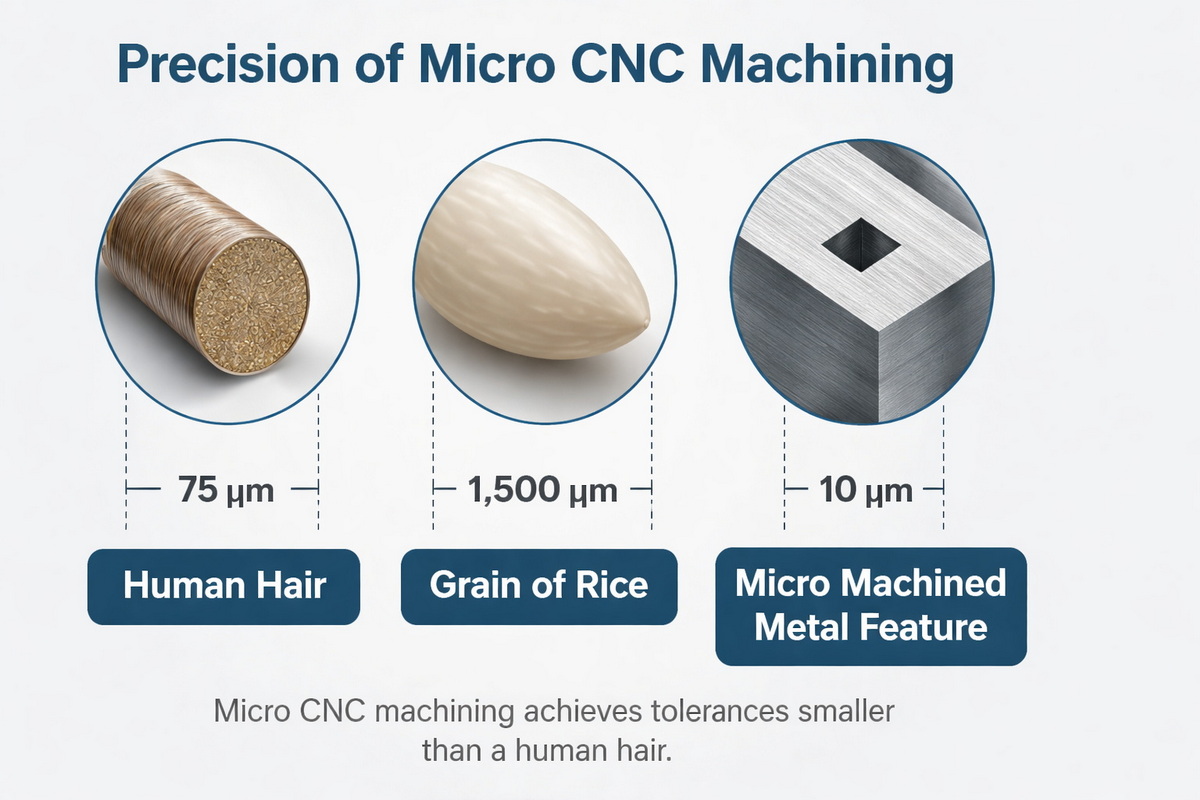

You can visually illustrate this section with a scale comparison graphic: show a human hair, a grain of rice, and a micro‑machined part or feature under magnification to give users intuitive context.
From my experience working with engineering and sourcing teams, three benefits consistently justify the investment in micro machining. [nopio]
- Functional performance in constrained spaces: micro channels, tight clearances, and precision interfaces improve flow control, wear behavior, and signal integrity. [linkedin]
- Cross‑material flexibility: from stainless steel and titanium to engineering plastics and exotic alloys, you can match material to application without losing precision. [tirapid]
- Scalability from prototype to volume: once a micro process window is validated, you can replicate it across thousands or millions of components with reliable repeatability. [fortunebusinessinsights]
A small design example: a medical device customer can redesign a valve seat from a 5 mm feature to a 1 mm micro‑geometry, improving control and reducing weight while keeping the same or better reliability. [linkedin]
Micro CNC machining is demanding—both technically and economically. Recognizing the trade‑offs early helps engineers design smarter parts and choose capable suppliers. [nopio]
- Tool fragility and wear: micro tools chip or snap under minimal overload; process windows must be tuned and monitored tightly. [tirapid]
- Workholding and vibration: even small clamping forces can distort parts, while micro‑vibration can accumulate into out‑of‑tolerance geometries. [linkedin]
- Higher process cost: specialized machines, high‑resolution feedback, and advanced inspection drive higher part costs than conventional machining. [fortunebusinessinsights]
This is why many manufacturers choose to reserve true micro machining for features where the functional payoff is clear—and use high‑precision "standard" CNC for the rest of the component. [tirapid]
You can support this section with a simple comparison table or infographic contrasting conventional CNC vs micro CNC in terms of tolerance, surface finish, and cost band.
While some applications demand pure micro machining, many real‑world projects require a blend: tight tolerances, but not necessarily sub‑micron features. This is where U‑Need positions itself as a precision manufacturing partner rather than just a job shop. [uneedpm]
U‑Need's core machining capabilities focus on high‑precision CNC with a maximum accuracy of ±0.001 mm (1 μm), comfortably covering advanced micro‑scale requirements for custom parts and molds. [uneedpm]
| Process | U‑Need capability | Typical industry standard | Improvement |
|---|---|---|---|
| CNC turning | ±0.005 mm | ±0.02 mm | 75% tighter |
| CNC milling | ±0.01 mm | ±0.05 mm | 80% tighter |
| CNC grinding | ±0.002 mm | ±0.01 mm | 80% tighter |
| CNC EDM | ±0.01 mm | ±0.05 mm | 80% tighter |
| Wire EDM | ±0.001 mm | ±0.01 mm | 90% tighter |
For engineers trying to bridge the gap between design intent and manufacturable tolerances, this level of capability lets you push performance without entering the cost and complexity zone of full cleanroom micro machining. [fortunebusinessinsights]
Beyond machining, U‑Need provides end‑to‑end support: process planning, material selection, surface finishes, and application‑specific packaging solutions. Packaging options include VCI bags, honeycomb boards, foams, and custom wooden crates, designed to protect precision parts through international logistics. [tirapid]
This matters for micro or high‑precision parts because a perfect part that arrives damaged is simply scrap. Integrated packaging engineering reduces transit risk and total lifecycle cost. [wujiangleiou.en.made-in-china]
You can enhance UX here with photos of:

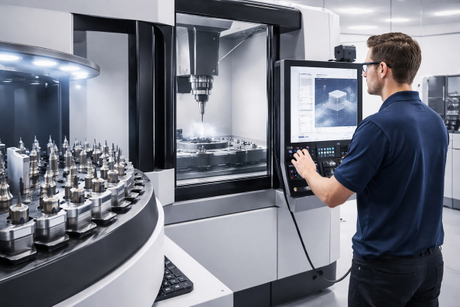

- A typical U‑Need machining cell with high‑precision equipment.
- A close‑up of packaging configurations for fragile precision parts.
From working with R&D and sourcing teams, a few patterns consistently separate smooth projects from painful ones. [gushwork]
1. Define critical vs non‑critical tolerances. Reserve the tightest tolerances for features that actually drive function—sealing surfaces, mating bores, or alignment references. [linkedin]
2. Collaborate early on manufacturability. Share CAD and tolerance schemes with your machining partner before locking the design; a short DFM review can save weeks later. [gushwork]
3. Align material and finish with application. For example, use titanium for implants, hardened steel for wear parts, and aluminum for lightweight housings, then choose coatings and polishing accordingly. [linkedin]
4. Plan inspection strategy with your supplier. Clarify which dimensions need CMM reports, which can be sampled, and what documentation your quality team needs for PPAP or regulatory submissions. [tirapid]
Consider adding a downloadable checklist or table summarizing these points (e.g., "Micro/Precision CNC Design Checklist") to improve engagement and time on page.
For global brands, distributors, and OEMs, picking a precision manufacturing partner in China is about more than hourly rates—it is about risk, communication, and long‑term reliability. U‑Need's model is built around three pillars that directly support international buyers. [nopio]
- One‑stop precision machining: from CNC milling and turning to EDM, grinding, and inspection, you manage one vendor instead of a fragmented supply chain. [tirapid]
- Fast response and clear communication: a foreign trade team with 15+ years of experience, continuous technical training, and 24‑hour inquiry response helps bridge time zones and technical gaps. [tirapid]
- After‑sales assurance: one‑year warranty with one‑way shipping and duties covered, and repairs of returned parts targeted within three days. [tirapid]
For UX, this section is ideal for a case‑style infographic or short customer story video, walking users through a real project (from RFQ to delivered parts) in under two minutes.
Looking ahead to 2026 and beyond, several trends are reshaping precision machining globally—and influencing how companies like U‑Need invest. [china-briefing]
- AI‑native machining and adaptive control: toolpaths and feeds are increasingly optimized in real time using sensor data and AI models, improving tool life and surface finish. [blog.3ds]
- Digital twins across the process chain: simulation now covers not just geometry, but thermal behavior, tool wear, and inspection feedback, turning the shop floor into a data‑driven environment. [china-briefing]
- Sustainability and resource efficiency: customers are beginning to ask for energy and carbon data per part; shops respond by using MQL, coolant recycling, and material reclamation practices. [blog.3ds]
Suppliers that adopt these practices early will be better aligned with the expectations of global OEMs, auditors, and regulators. [china-briefing]
You can reinforce this section with a simple trend chart or infographic, showing projected growth, sustainability focus, and digital adoption in precision machining.
Not every project needs full micro CNC machining, but many do require repeatable, sub‑0.01 mm performance in real production conditions. U‑Need is an effective fit when: [linkedin]
- Your part requires tolerances from ±0.001 to ±0.01 mm on critical features. [tirapid]
- You need end‑to‑end support, from design review and prototyping to volume production and export‑ready packaging. [tirapid]
- You want a China‑based precision partner with ISO9001 certification, 99.3% pass rate, and over 30 years of manufacturing experience. [tirapid]
If you are developing a new precision component—or looking to consolidate suppliers—now is the time to evaluate what micro and high‑precision CNC machining can unlock in your design. [nopio]
Upload your CAD files or drawings to U‑Need's engineering team, share your target tolerances and volumes, and request a free DFM review and quote. You will receive manufacturability feedback, cost options, and a realistic lead‑time plan tailored to your application. [tirapid]
Micro CNC machining targets features in the micron range with tolerances often at or below ±2 μm, while standard high‑precision CNC typically operates in the ±5–20 μm range. Micro machining also demands specialized tooling, ultra‑high‑speed spindles, and advanced inspection beyond what many high‑precision shops use. [linkedin]
U‑Need is optimized for tight‑tolerance CNC machining up to ±0.001 mm, which covers many micro‑scale and near‑micro applications for medical, electronics, and high‑end industrial parts. For ultra‑niche nanomachining or cleanroom‑only projects, their team can help assess fit and recommend a suitable approach. [uneedpm]
Typical sectors include automotive, aerospace, electronics, industrial automation, and specialized tooling, where repeatable micron‑level tolerances are critical for performance and assembly. U‑Need's experience with German and Japanese chamfer tolerances also aligns well with export‑oriented OEMs. [linkedin]
The factory is ISO9001:2015 certified and uses layered inspections with CMMs, vision systems, and calibrated gauges, supporting a 99.3% pass rate. Combined with clear communication, documented inspection reports, and a one‑year warranty, this reduces quality risk for international buyers. [nopio]
You should provide 3D/2D drawings, target tolerances, material and surface finish requirements, estimated order volumes, and any certification or inspection needs. Sharing this upfront helps U‑Need's engineers optimize cost, process, and lead time for your specific application. [gushwork]
