As a precision machining engineer who has spent years balancing Ra targets with delivery deadlines, I can tell you that surface finish in machining is where drawings meet reality, and where many projects quietly fail or win. Getting it right is not just about good-looking parts, it is about performance, reliability, and cost over the entire product lifecycle. [kesomachining]

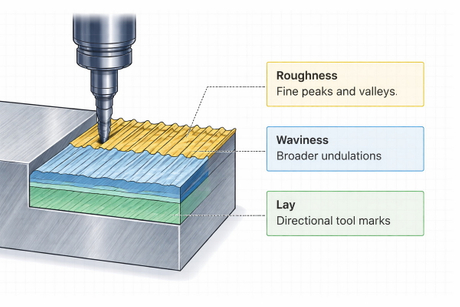

In CNC machining, surface finish describes the small-scale irregularities left on a part after cutting, turning, grinding, or polishing. These irregularities fall into three main categories: roughness, waviness, and lay. [gdandtbasics]
- Roughness: Fine, closely spaced deviations driven by feed rate, tool sharpness, and cutting speed. [finishingsurface]
- Waviness: Larger, wider-spaced variations caused by vibration, tool deflection, or thermal effects. [jlccnc]
- Lay: The directional pattern left by the process (circular for turning, linear for grinding, etc.). [gdandtbasics]
On the shop floor, I have seen two extremes countless times: a shaft with poor finish that eats bearings in weeks, and an aerospace sealing face that holds pressure flawlessly for years because its finish was tightly controlled from day one. That difference is rarely "luck", it is almost always a combination of the right specification, the right machining strategy, and consistent inspection. [hppi]
From an engineer's and buyer's perspective, the right surface finish directly affects how your product performs in the field. [hppi]
- Friction & wear: Smoother surfaces reduce contact stress and sliding friction, extending bearing and seal life. [gdandtbasics]
- Sealing & leakage: Critical sealing faces (valves, pumps, hydraulic components) often require Ra below 1.6 µm to avoid micro-leaks. [rapiddirect]
- Coating & plating behavior: Anodizing, plating, and painting all respond differently to rough vs smooth substrates, impacting adhesion and visual uniformity. [jlccnc]
- Cleanliness & hygiene: In food, pharma, and medical applications, rough surfaces trap contaminants, making cleaning and sterilization harder. [get-it-made.co]
- Assembly & tolerance stack-up: Excessive roughness can cause interference, galling, and inconsistent torque in threaded and press-fit joints. [jlccnc]
From a cost point of view, over-specifying finish is just as harmful as under-specifying. I often advise customers to define a finish that is "good enough" for function, not simply "as smooth as possible," because every extra finishing step has a price tag. [finishingsurface]
In daily production, we do not talk about Ra alone; we talk about finish types that map to typical processes and cost levels. [finishingsurface]
- Rough machining finish – For hidden, non-critical areas; fast material removal, visible tool marks, higher Ra. [hppi]
- Fine machining finish – Optimized feeds and speeds, smaller stepovers, suitable for functional surfaces with moderate requirements. [finishingsurface]
- Ground finish – Achieved by grinding, often for shafts, bearing seats, and hardened components with tight tolerances. [gdandtbasics]
- Polished / mirror finish – Generated by lapping, honing, or multi-step polishing; used in optics, medical implants, and aesthetic covers. [vaporhoningtechnologies]
When customers simply write "smooth finish" on a drawing, we push back and translate that into measurable values and a realistic process route. This is where an experienced precision manufacturer becomes a true partner instead of just a vendor. [uneedpm]
To make sure everyone speaks the same language, we rely on standardized roughness parameters. [rapiddirect]
- Ra (Roughness Average): Arithmetic average of deviations from the mean line; the most commonly specified metric in machining. [rapiddirect]
- Rz: Mean peak‑to‑valley height across sampling lengths; more sensitive to isolated defects. [vaporhoningtechnologies]
- RMS (Root Mean Square): Historical parameter close to Ra but calculated differently; still appears on older drawings. [rapiddirect]
- Roughness grade numbers (N1–N12): ISO-based grades that correlate Ra ranges to generic process capabilities. [get-it-made.co]
Below is a streamlined version of the conversion chart we use internally when discussing feasibility and process choices with customers. [vaporhoningtechnologies]
| Roughness Grade (N) | Ra (µm) | Ra (µin) | Typical process example |
|---|---|---|---|
| N1 | 0.025 | 1 | Superfinishing / lapping |
| N2 | 0.05 | 2 | Lapping / honing |
| N3 | 0.10 | 4 | Fine grinding |
| N4 | 0.20 | 8 | Grinding / polishing |
| N5 | 0.40 | 16 | Fine milling / turning |
| N6 | 0.80 | 32 | Standard milling / turning |
| N7 | 1.60 | 63 | General CNC machining |
| N8 | 3.20 | 125 | Rough milling |
| N9 | 6.30 | 250 | Rough turning |
| N10 | 12.50 | 500 | Heavy cuts, cast surfaces |
This kind of table becomes invaluable when you compare RFQ requirements to actual process capabilities and decide if you need grinding, polishing, or simply refined cutting parameters. [hppi]
Stainless steel is a material where surface finish directly connects to hygiene, corrosion resistance, and visual perception. [get-it-made.co]
Typical sheet and plate finishes include: [get-it-made.co]
- 2B finish (~Ra 0.3–0.5 µm, close to N5/N6) – Standard mill finish, smooth and slightly reflective, widely used in food equipment. [jlccnc]
- #3 finish (~Ra 0.8–1.2 µm, around N7) – Coarser, directional; often used for kitchen equipment where visible grain is acceptable. [jlccnc]
- #4 finish (~Ra 0.4–0.8 µm, N5–N6) – The classic brushed look you see on elevators and appliances. [get-it-made.co]
- #8 mirror (~Ra 0.2 µm or below, N4–N2) – Highly reflective, used in medical, optical, and prestige design components. [vaporhoningtechnologies]
From experience, stainless "work-hardens," meaning aggressive cutting with dull tools can rapidly deteriorate surface quality and tool life. We typically combine sharp carbide tooling, generous coolant, and avoidance of light rubbing passes to maintain stable finishes and avoid random scratches or burn marks. [finishingsurface]
You cannot manage what you do not measure, and surface finish is no exception. [gdandtbasics]
| Testing method | How it works | Use case / accuracy |
|---|---|---|
| Profilometer (contact stylus) | Stylus drags across surface, logs Ra, Rz profile | High accuracy, industry standard |
| Optical (non‑contact) | Laser or white light scans surface, builds 3D map | Delicate surfaces, very fine finishes |
| Comparator plates | Operator compares part to calibrated samples | Quick checks, less precise |
| Visual & tactile check | Experienced machinist inspects by eye and "fingernail" feel | Rough screening, not spec-compliant |
In our own workflow, profilometers and in‑process checks are woven into production, not treated as a final gate. That mindset prevents surprises at final inspection and keeps rework rates low, especially on tight-tolerance export projects. [uneedpm]
Even with the best machine tools, feed, speed, depth of cut, and coolant strategy decide whether a surface passes or fails. [finishingsurface]
| Parameter / factor | Impact on finish | Practical best practice |
|---|---|---|
| Tool material & geometry | Sharp tools reduce tearing and chatter | Use sharp carbide/PCD and bigger nose radius for finish |
| Feed rate | Higher feed increases roughness | Reduce feed for finishing passes |
| Cutting speed (RPM) | Too low tears material, too high burns | Follow material-specific recommendations |
| Depth of cut | Heavy cuts leave visible tool marks | Use lighter finishing passes after roughing |
| Coolant / lubrication | Controls heat and built-up edge | Apply flood coolant or MQL, especially on stainless |
| Machine rigidity & setup | Vibration creates waviness and chatter | Rigid fixturing, minimal overhang, balanced toolpaths |
A recurring pattern in customer audits is that slight parameter changes – for example reducing feed per tooth and adding a dedicated finishing pass – can reduce Ra by 40–60% without adding a new operation. That lever is often more cost-effective than jumping immediately to grinding or polishing. [hppi]
One automotive customer approached us with CNC‑machined engine parts failing because the surfaces consistently measured around Ra 3.2 µm instead of the required 1.2 µm. [hppi]
We systematically: [jlccnc]
1. Switched to inserts with a larger nose radius to smooth the toolpath.
2. Increased spindle speed while lowering feed in the finishing pass.
3. Introduced a secondary light finishing cut with optimized coolant flow.
The result was a drop in roughness from ~Ra 3.2 µm to ~Ra 1.2 µm, cutting rework and scrap costs by nearly 40% over the following months. This is typical of what a mature precision manufacturer can deliver when they combine metrology, process engineering, and stable production lines. [uneedpm]
From a buyer's standpoint, the most useful question is not "what is Ra?" but "what Ra makes sense for my application?" [rapiddirect]
Here is a simplified guideline we share with international clients:
| Application type | Typical Ra target | Typical process route |
|---|---|---|
| Structural / non‑visible areas | 3.2–6.3 µm (N8–N9) | Rough milling/turning |
| General industrial components | 1.6–3.2 µm (N7–N8) | Standard CNC machining with finishing pass |
| Sealing & bearing surfaces | 0.4–1.6 µm (N4–N7) | Precision turning + grinding / polishing if needed |
| Medical implants & optics | 0.05–0.4 µm (N1–N4) | Grinding, honing, lapping, multi‑stage polishing |
| Food & pharma stainless parts | ≤ 0.8 µm where required | Controlled machining + brushing / polishing |
In practice, we encourage customers to share the function, mating parts, and operating conditions rather than just a number. That context makes it far easier to recommend a finish that balances performance, manufacturability, and lead time. [uneedpm]
From the perspective of a global machining supplier, achieving the specified surface finish in CNC machining is not a single step; it is an end‑to‑end discipline. [uneedpm]
A capable partner typically offers: [uneedpm]
- Integrated CNC machining plus grinding, bead blasting, brushing, anodizing, and polishing.
- In‑house surface metrology (profilometers, gauges, inspection reports).
- Process engineers who tune feeds, speeds, and fixtures for each material and geometry.
- Experience across automotive, aerospace, medical, and industrial applications, so you do not pay for "trial and error."
When evaluating suppliers in China or elsewhere, I recommend asking directly for: sample inspection reports with Ra/Rz data, photos at different finishes, and a clear explanation of how they monitor surface quality in production – not only at final inspection. [rapiddirect]
If you are planning a new project or struggling with parts that consistently fail on surface finish, it is worth involving a machining partner early rather than treating finish as a last-minute check. Share your drawings, material, and functional requirements, and ask for a documented surface finish plan – from machining route to metrology. [uneedpm]
When you are ready, upload your CAD files and technical requirements to your chosen precision machining provider to request a free engineering review and surface finish recommendation before placing volume orders. [jlccnc]
For many industrial parts, a "good" finish is around Ra 1.6–3.2 µm, which is achievable with standard CNC machining and a dedicated finishing pass. High‑precision applications often require Ra 0.8 µm or better and may involve grinding or polishing. [rapiddirect]
In many cases, optimizing tool geometry, reducing feed rate, and adding a lighter final cut improves Ra dramatically without introducing a separate grinding or polishing operation. High‑quality inserts and correct coolant application also make a visible difference. [finishingsurface]
Processes such as grinding, honing, and lapping deliver the lowest Ra values, down to 0.05 µm or even finer when required. CNC milling and turning are efficient for shape creation but usually need secondary finishing for mirror-like surfaces. [vaporhoningtechnologies]
Drawings typically show a surface symbol plus numeric Ra values, sometimes alongside Rz or N‑grades, and may also specify direction of lay. Clear notation avoids ambiguity between design and production teams. [gdandtbasics]
Generally, very low Ra values are more expensive because they need slower cuts, more tool wear, and additional finishing steps. However, tuned cutting parameters and intelligent fixture design can often improve finish with only a modest cost impact. [hppi]
