When comparing CNC turning vs. milling, the most important question is not which process is better. It is which process matches your part geometry, functional requirements, production volume, and cost target.
Both methods are subtractive manufacturing processes. They begin with a solid workpiece and remove material until the final component reaches its required shape. However, the movement of the cutting tool and workpiece is different. That difference affects the types of parts each process can produce efficiently.
CNC turning is usually the preferred method for cylindrical, conical, threaded, or rotationally symmetrical parts. CNC milling is generally better for flat surfaces, pockets, slots, holes, angular features, and complex three-dimensional shapes.
For many custom components, the most effective solution is not strictly turning or milling. A combined mill-turn process may reduce setups, improve feature alignment, and shorten the overall manufacturing route.

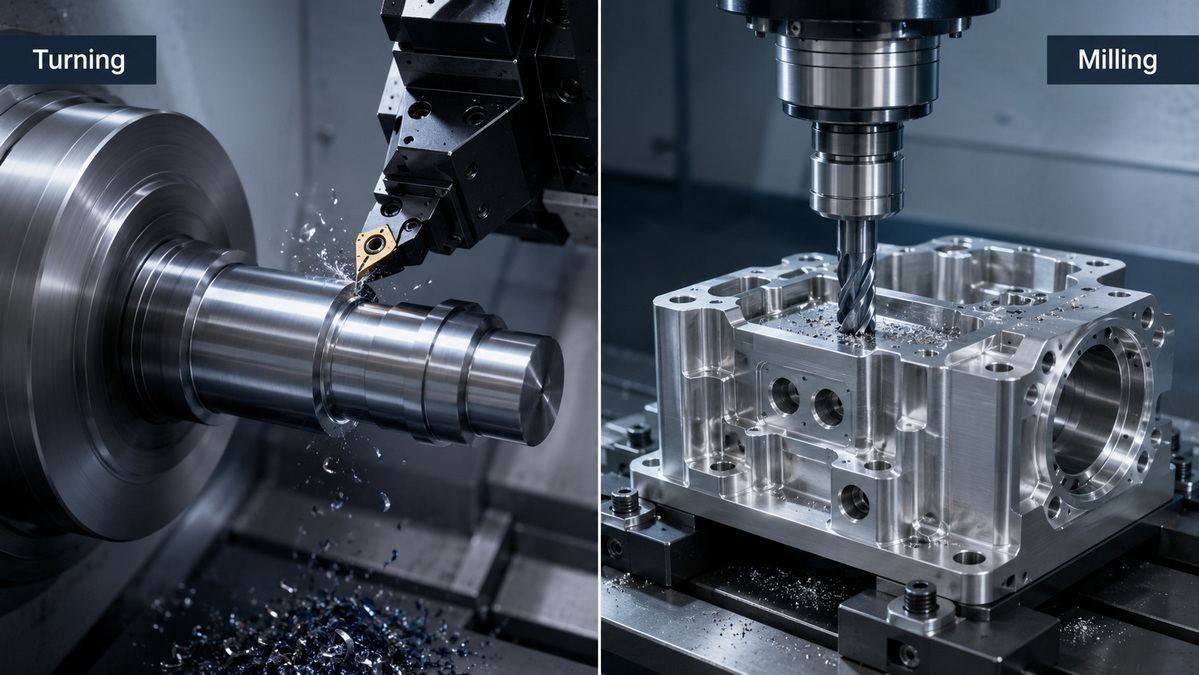

The main difference between CNC turning and CNC milling is which component rotates during machining.
In CNC turning, the workpiece rotates while a cutting tool moves against it. The cutting tool removes material from the outside diameter, inside diameter, or end face of the rotating part. This process is highly suitable for round parts and components that require concentric features.
In CNC milling, the cutting tool rotates while the workpiece remains fixed or moves in a controlled direction. The rotating cutter removes material along programmed toolpaths to create flat surfaces, pockets, holes, contours, slots, and more complex geometries.
| Feature | CNC Turning | CNC Milling |
|---|---|---|
| Primary rotating element | The workpiece rotates | The cutting tool rotates |
| Best for | Cylindrical and rotational parts | Flat, prismatic, and complex parts |
| Typical machine setup | Lathe or turning center | Vertical or horizontal machining center |
| Common operations | Facing, boring, threading, grooving | Pocketing, drilling, contouring, slotting |
| Typical part examples | Shafts, bushings, pins, sleeves | Housings, brackets, plates, mold inserts |
| Key dimensional strengths | Diameter, concentricity, roundness | Position, flatness, profile, perpendicularity |
Understanding this distinction helps avoid inefficient production choices. A part that is mostly round may take longer and cost more if it is fully milled. Likewise, a complex housing with multiple pockets and mounting faces is usually not an effective turning project.

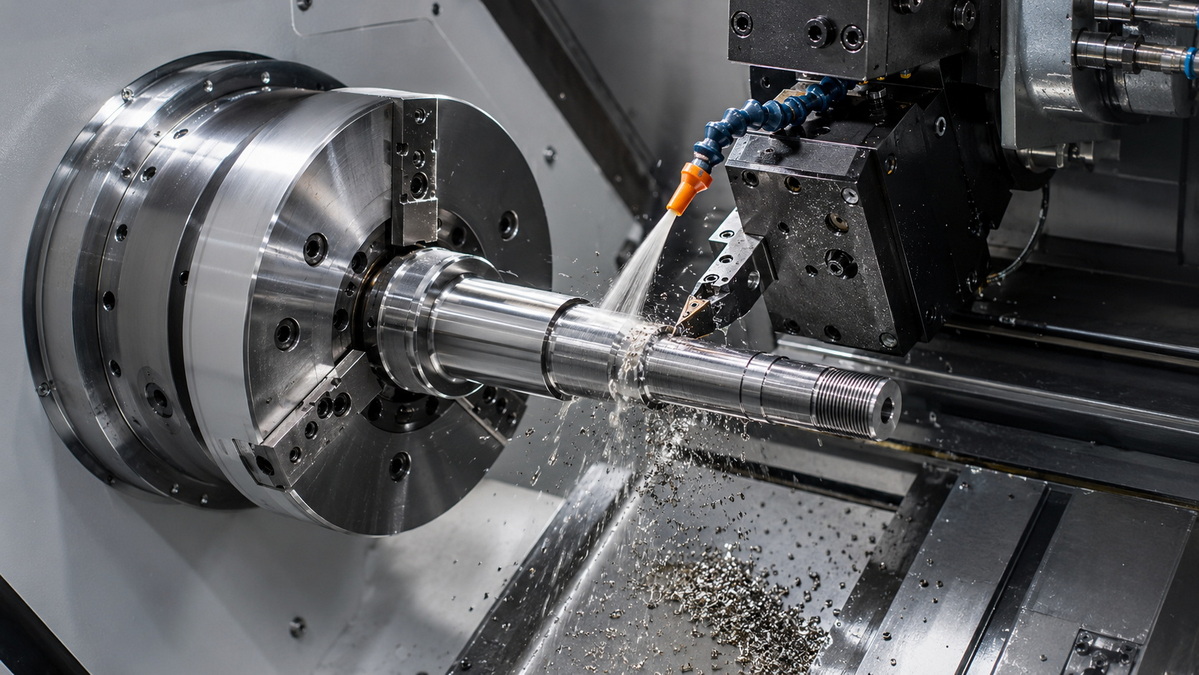

CNC turning is performed on a lathe or turning center. The raw material is held in a chuck, collet, or other workholding system. The spindle rotates the workpiece at a programmed speed while the cutting tool moves along the required machining path.
The tool normally travels along two primary directions. The X-axis controls the cutting depth toward or away from the centerline. The Z-axis controls movement along the length of the part. More advanced turning centers can also include a Y-axis, live tooling, sub-spindles, and multiple turrets.
This setup makes turning especially efficient for parts that have circular profiles and features arranged around a central axis.
- Facing creates a flat surface at the end of a part
- Straight turning reduces the external diameter along a length
- Taper turning creates a conical surface
- Boring enlarges or finishes an internal hole
- Grooving creates channels for seals, retaining rings, or functional clearances
- Threading produces internal or external threads
- Parting-off separates the finished part from bar stock
- Knurling creates a textured grip surface
A CNC turning center can produce precise shafts, bushings, sleeves, adapters, threaded fittings, rollers, pulleys, spacers, pins, and valve components. Turning is particularly valuable when several critical diameters must remain concentric.
For example, a stainless-steel bushing may require an external diameter, an internal bore, a retaining groove, and a threaded end. Producing these features in one turning setup can help maintain the relationship between the bore and the outside diameter.
Choose CNC turning when your part is primarily round and its key features follow the center axis.
Turning is often the most efficient option for:
- Shafts and drive components
- Bushings and bearing sleeves
- Threaded connectors and adapters
- Hydraulic and pneumatic fittings
- Pins, spacers, and collars
- Circular medical or industrial components
- Round parts produced from bar stock
- Components requiring concentric bores and diameters
Turning can also support efficient repeat production because bar-fed material, automated part handling, and optimized cutting cycles reduce manual intervention.

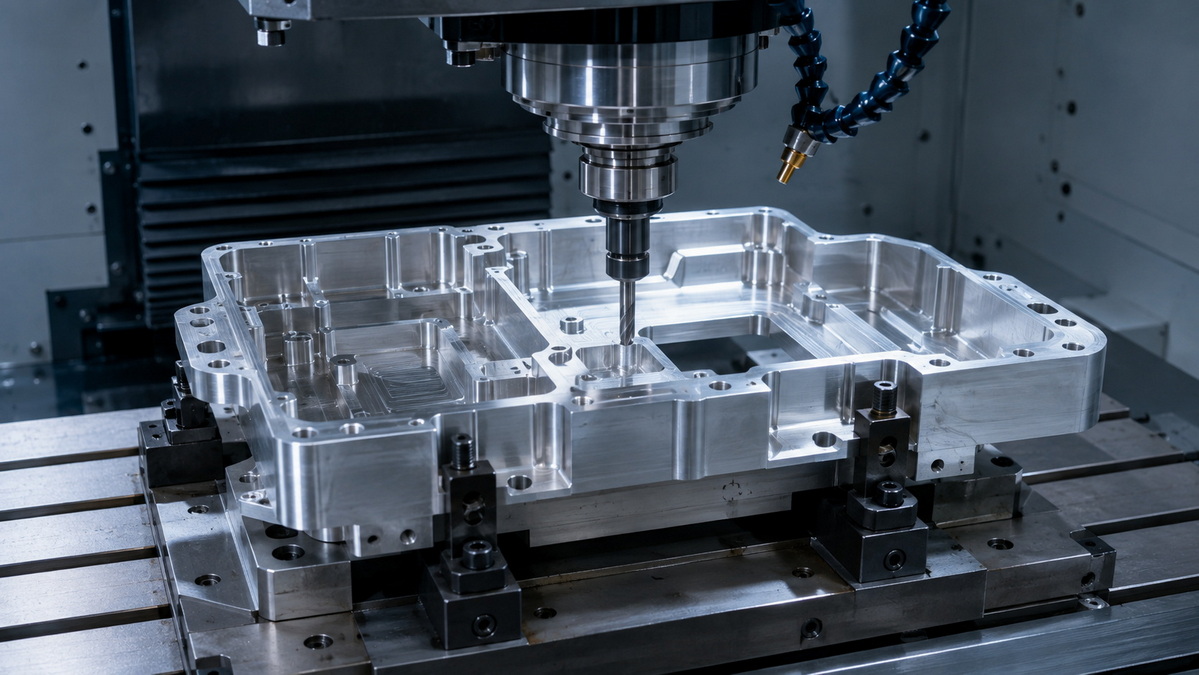

CNC milling uses rotating cutting tools to remove material from a fixed or controlled workpiece. The machine follows programmed coordinates generated from CAD and CAM data. Depending on the machine configuration, the cutter and workpiece may move along three, four, or five axes.
A standard three-axis CNC milling machine moves along the X, Y, and Z directions. This is suitable for many parts with top-accessible surfaces. Four-axis and five-axis milling systems add rotational movement, allowing the machine to access multiple sides and angled surfaces with fewer setups.
Milling is highly flexible because it can create a wide range of non-round features. It is commonly used for parts with cavities, cutouts, profiles, mounting surfaces, and intricate geometric details.
- Face milling produces large, flat reference surfaces
- Pocket milling removes material inside a defined boundary
- Slot milling creates channels, keyways, and narrow openings
- Contour milling machines external profiles and curved edges
- Drilling creates holes in specified locations
- Reaming improves hole size and surface quality
- Thread milling creates internal and external threads
- Chamfering removes sharp edges and prepares assembly surfaces
- Surface milling creates complex contours and three-dimensional forms
CNC milling is frequently used for aluminum housings, machine brackets, electronic enclosures, heat sinks, fixture plates, manifolds, mold inserts, robotic components, and precision equipment parts.
Choose CNC milling when your part requires multiple flat faces, irregular geometry, pockets, complex contours, or features on several sides.
Milling is often the better option for:
- Electronic and industrial enclosures
- Mounting brackets and plates
- Custom fixtures and jigs
- Mold components and inserts
- Heat sinks and thermal management parts
- Mechanical housings
- Manifolds and fluid-control blocks
- Components with complex pockets and profiles
- Parts requiring angled holes or multi-face machining
A milled part may require several setups if features are located on different sides. Advanced multi-axis machining can reduce those setup changes and improve consistency between critical features.
Both CNC turning and CNC milling can produce high-precision parts. The right process depends on the feature being measured.
CNC turning is particularly strong for diameter control, roundness, concentricity, and axial relationships. A turning center can machine a shaft diameter and matching bearing surface in the same setup, helping control their alignment.
CNC milling is highly capable when a part requires positional accuracy, flatness, perpendicularity, profile control, and relationships between multiple faces. It is commonly selected for precision housings, plates, fixtures, and mold components.
Accuracy depends on more than the machine type. Several factors influence the final result:
- Material stability during machining
- Workholding design
- Tool condition and cutter selection
- Cutting speed and feed rate
- Number of setups and re-clamping operations
- Part geometry and wall thickness
- Temperature control
- Measurement equipment and inspection method
A productive engineering approach is to define tight tolerances only where they affect function. Applying unnecessarily tight tolerances to every dimension increases machining time, inspection effort, and production cost without improving the product.
CNC turning is not always cheaper than CNC milling, and CNC milling is not always more expensive. Cost is determined by the relationship between the part design and the selected manufacturing method.
Turning is often more cost-effective for round parts because the workpiece can rotate continuously while the tool removes material along a predictable path. Bar-fed turning can be especially efficient for medium- to high-volume production of small cylindrical components.
Milling may require more tool changes, more complex fixtures, and longer cutting time when producing deep pockets, thin walls, or multi-sided features. However, milling may still be the lower-cost option for a complex prismatic part because it can create many required features in a controlled workflow.
| Cost factor | CNC Turning | CNC Milling |
|---|---|---|
| Round-part efficiency | Usually very high | Often lower for primarily round parts |
| Complex geometry | Limited without live tooling | Highly suitable |
| Setup complexity | Often lower for axial parts | Can increase with multi-face features |
| Tool changes | Often limited | Can be frequent for complex parts |
| Production volume | Strong for repeat bar-fed production | Flexible for prototypes and complex production parts |
| Material removal | Efficient for rotational features | Efficient for pockets, profiles, and surfaces |
The most important cost factor is often the number of setups. Every time a part is removed, reoriented, and clamped again, the manufacturer adds labor, handling time, and potential alignment variation.
Some parts contain both turned and milled features. In these cases, a mill-turn machining strategy may be more practical than transferring the part between separate turning and milling machines.
Mill-turn machining combines the capabilities of a turning center and milling equipment. The workpiece can be turned for circular features and then machined with live tooling for flats, cross-holes, slots, keyways, or milled pockets.
A hydraulic adapter is a useful example. It may need a precision turned body, internal thread, external thread, hexagonal wrench flats, and radial holes. Turning alone cannot efficiently create every feature. Milling alone may not be the most efficient way to create the threaded cylindrical body.
A mill-turn solution can reduce handling while preserving the alignment between the threads, bore, flats, and cross-holes.
- Fewer setups and part transfers
- Better feature-to-feature alignment
- Reduced handling risk
- Shorter production routing
- Improved consistency for complex components
- Less need for custom secondary fixtures
Mill-turn is especially valuable for fittings, connectors, aerospace components, medical components, precision adapters, and complex rotational parts.
Design decisions made before machining have a major influence on cost, quality, and lead time. A practical design for manufacturability review helps identify features that may be difficult, expensive, or unnecessary to produce.
For CNC milling, avoid extremely deep and narrow pockets where possible. Internal corners should include realistic radii because standard end mills are round. Very sharp internal corners require smaller tools, slower cutting conditions, or secondary processes.
Thin walls may vibrate or deform during machining, especially in aluminum, stainless steel, and engineering plastics. Increasing wall thickness or adding support features can improve stability.
For CNC turning, avoid abrupt changes between diameters if a small transition radius or relief groove is acceptable. Clearly identify thread specifications, sealing surfaces, critical bores, and functional datum references.
1. Identify the part's critical functional dimensions.
2. Define material grade, not just the general material family.
3. Specify thread standards and thread class requirements.
4. Apply tight tolerances only to functional features.
5. Use GD&T where position, profile, runout, or flatness matters.
6. Avoid unnecessary deep pockets and extremely thin walls.
7. Consider the number of setups needed to reach all features.
8. Include surface-finish and coating requirements in the drawing.
9. Specify inspection requirements before production begins.
10. Supply both a 3D CAD model and a dimensioned 2D drawing.
A complete RFQ reduces clarification cycles and gives the manufacturing team enough information to recommend a suitable process from the beginning.
Selecting CNC turning or CNC milling is only part of the production decision. The manufacturing partner must also understand material behavior, tooling limitations, workholding, inspection planning, finishing requirements, and packaging needs.
U-Need provides end-to-end support for global brands, distributors, and manufacturers. Our capabilities include custom precision parts machining, injection mold manufacturing, stamping dies, cold-forging dies, laser cutting, bending, stamping, and sheet metal fabrication.
This broader manufacturing capability helps customers evaluate the most suitable route for prototype development, bridge production, repeat orders, and scaled manufacturing. Depending on the part design, the recommended solution may involve CNC turning, CNC milling, mill-turn machining, sheet metal fabrication, tooling, or a combination of processes.
CNC turning and CNC milling are complementary manufacturing methods. Turning is usually the strongest choice for circular, threaded, and rotationally symmetrical parts. Milling is the preferred option for flat, complex, multi-sided, and irregular geometries.
The best decision comes from reviewing the part's dominant geometry, critical tolerances, material, quantity, finishing needs, and assembly requirements. For parts that combine cylindrical and non-round features, mill-turn machining may provide the most efficient balance of quality, cost, and production control.
Send U-Need your 3D CAD model, 2D drawing, material requirements, quantity, and finishing details to receive a practical manufacturing review and process recommendation.
CNC turning is often faster for cylindrical and rotationally symmetrical parts because the workpiece rotates continuously and the cutting path is relatively direct. CNC milling may be more efficient for complex parts with pockets, holes, flat surfaces, and multiple features.
Yes. CNC milling can create cylindrical features, curved surfaces, and circular profiles. However, CNC turning is generally more efficient when the component is primarily round and requires concentric diameters, bores, grooves, or threads.
CNC turning is ideal for shafts, bushings, collars, pins, rollers, threaded adapters, sleeves, rings, fittings, and other parts with rotationally symmetrical geometry.
CNC milling is well suited to housings, brackets, plates, enclosures, mold inserts, heat sinks, manifolds, fixtures, and parts with pockets, slots, holes, or complex three-dimensional shapes.
A CNC lathe generally focuses on basic turning operations. A CNC turning center may include additional capabilities such as live tooling, a Y-axis, sub-spindles, automatic tool changing, and multi-axis machining functions.
Parts with round bodies and non-round features often need both processes. A mill-turn solution can machine cylindrical diameters and threads, then add flats, cross-holes, slots, or milled surfaces in a coordinated workflow.
A complete quotation package should include a 3D CAD file, a dimensioned 2D drawing, material grade, quantity, tolerance requirements, thread specifications, surface finishing requirements, inspection needs, and delivery expectations.
Reduce non-functional complexity, use standard tool sizes and thread specifications, limit tight tolerances to critical features, avoid extremely deep pockets and thin walls, and provide complete drawing information before machining begins.
