Face milling is one of the most reliable ways to achieve truly flat, ready‑to-assemble surfaces in CNC machining, and when it is done right, it directly impacts dimensional accuracy, surface finish, and downstream assembly quality for global manufacturers. As a precision manufacturing partner in China, U-Need leverages face milling daily to deliver tight-tolerance, production-ready components for brands, distributors, and OEMs worldwide. [jlccnc]
Face milling is a machining process that removes material to create a flat surface perpendicular to the cutter's axis, typically using a face mill cutter with multiple indexable inserts mounted in a circular holder. Unlike side milling, which primarily generates vertical walls or profiles, face milling is optimized for wide, horizontal surfaces such as plates, blocks, and sealing faces. [jlccnc]
In a typical setup, the face mill is mounted in a vertical spindle, and as it rotates, the inserts take shallow cuts while the machine feeds the workpiece beneath the tool to progressively plane the surface. This operation is widely used in CNC shops for squaring raw stock, preparing reference faces, and achieving consistent surface finish before secondary operations like drilling, slotting, or assembly. [jlccnc]
From an OEM and supply-chain perspective, face milling is not just a "finishing touch"; it is a foundational process that stabilizes dimensional accuracy across entire assemblies. Poorly milled faces can introduce stack-up errors, sealing failures, vibration, and premature wear, particularly in industries like automotive, aerospace, and precision machinery where planar contact surfaces are critical. [jlccnc]
For global buyers working with overseas suppliers, consistent face milling quality is also a strong indicator of a shop's process control: stable fixtures, correct tool selection, and disciplined parameter tuning all show up in the final surface. U-Need integrates face milling into its CNC milling, grinding, and mold manufacturing workflows, combining it with inspection and grinding where necessary to hit demanding flatness and roughness specifications across steel, aluminum, copper, and plastics. [jlccnc]
In practice, face milling combines tool rotation, feed motion, and controlled depth of cut to remove material layer by layer. The face mill sweeps across the workpiece while the CNC controls spindle speed, feed rate, and toolpath strategy to balance material removal rate against surface finish and tool life.
Key process variables include:
- Cutting speed (spindle rpm) – Influences heat, chip formation, and surface finish.
- Feed rate – Affects scallop height and machining time; higher feeds increase productivity but can degrade finish if excessive.
- Depth of cut – Typically deeper for roughing and shallower for finishing to control cutting forces and avoid chatter.
- Tool engagement – How much of the cutter width is in contact with the part; this impacts cutting force direction and stability.
A robust setup requires rigid fixturing, secure clamping, and minimal overhang of both tool and workpiece to avoid vibration and dimensional drift, especially when machining thin plates or large surfaces. [jlccnc]

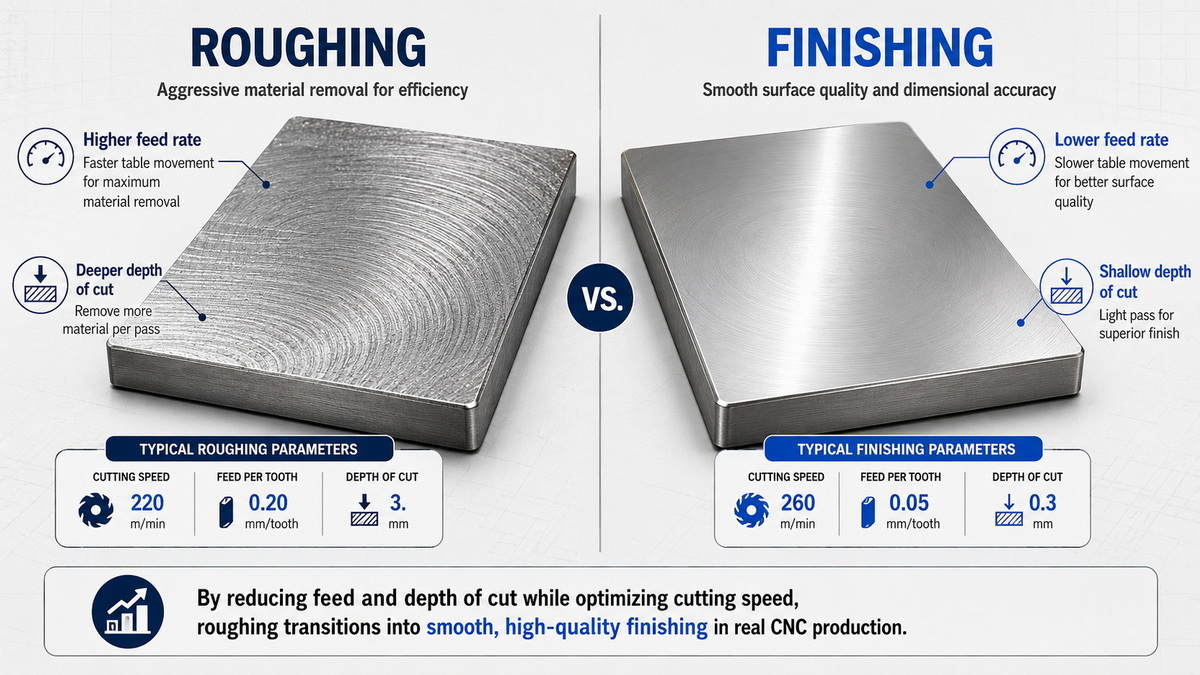

Most shops treat face milling as a two-stage process: roughing to remove bulk material quickly and finishing to achieve the final surface quality. Roughing uses higher depths of cut and aggressive feeds, while finishing focuses on small depths, stable tool engagement, and optimized speeds for better Ra values.
Typical roughing vs. finishing parameters (illustrative ranges):
| Parameter | Roughing | Finishing |
|---|---|---|
| Depth of cut | 2–5 mm (0.08–0.2 in) | 0.2–1 mm (0.01–0.04 in) |
| Feed rate | Higher, aggressive | Lower, controlled |
| Cutting speed | Moderate | Higher |
| Tool type | Indexable face mill | Fly cutter / fine-tooth mill |
| Surface finish | Coarse, functional | Smooth, low Ra value |
At U-Need, face milling is often integrated with final grinding or polishing when customers require ultra-low Ra surfaces on sealing faces, mold parting lines, or functional interfaces. For high-volume production, process engineers define standard roughing and finishing "recipes" per material to maintain repeatability across batches. [jlccnc]
Different jobs require different tools, and the choice of face milling cutter has a direct impact on cycle time, cost per part, and surface integrity. Selecting the wrong combination of tool body, insert geometry, and edge prep can quickly damage surface finish and drive up tooling costs.
| Tool Type | Best For | Advantages | Trade-offs |
|---|---|---|---|
| Face mill cutter | General-purpose roughing & finishing | Fast, efficient, easy insert indexing | Higher upfront toolholder cost |
| Shell mill | Large surfaces, modular setups | Flexible diameter choices, scalable system | Requires arbor and careful setup |
| Fly cutter | Small–medium surfaces with high finish demand | Low cost, excellent finish on many materials | Slower, more prone to vibration |
| Solid carbide tool | Light machines, tight spaces, small faces | Rigid, compact, high precision | Higher cost, limited insert options |
In an industrial context, face mills and shell mills dominate for production work because they allow quick insert indexing and predictable cost per edge. For prototypes or small-batch jobs where maximum surface finish is required on limited equipment, experienced machinists often still favor fly cutters with carefully tuned parameters. [jlccnc]
Face milling is not a single, generic cut; there are distinct operation types depending on part geometry, machine capability, and surface requirements. Understanding these modes helps process engineers choose the right strategy for productivity and quality. [jlccnc]
- Conventional face milling – The cutter traverses the full width of the workpiece in overlapping passes, ideal for quickly flattening stock.
- Partial face milling – Only part of the cutter engages the material, often used for small parts, narrow faces, or interrupted surfaces.
- Climb milling – The cutter rotates in the same direction as the feed; this tends to yield better surface finish and longer tool life on rigid machines.
- Conventional milling – The cutter rotates against the feed direction, offering more stability on older or less rigid equipment at the expense of finish.
- Slotting and contour facing – Face mills can also be used for shallow pockets and contoured surfaces when toolpaths are carefully programmed.
Summary of operation choices:
| Operation Type | Description | Best Use Case |
|---|---|---|
| Conventional face milling | Full-width passes across the surface | General stock preparation |
| Partial face milling | Partial engagement of the cutter | Irregular or smaller workpieces |
| Climb milling | Cutter feeds with workpiece motion | High finish on rigid CNC machines |
| Conventional milling | Cutter feeds against workpiece motion | Legacy machines, flexible fixtures |
| Slotting / contour facing | Shallow slots, curved faces | Non-flat geometries with careful fixturing |
For global buyers, it is useful to confirm with suppliers how they approach climb vs conventional milling on critical faces, especially when components will later be ground, honed, or assembled with tight sealing requirements. [jlccnc]
Insert selection is one of the most important levers for optimizing face milling performance. The rake angle, edge prep, coating, and chipbreaker geometry all influence cutting forces, heat generation, chip evacuation, and surface finish. [jlccnc]
Insert selection guidelines by material:
| Material | Recommended Geometry | Rake Angle | Notes |
|---|---|---|---|
| Mild steel | Positive rake, round tip | +10° to +20° | Reduces cutting force, good general finish |
| Aluminum | Sharp, polished edge | +20° or higher | Prevents built-up edge, supports high speeds |
| Stainless steel | Honed edge, tough grade | 0° to +10° | Needs strong edge to resist notching |
| Cast iron | Negative rake, robust edge | 0° or negative | Stable under interrupted cuts and hard spots |
| Titanium | Positive rake, low feed, sharp edge | Around +10° | Minimizes heat, prevents rubbing and chatter |
At U-Need, process engineers select insert grades and geometries based on customer material specifications, expected lot sizes, and downstream processes. For example, high-volume automotive steel components may use tougher insert grades with high edge security, while aerospace aluminum parts may rely on sharp, polished inserts to minimize built-up edge at high cutting speeds. [jlccnc]
From a practical, shop-floor perspective, consistent high-quality face milling comes from disciplined setup and parameter control rather than relying solely on premium tooling. Many issues—chatter, tool marks, thermal distortion—can be traced back to fixturing and poor toolpath planning. [jlccnc]
Key best practices:
1. Use smooth toolpaths
Avoid abrupt changes in direction or mid-pass stops that can leave marks or induce vibration. Gentle lead-ins, lead-outs, and consistent stepovers help maintain uniform surface finish.
2. Control depth of cut
Excessive depth increases cutting forces and chatter, while too shallow cuts can cause rubbing and poor chip formation. Matching depth of cut to tool diameter and machine stiffness is critical, particularly on large plates or less rigid setups.
3. Maintain rigid fixturing
Any movement of the part—especially long, thin components or plates—translates directly into waviness and inconsistent flatness. Using proper supports, clamps, and backing plates is essential.
4. Use coolant or air blast wisely
Coolant improves tool life and chip evacuation on many materials, while high-pressure air can be preferable for materials like cast iron where coolant may cause sludge and corrosion. [jlccnc]
5. Inspect and index inserts proactively
Waiting until inserts visibly fail often leads to scrap or rework; proactive indexing based on time in cut or measured wear keeps process capability stable.
U-Need couples these practices with in‑process inspection and final quality checks so that each face-milled part sent to customers in over 100 countries meets the specified flatness and finish requirements. [jlccnc]
In modern CNC environments, face milling coexists with peripheral (side) milling, end milling, and specialized operations such as groove and text milling. Choosing the wrong operation can increase cycle time or compromise functional features. [jlccnc]
Functional differences:
- Face milling – Generates flat, horizontal surfaces; cutting forces primarily act downward into the workpiece. [jlccnc]
- Peripheral milling – Removes material with the outer circumference of the cutter, typically creating vertical walls, slots, and profiles. [jlccnc]
- End milling – Flexible operation that can create pockets, slots, and contours using the side and end of the cutter. [jlccnc]
For precision part suppliers, face milling is often used first to create stable reference planes, followed by peripheral or end milling to define features like shoulders, slots, and pockets. This structured approach reduces distortion and improves dimensional repeatability across batches. [jlccnc]

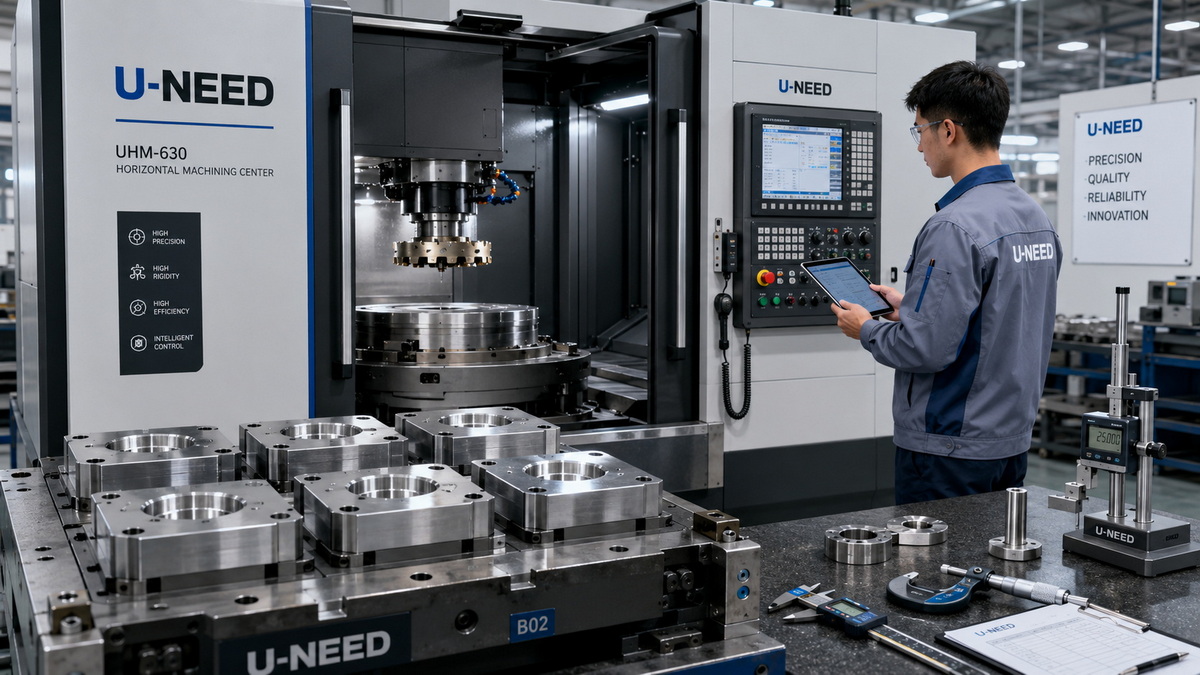

As a precision manufacturing partner based in Dongguan—China's "world factory" and "capital of molds"—U-Need integrates face milling into a broader portfolio of CNC and tooling services. Its capabilities include CNC turning, CNC milling, grinding, EDM, wire EDM, metal stamping, plastic injection molding, and mold tooling for injection molds, stamping dies, and cold-forging dies. [jlccnc]
Typical face-milled components delivered by U-Need include:
- Custom precision machined parts for automotive and machinery assemblies.
- Mold bases and plates where flatness and parallelism directly impact mold performance.
- Sheet metal and fabricated modules that require accurately machined interfaces for final assembly. [uneedpm]
With more than 20 years of experience and a large manufacturing network of over 1,000 suppliers and more than 200 machines, U-Need supports customers from single-piece prototypes to large-scale production runs, maintaining consistent quality across stainless steel, carbon steel, aluminum, copper, tungsten carbide, ceramics, and plastics. [uneedpm]
From a sourcing and engineering perspective, having a practical checklist helps ensure that face-milled surfaces from overseas suppliers meet functional requirements without over‑specifying and inflating cost. This is one of the most common pain points we see from global buyers.
Before sending RFQs:
- Clearly define flatness and surface roughness (Ra) requirements only where functionally necessary.
- Mark critical faces on drawings and specify whether they must be face milled, ground, or both. [jlccnc]
- Indicate material grade, heat treatment condition, and any post-machining processes that may affect flatness (e.g., welding, plating).
When evaluating suppliers:
- Ask how they handle climb vs conventional milling on critical faces and how they control chatter and thermal effects.
- Request examples of parts with similar materials and tolerances to the ones you plan to order. [jlccnc]
- Confirm inspection methods: surface roughness testers, flatness gauges, CMM reports, or other metrology tools used for verification. [jlccnc]
During production:
- Align on sampling plans and documentation—e.g., initial sample inspection reports (ISIR) or PPAP for automotive projects.
- Agree on corrective action processes in case face finish or flatness deviations are found in early shipments. [jlccnc]
As a one-stop partner, U-Need supports this entire cycle from DFM feedback and prototype runs through full production, combining precision machining and tooling with surface finishing and assembly where needed. [uneedpm]
Consistent, high-quality face milling is a key differentiator for suppliers serving demanding global markets, especially where assemblies rely on flat, stable reference surfaces. If you need custom precision parts, molds, or fabricated assemblies with reliable face-milled surfaces—from one-off prototypes to high-volume production—U-Need is ready to support your project. [jlccnc]
You can share your drawings and requirements and receive a tailored quotation, with no minimum order quantity and lead times optimized through U-Need's integrated manufacturing network. [uneedpm]
Ready to improve your surface quality and reduce rework?
Contact U-Need's engineering team to discuss your face milling and precision manufacturing needs, or request a quote directly via the company's website and contact channels. [uneedpm]
Face milling is specifically optimized for generating flat, horizontal surfaces using multiple inserts on the cutter face, which allows higher material removal rates and better surface finish consistency than end milling on large areas. End mills are more flexible for pockets and slots but are less efficient when covering wide faces. [jlccnc]
Climb milling usually offers better surface finish and longer tool life because cutting forces pull the workpiece into the fixture, reducing rubbing. However, it requires rigid machines and fixturing, while conventional milling is safer for older or less rigid setups because it stabilizes cutting forces at the expense of finish. [jlccnc]
With proper tooling, parameters, and machine rigidity, face milling can often achieve Ra values suitable for many sealing and assembly applications without further grinding, especially on aluminum and mild steel. For critical applications, suppliers like U-Need frequently combine face milling with grinding or polishing to reach tighter finish requirements. [jlccnc]
Materials like stainless steel, titanium, and some hardened steels are more challenging because they generate more heat, cause higher cutting forces, and can rapidly wear inserts if parameters or geometries are not optimized. These materials typically require tough inserts, controlled feeds, positive rake angles, and sometimes lower cutting speeds to maintain tool life. [jlccnc]
U-Need relies on standardized process parameters, carefully selected insert geometries, stable fixturing, and multi-step inspection to maintain consistent surface finish and flatness from prototype to mass production. Combined with a large, integrated manufacturing network and strict quality assurance, this ensures repeatable results for customers in over 100 countries. [uneedpm]
