Injection molding projects often succeed or fail based on one important decision: the runner system. A hot runner mold keeps plastic molten inside heated channels, while a cold runner mold allows the runner to solidify and eject with the part. The choice affects tooling cost, cycle time, scrap rate, part quality, and long-term production efficiency.
For manufacturers, distributors, and brand owners, this is not only a technical issue. It is also a business decision that influences unit cost, production stability, and product consistency. The right runner system depends on part design, production volume, material type, and quality requirements.

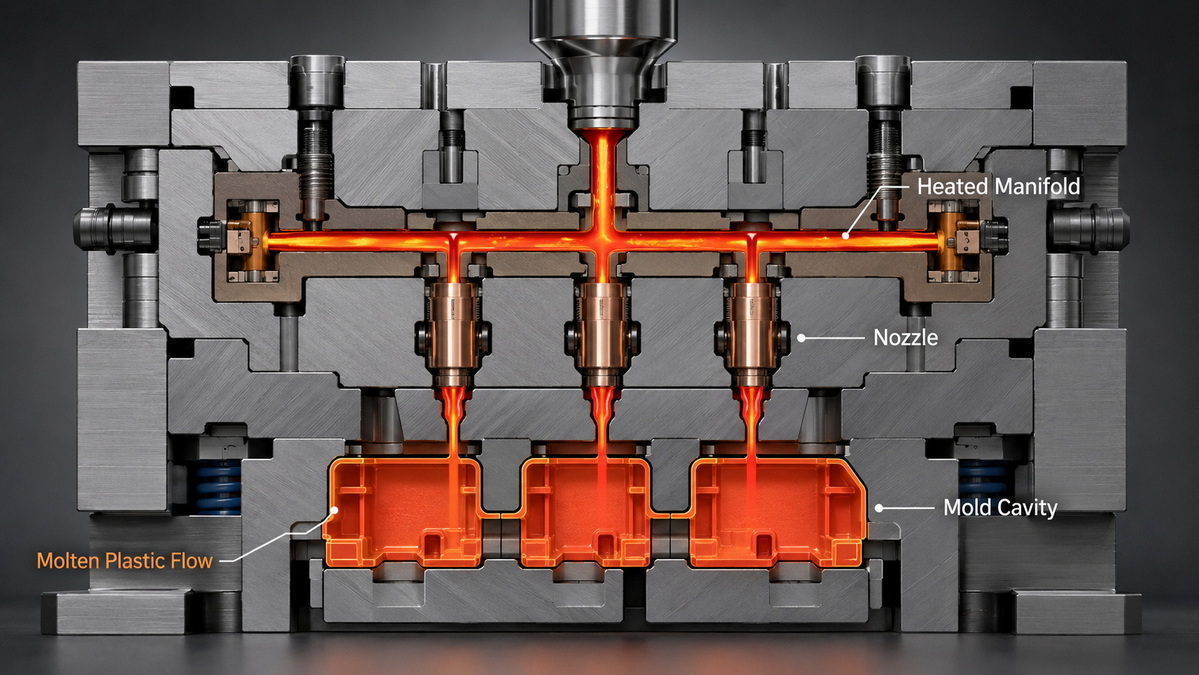

A hot runner injection mold uses heated manifolds and nozzles to keep the plastic molten from the machine nozzle to the gate. Because the runner material does not cool and solidify inside the mold, the system reduces or eliminates runner scrap.
This design is widely used in high-volume production, multi-cavity molds, and applications where material efficiency matters. It is also suitable for parts that require stable filling and consistent cavity-to-cavity performance.
- The runner stays molten during the entire molding cycle.
- Runner waste is minimized or eliminated.
- Cycle time is often shorter because the runner does not need to cool.
- Temperature control is more complex than in cold runner systems.
- Maintenance and troubleshooting are usually more demanding.

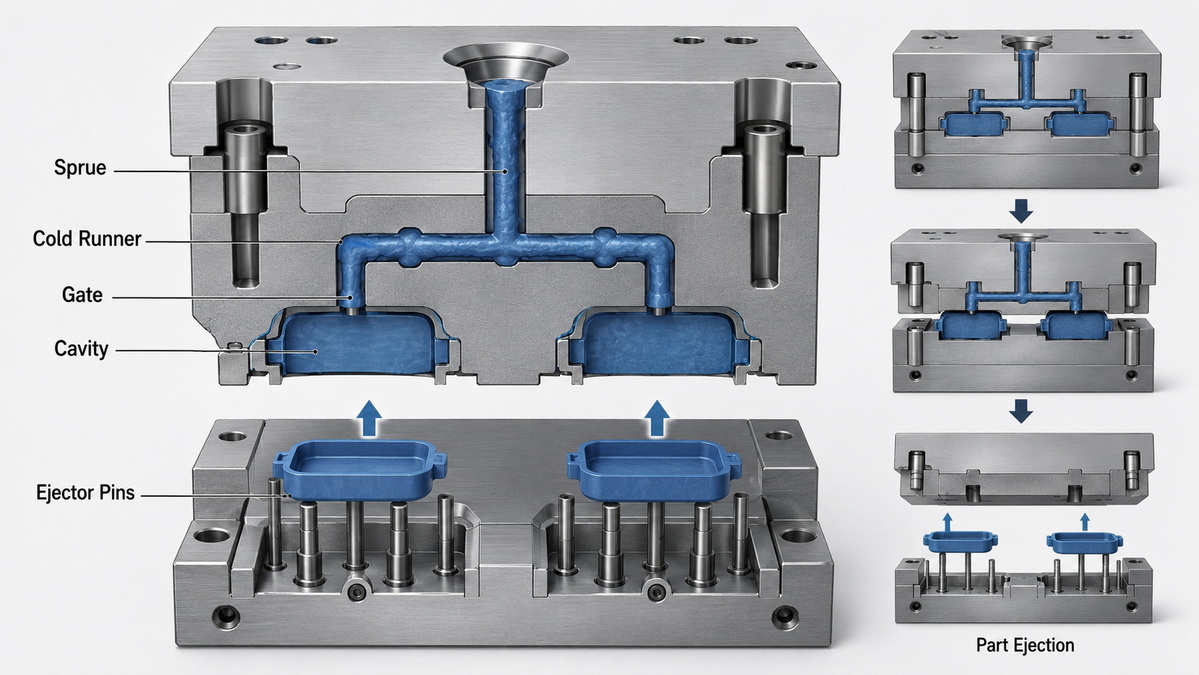

A cold runner injection mold uses unheated channels, so the runner cools and solidifies together with the molded part. After ejection, the runner is separated from the part and may sometimes be recycled or reground, depending on the material and application.
Cold runner systems are mechanically simpler and generally less expensive to build. They are often preferred for prototype projects, lower production volumes, frequent color changes, and programs where tooling cost must stay low.
- The runner solidifies inside the mold.
- Tooling cost is usually lower.
- Color change and material change are easier.
- Material waste is higher unless regrind is approved.
- Maintenance is simpler than with hot runner systems.

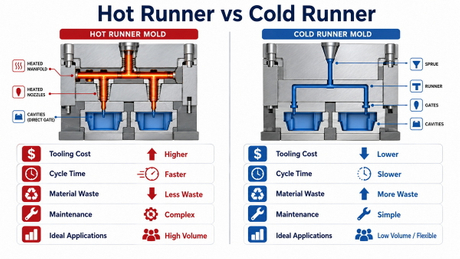

The main difference is simple: hot runner systems focus on production efficiency, while cold runner systems focus on simplicity and lower upfront cost. Both can produce high-quality parts, but they perform differently in terms of cost structure, speed, and operational flexibility.
| Factor | Hot Runner Mold | Cold Runner Mold |
|---|---|---|
| Tooling cost | Higher | Lower |
| Material waste | Very low or none | Higher |
| Cycle time | Faster | Slower |
| Maintenance | More complex | Simpler |
| Color change | More difficult | Easier |
| Best suited for | High-volume, precision production | Low-volume, flexible production |
In many projects, the best choice is not determined by tooling price alone. It depends on the total cost of production over the full life of the mold.
A cold runner mold often looks more affordable at the quotation stage. However, its lower initial cost may be offset by runner waste, longer cycle time, and reduced efficiency in high-volume production.
A hot runner mold requires a larger upfront investment, but it can reduce resin waste and increase output efficiency over time. For expensive engineering plastics or large-scale production, those savings can become significant.
- The annual production volume is high.
- The resin is expensive.
- Runner scrap would create unnecessary waste.
- Faster cycle time can improve total productivity.
- Long-term unit cost matters more than initial tooling price.
- The project is still in development.
- Production volume is low or uncertain.
- The product may change in the near future.
- Fast tooling approval is more important than long-term efficiency.
- Material waste is acceptable within the project budget.
Hot runner molds often provide better flow balance in multi-cavity tools. Because the material stays hot and flows more consistently, the process can be easier to stabilize across cavities. This is especially useful when dimensional consistency and appearance matter.
Cold runner molds can still produce excellent parts, but the runner cooling process adds another variable. In some applications, especially high-precision or high-output programs, that can make process control more difficult.
- It helps reduce variation between cavities.
- It improves startup consistency.
- It can reduce tuning time during production.
- It supports more stable output in demanding applications.
Hot runner systems require careful temperature management. Heaters, thermocouples, manifolds, and nozzles must all work properly to avoid issues such as drooling, material degradation, or uneven filling. This means the mold maker and production team need stronger technical capability.
Cold runner molds are easier to maintain because they do not rely on a heated runner network. For factories with limited maintenance resources or frequent production changeovers, this simplicity can be a real advantage.
- Hot runner: more technical, more sensitive, more efficient.
- Cold runner: easier to service, easier to understand, easier to switch.
The right runner type depends on the production scenario. The table below gives a practical guide.
| Application | Better Choice | Reason |
|---|---|---|
| Prototype tooling | Cold runner | Lower cost and faster setup |
| Short production runs | Cold runner | Waste is less critical at low volume |
| High-volume production | Hot runner | Better efficiency and lower scrap |
| Expensive resin materials | Hot runner | Reduces material loss |
| Cosmetic parts | Hot runner | Cleaner gate appearance in many cases |
| Frequent color change | Cold runner | Easier purging and switching |
| Multi-cavity precision parts | Hot runner | Better balance and consistency |
Selecting the right system starts with the product and the business model, not the mold alone. A high-volume part with expensive resin may benefit greatly from a hot runner system, while a short-run or changing product line may be better served by a cold runner mold.
A practical decision process can help reduce risk:
1. Estimate annual production volume.
2. Review material cost and runner waste.
3. Check whether gate appearance is critical.
4. Evaluate color or material change frequency.
5. Confirm maintenance capability in production.
6. Compare total cost over the mold's expected life.
This approach helps manufacturers make a decision based on real operating conditions instead of just the initial tooling quote.
One important factor is material sensitivity. Some polymers respond better to controlled heat and steady flow, while others may degrade if thermal control is poor. That is why the runner system should always be matched to the resin type.
Another factor is cavity-to-cavity consistency in multi-cavity molds. In precision production, even small differences in filling can affect part quality, appearance, and rejection rate. For this reason, runner design should be reviewed alongside gate location, mold balance, and cycle stability.
For buyers working with custom mold manufacturers, it is important to ask for a full process review before approving tooling. A good review should include runner design, filling behavior, material use, cycle estimate, and long-term production impact.
This is especially important for export-oriented production, where buyers often need stable output, predictable quality, and competitive unit pricing. A well-designed runner system can support all three.
Hot runner and cold runner injection molds each have clear advantages. Hot runner systems are stronger in high-volume, efficiency-driven production, while cold runner systems are better for simplicity, flexibility, and lower upfront cost.
The best choice depends on your product, material, output volume, and long-term manufacturing goals. When these factors are evaluated together, the runner system becomes a strategic part of the project rather than just a tooling detail.
Cold runner molds are usually cheaper at the beginning. Hot runner molds cost more upfront but can reduce cost over time in high-volume production.
Cold runner molds are usually better for small runs because they are simpler and less expensive to build.
No. Hot runner systems save money mainly when production volume is high or resin waste is expensive.
Hot runner systems are often better for cosmetic parts because they can help reduce visible gate marks.
In some cases, yes. But regrind depends on the resin, product requirements, and quality standards.
It is more demanding than cold runner maintenance because of the heating system and temperature control requirements.
