Tight tolerance machining becomes more demanding as part size increases because thermal expansion, structural deflection, machine geometry, and measurement uncertainty become harder to control. A tolerance that is manageable on a small component may require a substantially different manufacturing and inspection strategy on a large plate, housing, or mold base.
However, large parts are not automatically inaccurate. The real question is whether the entire process can control the relationship between critical features across the required distance.
For engineers and buyers, the most useful principle is control: define what matters, identify what can move, and verify the finished part under agreed conditions.
This guide explains why size affects dimensional accuracy, how manufacturers manage the risks, and what to include when requesting precision machining services.
Tight tolerance machining produces features within narrowly defined dimensional or geometric limits. There is no single tolerance value that qualifies every component as "tight."
A ±0.01 mm requirement may be straightforward for one feature but demanding for another. Material, geometry, accessibility, production volume, and inspection conditions all influence feasibility.
It also helps to distinguish three concepts:
- Dimensional tolerance defines the permitted variation in a size or distance.
- Geometric tolerance controls characteristics such as flatness, perpendicularity, or position.
- Measurement uncertainty describes the uncertainty associated with a reported measurement.
These concepts interact, but they are not interchangeable. A bore can meet its diameter tolerance while its axis is incorrectly positioned. Likewise, a measurement can appear acceptable while its uncertainty makes the acceptance decision questionable.

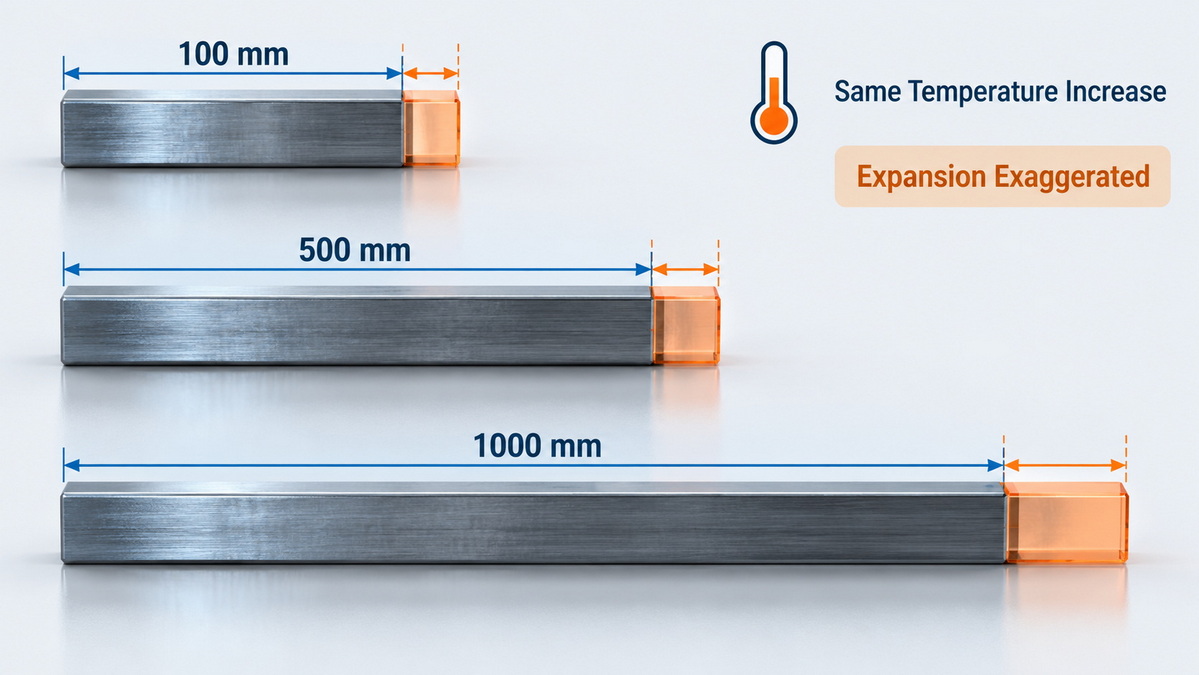

Temperature changes alter component dimensions. For approximately uniform temperature
Using 11.5 µm/m/°C as an illustrative steel coefficient, the same 2°C increase produces very different dimensional changes:
| Measured steel length | Temperature increase | Calculated expansion |
|---|---|---|
| 100 mm | 2°C | 2.3 µm |
| 500 mm | 2°C | 11.5 µm |
| 1,000 mm | 2°C | 23 µm |
These are calculated examples, not production results or universal material specifications.
On the one-meter dimension, 23 µm exceeds the 10 µm allowance on either side of a ±0.01 mm tolerance. Thermal effects alone could therefore consume the available margin.
The actual coefficient depends on the material. Temperature gradients introduce another complication: uneven heating can distort shape rather than simply change overall length.

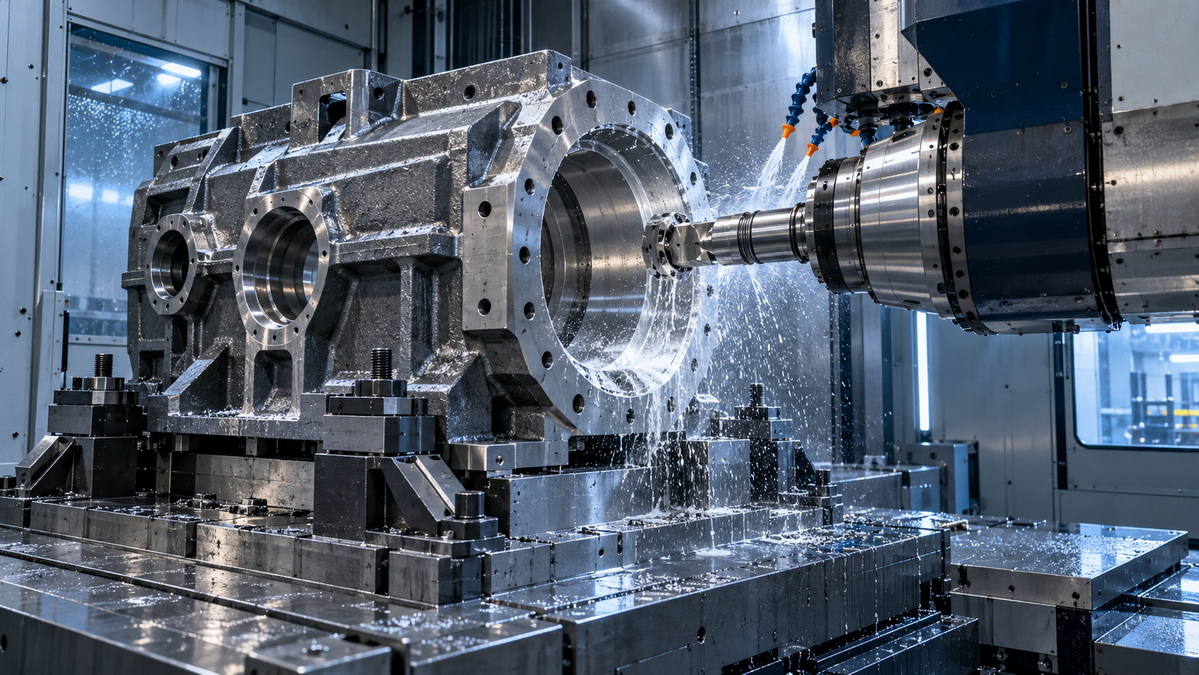

A large workpiece may bend under cutting forces, clamping loads, or its own weight. Long tools and unsupported sections introduce additional movement.
Length alone does not determine stiffness. Cross-section, material, support spacing, and load direction matter substantially.
A thick, well-supported block may be easier to control than a smaller thin-walled housing. The practical concern is therefore not simply "large versus small," but how the component responds to forces throughout machining and inspection.
A machine's positioning behavior at one location does not describe its performance everywhere.
Large-part machining may use more axis travel and a greater portion of the working volume. Positioning, straightness, angular, and squareness errors can then influence relationships between distant features.
For this reason, machine travel capacity and machine accuracy are different questions. A part fitting on the table does not establish that every drawing requirement is achievable.
One important distinction is frequently overlooked: the size of the component is not necessarily the size of the critical measurement.
A large housing might contain:
- A small precision bearing bore.
- Two mounting faces separated by a long distance.
- A broad sealing surface with a flatness requirement.
- A hole pattern referenced to several datums.
Each requirement creates a different manufacturing problem.
| Requirement | Main concern | Useful planning question |
|---|---|---|
| Local bore diameter | Tooling, temperature, roundness | Can this feature be finished and measured reliably? |
| Distant bore spacing | Thermal growth and machine geometry | How will the feature relationship be maintained? |
| Broad-face flatness | Stress, support, and clamping | What condition must the surface meet after release? |
| Hole-pattern position | Datum establishment and setup transfer | Will machining and inspection use compatible references? |
The engineering takeaway is simple: specify and evaluate each critical relationship, rather than assigning one headline tolerance to the entire component.
Datums provide the reference framework for locating and inspecting features.
A useful datum strategy connects the drawing, machining fixtures, and inspection program. Repeatedly changing references without controlling their relationships can introduce avoidable variation.
Start with the functional assembly requirements:
1. Identify the surfaces that locate the component in service.
2. Define the features whose relationships affect fit or performance.
3. Plan how those references will remain accessible.
4. Establish how inspection will reproduce the intended reference system.
This approach is more meaningful than simply minimizing the number of setups.
Heavy material removal changes the workpiece's geometry, stiffness, and thermal condition. It can also redistribute existing residual stresses.
For distortion-sensitive components, a process plan may include:
1. Rough machining with finishing allowance.
2. Releasing and reassessing the workpiece.
3. Material-appropriate stabilization where justified.
4. Re-establishing datums.
5. Semi-finishing and finishing critical features.
Not every part requires heat treatment or a lengthy waiting period. These decisions should reflect the material condition, geometry, and observed process behavior.
More clamping force does not necessarily improve accuracy.
Excessive force can deform thin walls or pull an imperfect surface against the fixture. The part may then appear correct while clamped but move after release.
Useful measures include:
- Supporting flexible regions near cutting loads.
- Directing forces toward well-supported areas.
- Controlling clamping sequence and force.
- Keeping tool assemblies short and rigid where possible.
- Checking critical geometry after unclamping.
The relevant acceptance condition should be clear: free state, specified support, or an explicitly defined restrained condition.
A stable room temperature does not guarantee that the workpiece has reached a uniform temperature.
Large components may retain heat after roughing, transportation, or prolonged handling. Thick and thin sections can also stabilize differently.
A practical thermal plan considers:
- Machine warm-up.
- Coolant temperature behavior.
- Workpiece temperature at critical operations.
- Temperature uniformity before inspection.
- The material coefficient used for compensation.
The standard reference temperature for dimensional measurement is 20°C. Measurements made elsewhere may require correction and an assessment of the remaining uncertainty.
Probing can support part alignment, datum setting, intermediate checks, tool-wear monitoring, and selected process corrections.
Its greatest value is often early detection. Discovering a shifted reference before a finishing pass is more useful than discovering it after the component is complete.
However, probing is not an automatic guarantee of conformance.
A probe mounted on the production machine operates within that machine's geometric and thermal environment. Depending on the application, some errors may affect both machining and measurement.
The appropriate role of probing should therefore be established within the inspection plan. Critical acceptance measurements may require a separately qualified method rather than relying solely on in-cycle results.

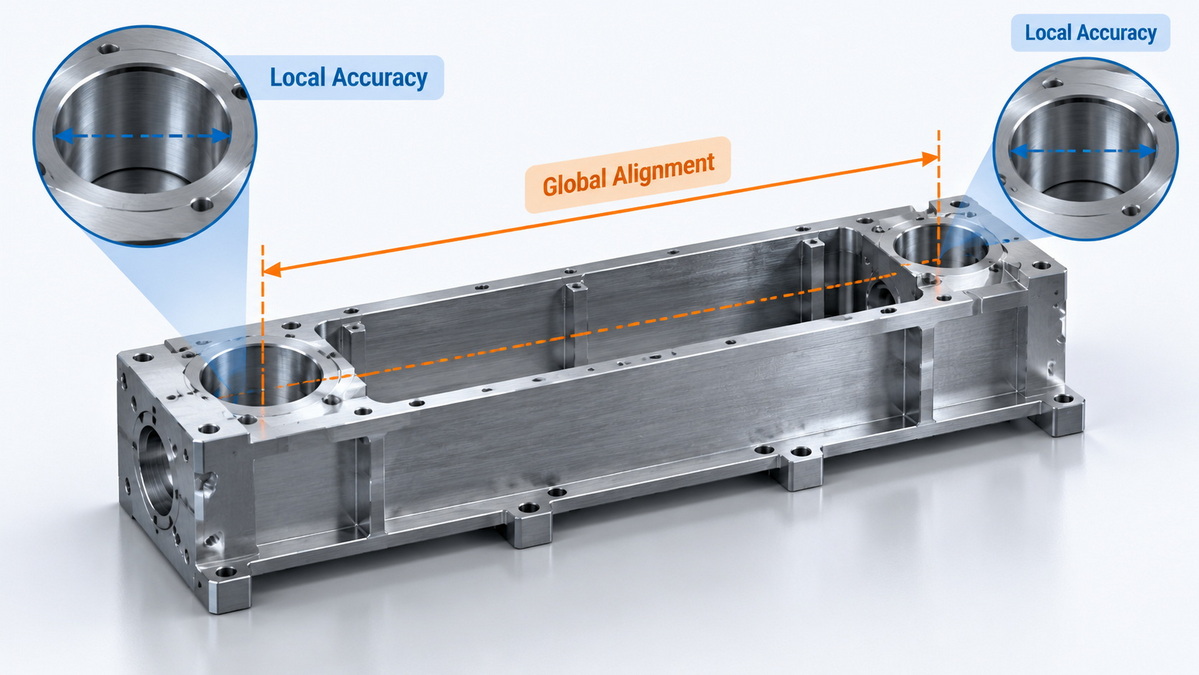

Consider an illustrative one-meter steel housing with a bearing bore at each end.
The drawing requires:
- Each bore diameter to meet a tight size tolerance.
- The relationship between the bore axes to meet a positional requirement.
Finishing each diameter successfully does not prove that the axes are correctly located relative to one another.
A 2°C uniform temperature difference corresponds to approximately 23 µm of length change over one meter using the earlier illustrative coefficient. Meanwhile, setup transfer, support conditions, and machine geometry can affect the relationship independently.
A suitable plan would evaluate local bore finishing and long-distance feature alignment separately.
This is a hypothetical engineering example, not a reported U-Need customer project. Its purpose is to show why "we can hold this bore tolerance" is not a complete answer to a large-component drawing.

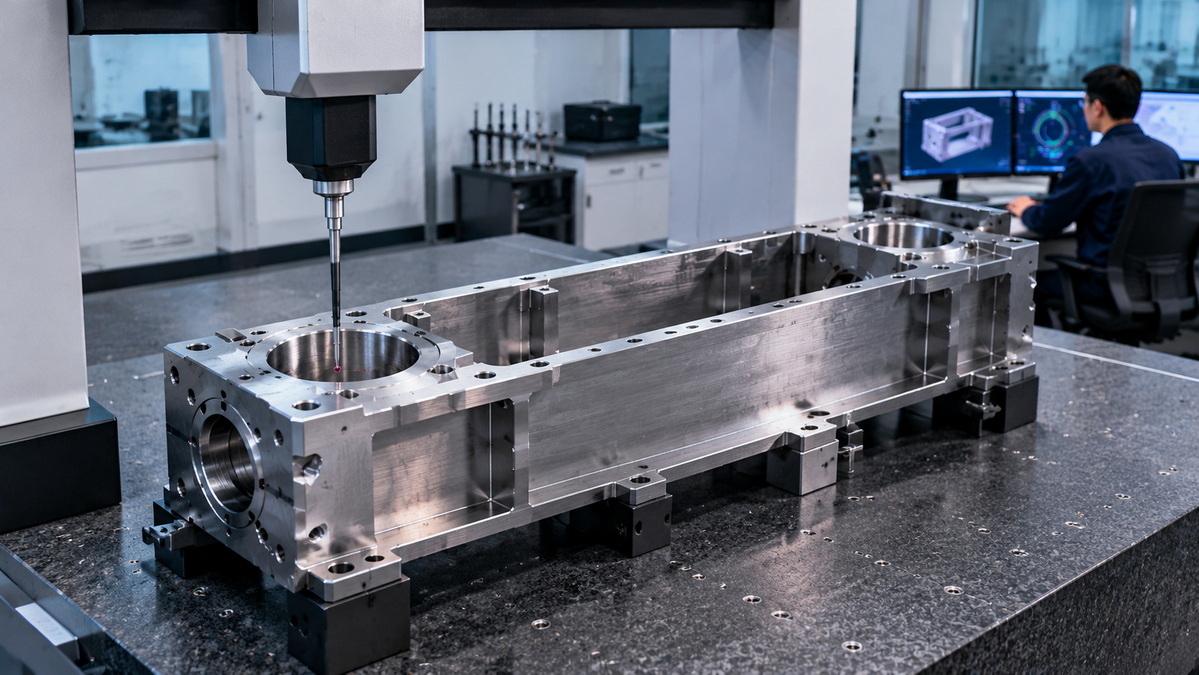

Inspection should not be treated as an afterthought.
Before machining begins, establish:
- Which dimensions and geometric requirements require reporting.
- Which datums and alignment rules apply.
- How the part will be supported.
- Whether temperature correction is required.
- Which inspection methods suit the feature sizes and access.
- How borderline results will be evaluated.
Instrument resolution alone is not enough. The measurement method must have uncertainty appropriate to the acceptance task.
A supplier's best result on a small test component does not establish capability on a large, flexible workpiece.
More relevant evidence includes:
- Comparable feature sizes and measurement distances.
- Similar materials and wall thicknesses.
- Inspection reports showing the required datum relationships.
- A documented plan for thermal and workholding risks.
- Repeatability or production-capability evidence where applicable.
Capability data should reflect a suitable, stable process. A successful first article does not by itself demonstrate consistent batch performance.
A clear request for quotation helps manufacturers identify risks before committing to price and delivery.
Include:
1. A controlled drawing and matching three-dimensional model.
2. Material grade and required supply condition.
3. Critical dimensions and geometric tolerances.
4. Functional datums and assembly interfaces.
5. Surface finish and coating requirements.
6. Quantity and expected repeat demand.
7. Required inspection documentation.
8. Support, temperature, or free-state acceptance conditions.
Apply the tightest tolerances where function requires them. Unnecessarily restrictive requirements on noncritical features can add machining and inspection work without improving product performance.
U-Need positions itself as a precision manufacturing partner in China for global brands, distributors, and manufacturers. Its stated services include custom precision parts machining, mold manufacturing, and sheet metal fabrication.
For a large or tolerance-sensitive component, begin with a drawing-based feasibility discussion rather than a general tolerance claim.
Send U-Need your drawing, model, material specification, quantity, and critical feature requirements. Request a review covering machining strategy, datum control, thermal risks, inspection methods, and any proposed drawing changes before production approval.
Sometimes. Feasibility depends on the specific feature, material, geometry, process, and measurement method. A local bore and a long-distance positional requirement need separate evaluation.
No. Greater travel provides capacity, not guaranteed accuracy. Machine geometry, thermal behavior, workholding, and inspection capability must match the drawing.
Clamping can elastically deform the component. Removing the load allows its shape to change. Acceptance conditions should specify whether the part is evaluated free or under defined restraint.
Not necessarily. Measurements can be made at other temperatures with appropriate corrections and uncertainty evaluation. The reference condition and reporting method should be agreed.
No. Compensation depends on temperature measurement, material data, and a suitable model. Uneven temperature and uncertain expansion coefficients can leave residual errors.
No. Tolerances should reflect function. Prioritize mating features, alignment relationships, and other performance-critical characteristics instead of imposing unnecessary precision everywhere.
