Rapid prototyping helps manufacturers reduce uncertainty before they invest in production tooling. Before approving an injection mold, stamping die, cold-forging die, or production fixture, teams need proof that a part can be made, assembled, tested, and scaled reliably.

A production tool is a long-term manufacturing commitment. It determines how a part will be produced for months or years. When a design problem is discovered after tool construction begins, the result can be costly rework, production delays, inconsistent quality, and avoidable supply-chain pressure.

For global brands, distributors, and manufacturers, rapid prototyping provides a practical bridge between a digital design and stable production. It allows engineers and sourcing teams to test the product before expensive tooling decisions become difficult to reverse.

Rapid Prototyping To Production Tooling

What Is Rapid Prototyping?

Rapid prototyping is the process of producing physical parts or assemblies quickly from 3D CAD files. It gives product-development teams the opportunity to evaluate a design in the real world before committing to full-scale manufacturing tools.

Depending on the design goal, prototypes can be produced through:

- CNC machining

- 3D printing

- Urethane casting

- Sheet metal fabrication

- Prototype injection molding

- Soft tooling or bridge tooling

- Low-volume production runs

Rapid prototyping is not simply about making a sample as quickly as possible. Its purpose is to create a controlled learning process. A prototype should help answer specific engineering and production questions before a project moves to the next stage.

For example:

- Does the part fit with its mating components?

- Is the housing large enough for internal electronics and wiring?

- Can the part withstand temperature, pressure, impact, or repeated use?

- Are the dimensions achievable with the intended manufacturing process?

- Will the selected material deliver the required mechanical performance?

- Can the part be assembled efficiently and consistently?

- Does the finished appearance meet brand and customer expectations?

The more clearly these questions are answered before tooling begins, the lower the manufacturing risk becomes.

Why Tooling Requires Careful Validation

Production tooling is designed for consistency, durability, and repeatable output. Injection molds, stamping dies, cold-forging dies, jigs, and fixtures require specialized engineering, precision machining, assembly, testing, and refinement.

Once a tool is in progress, even a seemingly small product change can become complicated. A revised feature may require welding, re-machining, cavity modification, insert replacement, slide redesign, cooling-channel changes, or additional tool components.

This is why prototyping should be viewed as a risk-reduction stage rather than an optional extra expense.

A prototype can reveal issues such as:

- Insufficient draft angles for molded parts

- Uneven wall thickness that may cause sink marks or warpage

- Tolerance conflicts between mating components

- Poor access for fasteners, inserts, or assembly tools

- Weak structural sections

- Difficult machining features

- Inconsistent sheet metal bends

- Cosmetic defects caused by gates, parting lines, or finishing limitations

- Material behavior that differs from expectations

A design may look correct on a computer screen but still create challenges during machining, molding, stamping, bending, welding, finishing, or assembly. Physical validation helps uncover these problems when changes are faster and less expensive to make.

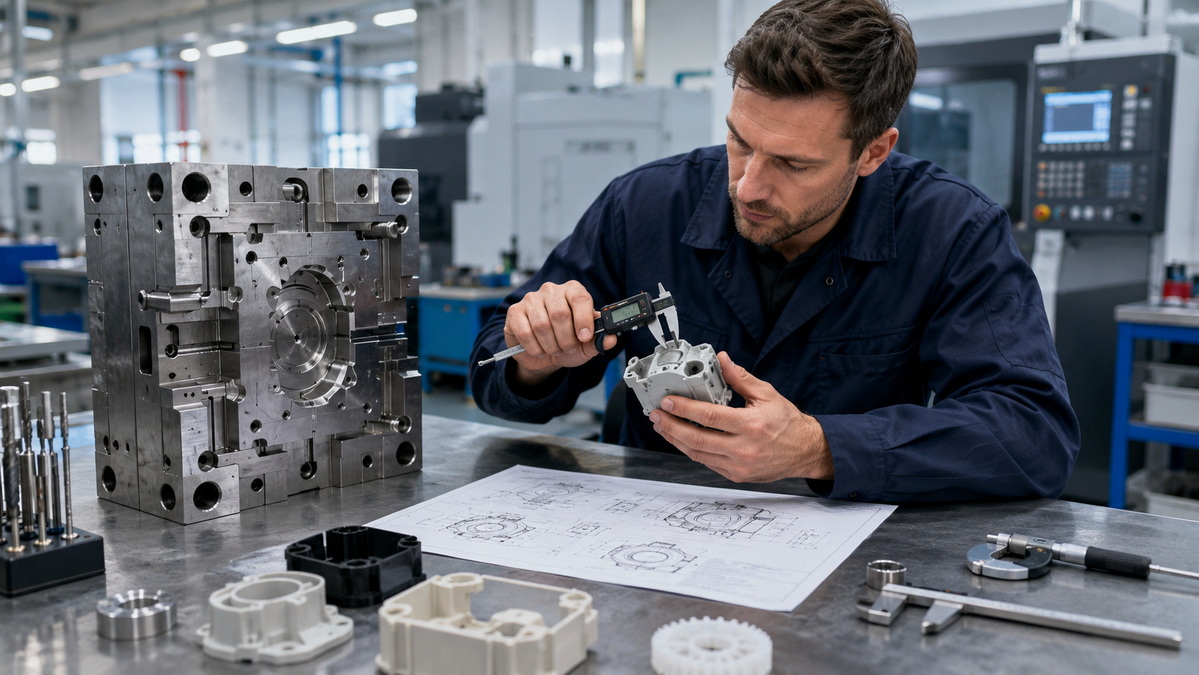

Prototype Validation Before Tooling

The Main Benefits of Rapid Prototyping Before Tooling

Reduce Tooling Rework

The most important benefit of rapid prototyping is reducing the likelihood of tooling changes after manufacturing begins.

Tooling rework can create unexpected costs and delay production schedules. In some cases, corrections may affect multiple areas of a tool, including cavities, cores, ejector systems, slides, cooling channels, gates, or inserts.

By testing the part first, product teams can identify design weaknesses before they become tooling problems.

Improve Product Function

A physical part often reveals details that are not obvious in CAD software. Designers may discover that a button is difficult to access, a snap-fit is too stiff, a handle is uncomfortable, or an internal component does not fit as intended.

Functional prototypes can be used to test:

- Mechanical strength

- Repeated-use durability

- Heat resistance

- Vibration performance

- Impact resistance

- Water or dust sealing

- Assembly speed

- User interaction

- Structural loading

The right prototype material matters. A prototype made from the final material, or a close equivalent, provides more useful performance data than a model made only for visual review.

Validate Fit and Assembly

Many product failures are caused by small dimensional conflicts between parts. A single component may meet its individual drawing requirements but still create an assembly issue when combined with other components.

Fit and assembly prototypes help teams evaluate:

- Tolerance stack-up

- Gap-and-flush consistency

- Fastener placement

- Seal compression

- Insert location

- Clip engagement

- Hinge movement

- Cable routing

- Service access

- Packaging clearance

This is especially important when several suppliers are involved in one product. A physical assembly review creates a common reference point and helps prevent misunderstandings between design, purchasing, manufacturing, and quality teams.

Confirm Material Selection

Materials behave differently under load, heat, moisture, chemicals, ultraviolet exposure, and repeated use. A plastic housing may look acceptable in a visual prototype but fail when exposed to high temperature. A metal bracket may appear strong but bend under a real working load.

Material validation is particularly important for products requiring:

- High strength

- Heat resistance

- Chemical resistance

- Flame retardancy

- Electrical insulation

- Electrical conductivity

- Corrosion resistance

- Flexibility

- Wear resistance

- Food-contact or medical-grade properties

When performance is critical, the prototype should use the intended production material whenever possible.

Improve Production Planning

Rapid prototyping also supports more accurate production planning. It helps manufacturers estimate process difficulty, production cycle time, inspection needs, finishing requirements, assembly steps, and packaging considerations.

For example, a CNC-machined prototype may reveal that a feature is difficult to access with standard cutting tools. A sheet metal prototype may show that bend sequencing needs adjustment. A prototype-molded part may expose cosmetic concerns around gates, ejector pins, weld lines, or surface texture.

These lessons can be incorporated into tool design and process planning before full-scale production begins.

Four Stages of Prototype Validation

A structured validation process makes prototyping more effective. Each stage should focus on a different type of risk.

1. Concept and Appearance Prototypes

Concept prototypes are mainly used to review shape, size, product appearance, ergonomics, and packaging compatibility.

They are useful for:

- Internal design approval

- Product presentations

- Trade-show samples

- Early customer feedback

- Ergonomic testing

- Packaging review

- Preliminary marketing photography

At this stage, speed is usually more important than exact material properties. 3D printing is often an effective choice because it allows designers to produce and revise complex shapes quickly.

However, a concept prototype should not be treated as proof that a part is ready for production. It can validate appearance and space, but it may not accurately represent strength, molding behavior, thermal performance, or long-term durability.

2. Fit and Assembly Prototypes

Fit prototypes focus on dimensional accuracy and the relationship between components. They confirm whether parts can be assembled correctly and whether interfaces work as expected.

This stage should include a review of:

- Critical dimensions

- Reference datums

- Mating surfaces

- Fastener locations

- Threaded inserts

- Seals and gaskets

- Electronic components

- Cable paths

- Moving components

- Assembly-tool access

CNC machining is often the preferred process for fit and assembly validation because it can produce accurate prototypes in metals and engineering plastics.

3. Functional Prototypes

Functional prototypes test the performance of the part in realistic conditions. They should be designed around the product's most important performance requirements.

For example:

- A structural aluminum component should be tested under realistic mechanical load.

- A plastic enclosure for electronics should be evaluated for thermal performance.

- A flexible product feature should be tested for repeated bending or compression.

- A threaded metal component should be checked for torque, wear, and installation reliability.

- A sheet metal bracket should be evaluated for stiffness and mounting accuracy.

Functional testing helps teams avoid an important mistake: assuming that a visually correct prototype will perform correctly in real use.

4. Pilot-Run and Pre-Production Samples

Pilot runs are the final validation stage before long-term production begins. They use production-representative materials, processes, finishes, and assembly methods.

Pilot samples can be used to confirm:

- Dimensional consistency

- Surface quality

- Moldability or stampability

- Assembly efficiency

- Inspection methods

- Packaging protection

- Manufacturing cycle time

- Production yield

- Market feedback

- Customer approval requirements

This stage provides the strongest evidence that a design is ready for production tooling and scalable manufacturing.

Four Stages Of Prototype Validation

Choosing the Right Prototype Process

The best prototyping method depends on what needs to be tested. Different processes provide different advantages.

Prototype Process	Best Used For	Main Advantage	Key Consideration
3D Printing	Early form, fit, and visual evaluation	Fast turnaround and design flexibility	May not match final material properties
CNC Machining	Tight tolerances and functional metal or plastic parts	High accuracy and production-like materials	Complex geometry can increase machining time
Urethane Casting	Low-volume plastic samples and appearance testing	Good for short runs and presentation samples	Material options are more limited than injection molding
Sheet Metal Fabrication	Brackets, covers, panels, enclosures, and frames	Tests actual bend geometry and assembly	May differ from high-volume stamped-part behavior
Prototype Injection Molding	Production-grade plastic validation	Tests resin behavior and molded-part features	Requires preliminary tool investment
Soft or Bridge Tooling	Pilot production and market testing	Helps validate low-volume production	Not intended for long-term high-volume output

When to Use 3D Printing

3D printing is suitable when speed and design flexibility are the main priorities. It is often used for early-stage enclosures, handles, housings, clips, packaging inserts, and complex geometry.

Use 3D printing when you need to evaluate:

- Product size and shape

- Internal component clearance

- Basic assembly fit

- Ergonomics

- Appearance concepts

- Preliminary customer feedback

When to Use CNC Machining

CNC machining is ideal when dimensional accuracy and material performance are critical. It is widely used for metal parts, engineering-plastic components, precision assemblies, fixtures, jigs, and functional samples.

Use CNC machining when you need to validate:

- Tight tolerances

- Threaded features

- High-strength materials

- Heat-resistant components

- Structural parts

- Precision interfaces

- Surface finishing requirements

- Functional assemblies

When to Use Prototype Molding

Prototype molding is valuable when the final product will be injection molded and the design requires validation in a production-grade resin.

It is especially useful for checking:

- Plastic shrinkage

- Snap-fits

- Living hinges

- Surface texture

- Cosmetic appearance

- Thin-wall filling

- Insert molding

- Material flow behavior

- Repeated-use performance

Prototype molding can also support pilot production, customer samples, field testing, and early market evaluation.

Prototype the Highest-Risk Feature First

A practical prototype strategy does not always require producing a complete, perfect version of the product at the beginning. In many cases, it is more efficient to identify the highest-risk feature and test that specific feature first.

Consider an electronic enclosure with a snap-fit cover, brass inserts, a gasket seal, and a cosmetic front surface. Each element presents a different risk:

- The external shape can be reviewed through a printed model.

- The snap-fit should be tested for engagement force and repeated use.

- The brass insert boss should be tested for pull-out strength.

- The gasket channel should be checked for sealing performance.

- The cosmetic surface should be reviewed with representative texture and finish.

- The full enclosure should be assembled with the actual circuit board, connectors, and fasteners.

This method avoids spending time and budget on unnecessary detail before the most important uncertainties are resolved.

A Practical Tooling-Readiness Checklist

Before approving production tooling, confirm that the following areas have been reviewed.

1. Design manufacturability

The geometry is suitable for machining, molding, stamping, bending, forging, welding, finishing, and assembly.

2. Critical dimensions

Functional dimensions and tolerances are clearly defined and linked to real product requirements.

3. Physical assembly

All key components have been assembled and tested together.

4. Material performance

The selected material has been evaluated under relevant conditions such as load, heat, chemicals, wear, or impact.

5. Cosmetic requirements

Surface texture, color, gloss, gate locations, parting lines, and finishing standards are agreed upon.

6. Production volume

Tool design, cavity quantity, tool steel selection, automation level, and expected tool life match the projected demand.

7. Quality requirements

Inspection methods, critical-to-quality features, acceptable defect limits, and documentation standards are established.

8. Manufacturing route

The complete process has been reviewed, including production, finishing, inspection, assembly, packing, and shipping.

From Prototype Learning to Stable Production

The most valuable outcome of rapid prototyping is not just a physical sample. It is the knowledge gained from testing that sample.

A successful prototype program creates a clear record of what has been validated, what still needs improvement, and what production controls are required. That information should be transferred into the final tool design, manufacturing instructions, quality plan, and inspection standards.

For example, prototype results may lead to:

- Increased draft angles for easier mold release

- Improved rib design to reduce sink marks

- A revised wall thickness for better material flow

- Stronger support features for CNC-machined sections

- A modified bend sequence for sheet metal parts

- Better tolerance allocation across assemblies

- A different material or finishing method

- Updated quality checkpoints during production

These improvements help transform a design from a theoretical concept into a stable, scalable product.

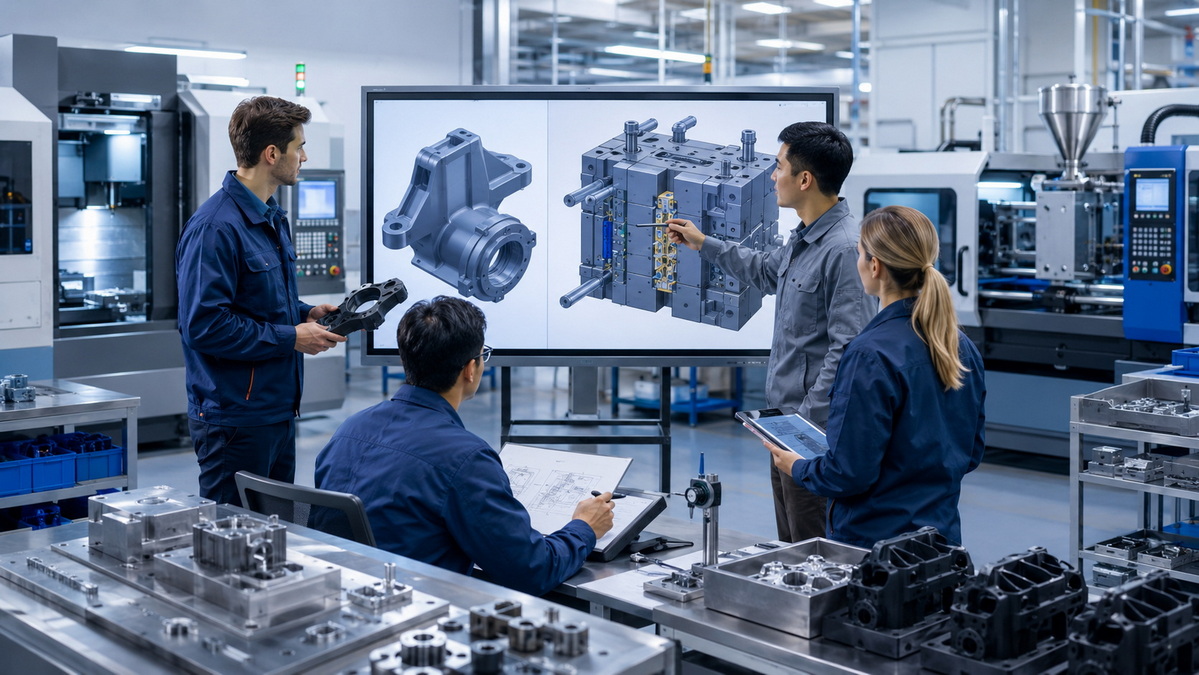

From Prototype To Stable Production

Manufacturing Support From Prototype to Tooling

U-Need supports global brands, distributors, and manufacturers with integrated precision manufacturing solutions.

Our capabilities include:

- Custom precision parts machining

- Injection mold manufacturing

- Stamping die manufacturing

- Cold-forging die manufacturing

- Laser cutting

- Sheet metal bending

- Metal stamping

- Sheet metal fabrication

- Prototype development

- Low-volume production

- Production tooling support

- Manufacturing feasibility review

- Material and finishing guidance

Working with one experienced manufacturing partner can help maintain continuity between prototype development, tool design, production planning, quality control, and delivery.

When engineering knowledge is transferred directly from prototype review to tooling development, teams can reduce communication gaps, avoid duplicated work, and create a more reliable path toward mass production.

Summary

Rapid prototyping is an essential stage before committing to injection molds, stamping dies, cold-forging dies, and other production tooling.

It helps manufacturers identify design flaws early, validate material performance, confirm assembly fit, improve manufacturability, reduce tooling rework, and prepare products for stable production.

The strongest manufacturing decisions are based on real evidence rather than assumptions. By testing the right prototype with the right process, companies can move into tooling with greater confidence, clearer specifications, and fewer costly surprises.

For projects involving precision-machined components, molded plastic parts, stamped metal parts, cold-forged components, or fabricated sheet metal assemblies, U-Need can help evaluate the most suitable prototype route and prepare the design for efficient production.

FAQs

1. Why is rapid prototyping important before tooling?

Rapid prototyping helps identify design, assembly, material, and manufacturing problems before production tools are built. This can reduce tooling rework, lower development risk, and prevent avoidable delays.

2. What is the difference between a prototype and production tooling?

A prototype is a sample used to test a product design. Production tooling is a durable manufacturing tool, such as an injection mold or stamping die, used to produce parts repeatedly at scale.

3. Can 3D printing replace CNC machining for prototypes?

3D printing is useful for early shape, fit, and appearance evaluation. CNC machining is usually more suitable when a prototype requires tight tolerances, real-metal performance, engineering-plastic properties, or production-like finishes.

4. What should be tested before building an injection mold?

Before building an injection mold, teams should validate draft angles, wall thickness, material behavior, shrinkage, snap-fits, inserts, cosmetic surfaces, tolerances, assembly fit, and expected production volume.

5. What is soft tooling?

Soft tooling refers to lower-cost tooling used for prototypes, trial runs, and low-volume production. It is generally faster to produce than hard tooling but is not designed for long-term, high-volume manufacturing.

6. How does prototype molding help product development?

Prototype molding produces parts in production-grade resins, allowing teams to evaluate real material behavior, part appearance, shrinkage, snap-fits, surface texture, and functional performance before full-scale tooling is finalized.

7. How do sheet metal prototypes support production planning?

Sheet metal prototypes help confirm bend geometry, flange clearance, assembly access, welding requirements, fastener positions, material thickness, stiffness, and finishing requirements before production dies or forming tools are built.
