Sheet metal fabrication transforms flat metal sheets into functional components through cutting, forming, joining, finishing, and inspection. It is used to manufacture precision brackets, electrical enclosures, machine guards, cabinets, chassis, panels, frames, and structural components for industries including automation, electronics, automotive, energy, medical equipment, and industrial machinery.
For product developers, OEMs, distributors, and manufacturers, a successful project requires more than a supplier that can cut and bend metal. It requires a manufacturing partner that can understand drawings, identify production risks, maintain tolerances, select suitable materials, manage finishes, and deliver consistent quality from prototype to repeat production.
U-Need provides integrated manufacturing support for custom precision parts machining, mold manufacturing, sheet metal fabrication, laser cutting, CNC bending, stamping, welding, and finishing coordination. From one-piece samples to scalable production, the goal is to make complex manufacturing projects more manageable and predictable.
Sheet metal fabrication is the process of converting flat metal stock into finished three-dimensional parts and assemblies. The process usually begins with a 2D technical drawing or 3D CAD model. The material is then cut, bent, formed, welded, assembled, inspected, and finished according to the product's functional and cosmetic requirements.
Common sheet metal fabricated products include:
- Electrical enclosures and control boxes
- Server cabinets and data-center racks
- Machine covers and safety guards
- Mounting brackets and support frames
- Automotive panels and structural parts
- HVAC ducts and metal housings
- Industrial cabinets, chassis, and trays
- Consumer-electronics housings
- Metal frames and welded assemblies
Unlike CNC machining, which removes material from a solid block, sheet metal fabrication primarily reshapes thin metal stock. This makes it an efficient option for lightweight parts with large surface areas, folded edges, holes, flanges, vents, and repeated geometric features.
Sheet metal fabrication supports a wide range of industries because metal components must often balance strength, durability, thermal performance, corrosion resistance, weight, appearance, and cost. The process is especially valuable when a design requires custom dimensions, moderate strength, repeatable assembly features, or a protective outer enclosure.

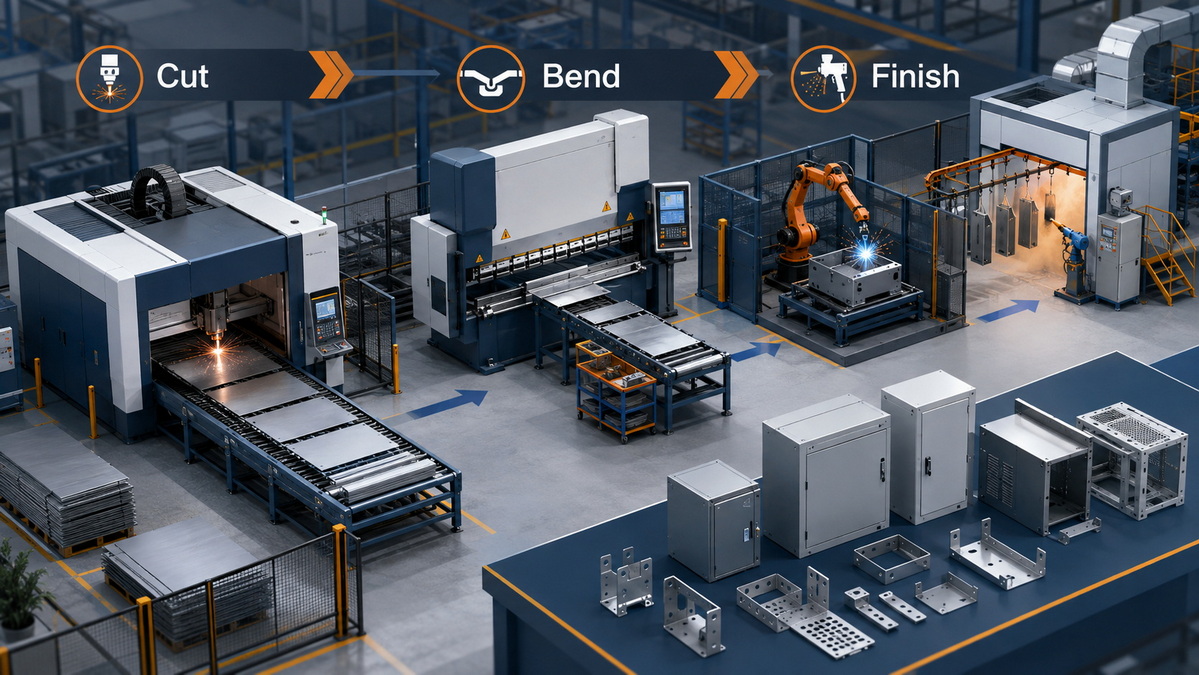

A finished part may require several manufacturing operations. The most suitable process route depends on the material, thickness, geometry, dimensional tolerance, order quantity, surface requirements, assembly method, and cost target.

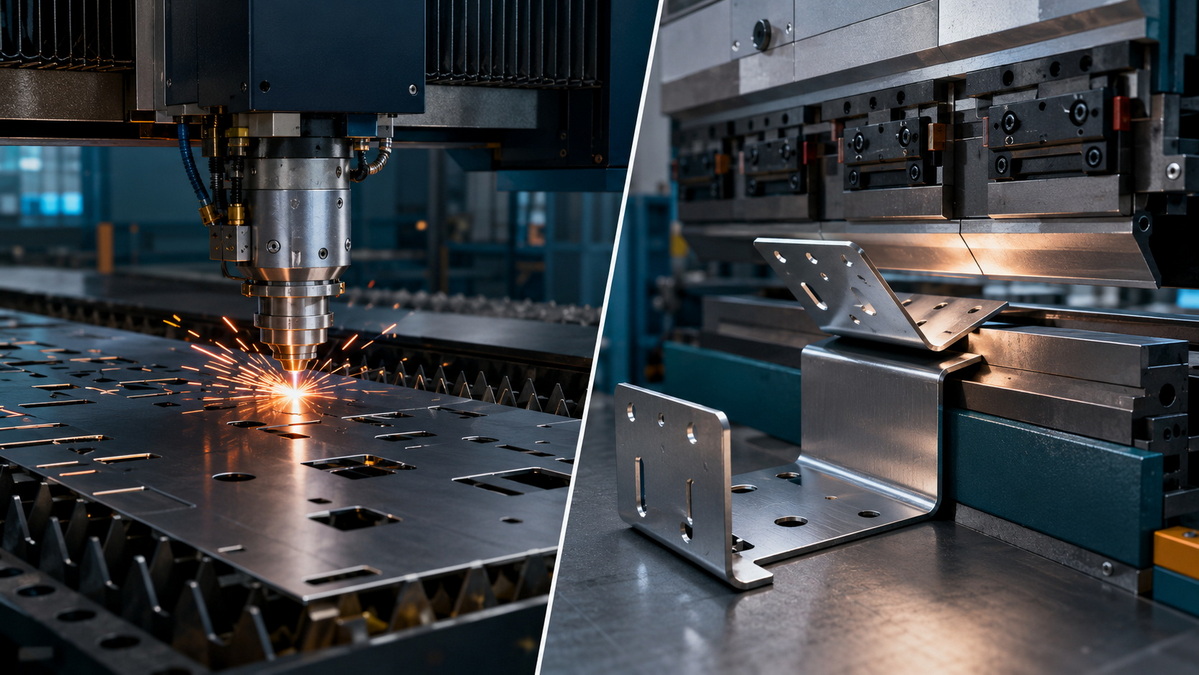

Laser cutting uses a focused laser beam to cut profiles, holes, slots, vents, and complex contours from flat metal sheets. It is highly flexible because it does not require a dedicated cutting die for every part design.
Laser cutting is particularly suitable for:
- Custom brackets and mounting plates
- Panels with complex cutouts or ventilation holes
- Prototype sheet metal parts
- Low- and medium-volume production
- Products that require frequent design updates
- Stainless steel, aluminum, carbon steel, and galvanized steel components
Laser cutting is commonly the first operation in a fabrication project. It creates the flat blank that will later be bent, welded, assembled, or finished.
For early-stage projects, laser cutting helps reduce risk because a design can be tested before expensive production tooling is created. It also allows manufacturers to make revisions more efficiently when dimensions, hole positions, or assembly features need adjustment.
CNC bending uses a press brake, punch, and die to form sheet metal into angles, flanges, channels, returns, trays, boxes, and other three-dimensional shapes. It is a core operation in the production of enclosures, cabinets, chassis, machine covers, and structural brackets.
Important factors that affect bending quality include:
- Material grade and thickness
- Bend radius
- Bend angle
- Material grain direction
- Flange length
- Tooling selection
- Springback behavior
- Part tolerance requirements
Springback occurs when a material partially returns toward its original shape after bending pressure is released. Different metals respond differently, so experienced operators and suitable tooling are important for maintaining consistent angles.
A well-designed bending process considers not only the final shape of the part but also the sequence of bends. Certain bends must be completed before others to avoid interference between the part and the press brake tooling.
Metal stamping uses a press and dedicated die set to blank, pierce, form, emboss, draw, or trim sheet metal parts. It is often the best production option for stable designs that require medium- or high-volume output.
Common stamping operations include:
- Blanking
- Piercing
- Coining
- Embossing
- Forming
- Drawing
- Trimming
- Progressive die stamping
Metal stamping can produce brackets, clips, electrical contacts, appliance parts, automotive components, metal covers, and other repetitive parts quickly and consistently.
The major advantage of stamping is its efficiency at scale. Once a die is properly designed, tested, and approved, it can produce large quantities of parts with consistent geometry and lower unit costs. However, stamping requires a higher upfront investment than laser cutting because tooling must be engineered and manufactured before production begins.
Many sheet metal parts need to be joined after cutting and forming. The joining method should be selected based on part strength, appearance, corrosion resistance, production volume, serviceability, and assembly requirements.
Common joining options include:
- TIG welding
- MIG welding
- Spot welding
- Stud welding
- Riveting
- Clinching
- PEM fasteners
- Bolts and screws
- Mechanical interlocks
- Adhesive bonding for selected applications
TIG welding is often chosen when a clean and precise weld appearance is important. MIG welding can be suitable for faster fabrication of thicker structural parts. Spot welding is widely used for joining overlapping sheet metal components, particularly in high-volume production.
Mechanical fasteners are useful when parts need to be removed for service, maintenance, or replacement. They can also reduce heat distortion that may occur during welding.
Surface finishing protects the part, improves appearance, supports corrosion resistance, and may provide additional functionality such as electrical conductivity, wear resistance, or identification.
Common finishing options include:
| Finish | Typical Applications | Main Advantages |
|---|---|---|
| Powder coating | Cabinets, frames, enclosures, machine guards | Durable, attractive, corrosion-resistant |
| Anodizing | Aluminum panels, housings, electronics parts | Improved corrosion resistance and appearance |
| Zinc plating | Steel brackets, hardware, fabricated components | Cost-effective corrosion protection |
| Electroless nickel plating | Precision parts and wear-sensitive components | Uniform coverage and good hardness |
| Brushing | Decorative stainless-steel panels | Clean and premium appearance |
| Polishing | Consumer products and visible metal surfaces | Higher visual appeal |
| Passivation | Stainless-steel components | Helps remove surface contaminants |
The finish should be selected early in the design process. Coating thickness, masking requirements, electrical grounding points, cosmetic standards, and exposure conditions can all affect the final result.

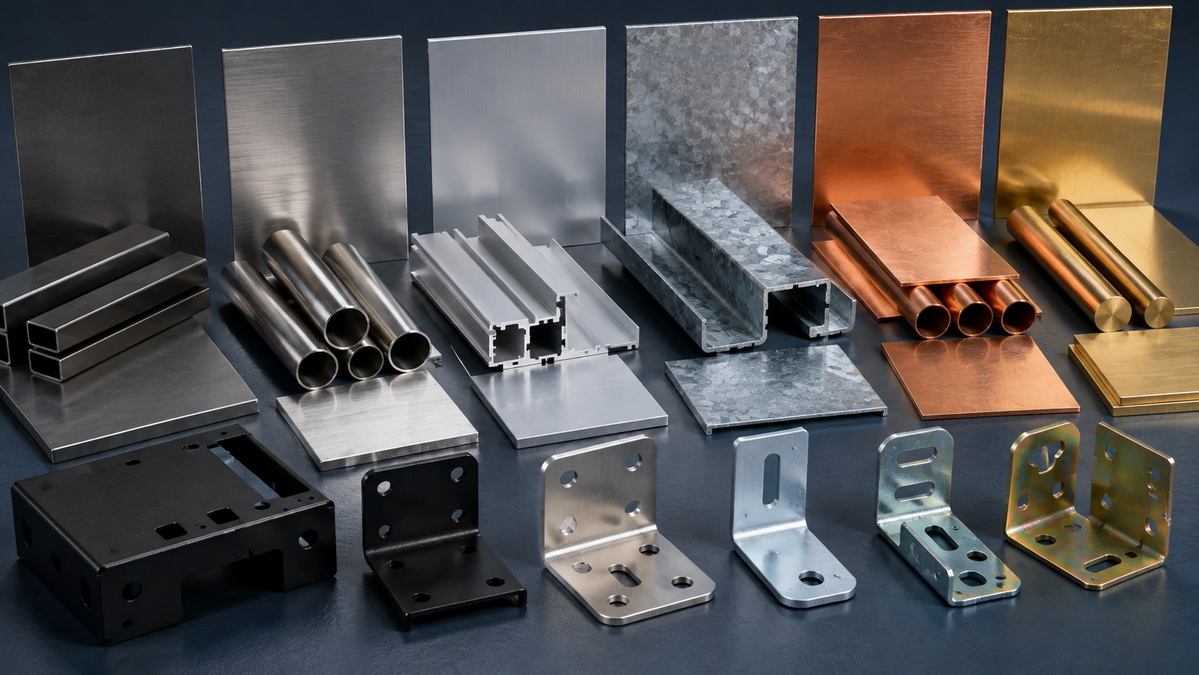

Material selection has a direct impact on cost, manufacturability, strength, corrosion resistance, weight, finish quality, and long-term product performance.
| Material | Main Characteristics | Typical Applications |
|---|---|---|
| Cold-rolled steel | Strong, economical, easy to form and weld | Cabinets, frames, brackets, machine parts |
| Stainless steel | Corrosion resistant, durable, hygienic | Medical devices, food equipment, outdoor applications |
| Aluminum | Lightweight, corrosion resistant, conductive | Electronics housings, transport equipment, panels |
| Galvanized steel | Steel with protective zinc coating | HVAC components, cabinets, outdoor metal parts |
| Copper | Excellent electrical and thermal conductivity | Busbars, electrical parts, thermal components |
| Brass | Decorative, corrosion resistant, machinable | Electrical fittings, hardware, decorative components |
Cold-rolled steel is a common choice for industrial enclosures and structural components because it offers a strong balance between cost and performance. It can be powder coated, plated, or painted to improve corrosion resistance.
Stainless steel is often selected when the part will be exposed to moisture, chemicals, regular cleaning, food-processing environments, or outdoor conditions. It can cost more than carbon steel, but its corrosion resistance may reduce long-term maintenance requirements.
Aluminum is valuable when weight reduction is important. It is widely used in electronics, transportation equipment, aerospace-related applications, and portable products. However, aluminum behaves differently during bending and welding, so design and process planning should reflect the selected alloy and temper.
Different manufacturing methods solve different product challenges. Selecting the right one early can reduce tooling investment, material waste, production time, and design revisions.
| Manufacturing Method | Best For | Typical Production Volume | Cost Considerations |
|---|---|---|---|
| Sheet metal fabrication | Panels, enclosures, brackets, frames, folded components | Prototype to medium volume | Flexible with relatively low upfront cost |
| CNC machining | Solid parts, tight-tolerance features, complex 3D geometry | Prototype to low-medium volume | Higher material removal and machining time |
| Metal stamping | Repetitive parts with stable geometry | Medium to high volume | Higher initial tooling cost, efficient unit cost at scale |
| Injection molding | Plastic housings and repeat plastic components | Medium to high volume | Mold investment required before production |
Many products require a combination of these processes. For example, an industrial control enclosure may use laser-cut and bent metal panels, CNC-machined mounting interfaces, stamped clips, injection-molded cable covers, and custom fastening hardware.
A coordinated manufacturing approach can reduce handoff errors between different production stages. It also makes it easier to manage design updates, material substitutions, inspection standards, and packaging requirements.
A better sheet metal design can often save more money than negotiating a lower unit price. Practical design decisions affect material usage, setup time, tooling complexity, assembly labor, quality consistency, and freight efficiency.
Where possible, use one material thickness for the same component. This simplifies sourcing, cutting, bending, inspection, and assembly. Mixed thicknesses can be necessary for specialized structures, but they often add production complexity.
Use bend radii that are suitable for the selected material and thickness. Extremely sharp bends can lead to cracking, distortion, or inconsistent forming results. Overly large bend radii can also affect final part dimensions and assembly fit.
Holes, slots, louvers, and cutouts placed too close to a bend can deform during forming. This may cause dimensional variation, stretching, cracking, or poor alignment.
A practical review should evaluate the distance between features and bend lines before production begins.
Tight tolerances should be applied only to dimensions that affect fit, function, sealing, alignment, safety, or performance. Specifying very tight tolerances across an entire drawing can increase manufacturing cost without adding practical product value.
A single bent part may sometimes replace several welded or fastened components. Reducing part count can lower assembly time, simplify purchasing, reduce inventory, and improve product consistency.
Consider how workers will access fasteners, welding joints, electrical components, and service areas. A part that is easy to fabricate but difficult to assemble or repair may create unnecessary downstream cost.
A controlled fabrication workflow helps reduce uncertainty between quotation and delivery. It also provides a structured way to identify design problems before they become expensive production problems.
Provide a 3D CAD model where possible, along with a dimensioned 2D drawing. Include material type, thickness, surface finish, quantity, tolerance requirements, welding details, threads, hardware, and any critical inspection points.
The engineering team reviews the design for cutting feasibility, bending sequence, tooling access, material behavior, weldability, finishing requirements, and potential cost drivers.
This review is especially important for new products, revised assemblies, high-appearance parts, and components with close tolerances.
The supplier should provide a clear quotation covering material, processing, tooling where required, finishing, inspection, packaging, and delivery arrangements.
Before confirming the order, align on the production route, sample requirements, quality criteria, and change-control process.
A prototype or first article allows the buyer to evaluate fit, form, finish, assembly compatibility, and critical dimensions before larger-scale production begins.
For complex projects, it is useful to review photos, dimensional reports, surface samples, and assembly feedback before approving production.
After sample approval, production can begin according to the confirmed drawing revision and inspection plan. Critical dimensions, visual standards, thread quality, weld appearance, coating quality, and packaging should be verified before shipment.
Production programs often evolve. A reliable manufacturing process should support controlled drawing revisions, repeat-order consistency, packaging optimization, and feedback-driven improvements.
The lowest quotation is not always the lowest total cost. Problems such as poor communication, delayed samples, inconsistent bending, missing inspection records, surface defects, and unclear responsibility can create significant cost after the order is placed.
When evaluating a fabrication partner, consider the following areas:
- Engineering support: Can the team identify manufacturability risks before production?
- Process coverage: Can the supplier coordinate cutting, bending, stamping, welding, finishing, and assembly?
- Quality planning: Can the supplier provide dimensional inspection and appropriate production documentation?
- Prototype support: Can you validate a low-risk sample before committing to volume production?
- Communication: Are technical questions answered clearly, accurately, and promptly?
- Production scalability: Can the supplier support both initial development and repeat-volume orders?
- Material and finishing options: Can the supplier source suitable metal grades and finish systems?
- Project visibility: Are drawings, revisions, tolerances, lead times, and quality requirements clearly documented?
For international sourcing, buyers should also consider packaging quality, shipping coordination, export documentation, language capability, response speed, and the ability to resolve quality issues through a structured process.
Modern product development often requires more than one manufacturing process. A single machine, enclosure, or equipment assembly may contain laser-cut panels, bent brackets, welded frames, CNC-machined interfaces, stamped clips, molded covers, and precision fasteners.
Managing multiple suppliers can create:
- More purchase orders and administrative work
- Higher risk of drawing-version errors
- Longer communication cycles
- More shipping and logistics coordination
- Unclear responsibility when components do not fit together
- Slower response to engineering changes
An integrated manufacturing partner can help simplify these interfaces by coordinating related processes under a more unified project structure.
U-Need supports custom precision parts machining, mold manufacturing, sheet metal fabrication, laser cutting, bending, stamping, and production coordination. This combination can be useful for buyers who need more than a single fabricated component and want a practical path from early samples to repeat production.
Sheet metal fabrication is a versatile manufacturing method for producing strong, lightweight, functional metal parts. By combining laser cutting, CNC bending, stamping, welding, assembly, and finishing, manufacturers can create everything from simple brackets to complex industrial enclosures and multi-part assemblies.
The best results come from early material selection, practical part design, clear technical drawings, thoughtful tolerance control, and a fabrication partner that can identify risks before production starts.
For custom metal enclosures, brackets, chassis, cabinets, welded frames, stamped parts, and integrated precision-manufacturing projects, U-Need can support the process from initial drawings and sample development through production planning, inspection, and repeat delivery.
Sheet metal fabrication is used to produce enclosures, brackets, chassis, panels, cabinets, frames, guards, HVAC components, electrical boxes, industrial equipment parts, automotive components, and structural assemblies.
Common materials include cold-rolled steel, stainless steel, aluminum, galvanized steel, copper, and brass. The right material depends on strength, weight, corrosion resistance, electrical conductivity, appearance, budget, and finishing requirements.
Laser cutting is more flexible for prototypes, small batches, and designs that may change. Metal stamping is often more cost-effective for stable designs produced in medium or high volumes because it can manufacture repetitive parts quickly after tooling is approved.
You can reduce cost by using standard materials, keeping material thickness consistent, avoiding unnecessary tight tolerances, using practical bend radii, reducing the number of separate parts, simplifying welding requirements, and reviewing the design before production.
A 3D CAD file such as STEP, IGES, or Parasolid is preferred, along with a dimensioned 2D PDF drawing. Include material grade, thickness, surface finish, quantity, tolerance requirements, threads, hardware, welding details, and inspection requirements.
Sheet metal fabrication reshapes flat metal sheets through cutting and forming. CNC machining removes material from a solid block or bar. Fabrication is generally better for panels, enclosures, and folded parts, while machining is suitable for solid parts with precision holes, pockets, and complex three-dimensional geometry.
Yes. A manufacturing partner with multiple capabilities can coordinate CNC-machined parts, injection molds, stamping dies, cold-forging dies, laser-cut parts, bent sheet metal components, finishing, and assembly support. This can reduce supplier-management complexity for multi-component products.
